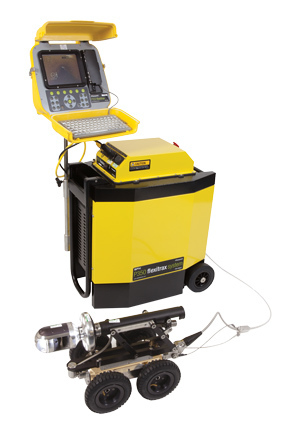

The P350 flexitrax crawler inspection system from Pearpoint/SPX features the transportability of a pushrod system with the functionality and performance of a crawler. The weatherproof modular unit, including command module, drum and crawler, has an operating range of 14 to 122 degrees F to meet the requirements of most inspection environments.

“It’s designed to be a very rugged, weatherproof unit,” says Ronald Brewer, national sales manager. “Our crawlers are IP68 rated and can operate even fully submersed.”

The brass and stainless steel non-steerable P354 crawler (12 pounds, 9.2 by 3.2 by 2.7 inches) can inspect 4- to 12-inch manholes and pipes, while the steerable P356 crawler (31.5 pounds, 13.6 by 5 by 3.3 inches) can inspect pipes from 6 to 24 inches in diameter. Powered by 50-watt (P354) and dual 50-watt (P356) motors, the crawlers are available with quick-release wheels and hard or soft tires, as well as grit finish for inspection in PVC pipes. Wheels can be changed in the field by removing one screw and are available in 2-, 3-, 4- and 6-inch sizes.

The crawler system is available in six packages that range from the basic control module, drum and smaller crawler to the platinum package that includes both crawlers, full set of wheels, Plumbers pushrod camera and locator.

Digital control features include ultra-bright LED 8-inch industrial grade TFT screen with anti-reflective protection, splash-proof keyboard, real-time digital zoom and picture navigation, and one-touch control for video or photo capture. The USB 2.0 port (video/audio in/out, Ethernet, Bluetooth) enables files to be transferred to a PC or laptop for editing with FlexiSight software (reports can be converted to Microsoft Word format). Developed for continuous operation and easy maintenance, the main modular components are fully interchangeable.

A re-termination field repair kit enables cable repairs to be made using a single set of Allen or hex key wrenches for reduced downtime.

Stainless steel camera choices include forward view (1.3 pounds, 2.4 inches long and 2.7 inches in diameter), pan and tilt (4 pounds and 5.3 by 2.7 inches) or pan and tilt (6.4 pounds, 6.2 by 3.5 inches) with 10X optical zoom.

Drum options include manual (39.7 to 64 pounds, depending on cable length; 17.5 by 10.6 by 22.4 inches) or powered (130 to 154 pounds, 24.9 by 16.2 by 29.1 inches). Accessories include pendant controller, grab tool for quick and safe deployment and retrieval, elevator and light head (850 lm).

The control unit is fully compatible with the P340 flexiprobe pushrod system, enabling users to switch from crawler to pushrod inspection. Crawlers are rated IP68 to 330 feet with inclinometers and multi-frequency sondes. Cable lengths range from 330 to 825 feet.

The P350 command module weighs 12 pounds and measures 14 by 14 by 8 inches. Light in weight compared to a mainline system, the entire system fits in the trunk of a car or can be mounted in a van or truck and wheeled on site.

“We call the flexitrax P350 our mini mainline,” Brewer says. “Rather than a box vehicle, it can fit into an SUV, for example. And that can save tons of money on gas. We can even fit it into an ATV for inspection in very remote areas.” 800/688-8094; www.pearpoint.com.
