Inspection Cameras/Camera Accessories

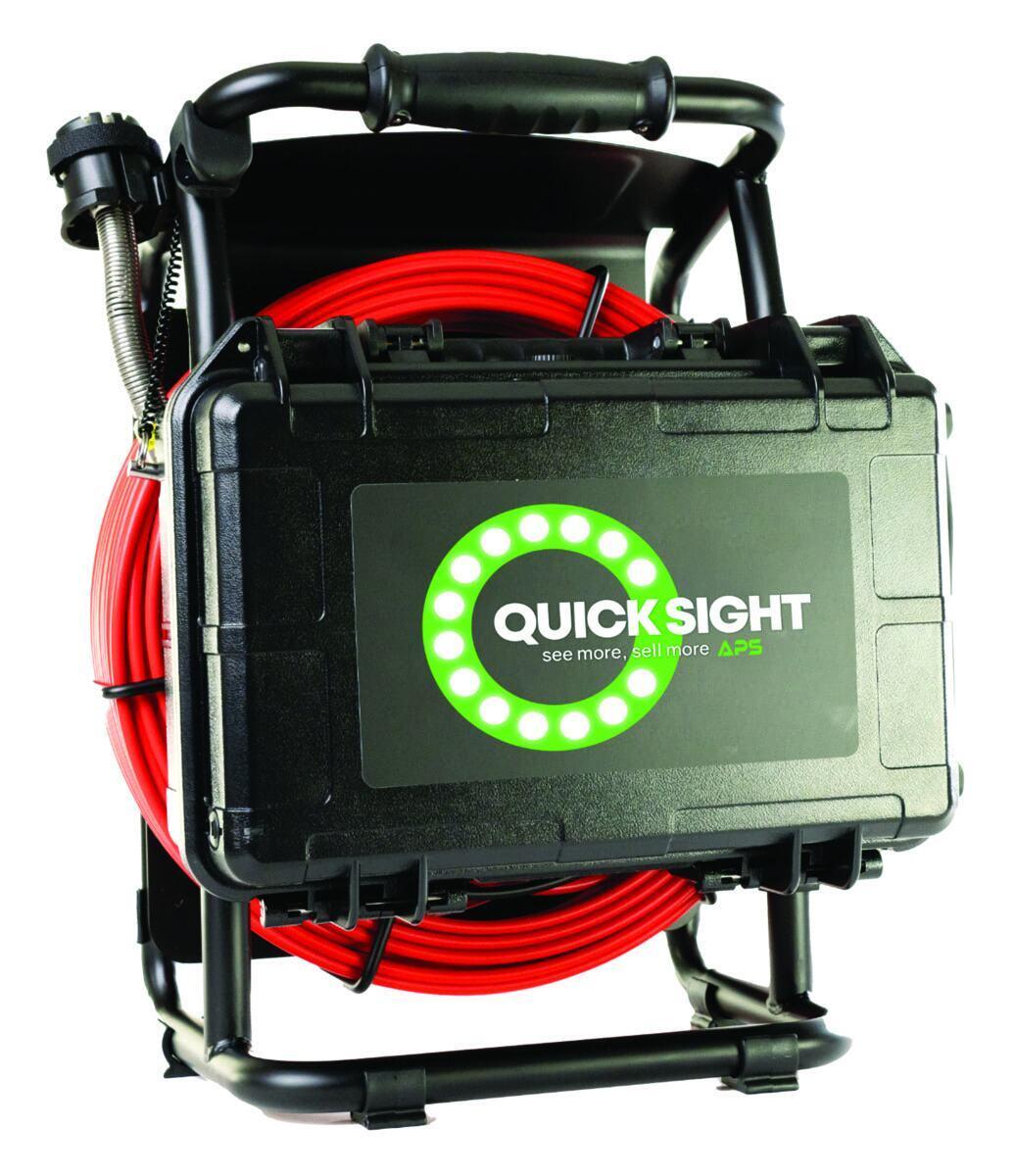

American Pipelining Solutions Quick Sight Inspection Cameras

Quick Sight Inspection Cameras from American Pipelining Solutions deliver dependable performance in a cost-effective, easy-to-maintain package. Each unit includes a 130-foot pushrod, a 10-inch HD screen and onboard recording via SD card. Camera head options include an 18 mm fixed head (QS20), a 23 mm fixed head (QS40R) and a 23 mm self-leveling head (QS40RSL), providing options for various pipe sizes and job requirements. All models come standard with a 512 Hz sonde and an integrated footage counter for accurate distance tracking and locating. Systems are field-serviceable, and many common repairs can be made on site without specialized tools. This modularity helps reduce long-term service costs and keeps your equipment working longer. 888-258-9359; www.americanpipeliningsolutions.com

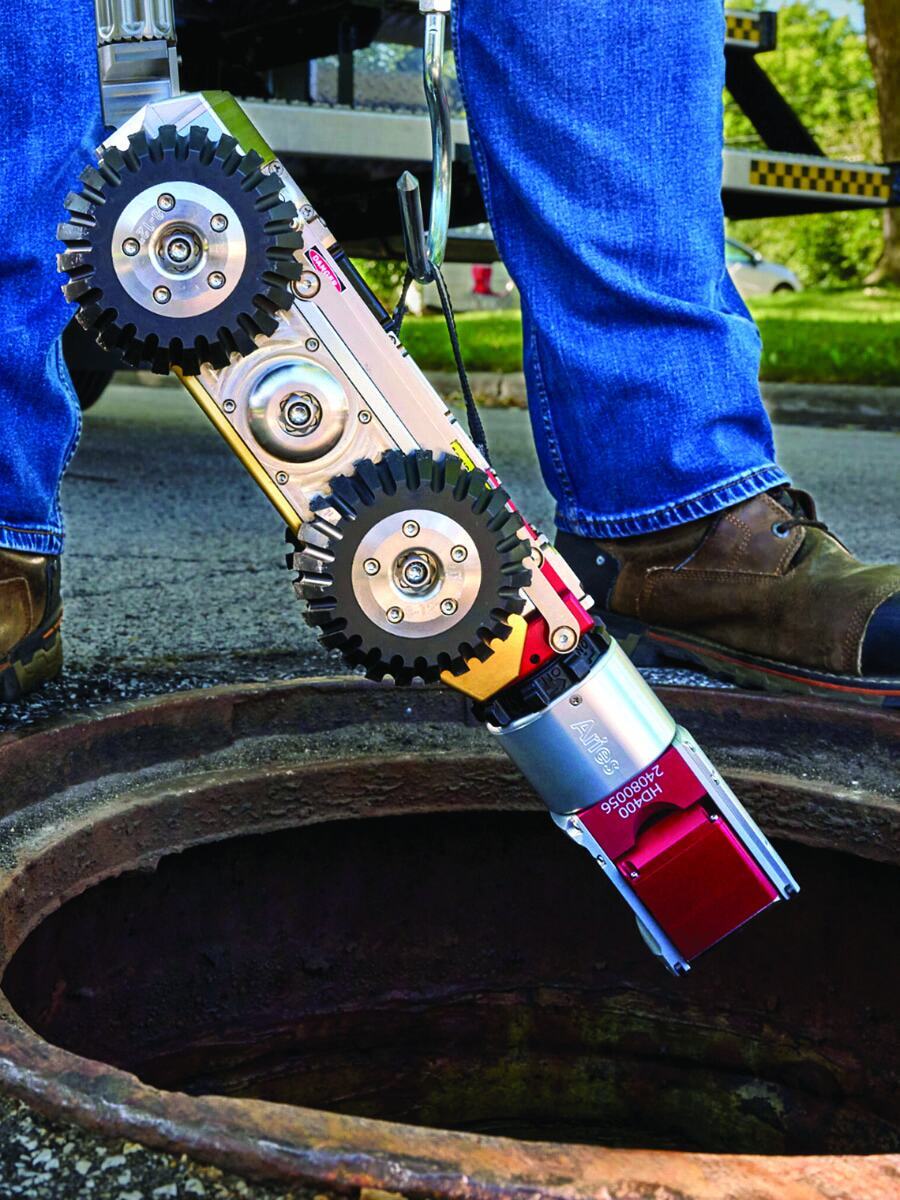

Aries Voyager HD Mainline Inspection System

The Voyager HD Mainline Inspection System from Aries delivers high-definition clarity for inspecting relined pipes ranging from 6 to 72 inches. Designed for precision and efficiency, the system includes a powerful all-wheel-drive transporter, a pan-and-tilt 1080p HD WiperCam camera with 120x zoom and a 1,200-foot cable reel. Digital CANbus controls ensure instant response to operator commands, whether using the dual joystick desktop controller or the reel-mounted handheld pendant. Features include a motorized camera lift, rear-view HD camera, tool-less camera and cable attachment, and auto-drive/auto-retrieve functions. The camera’s built-in lens wiper provides clear visuals even in debris-filled environments. With multiple wheel configurations and customizable transport options, the system is built for access and adaptability. Additional safety features include rollover risk alerts, seal integrity monitoring and crawler roll-angle display. 800-234-7205; www.ariesindustries.com

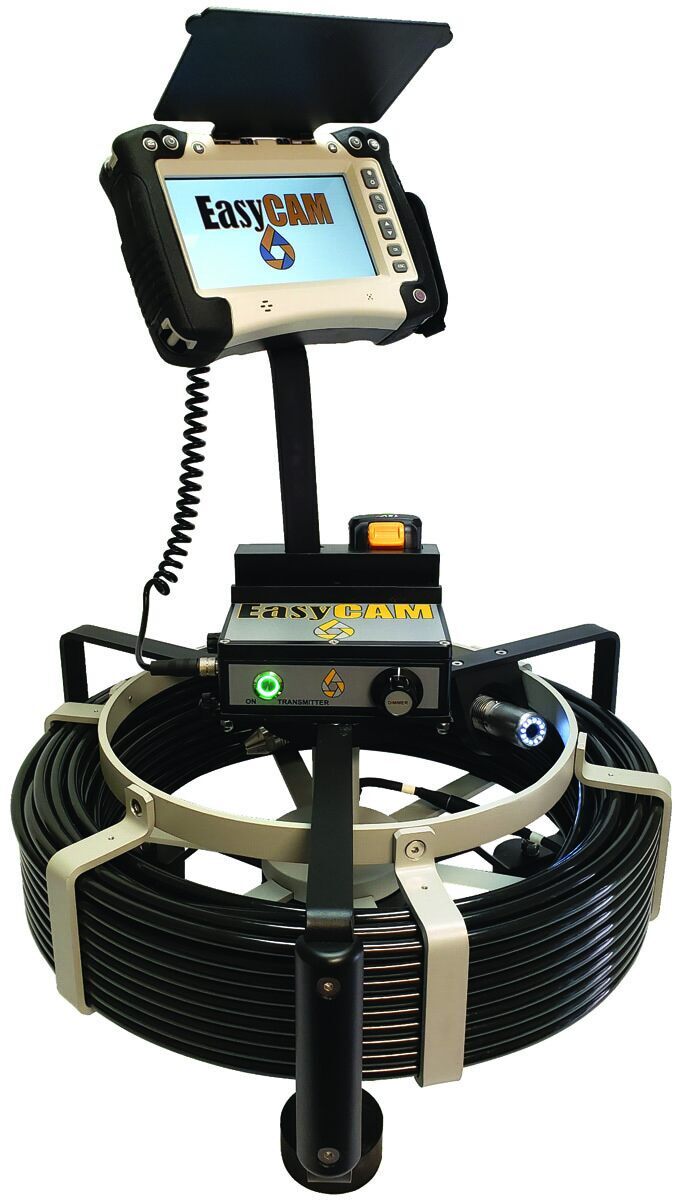

EasyCAM Sewer Cameras SL125

The EasyCAM Sewer Cameras SL125 is designed to work in 2-inch PVC drain and 3- and 4-inch sewer pipe. Its full-color, self-leveling camera head is 30% brighter than previous models, producing a crisp and clear image. A footage counter, detachable recordable monitor and onboard Wi-Fi using a free app are all standard. It is powered by a rechargeable DEWALT lithium-ion battery pack and can adapt to use Milwaukee batteries as well. The system can be matched with the EasyCAM EC-RK Repair Kit, which includes all the major components needed to do a field repair. 239-260-2056; www.easycamllc.com

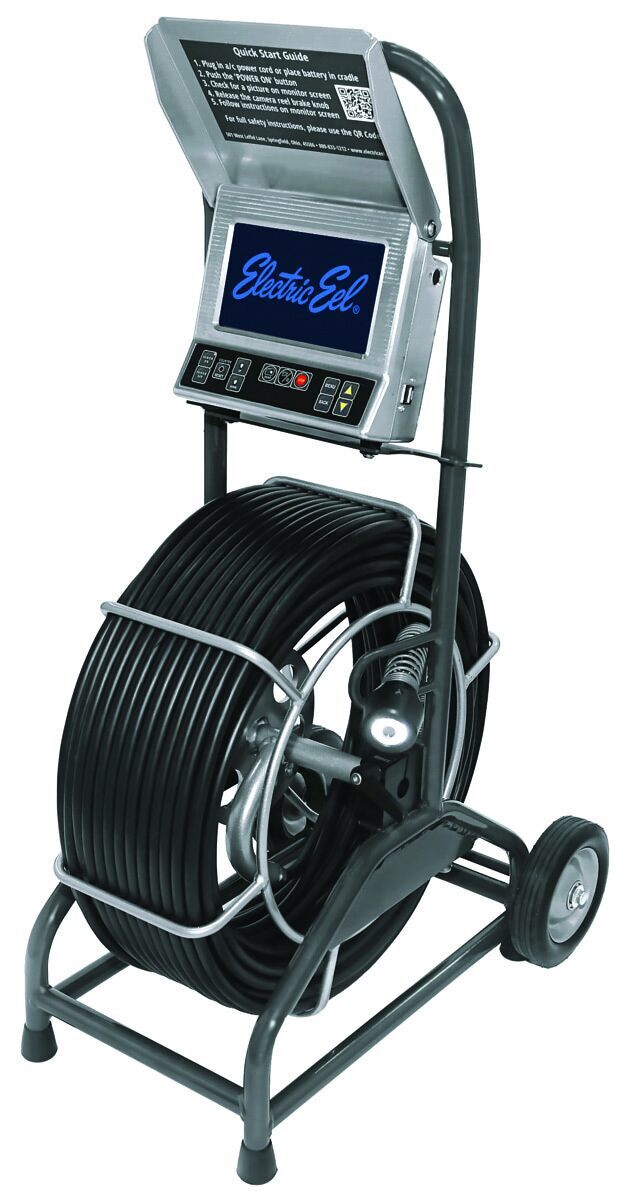

Electric Eel EELvision Elite

The EELvision Elite inspection camera from Electric Eel is ideal for inspecting 3- to 10-inch-diameter lines. It has a 1 1/3-inch self-leveling color camera with vivid, adjustable LED lights and a large 7-inch monitor for easy viewing. A sunshield allows for outdoor viewing and protects the monitor in transport. It comes standard with 200 feet of 1/2-inch-diameter premium pushrod, an on-screen footage counter, continuous-display odometer, one-touch recording to a USB and screenshot capability, an extended ergonomic handle to facilitate maneuverability and transport, a heavy-duty metal frame and wheels, a user-friendly control panel, quick-start guide tutorial prompts, QR code for manual and support accessibility, a built-in always-on sonde, dual power sources (AC and battery) and a Makita battery port. It also accepts both Milwaukee and DEWALT batteries with a provided adapter. 800-833-1212; www.electriceel.com

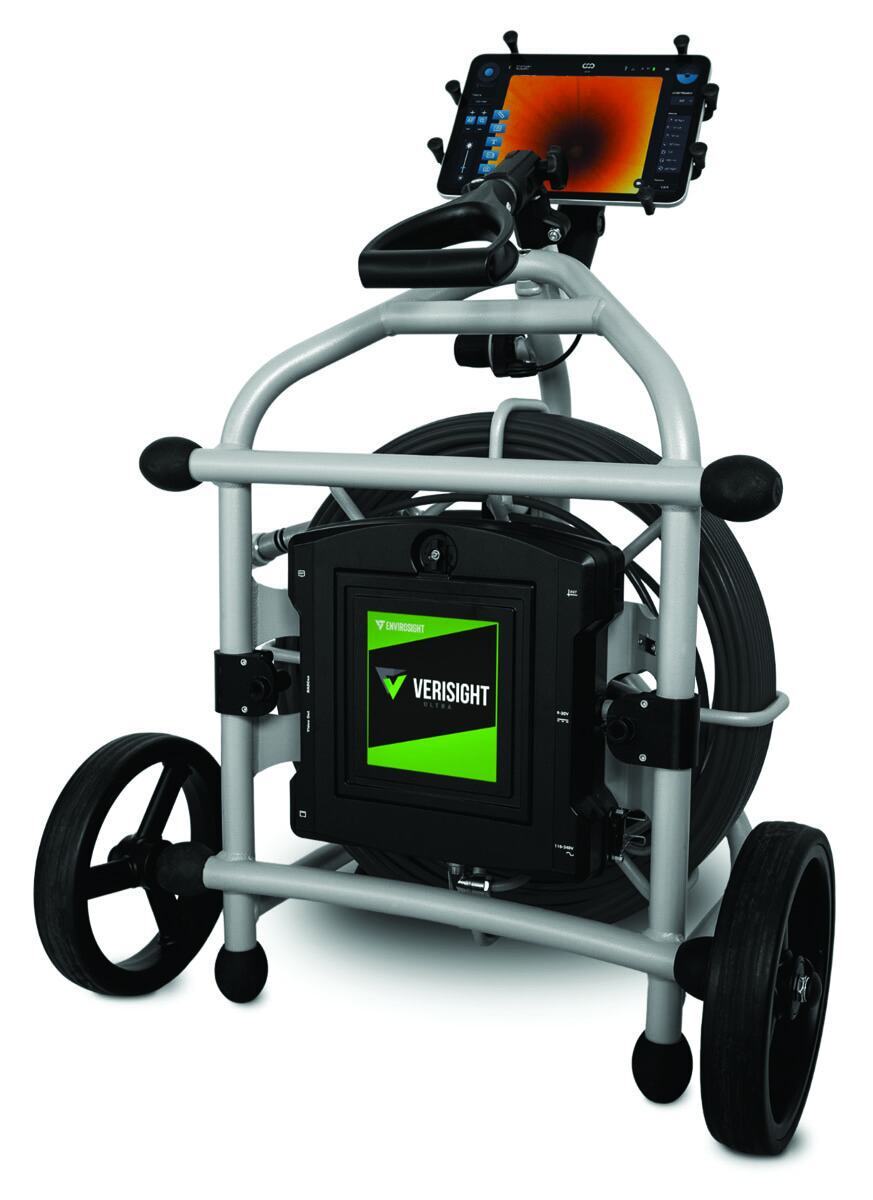

Envirosight Verisight Ultra

The Verisight Ultra from Envirosight simplifies workflows while delivering exceptional image quality. It includes a 1080p full HD touchscreen monitor, which records hi-def video and photos to enable quick and accurate identification of blockages, defects and other issues that may compromise the functionality and safety of underground pipelines. Self-leveling pan-and-tilt advanced camera control options are available. It also has a compact and lightweight design for easy maneuverability through tight spaces and uneven terrain. The system provides the ability to perform inspections standing up or on its side for added versatility on uneven ground. It offers the choice of 200 or 330 feet of “built for distance” cables. 866-936-8476; www.envirosight.com

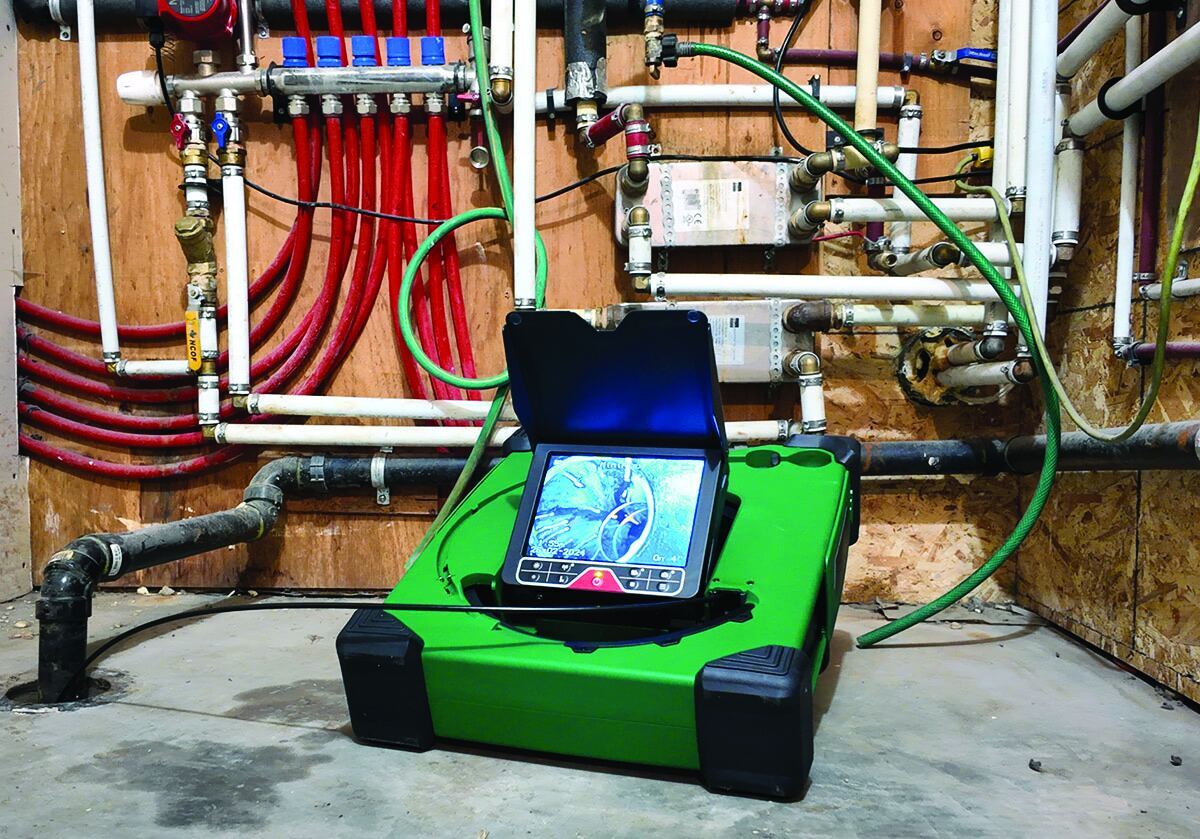

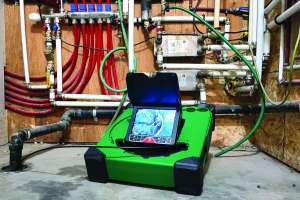

Fiberscope.net by MEDIT MiniFlex

The MiniFlex from Fiberscope.net by MEDIT is a plumbing inspection camera designed for ultimate portability and maneuverability in small-diameter pipe inspections. Its Flexi-Tube neck allows the camera to navigate multiple 90-degree bends and P-traps in 1 1/4-inch pipes with ease. Ideal for inspecting kitchen and bathroom drains, pools, spas, hot tubs, showers, sprinkler lines and narrow industrial machinery, it handles jobs other cameras can’t. The system boasts a flexible yet rigid push cable that is up to 130 feet in length. Its stainless steel, waterproof camera head features LED illumination and a built-in 512Hz sonde for precise locating. A vibrant 8-inch touchscreen displays live video, which can be recorded to an SD card. Additional features include an on-screen text generator, footage counter, slope meter and a rechargeable battery, providing up to seven hours of portable use. 877-613-2210; www.fiberscope.net

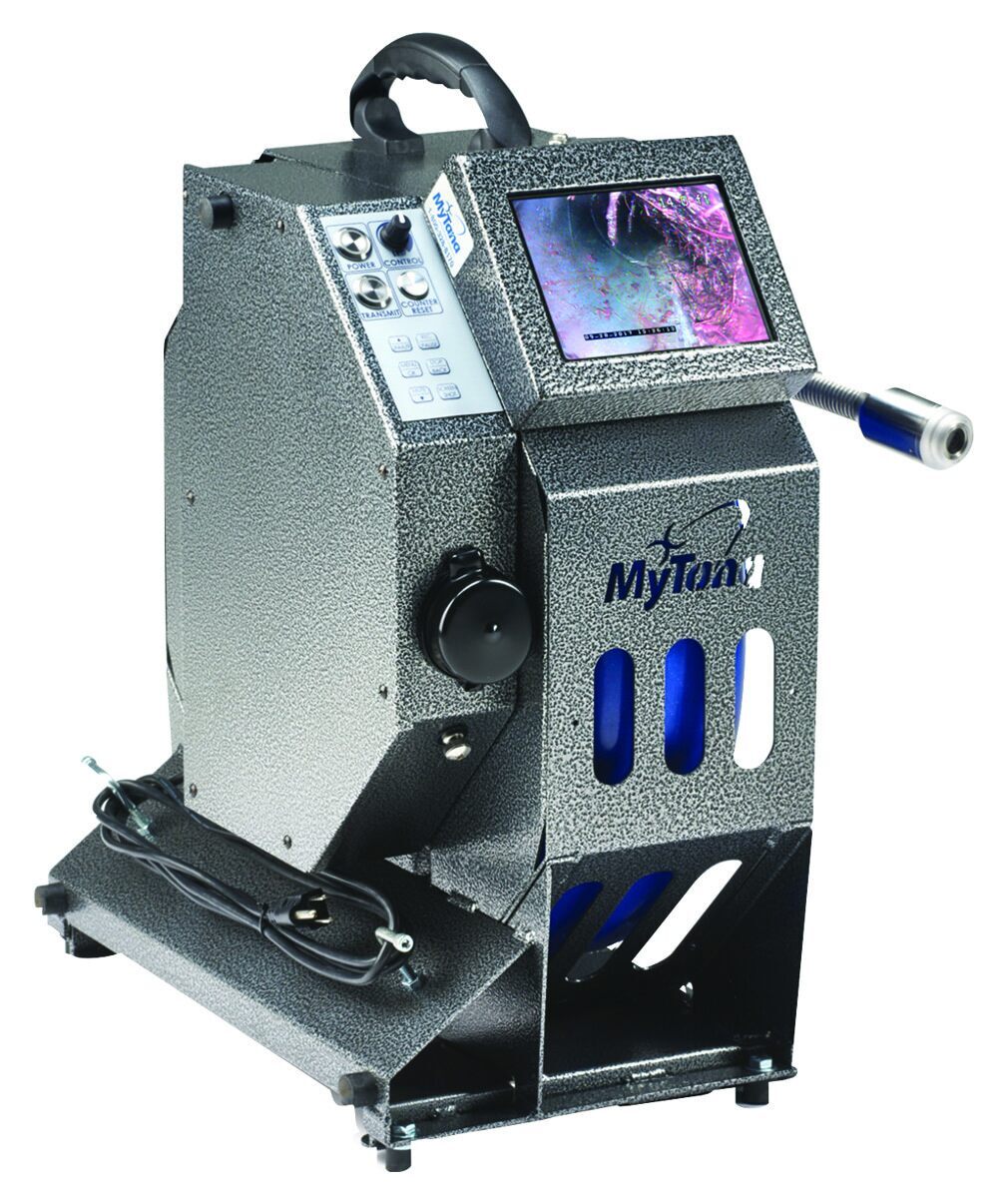

MyTana MS11-NG2

MyTana’s MS11-NG2 inspection system inspects 3- to 6-inch lines, delivering clear imagery and footage. A high-clarity, 6.4-inch daylight-readable monitor and all the controls are integrated on the rugged reel frame for grab-and-go convenience — helpful when access points are scattered or hard to reach. Save footage to internal or removable drives, or stream video wirelessly to a mobile device and add voiceover using the built-in microphone. The 200-foot durable pushrod resists kinking but can be replaced in your facility if needed. A 512 Hz transmitter is built into the camera head. It is powered by a long-lasting, rechargeable lithium-ion battery. Add the optional MS11+ Combo Kit to inspect 1 1/2- to 2-inch lines. 800-328-8170; www.mytana.com

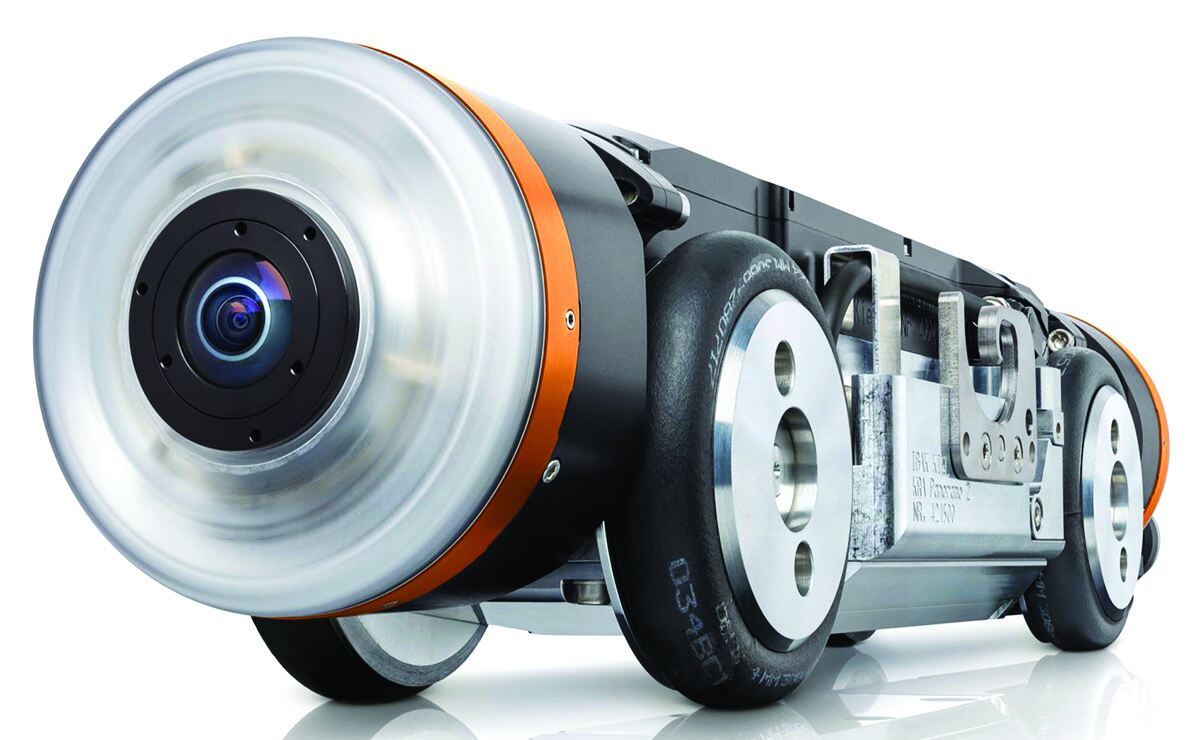

RapidView IBAK North America PANORAMO 4K

The PANORAMO 4K from RapidView IBAK North America captures everything as it moves, with twin 185-degree cameras simultaneously capturing sharp 4K images at speeds up to 69 feet per minute. Collect all the data in the field, then analyze it back in the office. There’s no need to make decisions on the fly. The technology is designed to have fewer moving parts than traditional inspection systems, which translates to fewer breakdowns and more production. It offers three distinct views for analysis (360 degree, unfolded and geometric), high image quality and an increase in efficiency. On average, crews can inspect more than twice the amount of pipe per day. 800-656-4225; www.rapidview.com

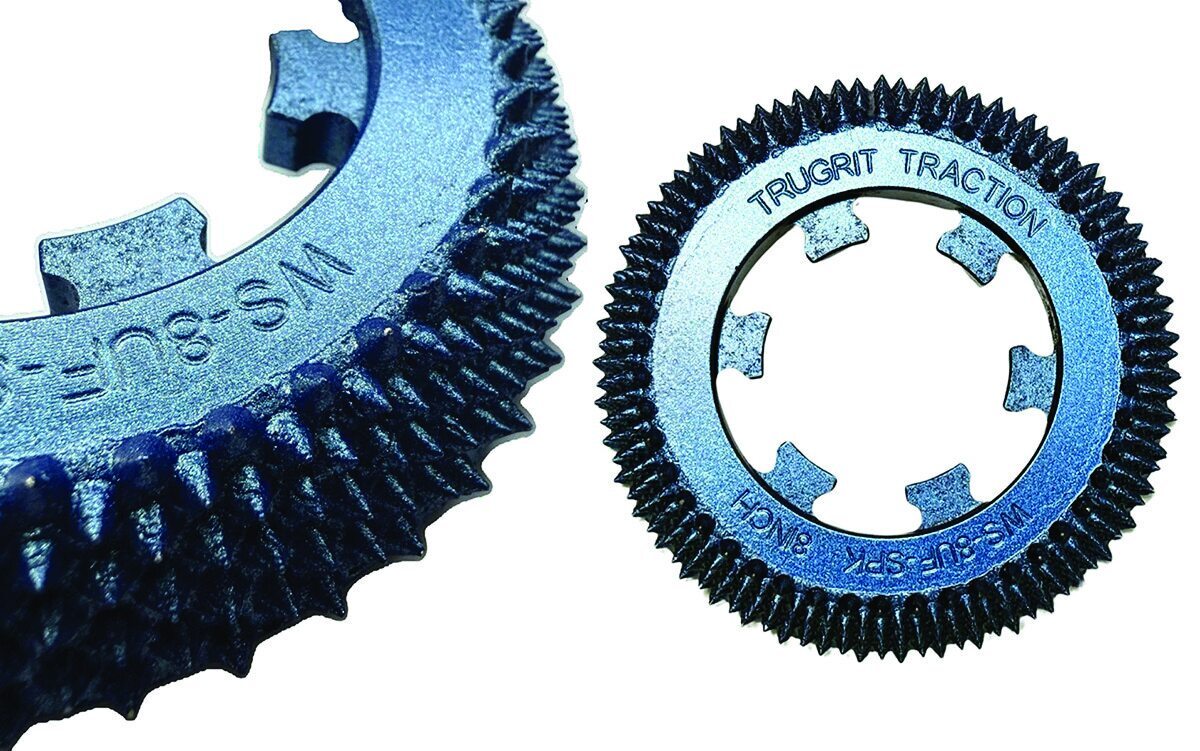

TruGrit Traction Spyke

The TruGrit Traction Spyke is a solid steel, carbide-spiked camera crawler wheel designed to fit multiple transporter brands. Built for maximum traction and durability, it is engineered to perform in the most demanding pipe conditions. Thanks to its custom reusable hub adapters, it fits perfectly on most camera transporters, regardless of brand. Once you’ve purchased the adapters, you’ll never need to buy them again — just replace the wheels as needed. If you already own TruGrit adapters, the Spyke is ready to install. It is compatible with CUES, Aries, Envirosight (standard and quick-change hubs), IBAK, Schwalm, Mini-Cam and RST/Subsite cameras. 407-900-1091; www.trugrittraction.com

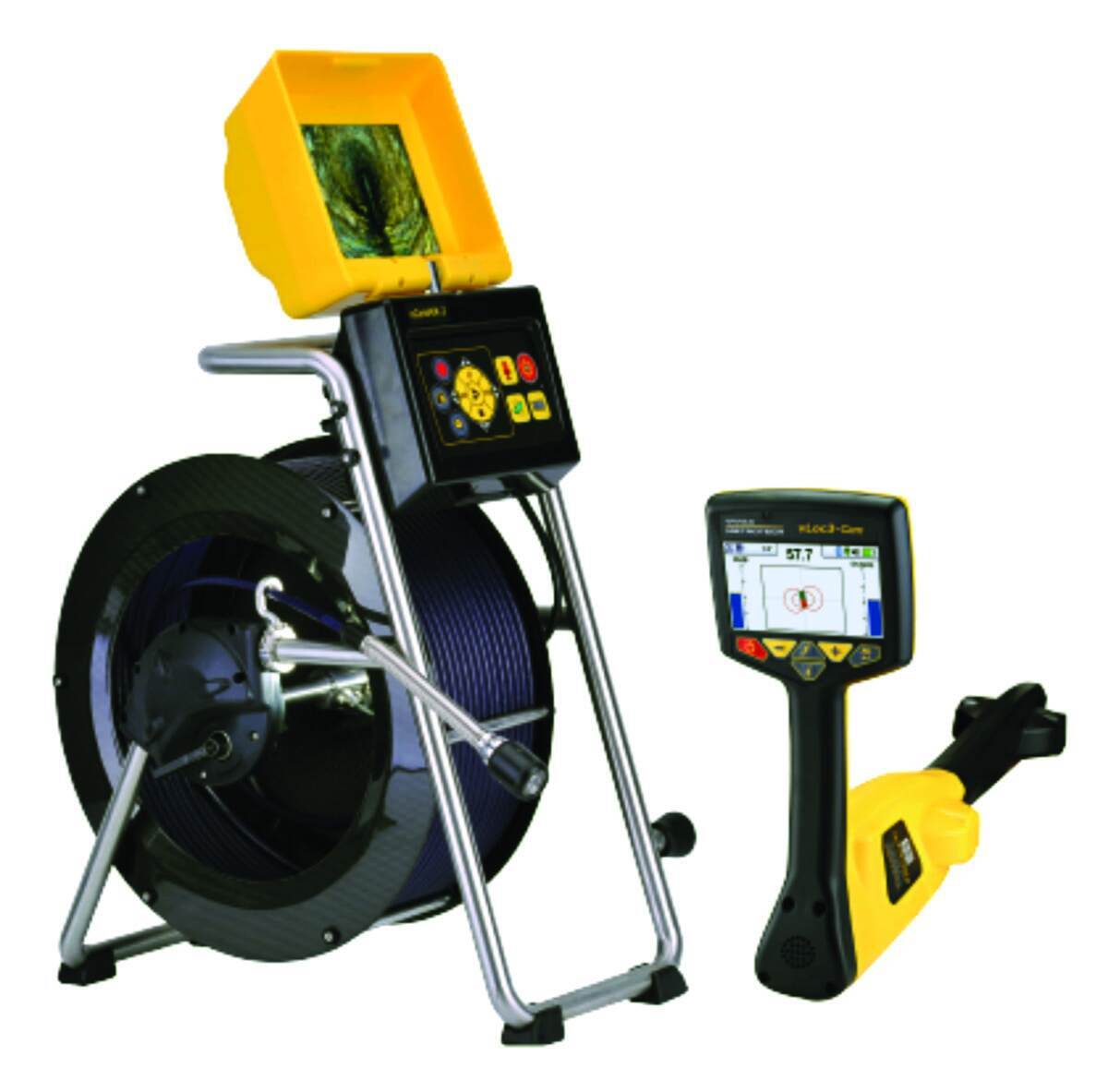

Vivax-Metrotech vCamMX-2+

The vCamMX-2+ from Vivax-Metrotech is a portable, all-in-one camera designed for inspecting pipes with diameters ranging from 2 to 4 inches. The control module’s 8-inch daylight-viewable LCD shows the pushrod’s deployed distance and the current time and date. The 512 Hz frequency sonde is standard equipment. The internal rechargeable battery provides seven hours of battery life. Recordings are made in MP4 video and pictures in JPG format directly to a USB thumb drive, then instantly backed up to an SD card. The internal microphone allows for audio commentary over recorded video. The free VMC app allows for instant file sharing from a tablet or smartphone. The reel comes with 100 or 200 feet of semi-stiff pushrod, which is traceable using an external locator transmitter. The system comes with a 1-inch self-leveling camera head, with a smaller 18 mm head available as an option. 800-446-3392; www.vxmt.com

Inspection Vehicles

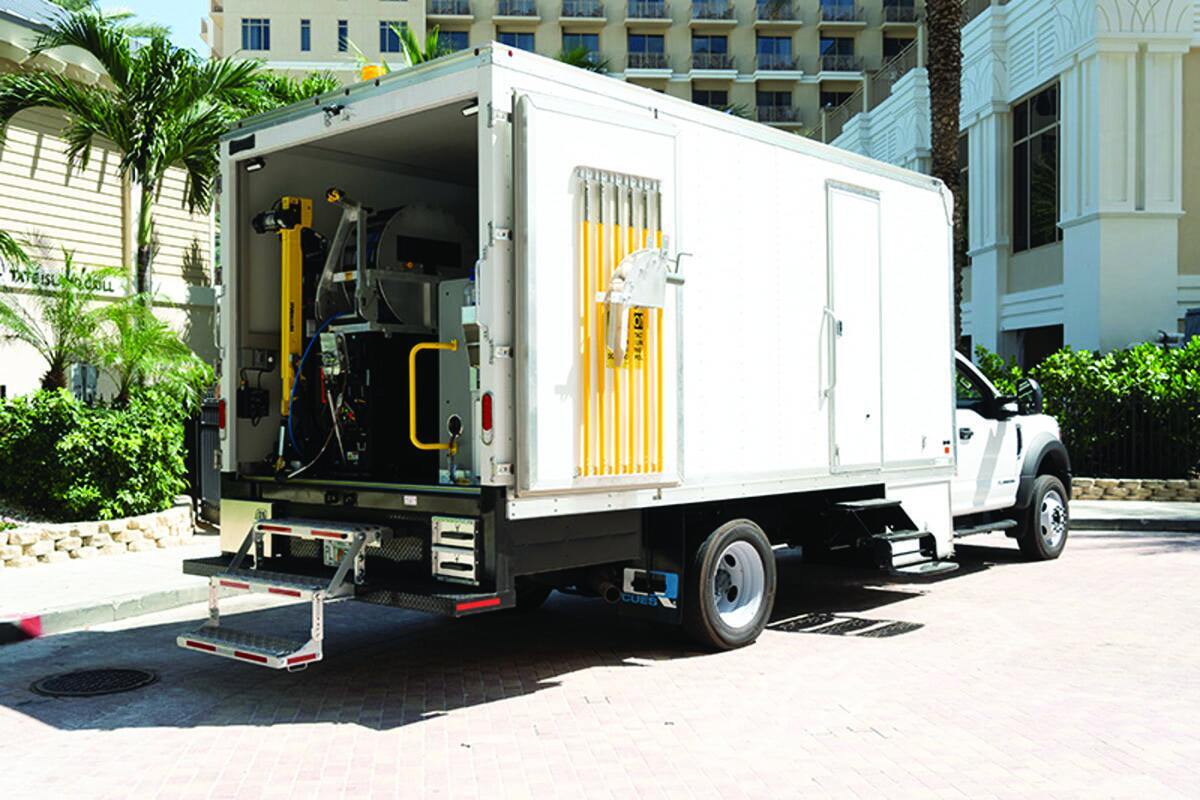

CUES pre-built truck

For municipalities and contractors needing a lateral/mainline or mainline inspection truck fast, CUES pre-built trucks are available. They are always in stock and on the lot. They’re preconfigured with all essential CUES inspection equipment needed for most jobs and can be delivered in a fraction of the time. CUES can deliver truck(s) three to four weeks from purchase, and often sooner if accessories are in stock. They come with both lateral and mainline capabilities, all in one truck, or are available as a mainline-only truck. GraniteNet is also an option for all trucks, and the license can be transferred to the next pre-built truck. 800-327-7791; www.cuesinc.com

Smoke Testing

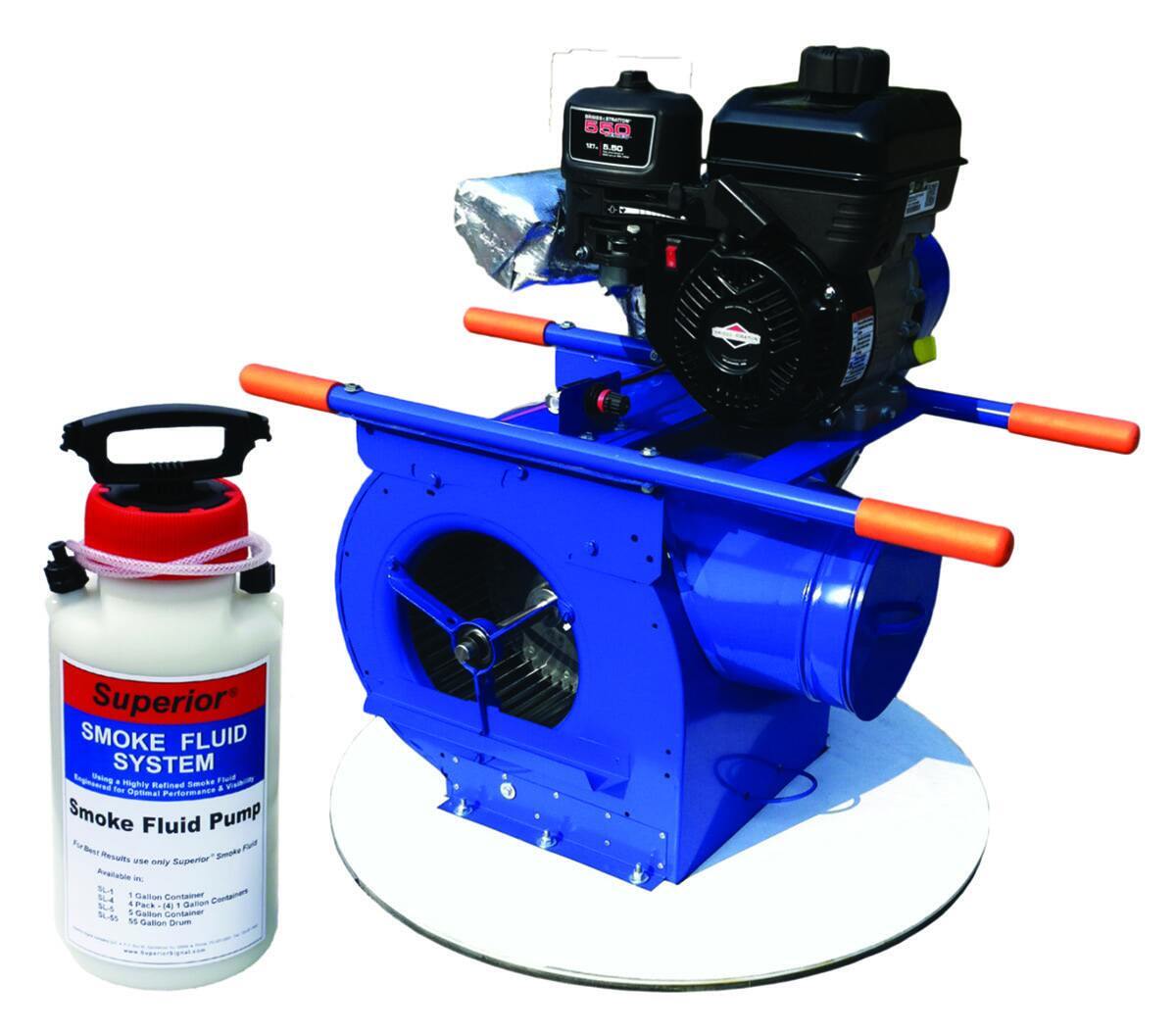

Superior Signal 25-L High Output Smoke Fluid System

The Superior Signal 25-L High Output Smoke Fluid System combines an efficiently designed smoke fluid system with a blower output of 4,000 cfm of smoke at 4.0 static pressure, more than double the normal output, to push smoke through larger systems requiring greater volume and pressure. It fits all standard manholes and contains a second accessory nozzle for blowing smoke into pipes and other nonstandard openings. The smoke-testing technique is used to find leaks in plumbing, drain, vent and collections systems. 732-251-0800; www.superiorsignal.com

Sonar Profiling

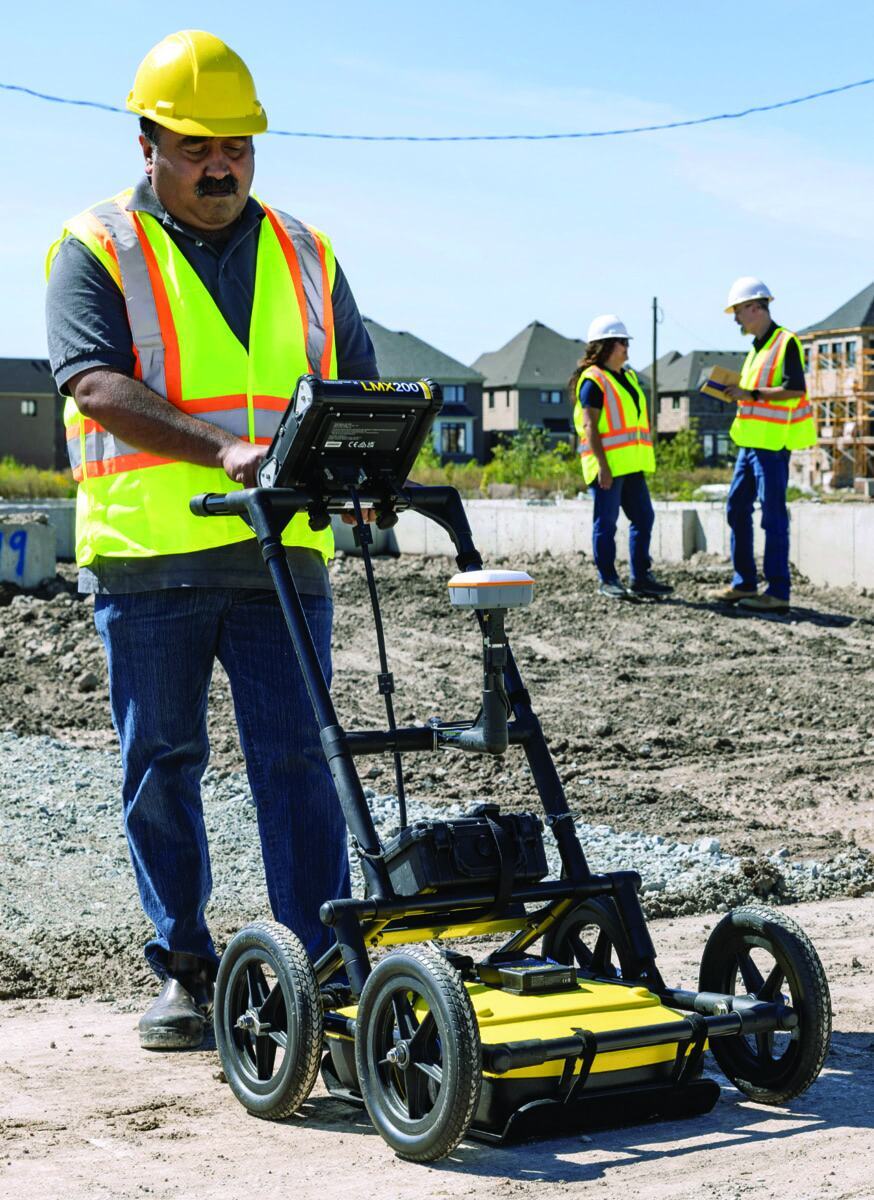

Sensors & Software LMX200-SG

The LMX200-SG (Survey Grade) from Sensors & Software integrates the LMX200 GPR system with a plug-and-play GNSS accessory for accurate positioning in utility mapping applications. It detects and maps metallic and nonmetallic utilities, underground tanks and no-utility structures. The system includes a preconfigured Juniper Geode GNSS receiver offering 30 cm RMS accuracy (with SBAS). The RTK upgrade enables 20 cm RMS (with Galileo HAS) or 1 cm RMS (with RTK corrections, not included). GNSS data is logged at 10 Hz and fully integrated with GPR data, simplifying field collection and post-processing. Power is supplied from the GPR system battery, eliminating the need for separate GNSS battery management. It is compatible with EKKO_Project software for data analysis and export. 800-267-6013; www.sensoft.ca
