CIPP EQUIPMENT AND MATERIALS

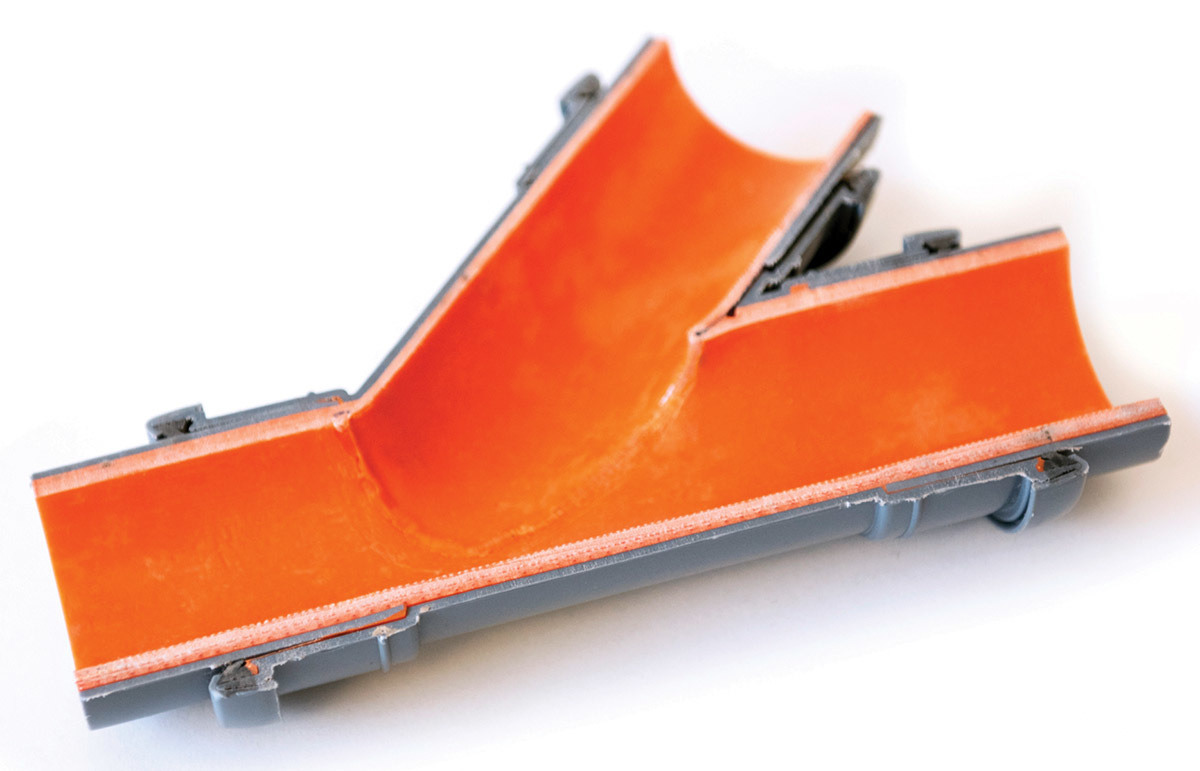

1 // AMERICAN PIPELINING SUPPLIES HOUSELINER CIPP

Houseliner CIPP lining materials from American Pipelining Supplies are designed to be highly flexible and provide a virtually wrinkle-free finish around multiple bends up to 90 degrees. The material also has the ability to transition in pipe size while maintaining the proper length and thickness of most traditional 3D and 4D liners. These high-performance liners are designed to be combined with Houseliner epoxy resin, which is available in a range of curing options. The epoxy resin is high quality and provides a finished product with several container options available for any size project. All liners and resins have been extensively tested for performance, chemical resistance and life expectancy. 888-258-9359; www.americanpipeliningsupplies.com

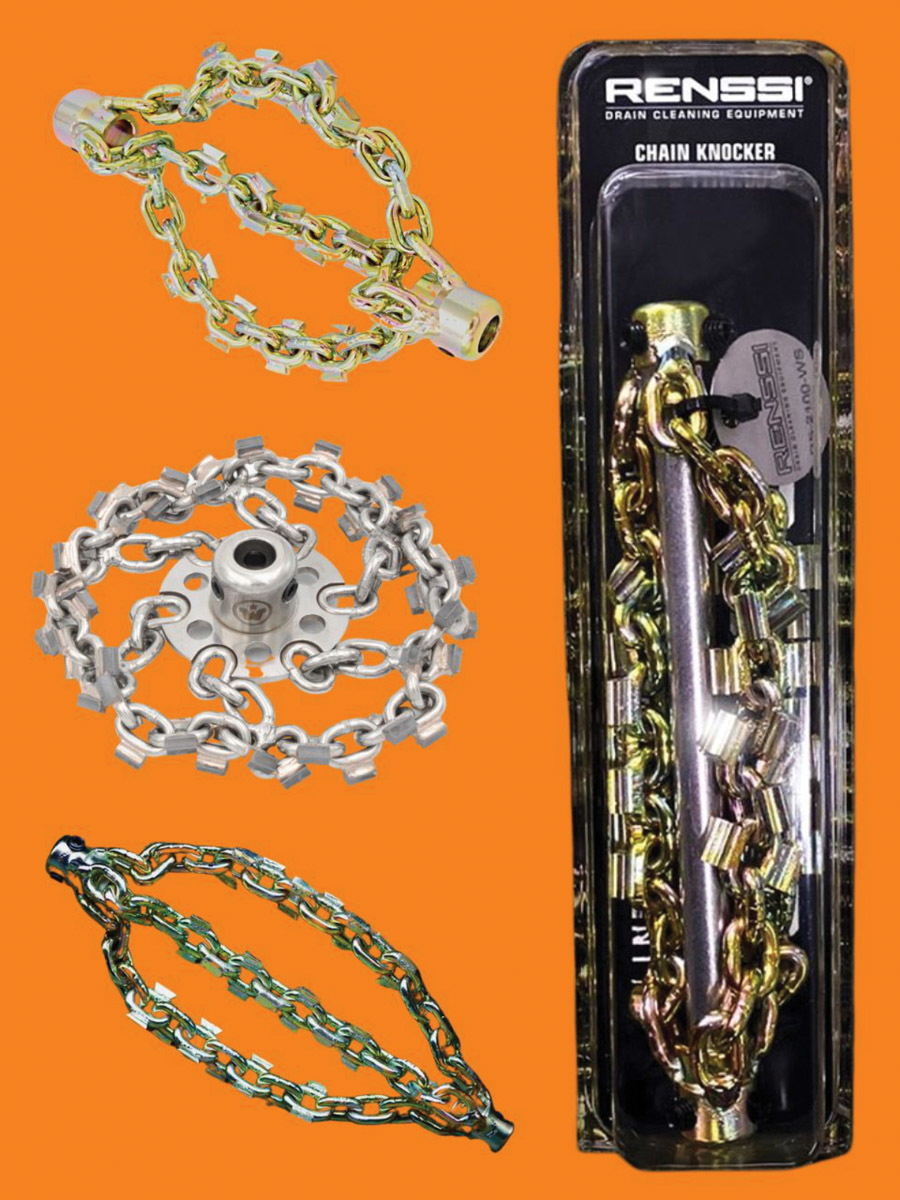

2 // APEX CIPP SOLUTIONS RENSSI CHAIN KNOCKERS

High-performance Renssi Chain Knockers from Apex CIPP Solutions are compatible with Picote Millers and RIDGID FlexShafts. The full range of cable sizes and chain configurations including those with drill heads, “starbits,” “cyclone,” with/without carbide, threaded or sleeve connections are available. In addition, cutter heads, sandpaper paddles and rolls, brushes, cable carriers, all-in-one drain cleaning machines and more are available. 855-997-0524; www.apexcipp.com

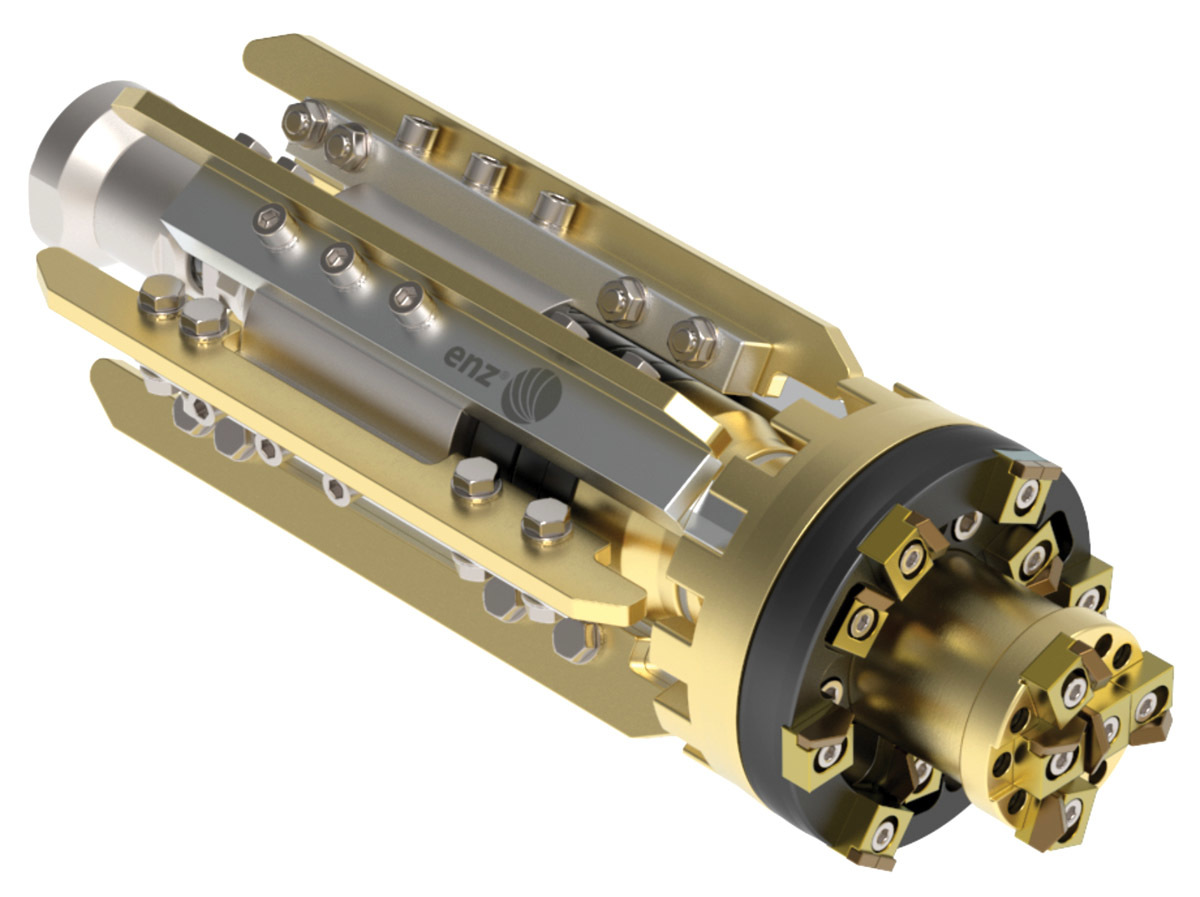

3 // ENZ USA MILLING CUTTER

The Enz USA Milling Cutter offers a complete line of cutting solutions for the toughest projects, according to the maker. The milling cutters can remove the hardest deposits such as lime scale and concrete. They work with a percussion system of 600 to 3,000 impulses per minute and up to 15 tons of impact force. For lime scale carbide teeth are recommended, and for concrete, diamond teeth. It can be used in pipes from 1.2 inches with the ML28 up to a 240-inch pipe. Most of the milling cutters work with recycling water. In many cases, the use of a percussion milling cutter is the only alternative to digging up pipes under foundations or roads. The diamond crown cutter can even remove protruding laterals. 877-362-8721; www.enz.com

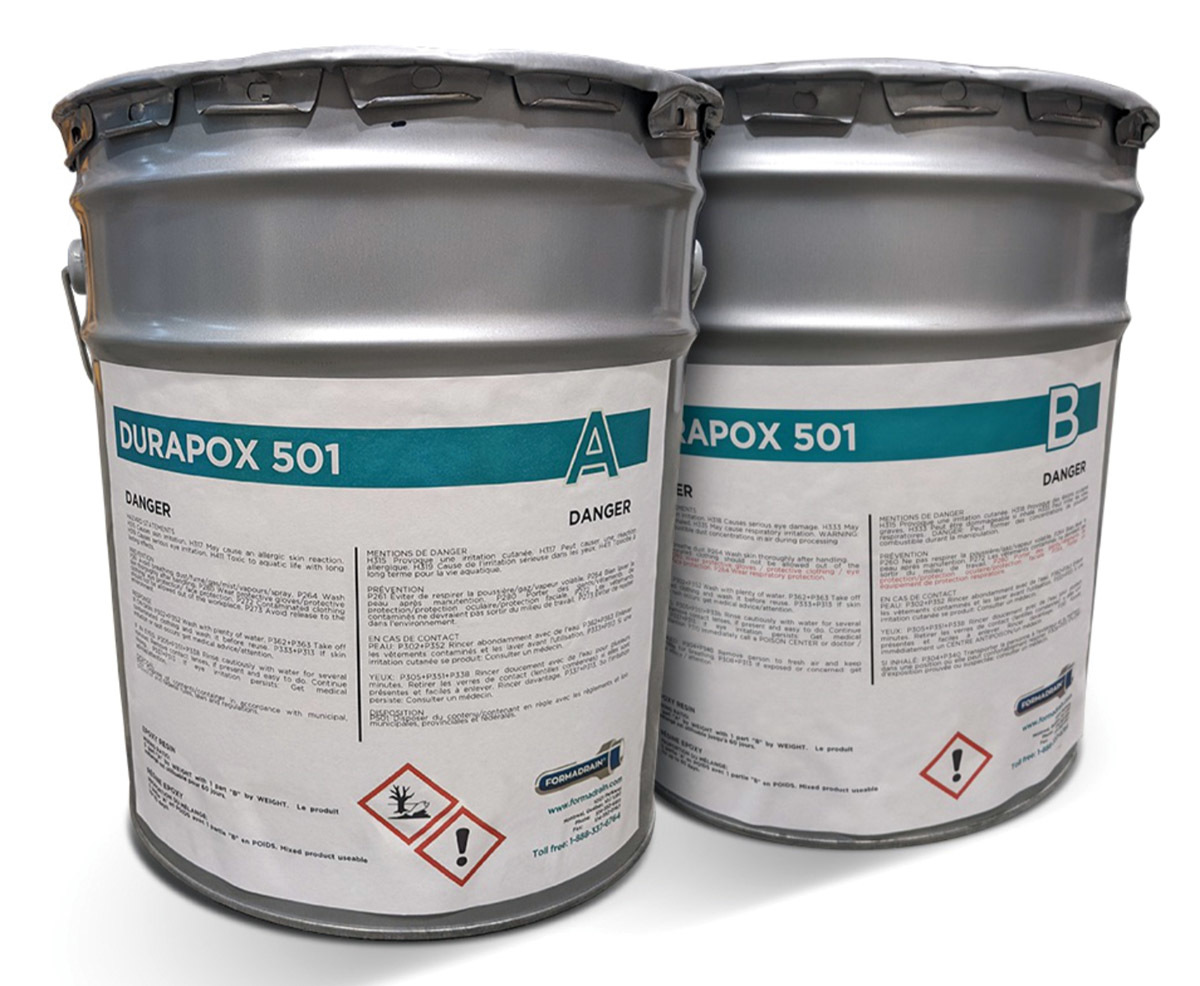

4 // FORMADRAIN DURAPOX 501

FORMADRAIN’s Durapox 501 is a two-part CIPP steam-cured resin with a 60-day open time. Ideal for remote jobs, the resin comes in two parts so it can be controlled when it’s mixed. Because the resin remains “fresh,” it maintains optimal wet-out properties, but drips less once applied. Durapox 50 has the high-performance mechanical properties and cure times of the standard Durapox line plus the advantages of the company’s Formapox resins. 888-337-6764; www.formadrain.com

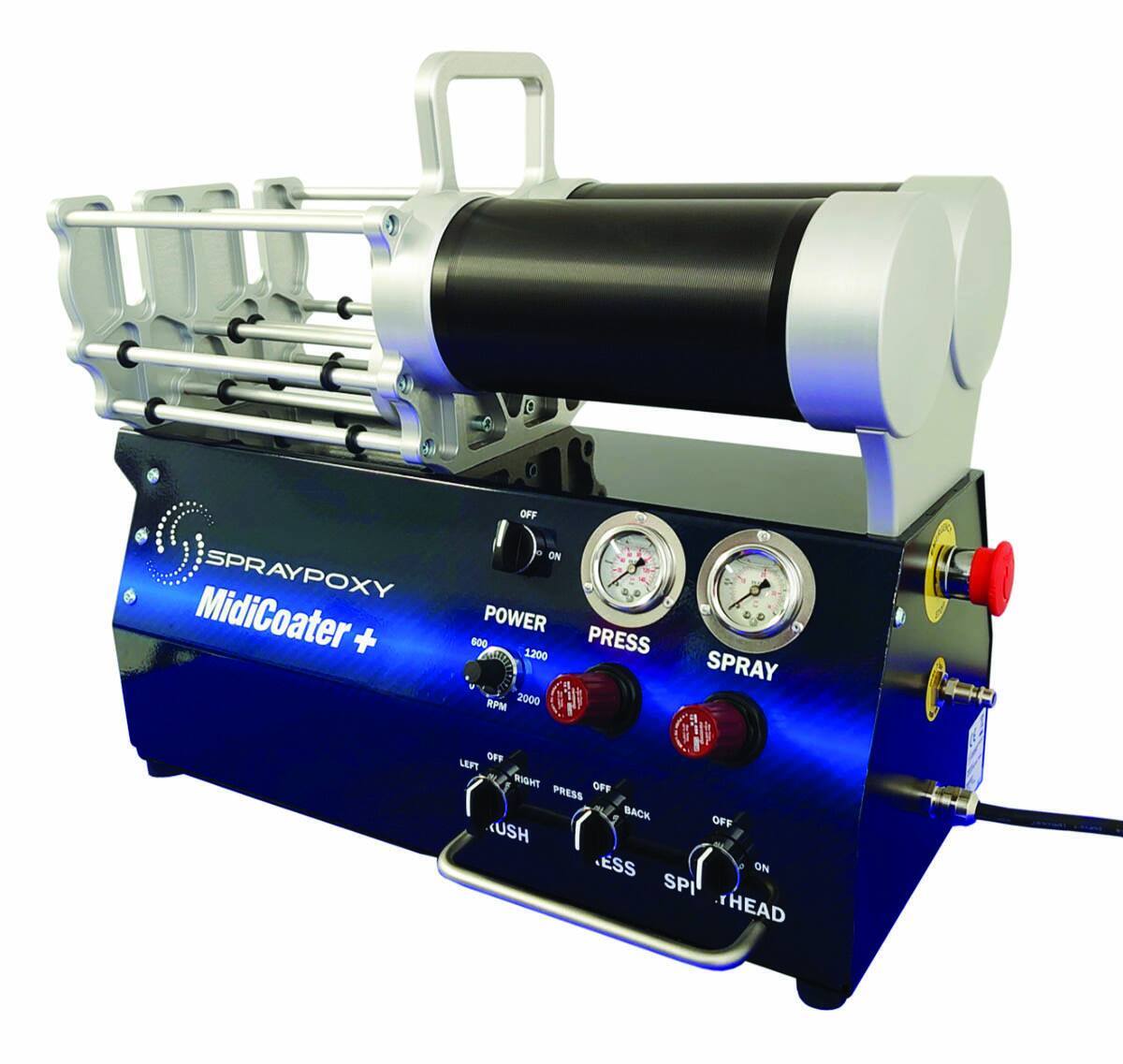

5 // TRENCHLESS SUPPLY MIDICOATER+

The Midicoater+ from Trenchless Supply is a system capable of descaling, spraying and brushing. Inline with efficiency, the machine is also mixing epoxy at the spray head, which equates to virtually zero waste for unused epoxy and hoses. The unit features fast curing speeds (as quick as 45 minutes per coat), and has a built-in motor with a clutch that is capable of spinning up to 2,000 rpm. The clutch allows the descaling and brush coating to be performed. Its lightweight and compact footprint saves space and energy for the user. The unit has options for self-regulated heated hoses that plug directly into it. This allows for year round use in varying weather conditions. It can be used to spray from 1.5- to 6-inch-diameter pipe. 424-257-0453; www.trenchlesssupplyinc.com

HYDROEXCAVATION

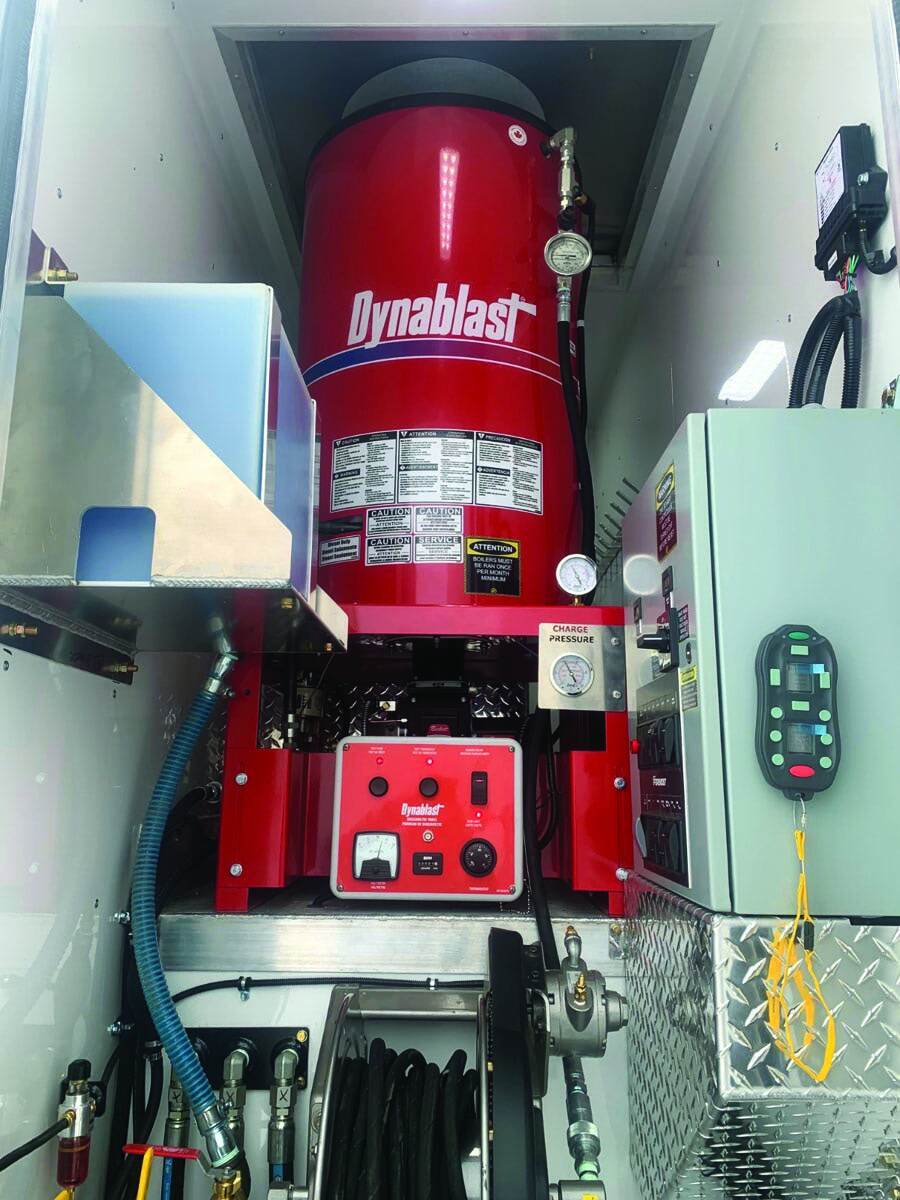

6 // DYNABLAST HV590FLS-12VRED

The HV590FLS-12VRED hydrovac water heater from Dynablast produces 590,000 Btus with an output temperature of 175 degrees F at 7 gpm. An optional electronic 12-volt thermostat can hold more precise water temperature. The unit is suitable for colder climates and improves digging in clay-filled areas. It enables fuel savings of 3/4 gph and weight reduction of 250 pounds over the current 690,000 Btu model. It comes with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, stainless steel target plate for increased coil life and serviceability with momentary override control. 905-867-4642; www.dynablast.ca

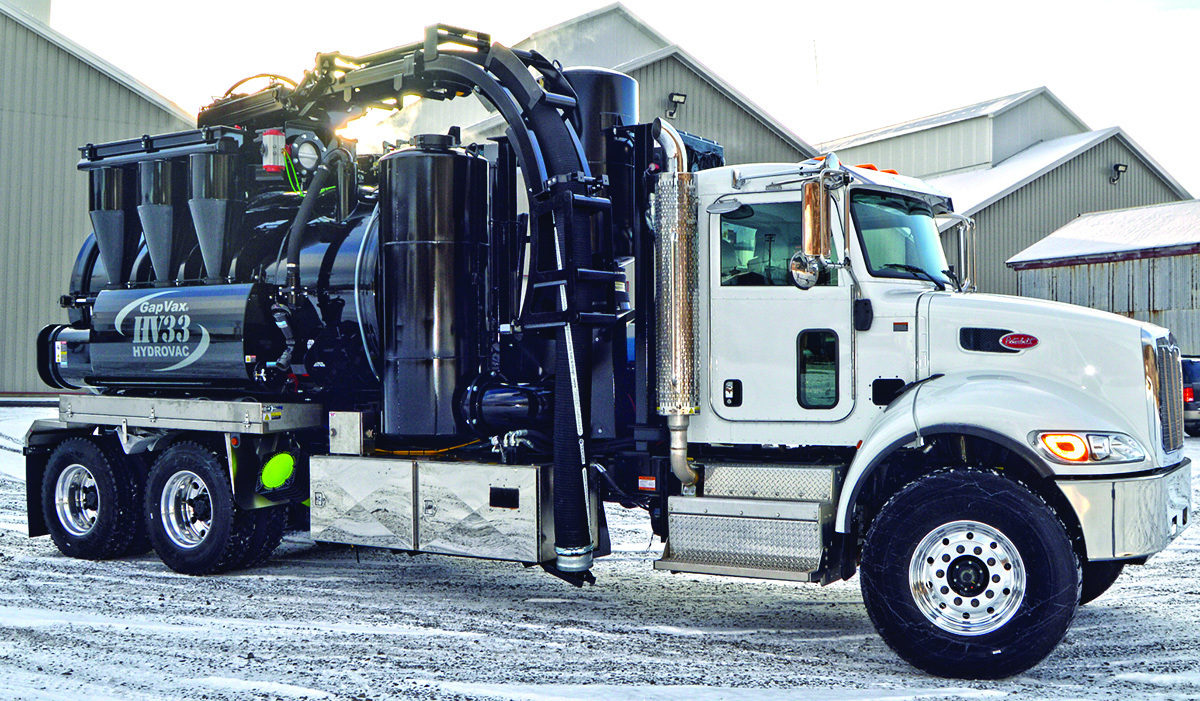

7 // GAPVAX HV33

Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate. 888-442-7829; www.gapvax.com

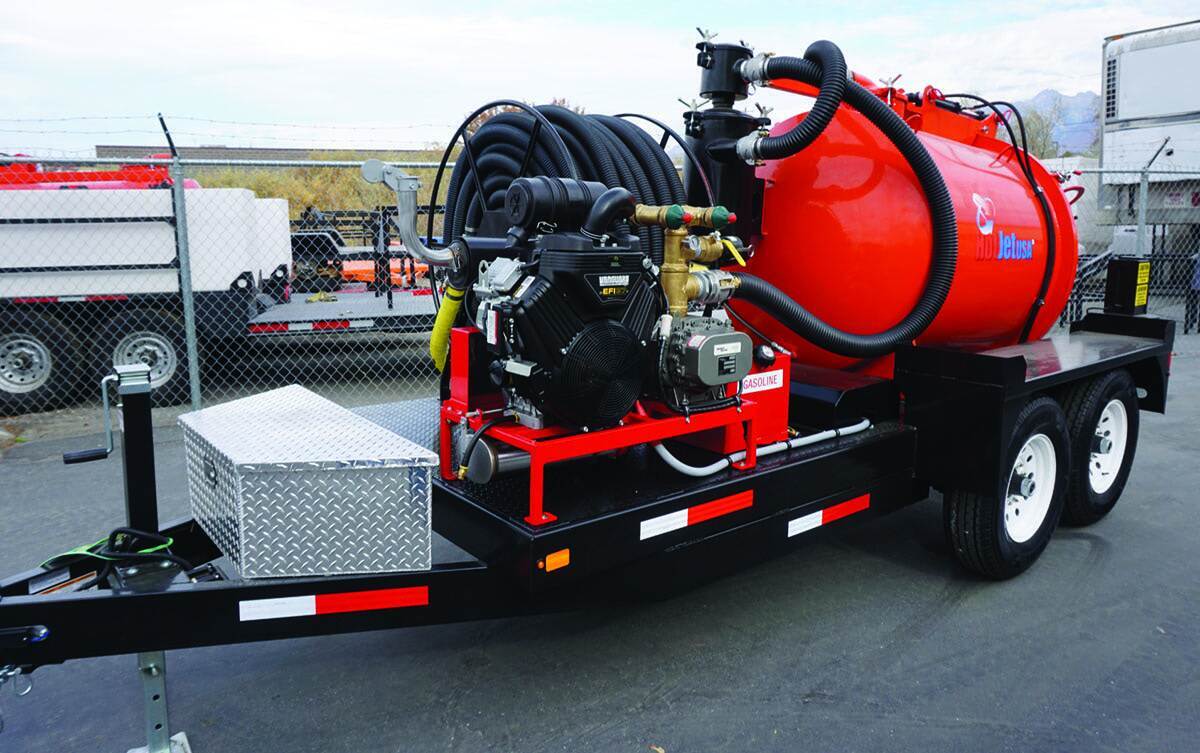

8 // HOTJET USA VAC ’N JET SERIES

The HotJet USA Vac ‘n Jet Series of vacuum trailer jetters are rugged and compact, engineered to haul equipment and spoils loads, can clean valve boxes and storm drains, and hydroexcavate and/or clean drainlines and sewer lines. They offer hot- and/or cold-water operation with a choice of engines ranging from 13 to 66 hp and gas or diesel. They are equipped with premium triplex pumps, a 500-gallon spoils tank, 200-gallon water tank, Gardner Denver vac/blowers, 4-ton hydraulic dump and CentriClean filter system. They can also be designed to meet specifications. 800-624-8186; www.hotjetusa.com

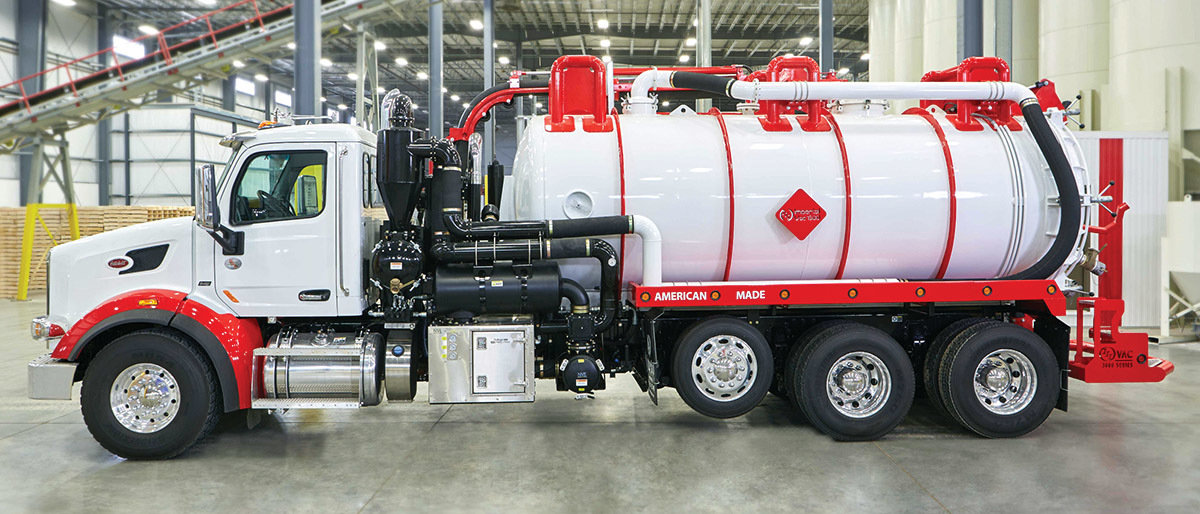

9 // IMPERIAL INDUSTRIES HYDRO 3600 HYBRID EXCAVATOR

The Hydro 3600 Hybrid Excavator from Imperial Industries is short and compact for maneuverability in tight spaces. It is user-friendly, efficient and can be operated easily by a single person and is designed to minimize time spent on the job site. It includes a 3,600-gallon hauling capacity (customizable sizes available), optional water capacity, code and noncode availability, a three-stage lift hoist with built-in vibrator and full opening rear door for easy dumping, 20 gpm jetter up to 4,000 psi (adjustable), a National Vacuum Equipment 1600 blower and a moisture trap and grit ridder. Options include a 16-function remote control for easy operation of the boom, jetter, blower and vacuum. 800-558-2945; www.imperialind.com

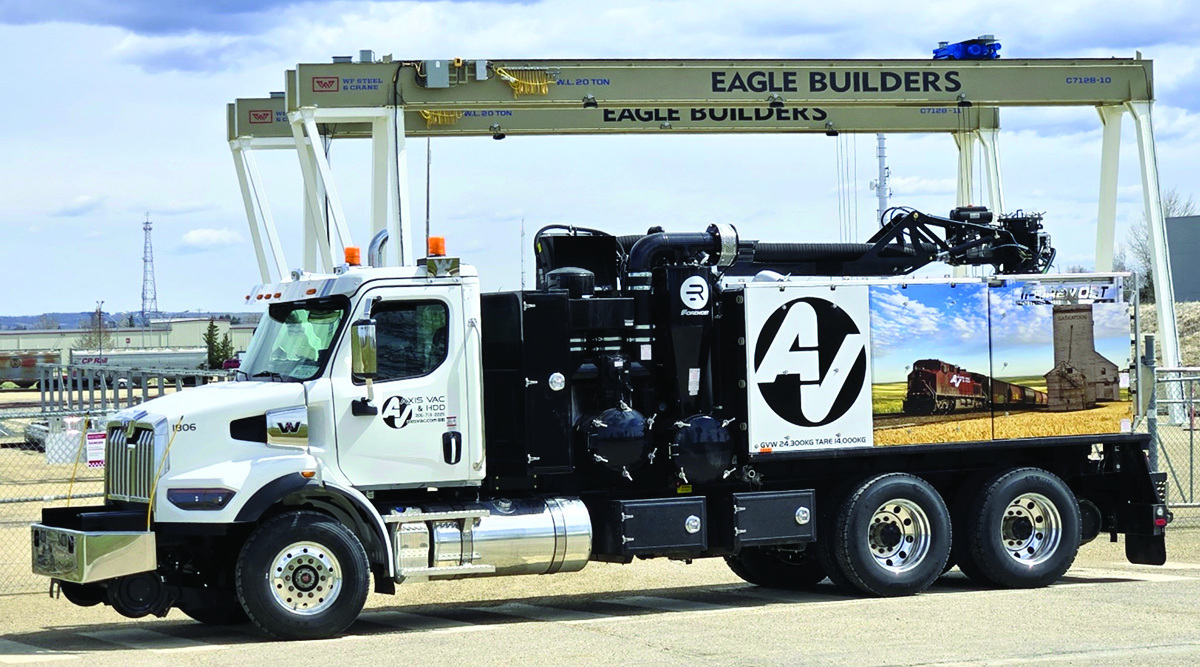

10 // RIVAL HYDROVAC T7 TANDEM AND T10

The T7 Tandem from Rival Hydrovac was designed primarily to be a unit that could be loaded with debris and drive within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights both in the cab and on the wireless remote to confirm weight prior to travel. The T10 is built with the same features and operating system, but with larger capacities and components. It is popular with clients who do both utility and industrial work. It is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating. 403-550-7997; www.rivalhydrovac.com

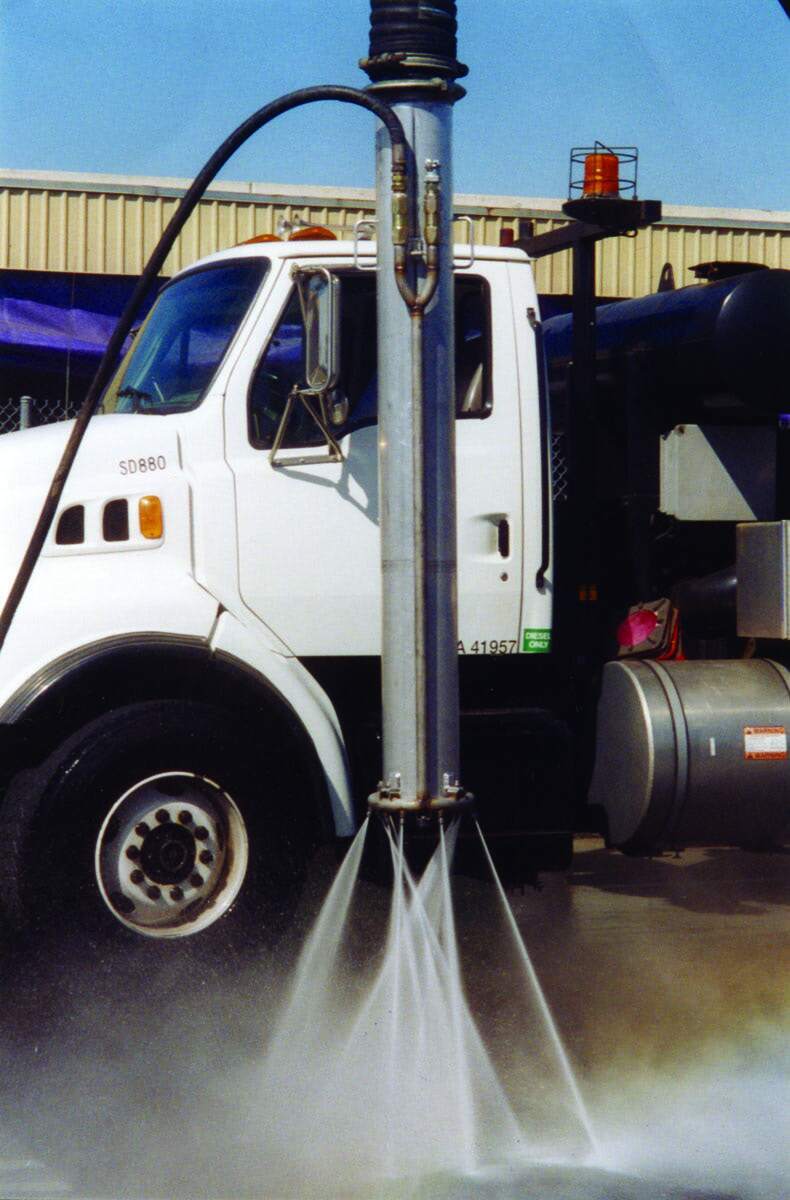

11 // SOIL SURGEON HYDROEXCAVATING TOOL

The Soil Surgeon hydroexcavating tool fits any sewer combination truck equipped with a telescoping 6- or 8-inch boom. The tool has a 1-inch water connection. The operator controls water pressure and power through truck controls. It has a 6-foot Tuff-Tube with handles to guide the unit down for potholing or side to side for trenching. Six jets boring inward cut the soil, while six boring outward bring the tube down. 949-363-1401; www.soilsurgeoninc.com

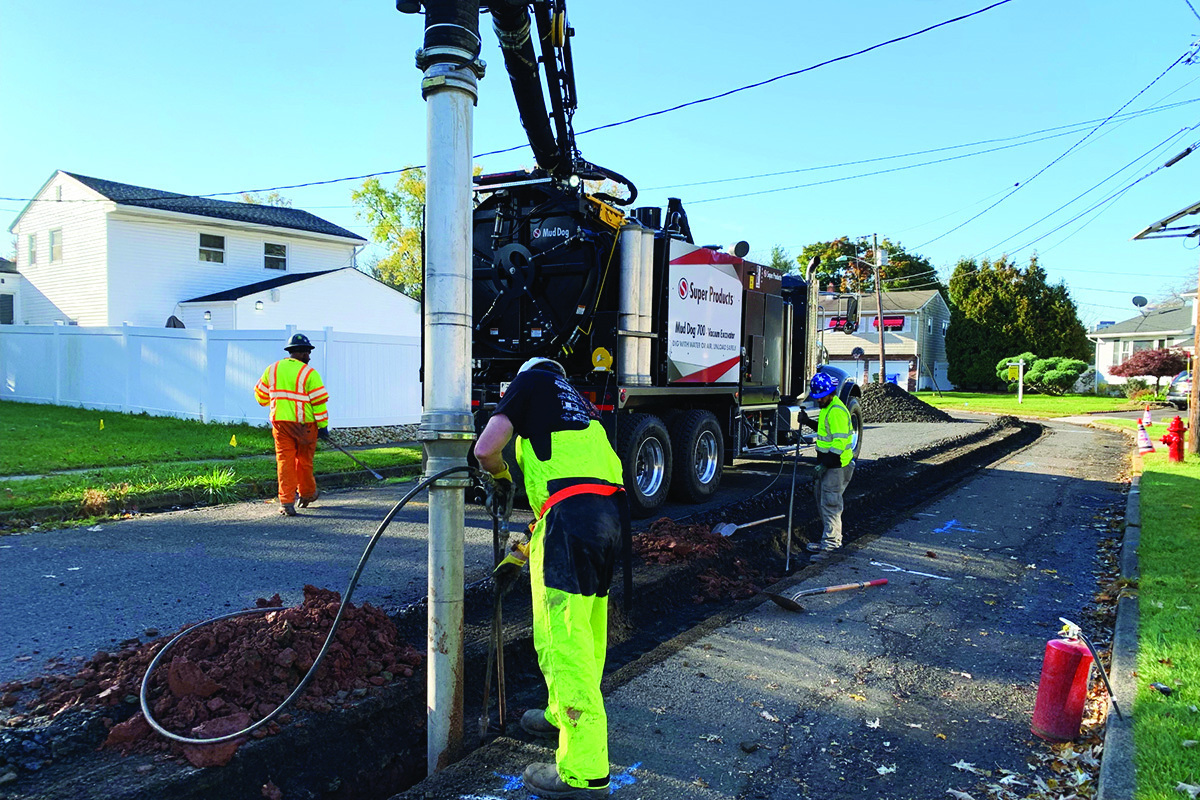

12 // SUPER PRODUCTS MUD DOG 700

The Mud Dog 700 vacuum excavator from Super Products is designed for operator convenience and consistent performance to meet the challenges of compact, urban projects to large-scale excavation. It offers a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads. 800-837-9711; www.superproducts.com

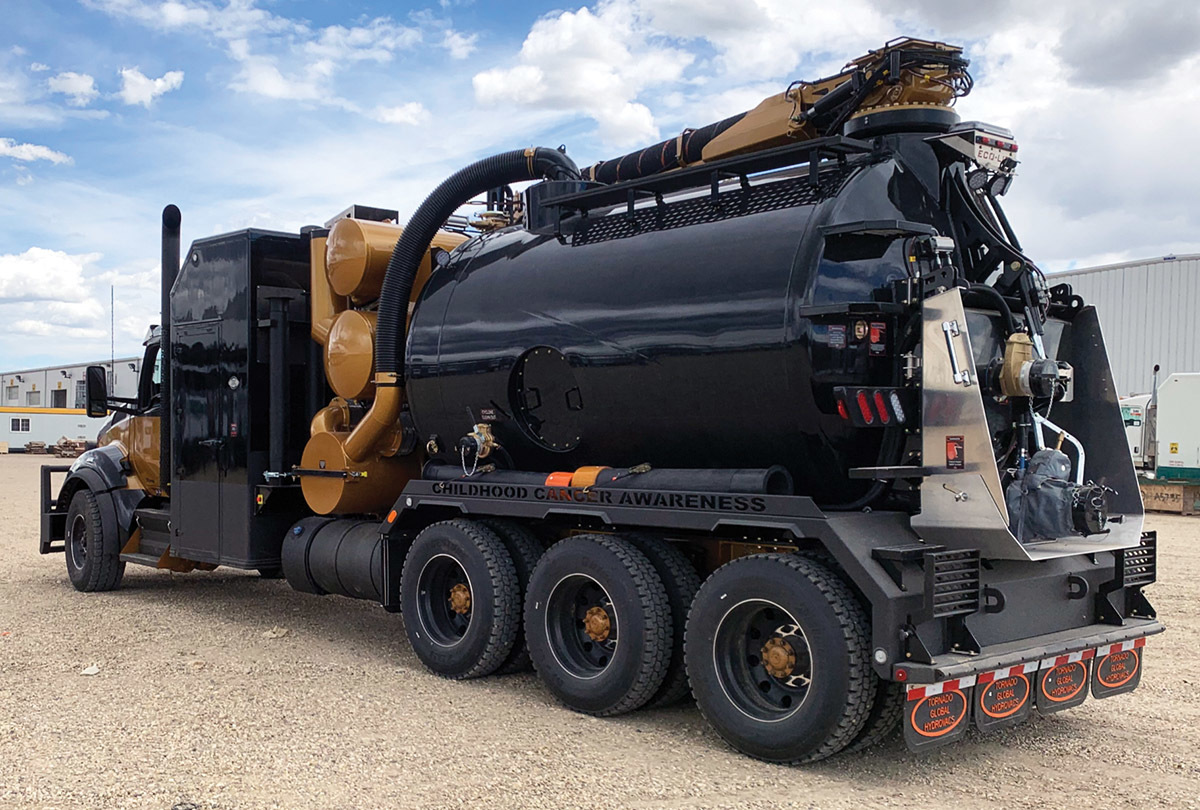

13 // TORNADO GLOBAL HYDROVACS F4 ECO-LITE

The F4 ECO-LITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and 26-foot reach. The smaller F3 ECO-LITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower. 877-340-8141; www.tornadotrucks.com

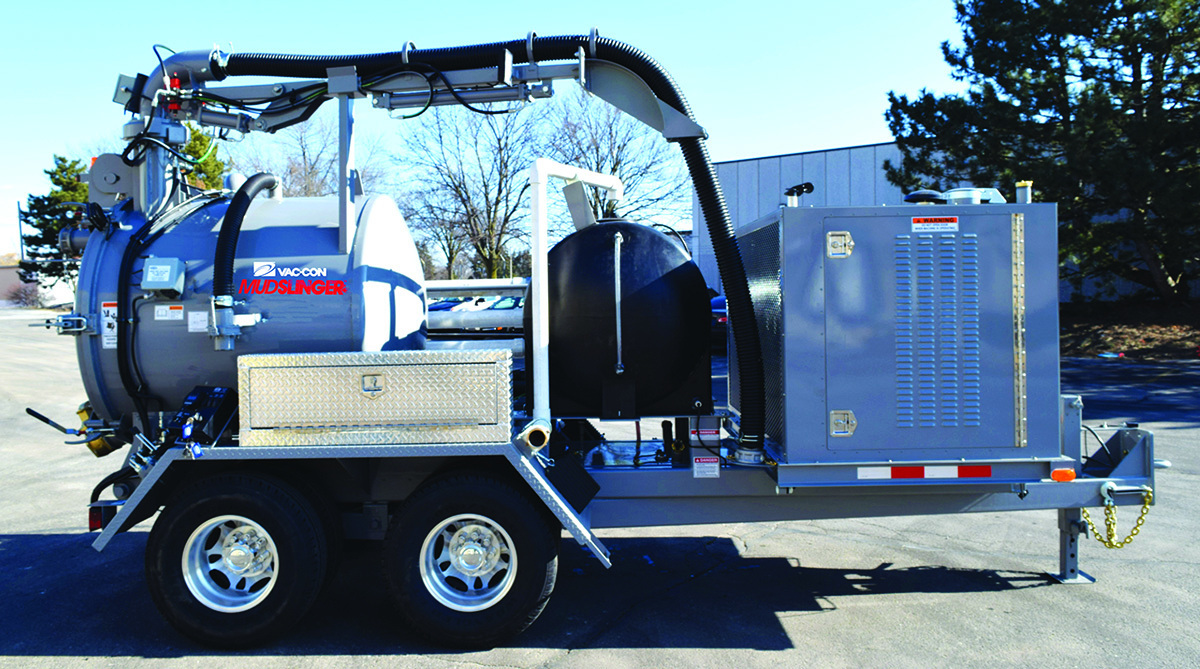

14 // VAC-CON MUDSLINGER MS800

The Mudslinger MS800 trailer-mounted hydrovac from Vac-Con encompasses the same power, suction and capacity of a truck hydroexcavator on a portable, pull-behind trailer. It includes the choice of tier 4 diesel or gas engine options providing up to 1,190 cfm and 16 inches Hg with a PD blower and 325 gallons of water. An 845-gallon debris tank allows operators to stay productive on the job site, while a 9-foot boom with 24 inches of hydraulic extension provides a full range of motion. It is designed to be a powerful standalone unit, but can also provide support to construction, HDD and public utility fleets. It’s at home in a variety of applications including daylighting, potholing, culvert and manhole cleaning, and utility locating. 904-284-4200; www.vac-con.com

 PIPELINE REHABILITATION/LINING

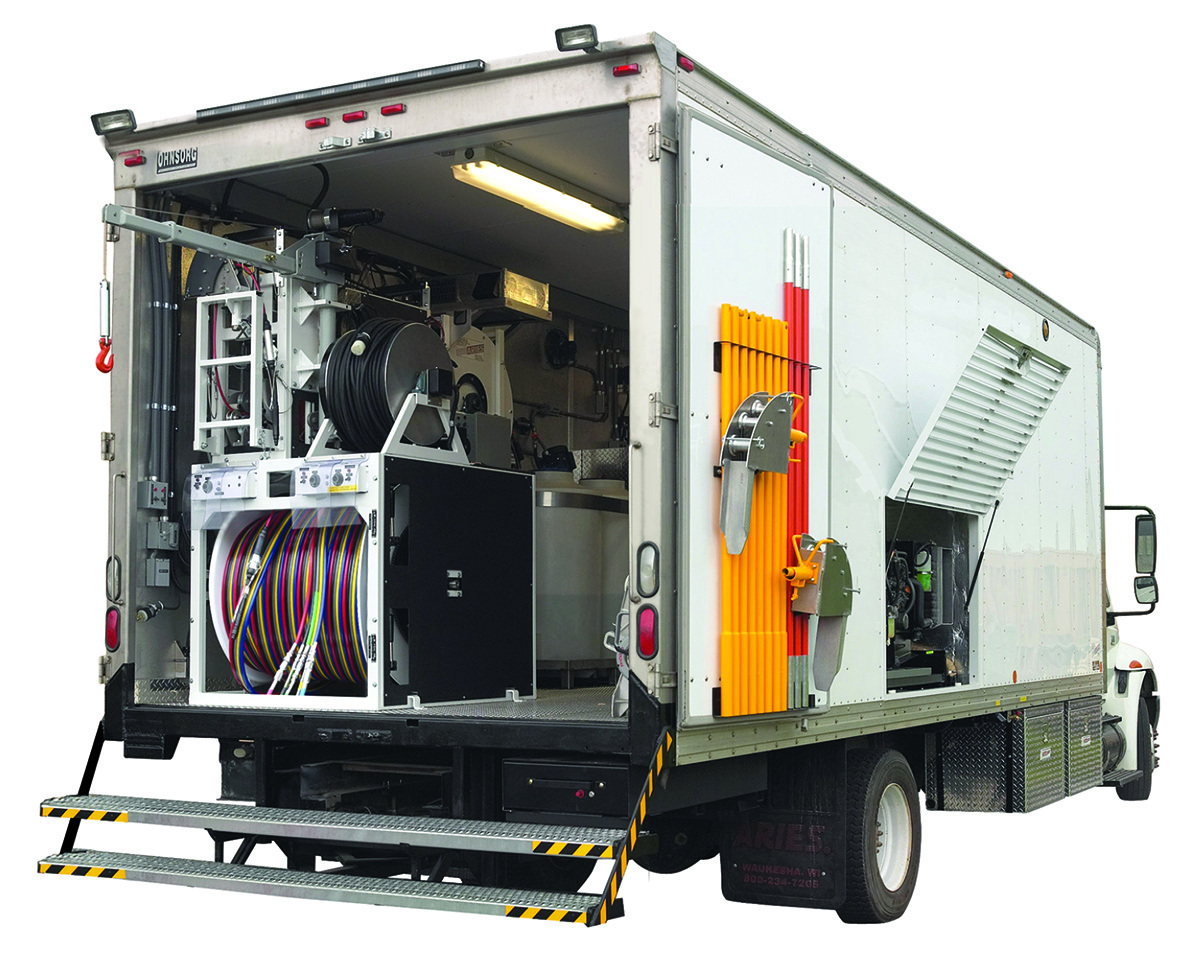

15 // ARIES INDUSTRIES TEST AND SEAL GROUTING SYSTEM

The Test and Seal Grouting System from Aries Industries reduces setup time and provides efficient hands-on control to quickly seal leaking joints. Grout — pumped to a leaking joint — flows through the leak, sealing the surrounding soil to form an impenetrable barrier. Sixty-gallon tanks and continuous-duty mixers provide high volume to seal large voids. Reels for fast deployment and retrieval, as well as high-power winches, quickly move the packer from joint to joint for high productivity. The unit’s 800 feet of color-coded hose allows long runs. The truck comes with a bench, storage and room to work. The operator tests and seals the joints while working in the control room, where test data and the sealing process are easily viewed, recorded and logged. 800-234-7205; www.ariesindustries.com

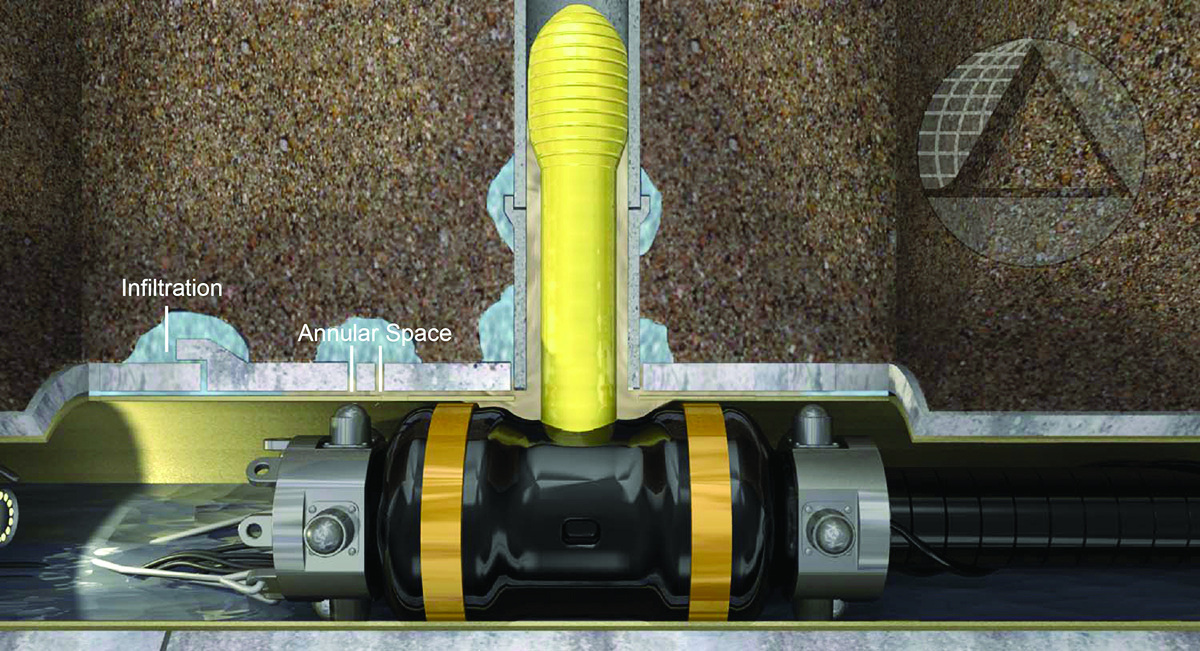

16 // AVANTI INTERNATIONAL AV-100

AV-100 chemical grout from Avanti International is used to rehabilitate storm and sanitary sewer systems by eliminating infiltration in manholes, mainlines, joints, laterals, lateral connections, and before or after various forms of CIPP lining. It is injected after lining seals in the annular space between host pipe/liner, and lateral reinstatement, which are the primary sources of infiltration. It is an ultralow viscosity, chemically reactive gel with a similar viscosity to water. It can permeate anywhere water can travel and has adjustable cure times from seconds to hours, creating an effective, long-lasting water barrier while providing soil stabilization. 800-877-2570; www.avantigrout.com

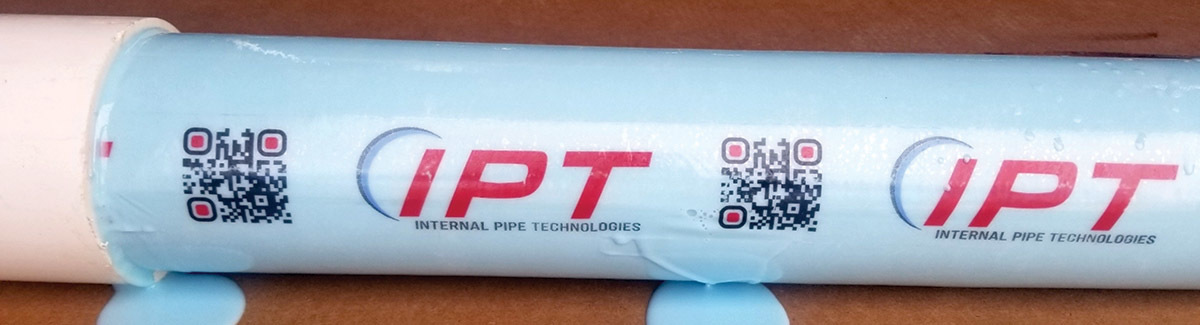

17 // IPT INTERNAL PIPE TECHNOLOGIES PULL-IN-PLACE PIPE LINING SYSTEM

IPT Internal Pipe Technologies’ Pull-in-Place Pipe Lining System completely rebuilds the horizontal and vertical drainpipes as small as 1 1/2 inches in diameter from the inside with a new pipe made of epoxy resin and felt. Liners can be launched from existing access points to not only seal cracks and leaks but restore sections of pipe that have deteriorated. These pipe systems include vertical sanitary stacks, horizontal sewer mains, branches, roof drains and lateral lines. The company has bridged the gap between technology and technician by utilizing a technique with data streaming, which is available on site to any smart device using QR codes. 888-478-6649; www.internalpipetech.com

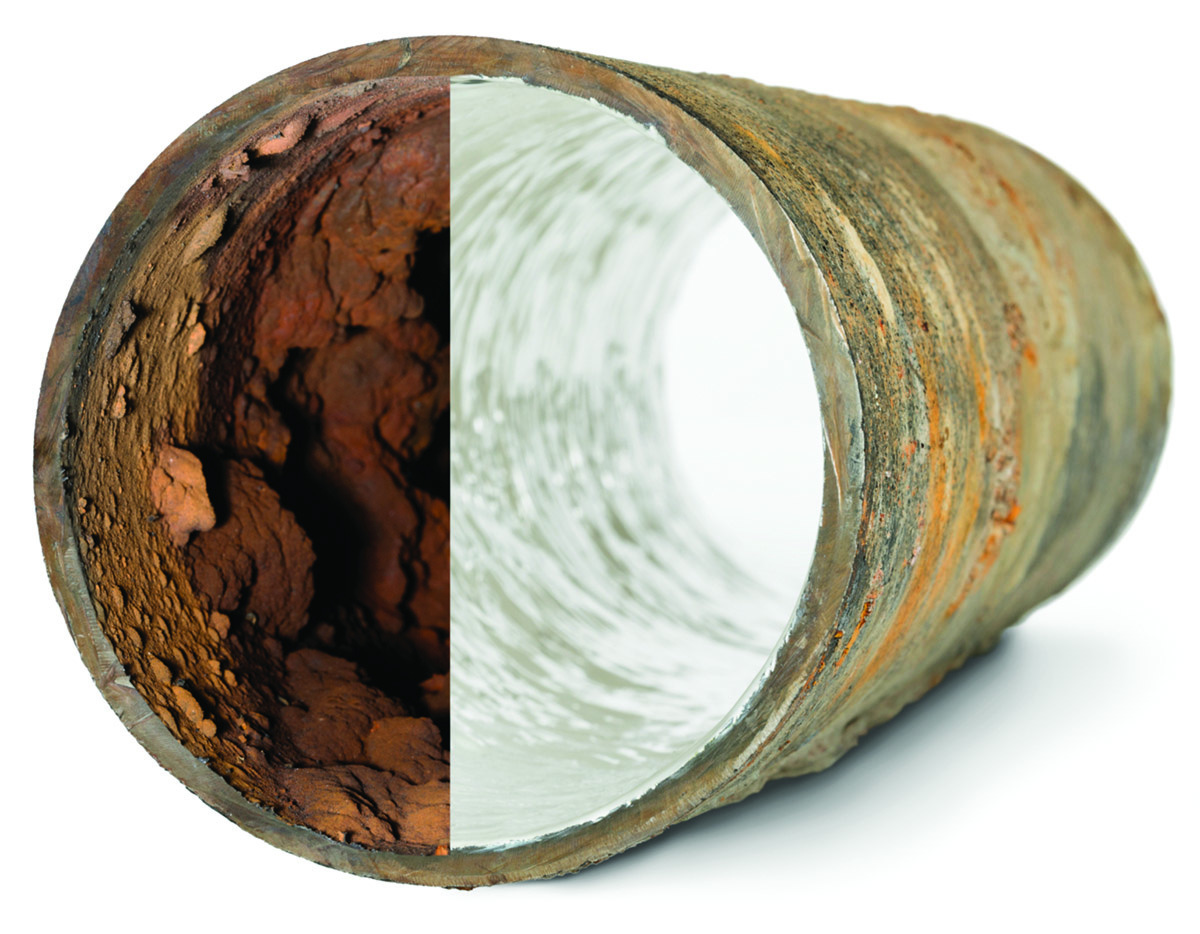

18 // PICOTE SOLUTIONS DUAL-COLOR EPOXY BRUSH COATING SYSTEM

The Dual-Color Epoxy Brush Coating System from Picote Solutions allows technicians to rehabilitate pipes from 1 1/4 to 12 inches for drains, sewers, water pipes, electrical conduits, and heat and air-conditioning ducts by brush-casting a coating. The coating resin forms a pipe inside the original pipe that is tested, safe and environmentally friendly. The new pipe is damp-proof, corrosion-resistant and wear-resistant. It is ASTM and NSF certified (NSF/ANSI 61-5). It is a 100% solids epoxy, and the method allows for clear visual verification during the application process. Apply to small areas or all drains in multistory buildings. The system is practical and easily fits in tight places. 219-440-1404; www.picotesolutions.com

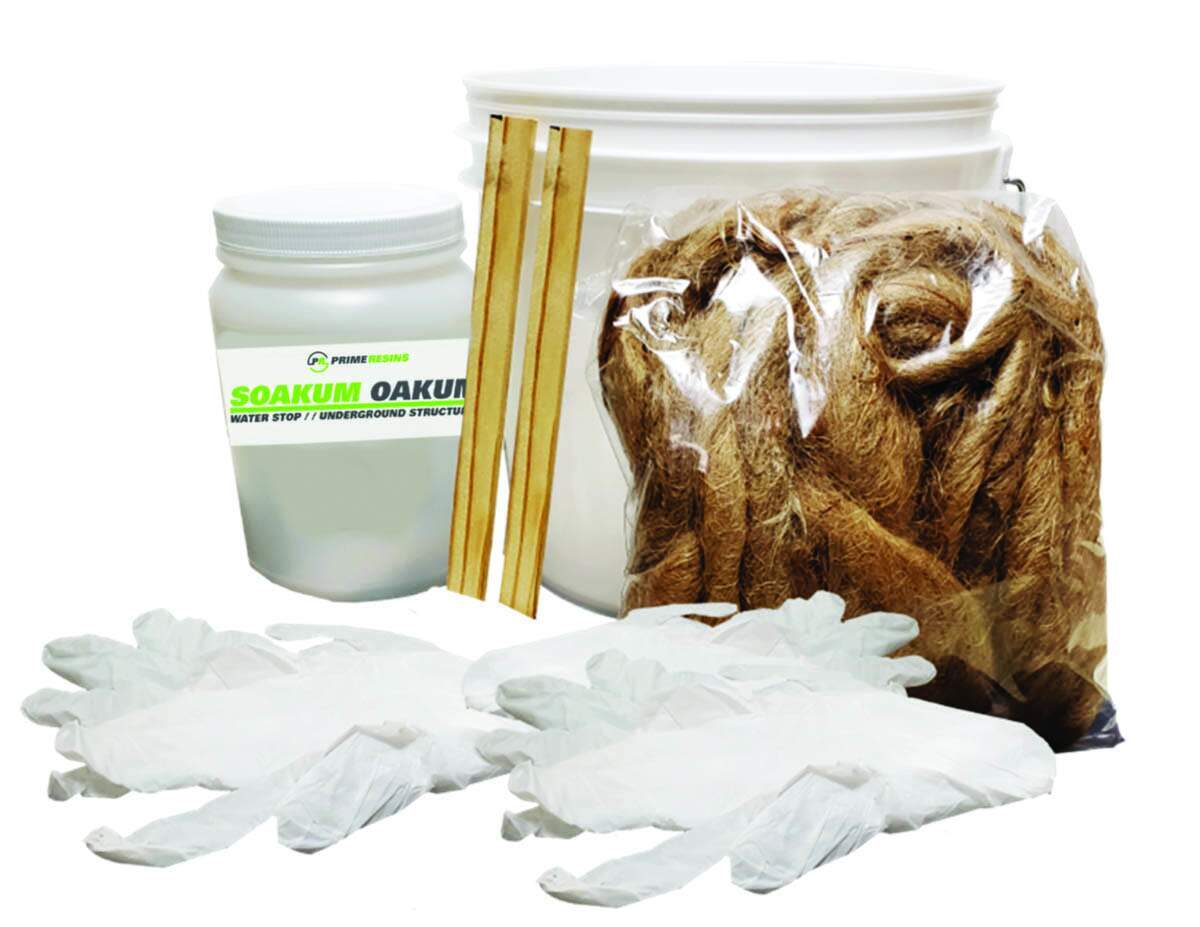

19 // PRIME RESINS SOAKUM OAKUM KIT

The Soakum Oakum Kit from Prime Resins is composed of a dry oakum soaked in a hydrophilic polymer solution. When wet and either packed or worked into a joint or crack, the resin will foam to form a flexible and tight joint to stop groundwater infiltration. It reacts with water and becomes a watertight rubber-like composite. The oakum cord gives strength and density to the composite, and makes the application of the resin easier, especially when gushers are present. 800-321-7212; www.primeresins.com

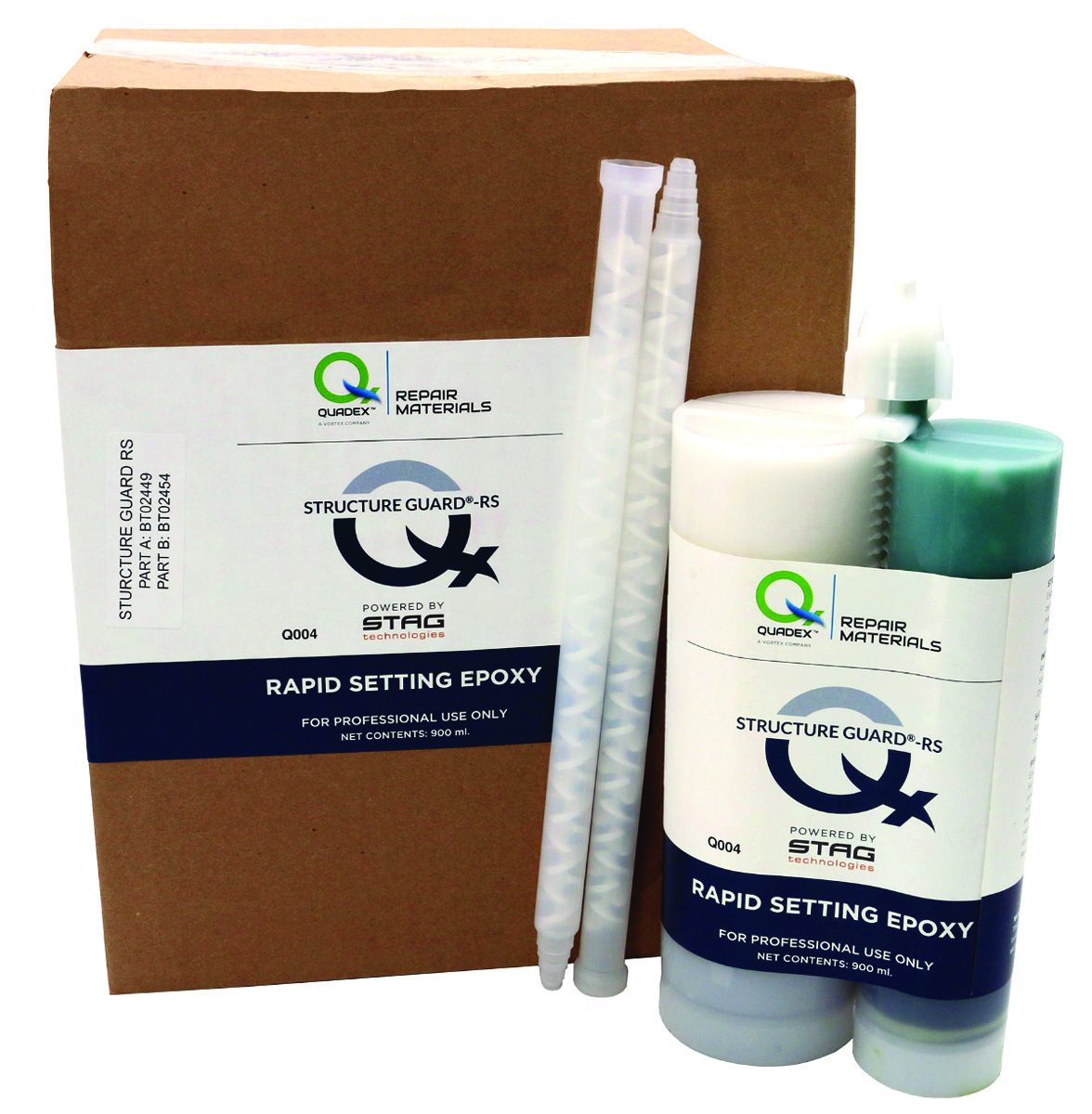

20 // SOURCE ONE ENVIRONMENTAL QUADEX STRUCTURE GUARD EPOXY

Quadex Structure Guard, distributed by Source One Environmental, is a high-build epoxy coating formulated to provide long-term corrosion protection and structural enhancement for manholes, pump stations, treatment plants or any wastewater infrastructure subject to high levels of corrosion and/or abrasion in both municipal and industrial applications. It is also suitable for invert repairs. It can be trowel and/or spray applied, and is a 100% solids material with no VOCs and a fast set time. 877-450-3701; www.s1eonline.com

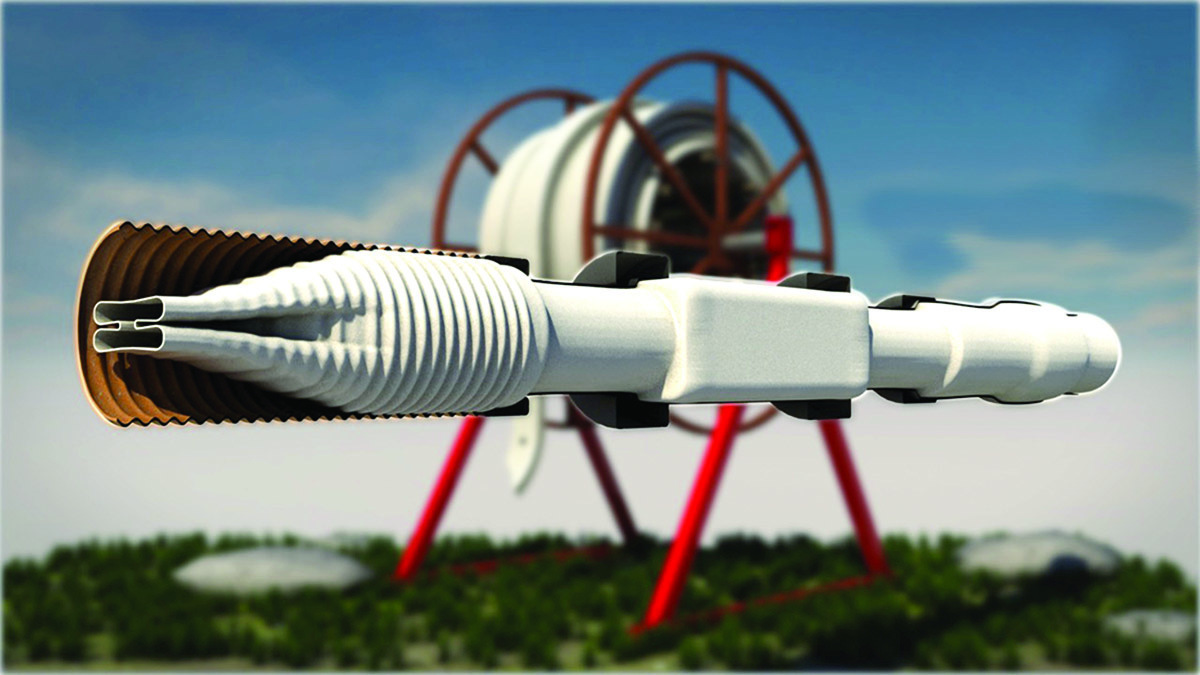

21 // WARRIOR TRENCHLESS SOLUTIONS THERMOFORM

Thermoform from Warrior Trenchless Solutions is a PVC-alloy structural pipe lining system designed for the trenchless rehabilitation of failing sewer and culvert pipes. It is an environmentally friendly, styrene-free thermoplastic. There are no harmful emissions, and it does not rely on any chemical reaction during installation. Factory-controlled production with rigorous material testing ensures a consistent quality product that conforms to and exceeds the expected standards. The material is highly flexible, allowing it to expand and fit tightly to the host pipe, including changes in shape and dimensions. It is produced in sizes ranging from 4 to 36 inches in diameter, and the wall thickness can be varied according to the application. All installers must be accredited and audited to ensure the highest quality work possible. 716-601-7760; www.thermoformliner.com

REINSTATEMENT CUTTERS

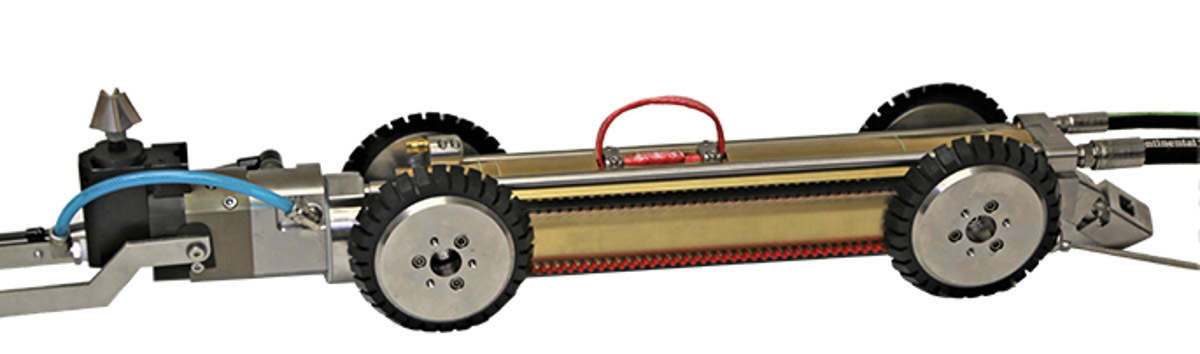

22 // CUES CURRAHEE CUTTERS

Small and large Currahee Cutters from CUES are designed to reinstate wastewater service laterals, remove protruding taps and brush-finish existing cuts. The cutters function in a range of 5 1/4- through 36-inch pipe, are equally effective in CIPP or fold and form liners and can be installed on a CUES K2 truck-mounted cutter system. A 1.9 hp air motor for the small cutter line provides more power, increased productivity and a smoother cut when operating in 6- to 12-inch relined pipe. Kits are available to retro-fit cutters for use with Kangaroo air-motors, and service kits can be purchased for regular maintenance intervals on existing motors. 800-327-7791; www.cuesinc.com

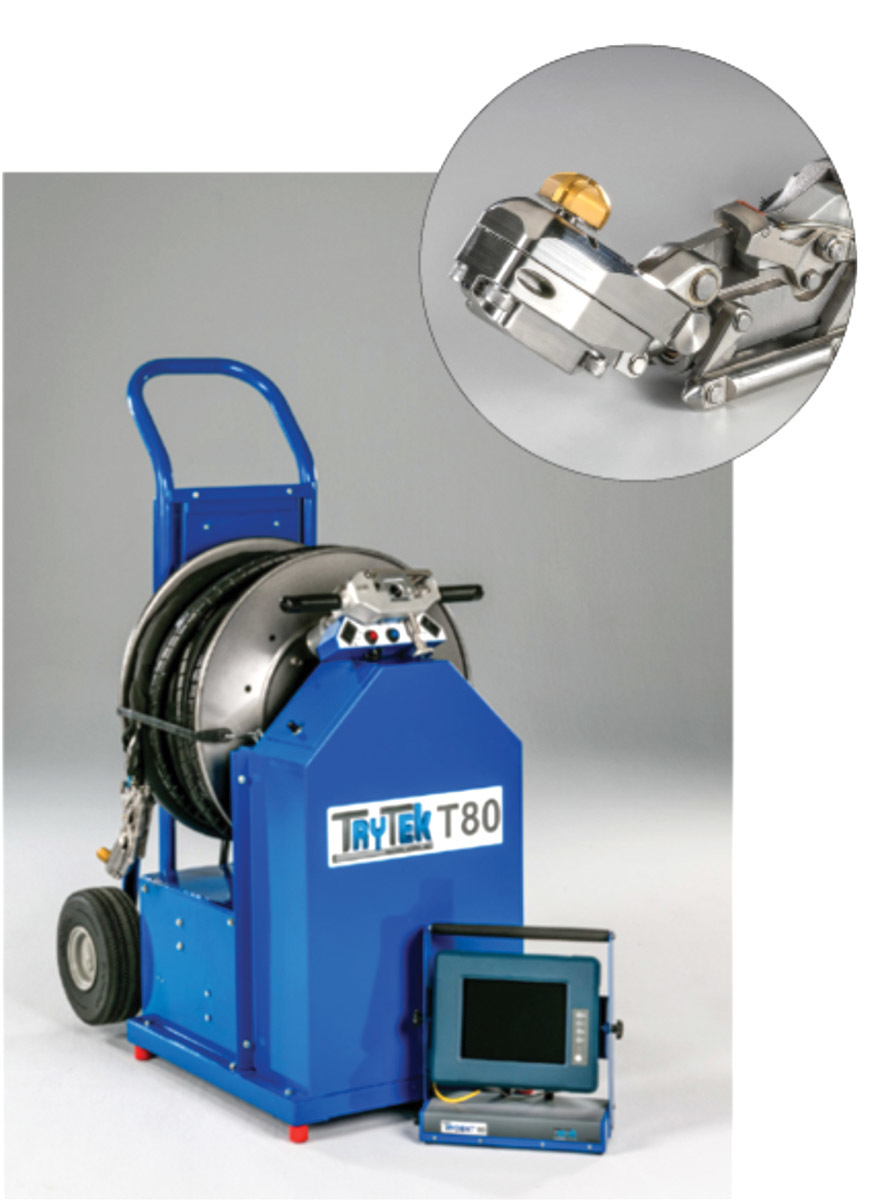

23 // TRY TEK MACHINE WORKS T80

The T80 3-, 4- and 6-inch small pipe lateral reinstatement cutter from TRY TEK Machine Works is ideal for relining smaller diameter lateral pipes that run from buildings to the mainlines. These smaller pipes crack, separate and break, and are responsible for 50% of the inflow and infiltration of groundwater processed by municipal treatment plants. Its water hydraulic cutting gives big power in a smaller package, while water hydraulics eliminate potential environmental hazards. It allows for access to pipe systems via clean-out ports or rooftop vents. Setup and operation are quick and simple, and it includes 100 feet of working cable. 717-428-1477; www.trytek.com

UV CIPP

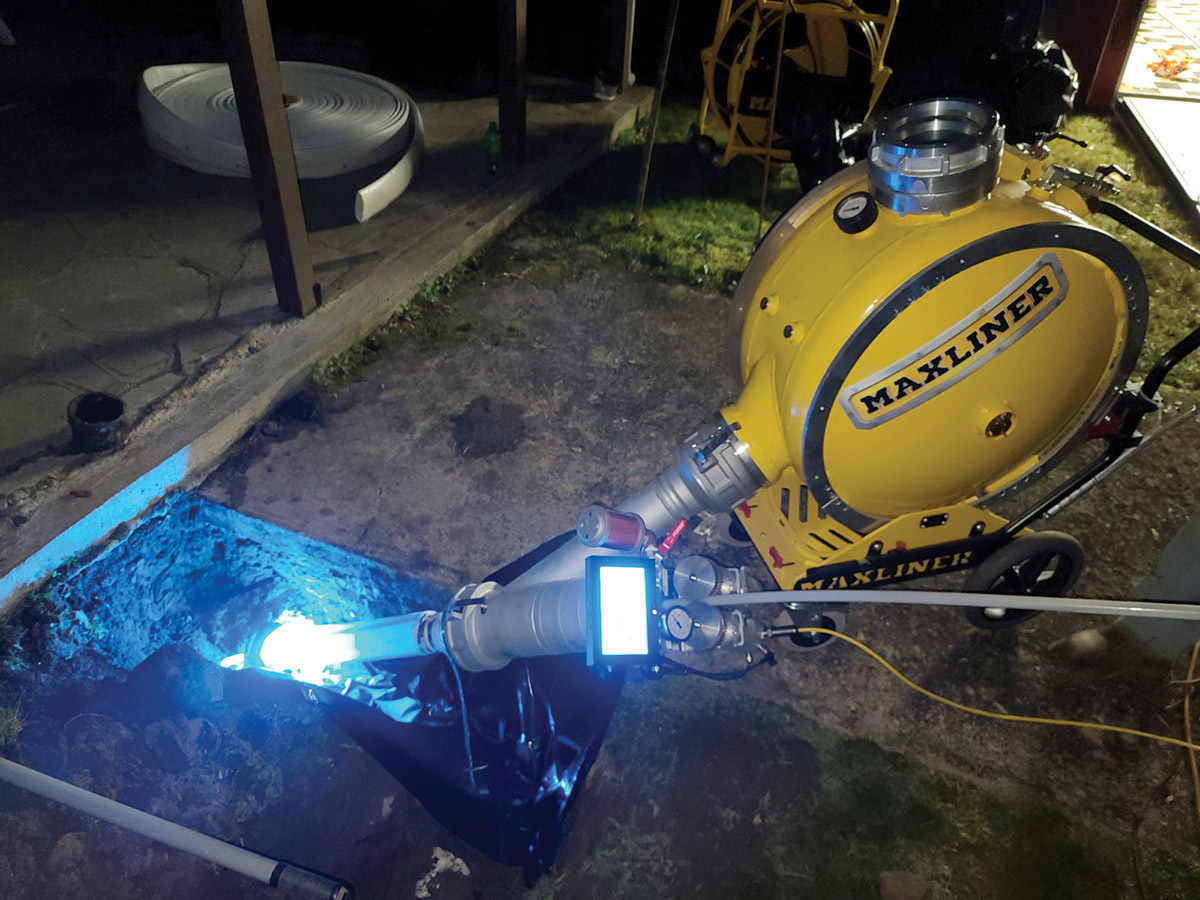

24 // MAXLINER USA MAXLIGHT

MaxLight from MaxLiner offers a 328-foot reach, five UV LightHead choices, two monitors to view installations, wireless Wi-Fi controls and works with existing systems (inversion or pull-in-place). Curing does not begin until the resin is initiated by finely calibrated LightHeads, allowing installers the option for applications in 2- to 24-inch-diameter pipes with multiple bends and transitions. Its styrene free, single-component resins are formulated to offer superior mechanical properties and chemical resistance. When production or tight deadlines are required, liners can be premade and impregnated at the shop or on site using compatible felt, glass and hybrid liners. It eliminates the stress of pot life concerns and allows for several installations per day.  It is designed to dramatically increase work efficiency and take on challenging jobs using a tested system that exceeds industry specifications and ASTM standards for a fully structural CIPP liner. 877-426-5948; www.maxlinerusa.com

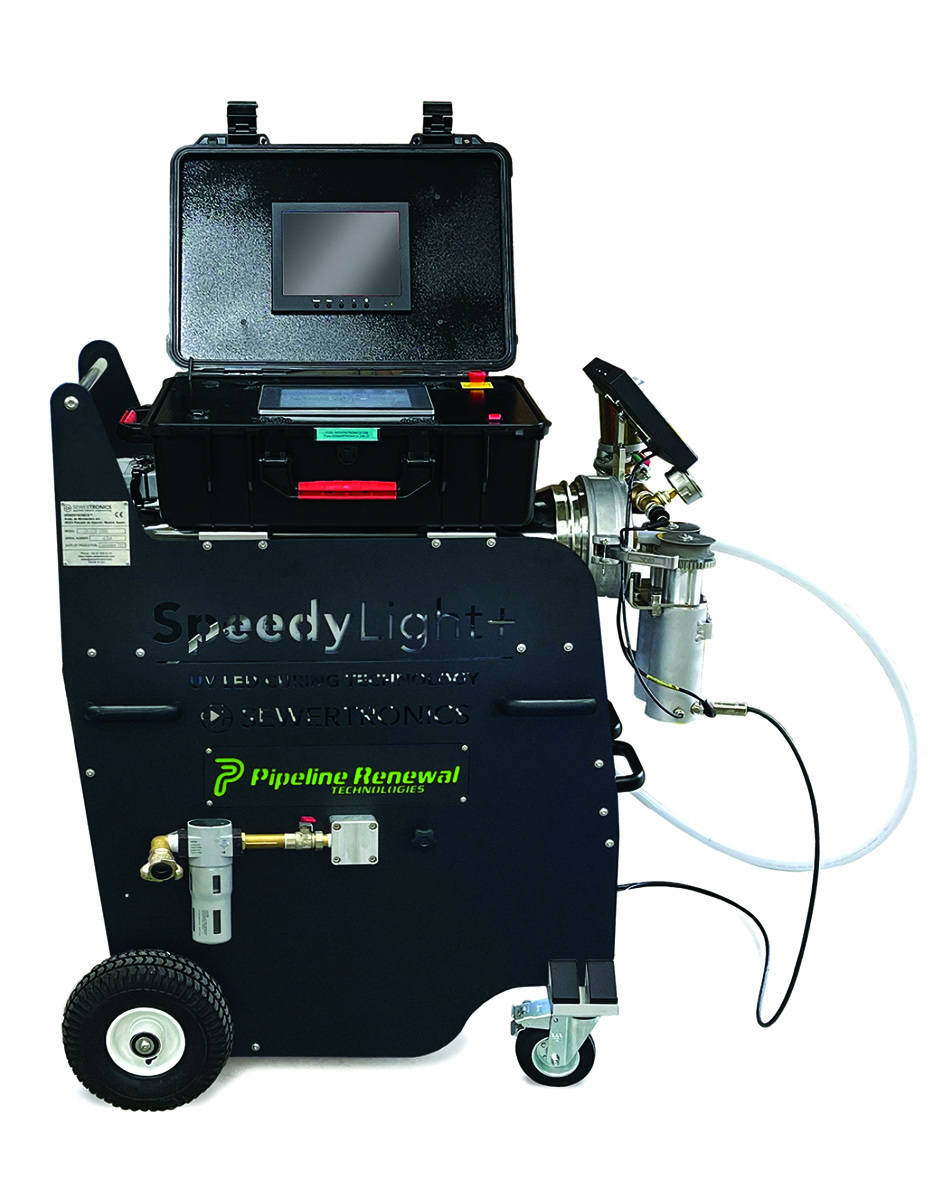

25 // PIPELINE RENEWAL TECHNOLOGIES SPEEDYLIGHT+

SpeedyLight+ from Pipeline Renewal Technologies is the LED-based solution for CIPP that expertly cures liners at speeds from 0.66 up to 3.3 feet per minute. Compatible with felt and invertible glass fiber, it can cure transitions, verticals and even 90-degree bends in lines from 4 to 12 inches in diameter. The integrated camera lets operators monitor the curing process in real time, allowing for ultimate precision. Liners can be wet out remotely or on site, and a portable design makes for easy deployment. Free of styrene and amines (and the associated odor), light-based cure technologies are minimally disruptive to the community. 866-936-8476; www.pipelinert.com

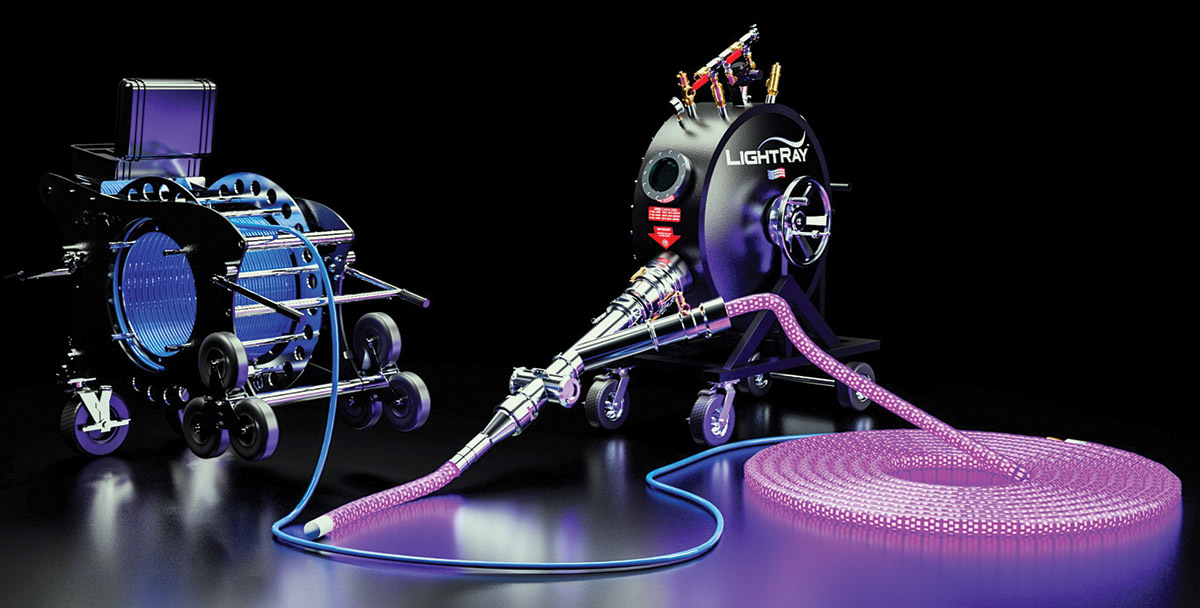

26 // WATERLINE RENEWAL TECHNOLOGIES LIGHTRAY LRI SYSTEM

The LightRay LRI System from Waterline Renewal Technologies allows complete operator control and closely resembles traditional ambient-cure inversion methods. It can accomplish throughput up to 6.3 feet per minute of casting with the light train, which incorporates cold LED lights that require no heat to cast the liner. The light train comes in a standard casting length of 50 feet, operates on a low-voltage DC platform and is internally protected to accommodate bends in pipes up to 90 degrees. Liners arrive ready to install without any need for refrigeration, which dramatically reduces the variability from mixing and preparing liners and eliminates the requirement for extra equipment in the field. The system uses nonthermal UV casting resin that is temperature-stable and only activated by UV light coupled with high-strength flexible fiberglass coated liners. 866-336-2568; www.lightrayinversion.com
