Horizontal Directional Drilling

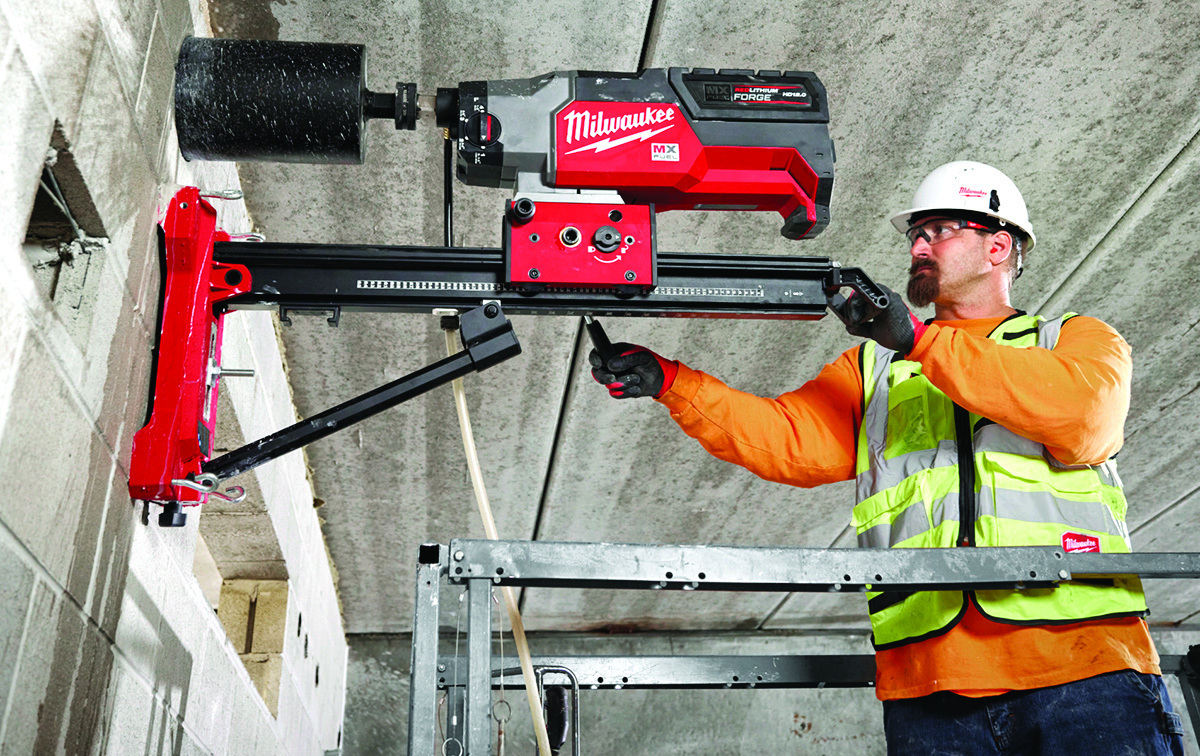

Milwaukee Tool MX FUEL Core Rig With Stand

The MX FUEL Core Rig With Stand from Milwaukee Tool delivers productivity for the plumbing and mechanical professional running pipes for gas or water systems and cast-iron pipes for sewage and drainage. This solution provides easy coring with the power to core up to 14-inch holes in reinforced concrete, and four 10-inch holes through reinforced concrete per charge. REDLINK PLUS Intelligence ensures maximum performance and protection from overload, overheating and overdischarge. Featuring a bit removal device, three-piece modular design and elimination of a cord, this core rig provides users with an easy coring experience on site. The rig includes two REDLITHIUM FORGE HD12.0 Battery Packs and an MX FUEL Super Charger, which are COOL-CYCLE capable. The rig is ONE-KEY compatible so you can track, manage and secure equipment. 800-729-3878; www.milwaukeetool.com

Hydroexcavation

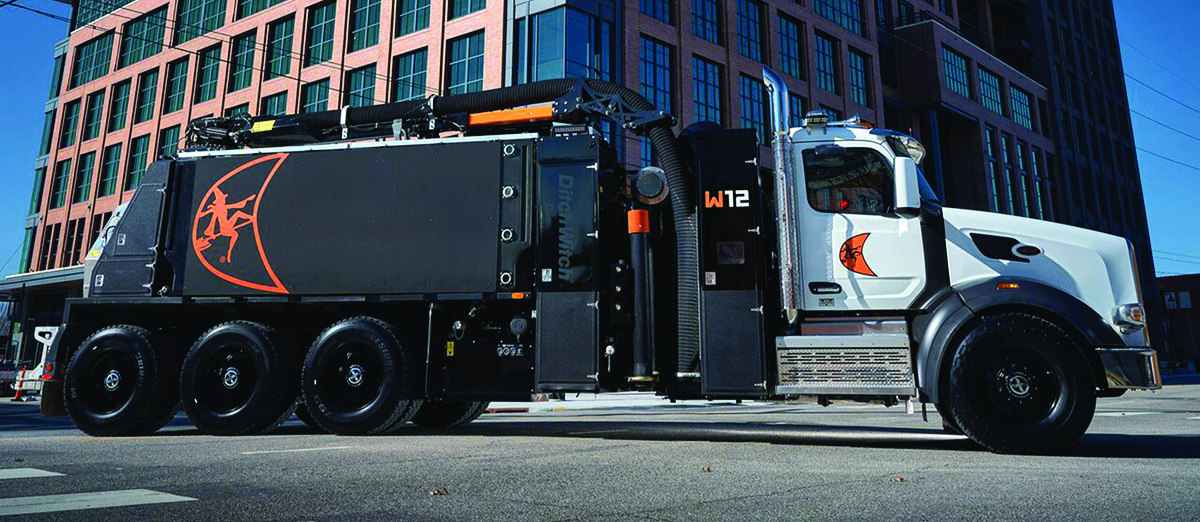

Ditch Witch Warlock W12

The Warlock W12 from Ditch Witch is a PTO-driven vacuum excavator that offers dual 600-gallon saddle tanks and a 12-cubic-yard debris tank, bringing increased capacity and performance to the job site. Dual hose reels, as well as the ability to both hydro and air excavate with the same truck, add to its versatility. Available with a 5,000 cfm blower and 27 inches Hg of vacuum power, it helps operators take on bigger jobs and maximize job site uptime. 580-336-4402; www.ditchwitch.com

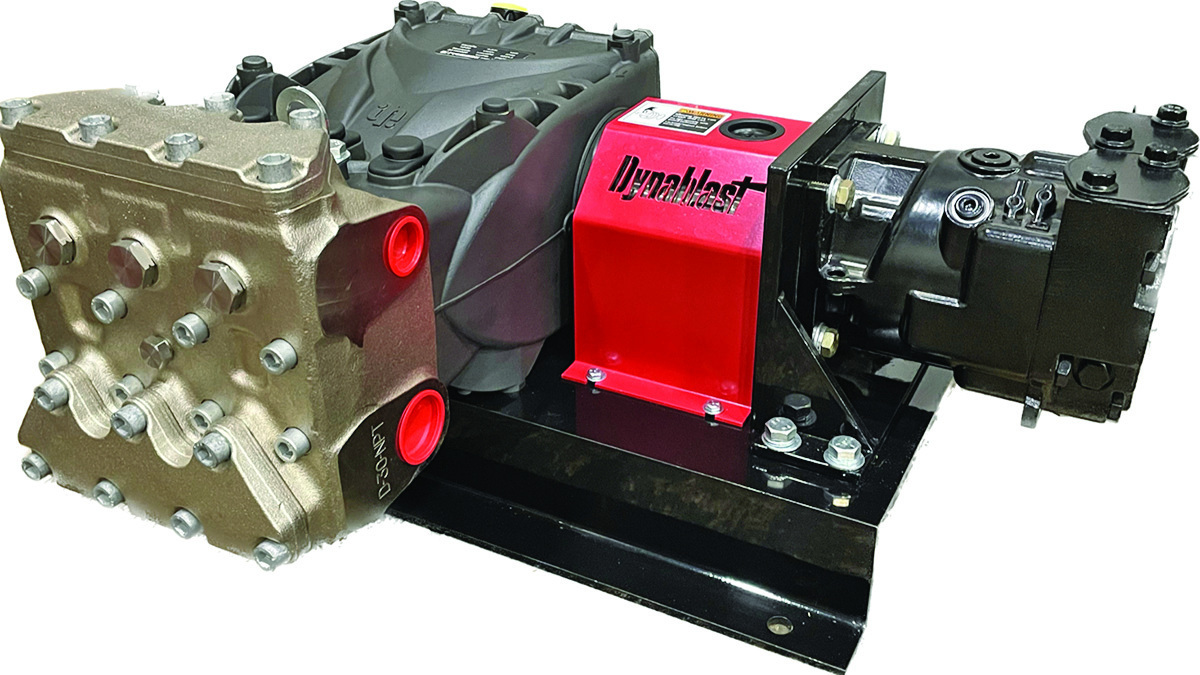

Dynablast Pratissoli KFR25

The Pratissoli KFR25 water pump, distributed by Dynablast, offers 19.4 gpm at 3,200 psi at 1,000 rpm. It is available on a coupler-driven hydrovac skid or T14 female-spline shaft input and SAE C 2/4 bolt flange for direct mounting to the hydraulic motor. It has run-dry seals, Kevlar graphite rope, a 420 stainless steel manifold for protection from cavitation, stainless steel valve cages for protection from cavitation, a self-lubricating design with no weekly oil lubrication required, a symmetrical crankcase that makes it easy to reverse-shaft the pump, internal fins on its aluminum crank case to provide cooling to lower the oil temperature, a tapered roller bearing for improved lateral loading, and two bore ceramic plungers that are thicker ceramic on the water end to prevent thermal shock. 905-867-4642; www.dynablast.ca

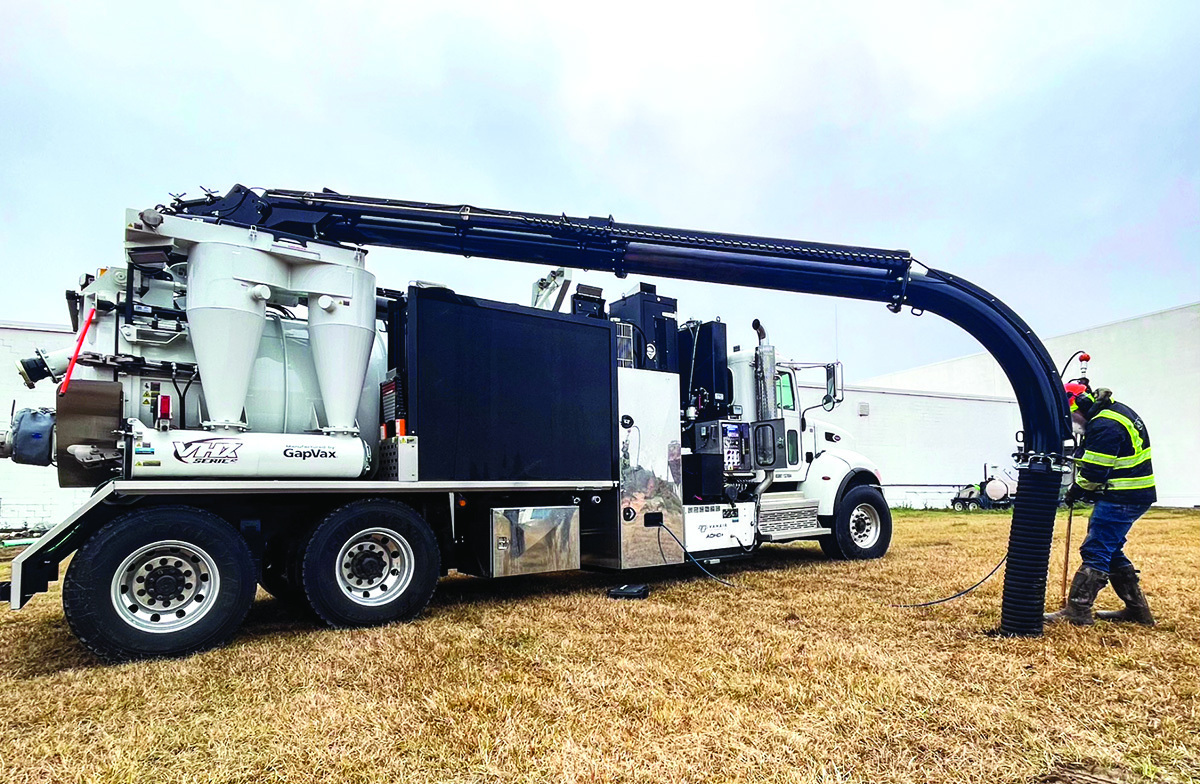

GapVax VHX Series

The GapVax VHX Series hydrovac is designed for optimal weight distribution, improved safety features and improved performance. The debris body is 7.5 cubic yards, offering a 15,000-pound payload. The low profile (12 feet, 2 inches) makes it suitable for all-around hydroexcavation projects. The vacuum system with single mode wet/dry filtration is quiet, reliable and simple, according to the maker. It includes a 4,000 cfm positive displacement blower, 600 hp transfer case with air-shift engagement and ultra-quiet air injection, and discharge silencers. This filtration design includes a top-loading debris tank, 14-inch stainless steel float-ball shutoff, efficient centrifugal cyclone separators and long-lasting filter bags. It is equipped with a 12 gpm, 3,000 psi water system with optional 200 cfm air compressor system. A full-tilting debris body, over-45-degree dump angle and full-opening tailgate promote fast unloading and easy clean out. The 8-inch telescoping VHX boom offers a 22-foot reach with 15-degree downward pivot. 888-442-7829; www.gapvax.com

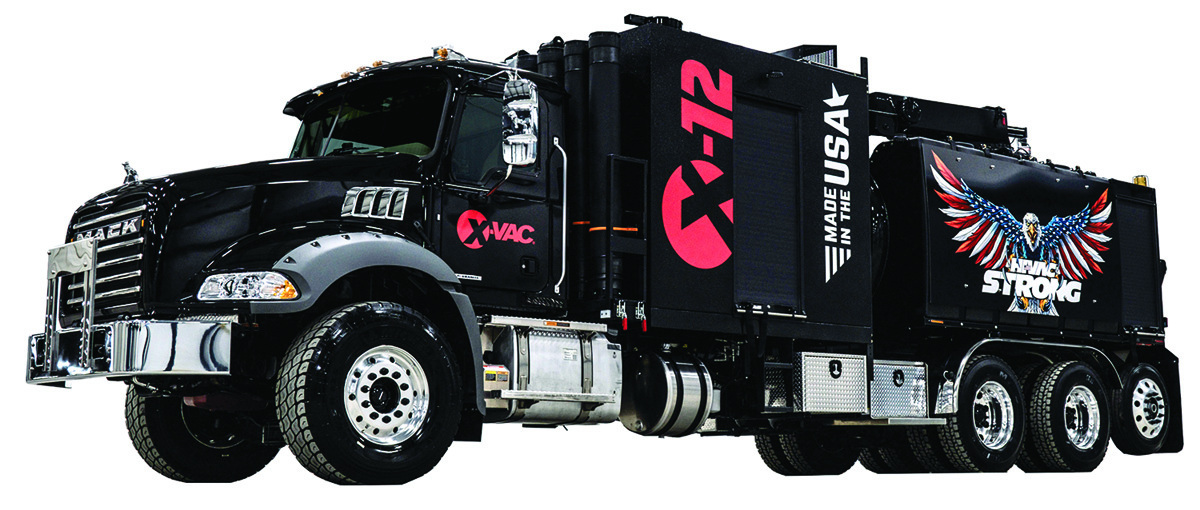

Hi-Vac X-Vac X-12 1450 Hydro Excavator

The X-Vac X-12 1450 Hydro Excavator from Hi-Vac provides the largest freshwater volume in a standard 12-cubic-yard truck platform. With more water, operators can trench, pothole and daylight longer without leaving the job site to refill. It also incorporates a combination of power, capacity and operator protection. The top-mounted, 360-degree rotation boom and simple intuitive controls make setups quick, even in tight spaces. The high-volume hydroexcavating power of a 20 gpm at 3,000 psi pump and debris removal of a 5,775 cfm 27-inch Hg high-performance blower get jobs done faster. It also includes important job site, transit and maintenance safety features such as integrated wired and wireless E-stops, audible-visual boom out-of-stow alarms, and standard debris tank and door prop rods. 800-752-2400; www.x-vac.com

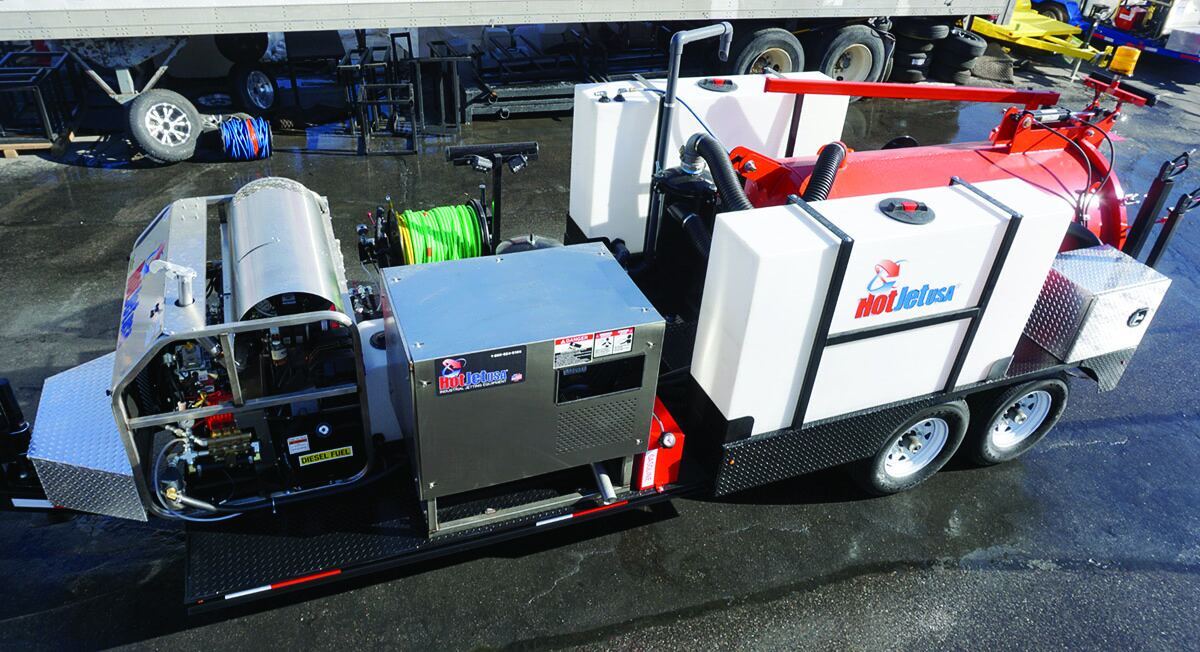

HotJet USA Vac’n Jet Series

The HotJet USA Vac’n Jet Series of vacuum trailer jetters are compact and engineered to haul equipment and the spoils load, perform hydroexcavation and clean valve boxes, storm drains and drain/sewer lines. They feature hot and/or cold water operation with a choice of engines ranging from 23 to 70 hp and gas or diesel. They are equipped with premium triplex pumps, a 500-gallon spoils tank, up to 440-gallon water tanks,Gardener Denver vac/blowers, a 4-ton hydraulic dump and a dual-filter centri-clean filter system. They can also be custom engineered to meet specifications. 800-624-8186; www.hotjetusa.com

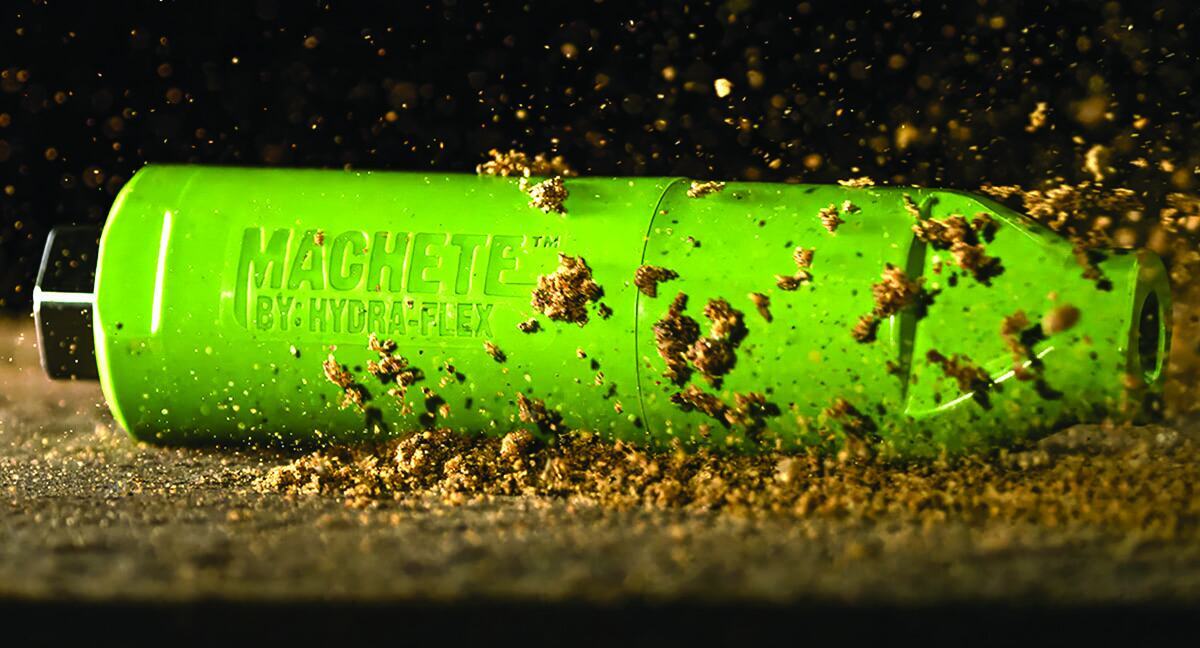

Hydra-Flex Machete

The Machete nozzle from Hydra-Flex offers precision and power for trenching, sloping and bell holing. Its 15-degree linear oscillating stream combines the force of a straight tip with the efficiency of a rotating tip, allowing for faster, deeper digging in compact, rocky soils and caliche. Its continuously moving stream makes it a safer tool to use around underground utilities and reduces the risk of soil collapsing or undermining. Its ergonomic design reduces physical strain on the operator and helps minimize long-term wear and tear on the body. Built with premium, long-lasting materials, this nozzle is designed to be field-repairable, resulting in a longer life span and lower operational costs. 952-808-3640; www.hydraflexinc.com

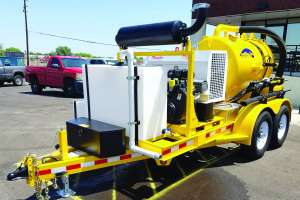

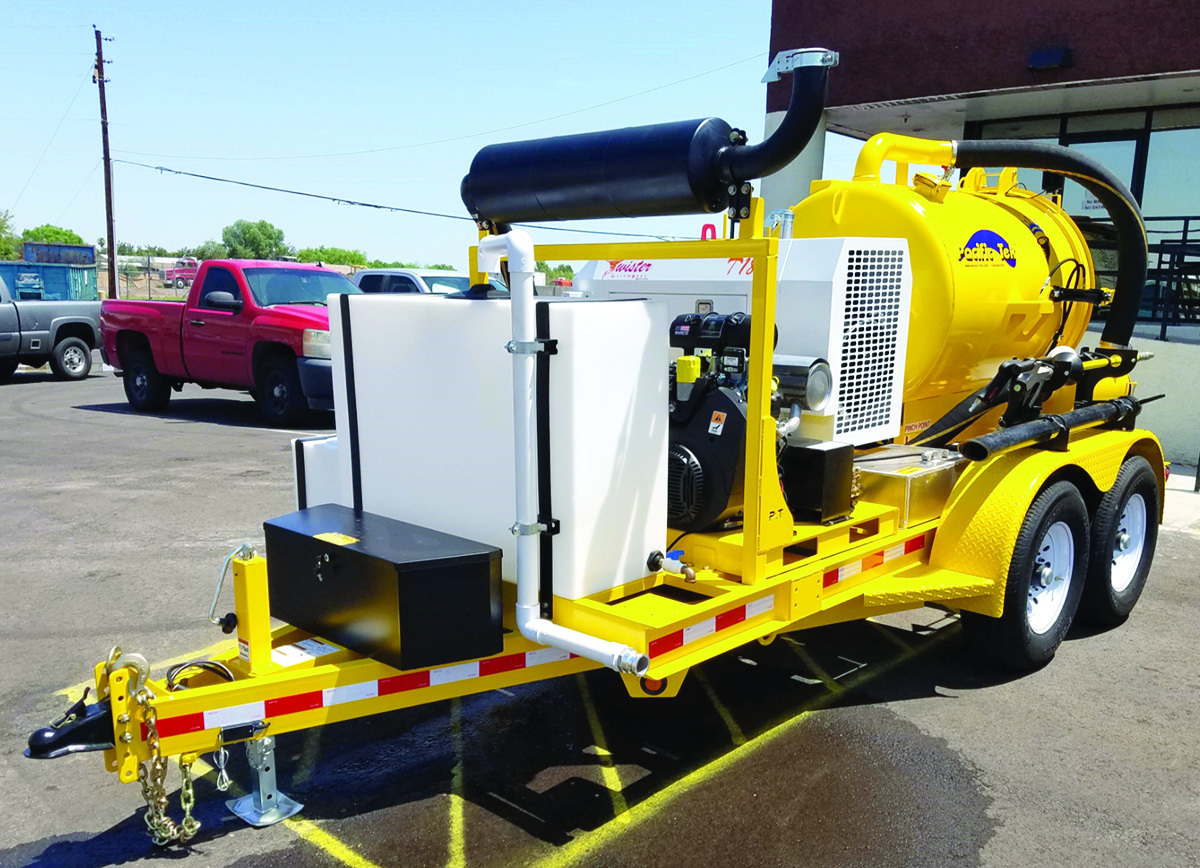

Pacific Tek AIR KING

The AIR KING air and hydroexcavation trailer from Pacific Tek is available with a 500- or 800-gallon-capacity debris tank made of carbon steel and sandblasted, then powder-coated inside and out. It employs a 185 cfm compressor with 100 psi output connected to an air wand allowing the operators to return the spoils collected in the debris tank to the ground. The system also has a pressure washer system (4 gpm at 3,500 psi) in case the operators want to hydroexcavate for faster or deeper digs. A simple three-way valve selector switch is situated on the curbside of the trailer for easy toggling from vac to air to hydroexcavator functions. The trailer itself is made of carbon steel and is sandblasted then powder-coated like the debris tank. Options include a telescoping vacuum hose boom, reverse flow feature, LED work lamps, spare tire and mount, and a tool storage box. 800-884-5551; www.pacific-tek.com

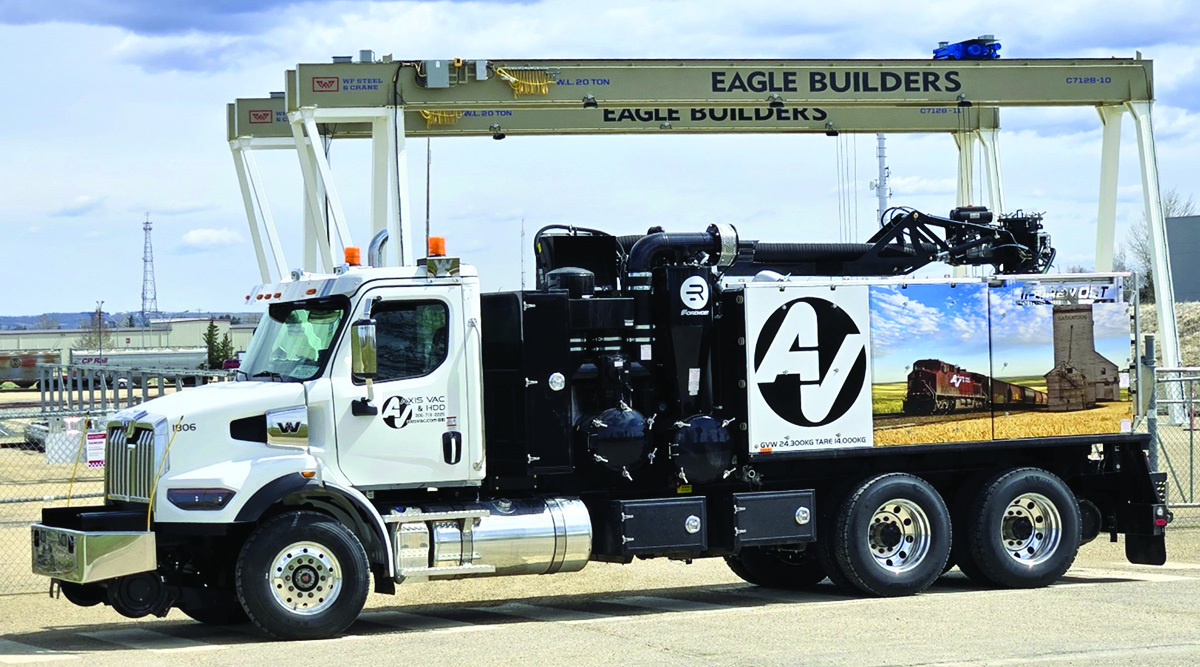

Rival Hydrovac T7 Tandem and T10

The T7 Tandem from Rival Hydrovac was designed primarily to be loaded with debris and driven within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights in the cab and on the wireless remote. The T10 is built with the same features and operating system but with larger capacities and components. It is for both utility and industrial work and is available in three chassis layouts to meet weight restrictions in a given area. An air compressor option allows for excavating with air when required, while a truck-mounted coring system allows for removal of hard surfaces prior to nondestructive excavating. 403-550-7997; www.rivalhydrovac.com

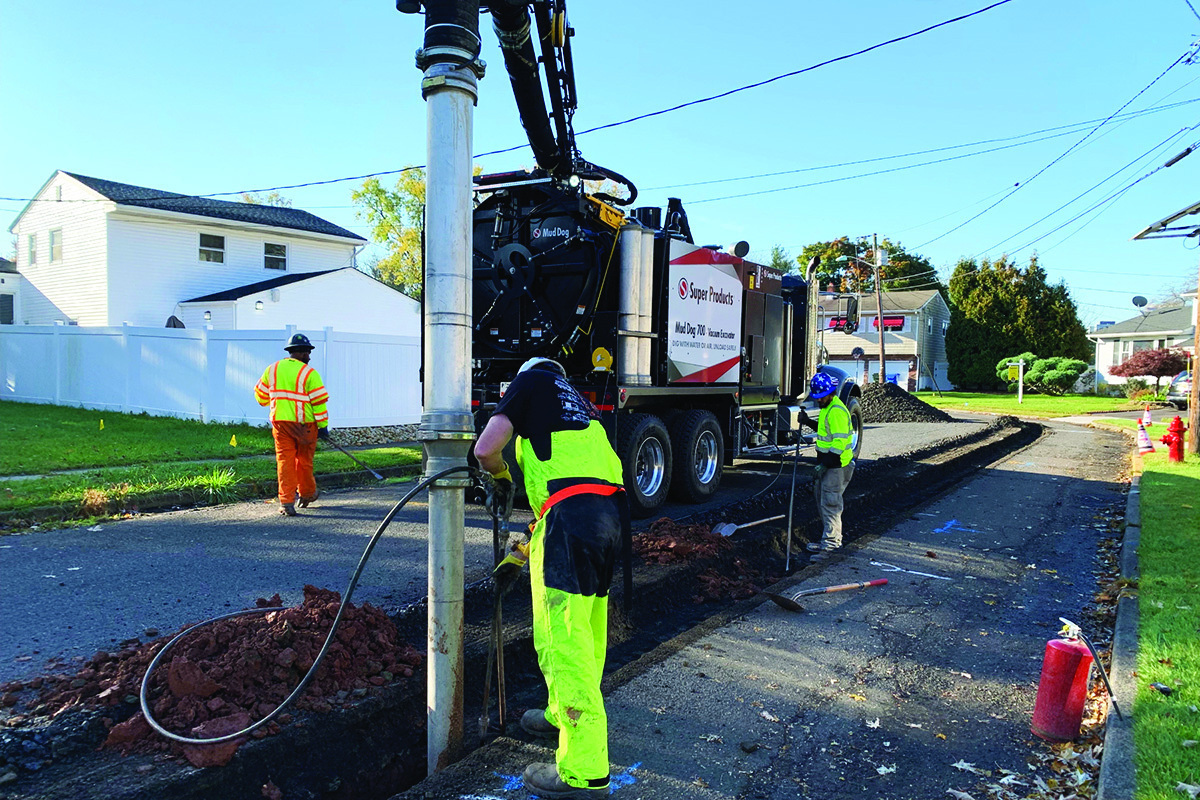

Super Products Mud Dog 700

Mud Dog 700 vacuum excavators from Super Products are designed to meet the challenges of compact urban projects as well as large-scale excavation projects. They offer a compact footprint for excavation in urban environments while maximizing payload and maintaining the power and precision that larger units offer. The unit features a 7-yard debris body and 600-gallon water tank. This model comes standard as a dump body with an electric vibrator offering a 50-degree dump angle with the capability of dumping into a 48-inch container. Additionally, it is equipped with a rear-mounted, extendable, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and pivots 10 degrees downward, which minimizes job site restoration and eliminates traffic congestion near roads. 800-837-9711; www.superproducts.com

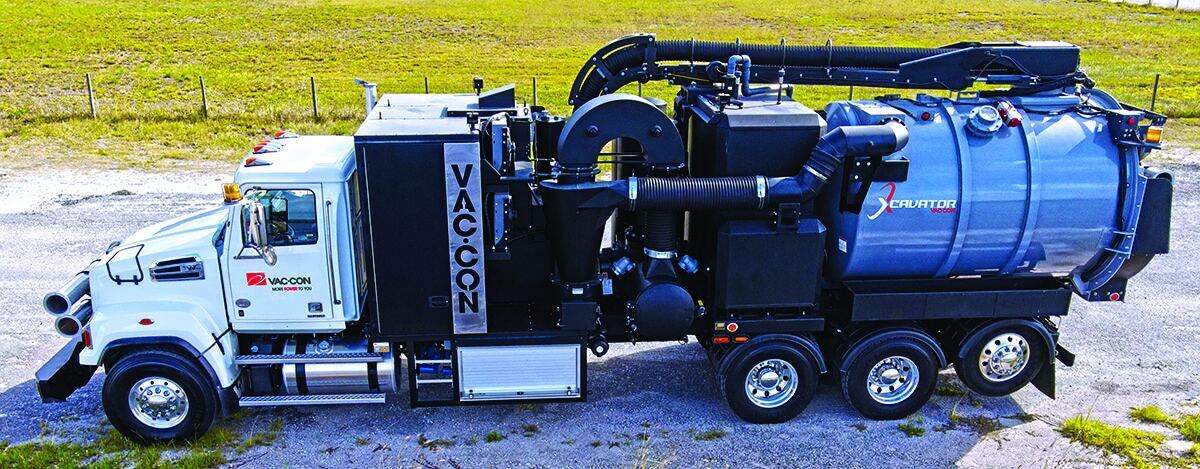

Vac-Con X-Cavator

The X-Cavator hydrovac from Vac-Con includes a cold-weather enclosure for the water systems and control panel as well as an interior area for operator seating and workspace. Unit filtration is based on the Titan combination machine with a single-cyclone design and final cartridge-style filter. The redesigned boom is lightweight and flexible, rotating 310 degrees around the unit and moving plus 45 degrees and minus 22 degrees vertically. The durable rubber hose material can withstand harsh environments, according to the maker, and has a reach of 26 feet. 904-284-4200; www.vac-con.com

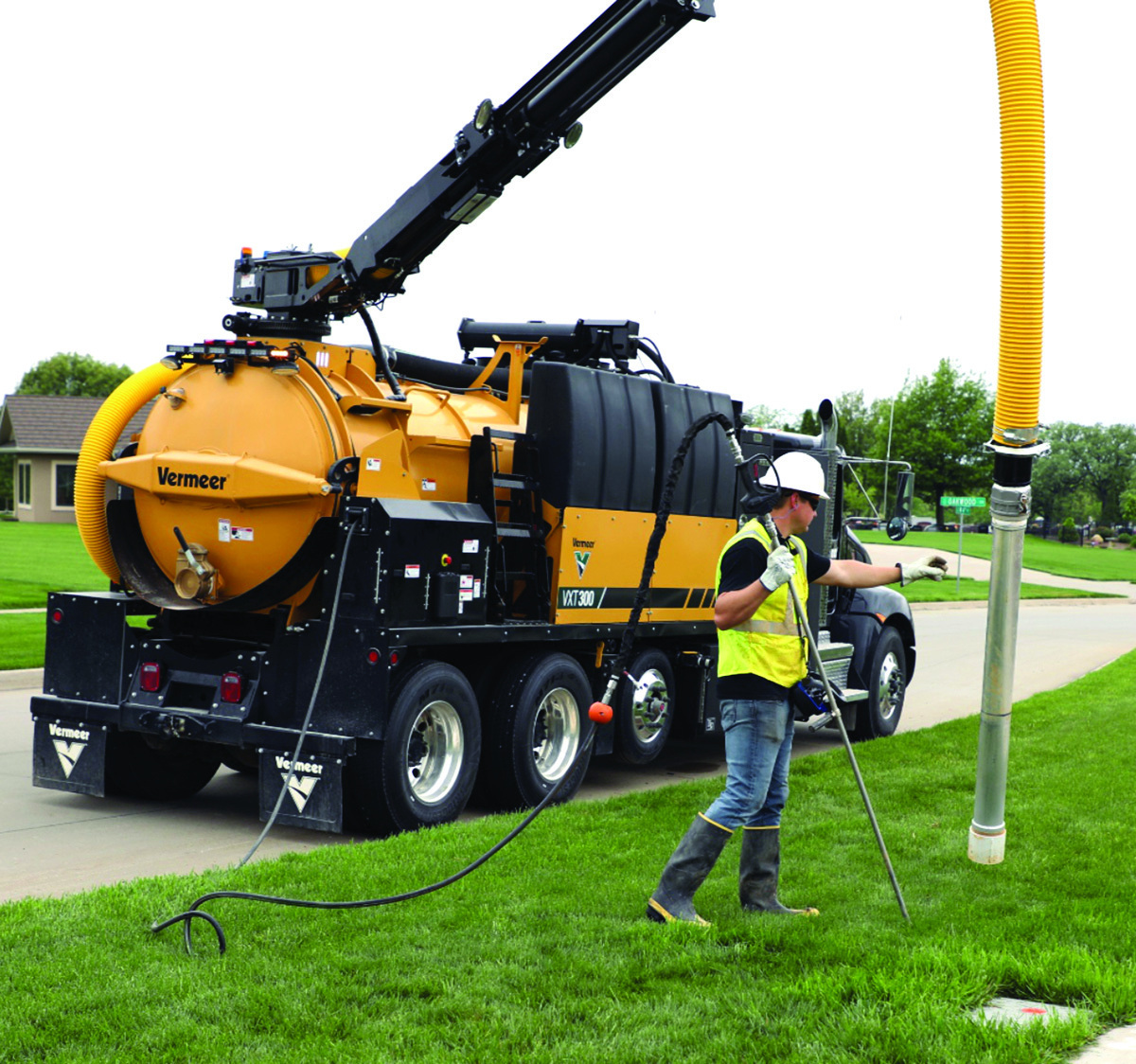

Vermeer VXT300

The Vermeer VXT300 truck-mounted vacuum excavator is outfitted with an 8-cubic-yard spoil tank, a 6-inch dig tube and the ability to carry up to 800 gallons of water so crews can maximize productivity on the job. It is built on a Kenworth T880 truck chassis with a 350 hp diesel engine and a six-speed automatic 3,000 RDS Allison transmission. The truck’s PTO drive powers its Roots 624 vacuum blower with a maximum flow of 3,500 cfm free air and maximum suction of 18 inches Hg. With a water pump capable of producing 10 gpm at 3,000 psi, it delivers productivity on large jobs as well as when digging at deeper depths. 352-728-2222; www.vermeer.com

Pipe Bursting Tools

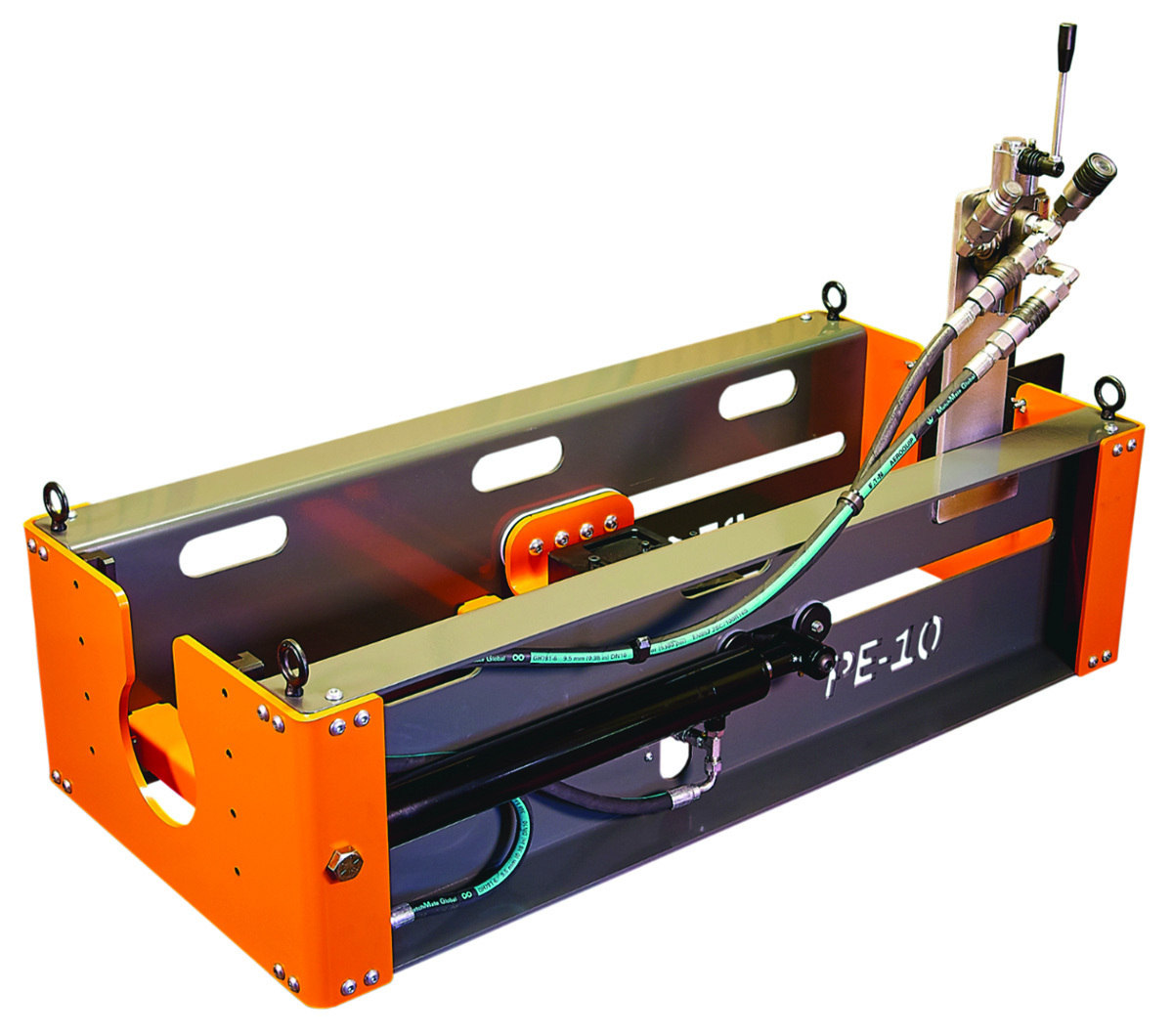

PE Equipment PE-10

The PE-10 from PE Equipment is a multifunction trenchless machine, primarily built for water and lead line replacement, utilizing a single chassis with interchangeable modules and a no-weld structural design. The modular chassis allows it to perform the functions of multiple machines, providing speed and flexibility when on job sites with difficult situations typically requiring multiple machines. The no-weld structural design allows for the replacement of any part by the user. It has the ability to change functions from a pipe bursting to rod-pushing module in 10 minutes. It has a small footprint under 4 by 2 feet, along with a lightweight chassis that can be carried by two people. It has a fast push/pull speed capable of up to 13 feet per minute depending on conditions. 406-499-8136; www.pe-equipment.com

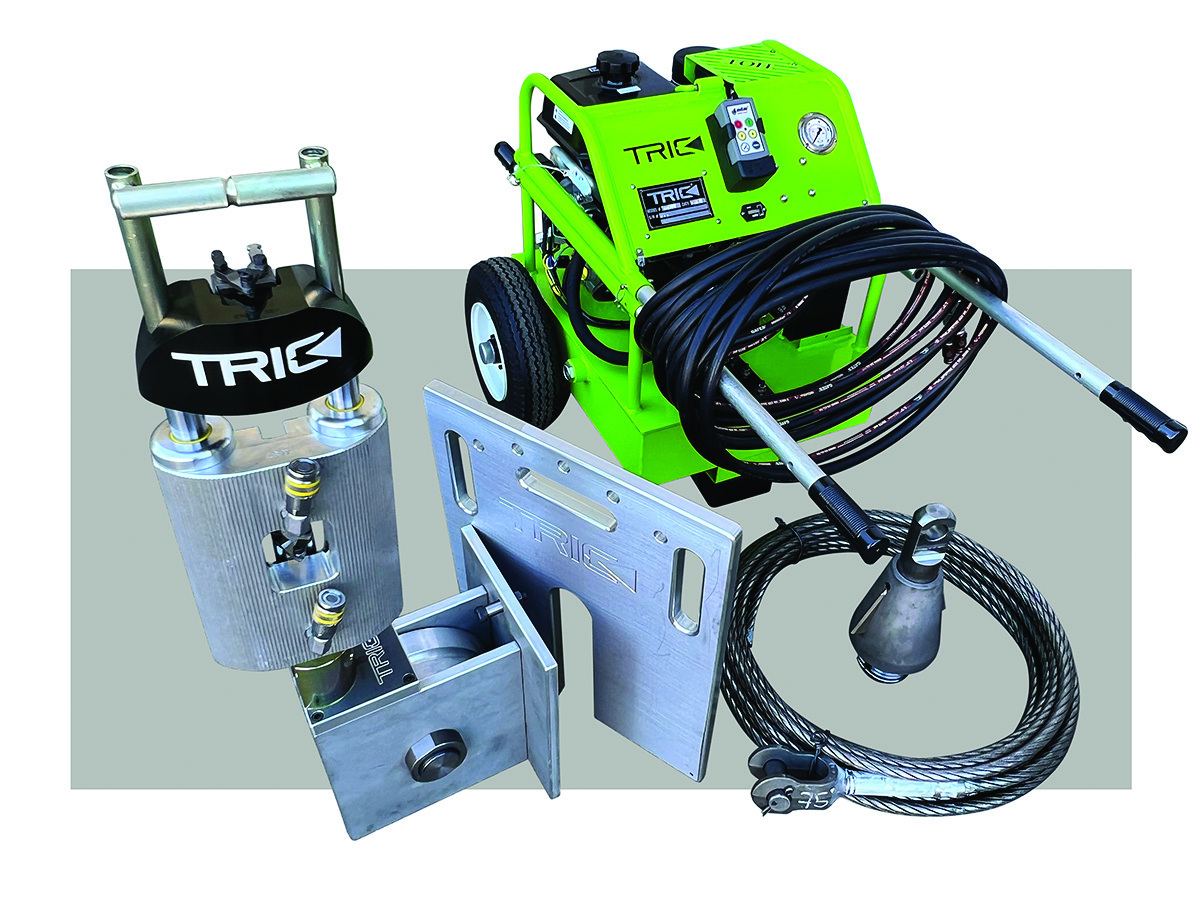

TRIC Tools X30

The X30 pipebursting system from TRIC Tools offers a revised pulling bridge design plus cylinder body refinements that makes the X30 puller lighter and stronger than previous models. The HC14 hydraulic power-pack delivers over five times the speed of previous pumps. Recent power-pack improvements include heavy-duty wheels and frame, double-acting handles for extra portability in difficult field situations, a wireless remote control, and a special circuit to power hydraulic tools such as jack-hammers, trash pumps and concrete saws. 888-883-8742; www.trictools.com

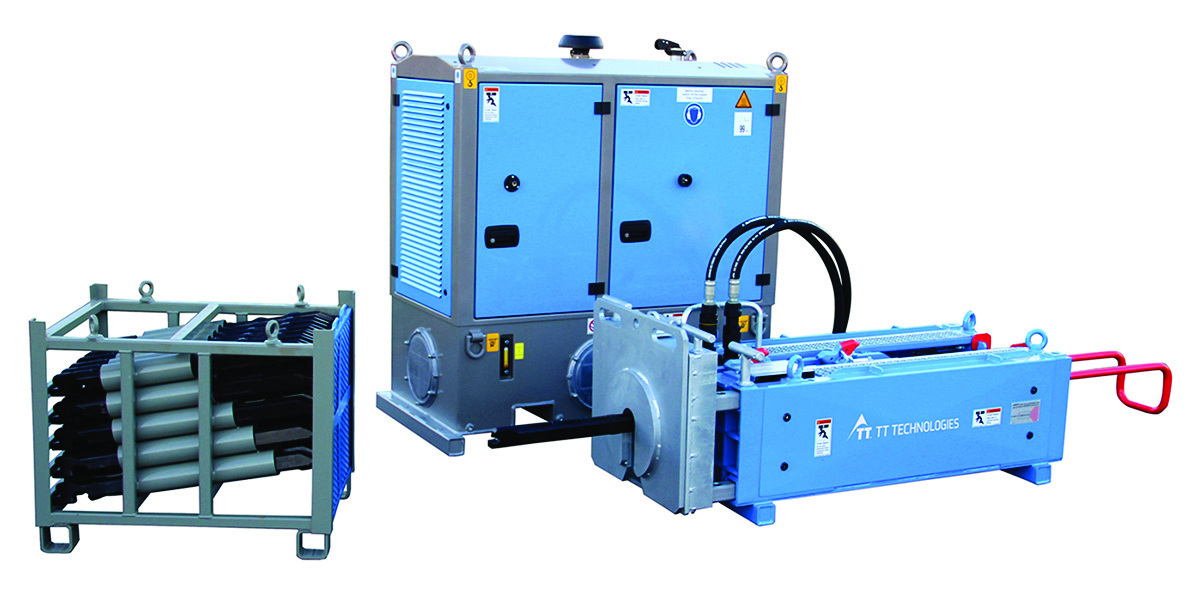

TT Technologies Grundoburst

Burst and replace water, sewer, gas and other pipes with the Grundoburst static pipe bursting system from TT Technologies. It can pull in a variety of replacement pipe including PVC, DIP, ABS, cast iron, fusion-welded HDPE and VCP jacking pipe. The static pipe bursting system utilizes a specially designed bladed cutter head to make bursting ductile iron and steel pipe possible. Pulled by a hydraulic bursting unit, the cutter head’s special cutting wheels split the host pipe. An attached expander spreads and displaces the split pipe into the surrounding soil while simultaneously pulling in the new pipe. QuickLock bursting rods are linked together, not threaded. This saves time, prevents twisting and extends the life of the cutter head over threaded bursting rods. Six models are available for bursting 2- through 54-inch pipes and larger. 800-533-2078; www.tttechnologies.com
