Chemical Grouts

Avanti International AV-100

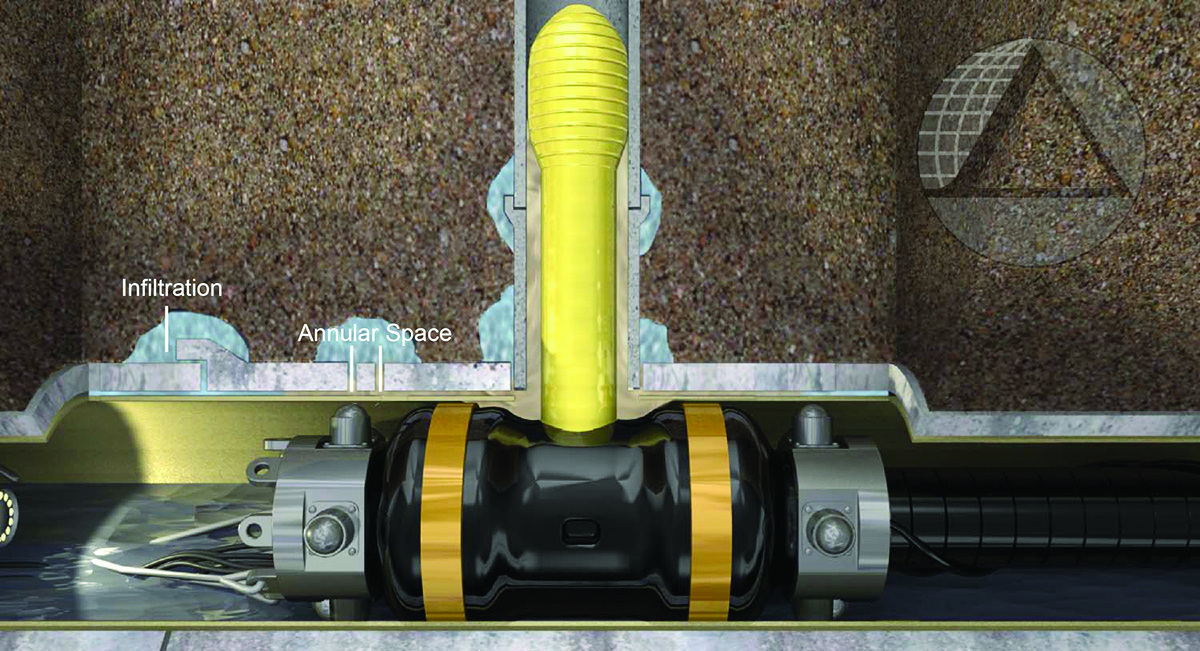

AV-100 chemical grout from Avanti International is used to rehabilitate storm and sanitary sewer systems by eliminating infiltration in manholes, mainlines, joints, laterals and lateral connections before or after various forms of CIPP lining. It is injected after lining seals in the annular space between host pipe and liner, and lateral reinstatement, which are the primary sources of infiltration. It is an ultra-low viscosity, chemically reactive gel with a similar viscosity to water. It can permeate anywhere water can travel and has adjustable cure times from seconds to hours, creating an effective, long-lasting water barrier while providing soil stabilization. 800-877-2570; www.avantigrout.com

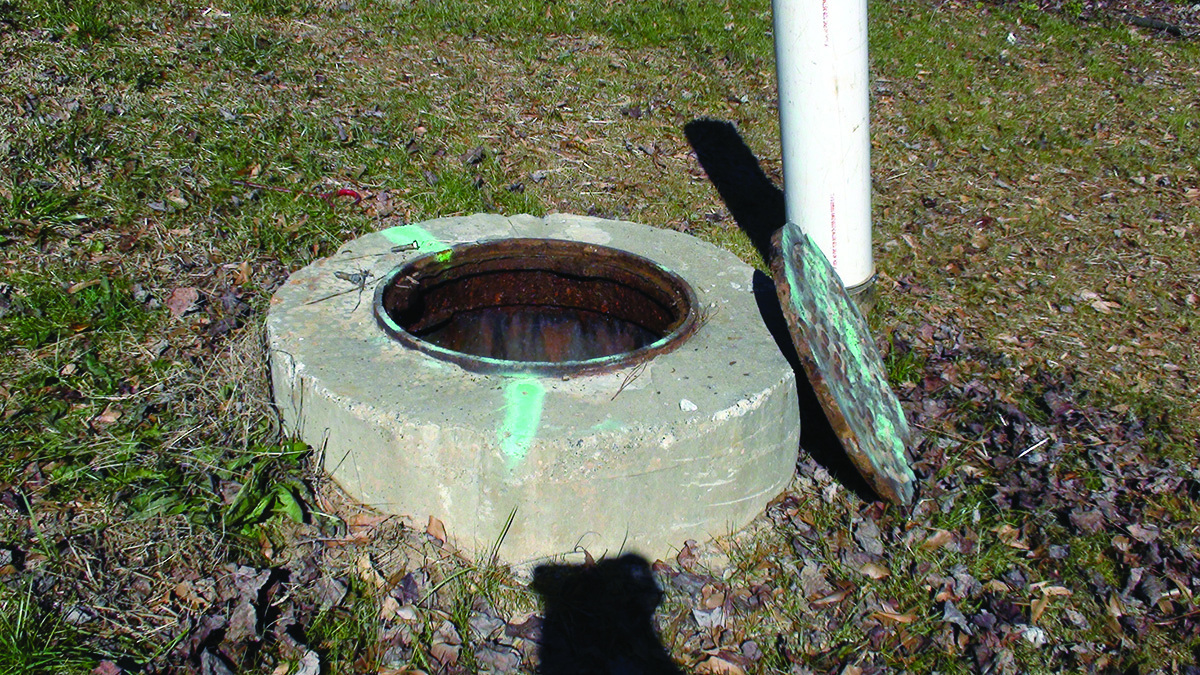

Prime Resins SoiLok MH

SoiLok MH from Prime Resins is an extremely thin two-component liquid resin designed specifically for manhole applications. It is a soil binding system (a subterranean grout) used to stabilize and bind loose soil or sand, stop underground water flows and seal weeping leaks in manholes and other below-grade structures. It is an easy-to-use premeasured kit, resulting in predictable set times in noncohesive soils. It has super-low viscosity, nearly as thin as water, allowing for thorough permeation. It contains no suspended solids in the blended product, which means no airborne particulates. It has adjustable gel set times for various site conditions. Achievable compressive strengths are site specific and strongly dependent on sand/soil conditions, composition and particle size distribution. 800-321-7212; www.primeresins.com

Epoxies

Epoxytec Mortartec Cladliner

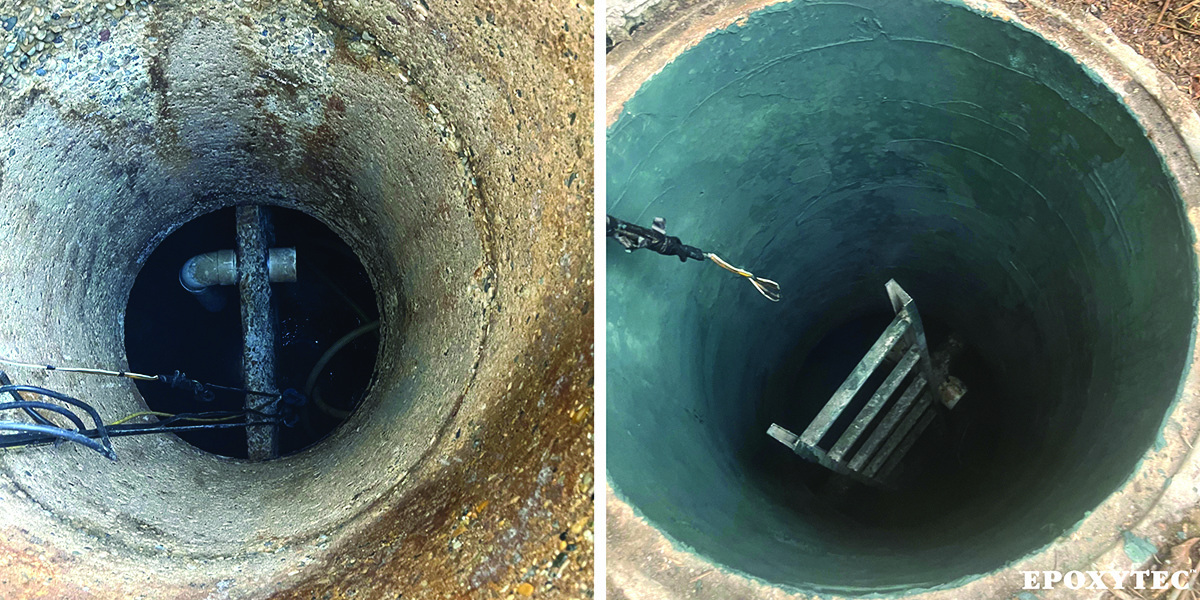

Mortartec Cladliner from Epoxytec is a practical and economical approach to sanitary sewer manhole and other wastewater infrastructure lining by providing ease of application while delivering performance with savings. It is an engineered standalone hybrid epoxy-cement liner combining the simplicity of a cementitious lining with the performance of a high-build epoxy. It offers acid resistance to protect from corrosion derived from mild-to-moderate hydrogen sulfide conditions up to 100 ppm. It is well suited for the protective lining of new structures and the rehabilitation of aging structures, particularly brick or concrete sanitary sewer infrastructure. 877-463-7699; www.epoxytec.com

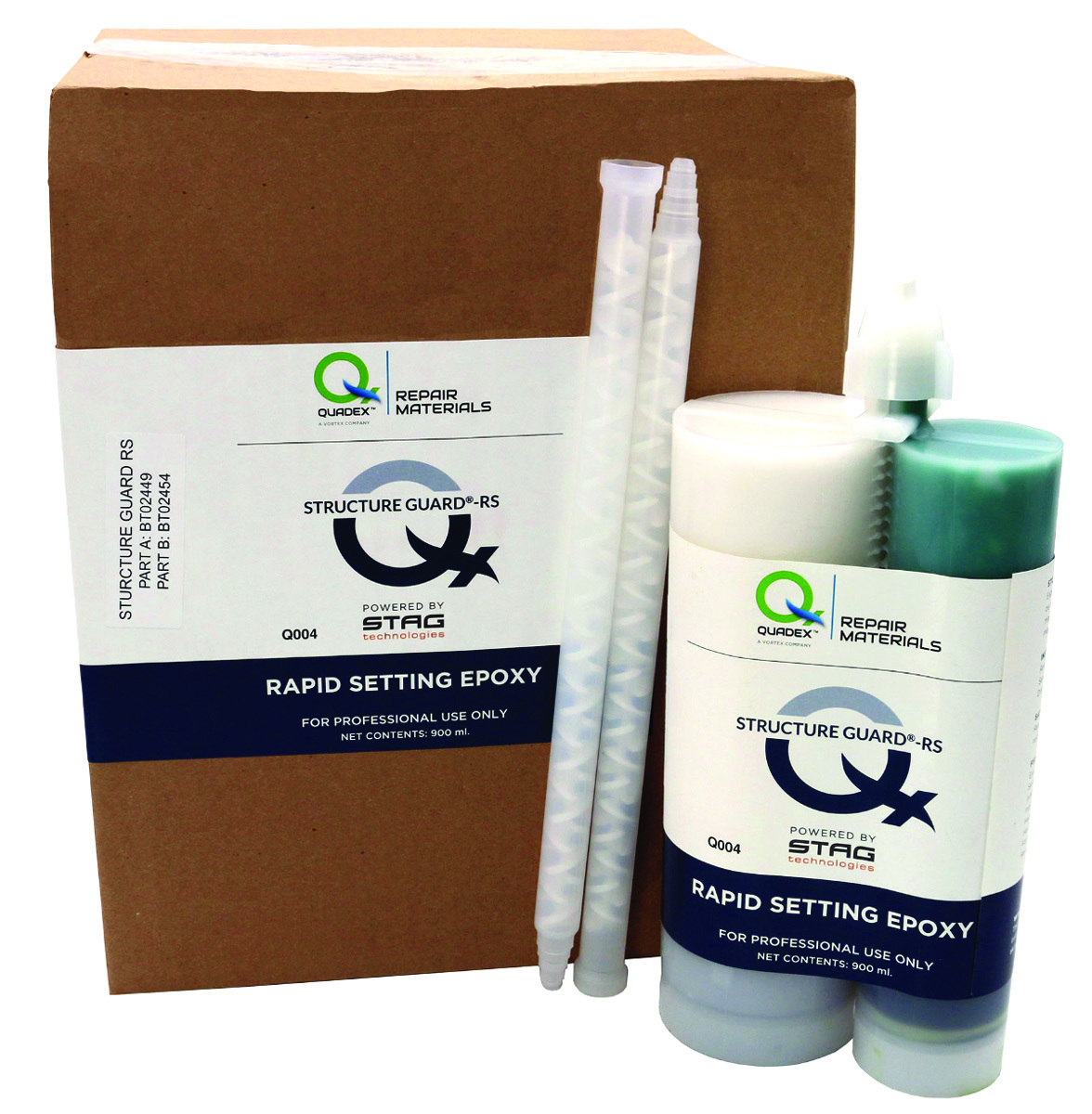

Source One Environmental Quadex Structure Guard

Quadex Structure Guard, distributed by Source One Environmental, is a high-build epoxy coating formulated to provide long-term corrosion protection and structural enhancement for manholes, pump stations, treatment plants or any wastewater infrastructure subject to high levels of corrosion and/or abrasion in both municipal and industrial applications. It is also suitable for invert repairs. It can be trowel- and/or spray-applied, and is a 100% solids material with no VOCs and a fast set time. 877-450-3701; www.s1eonline.com

Leak Location

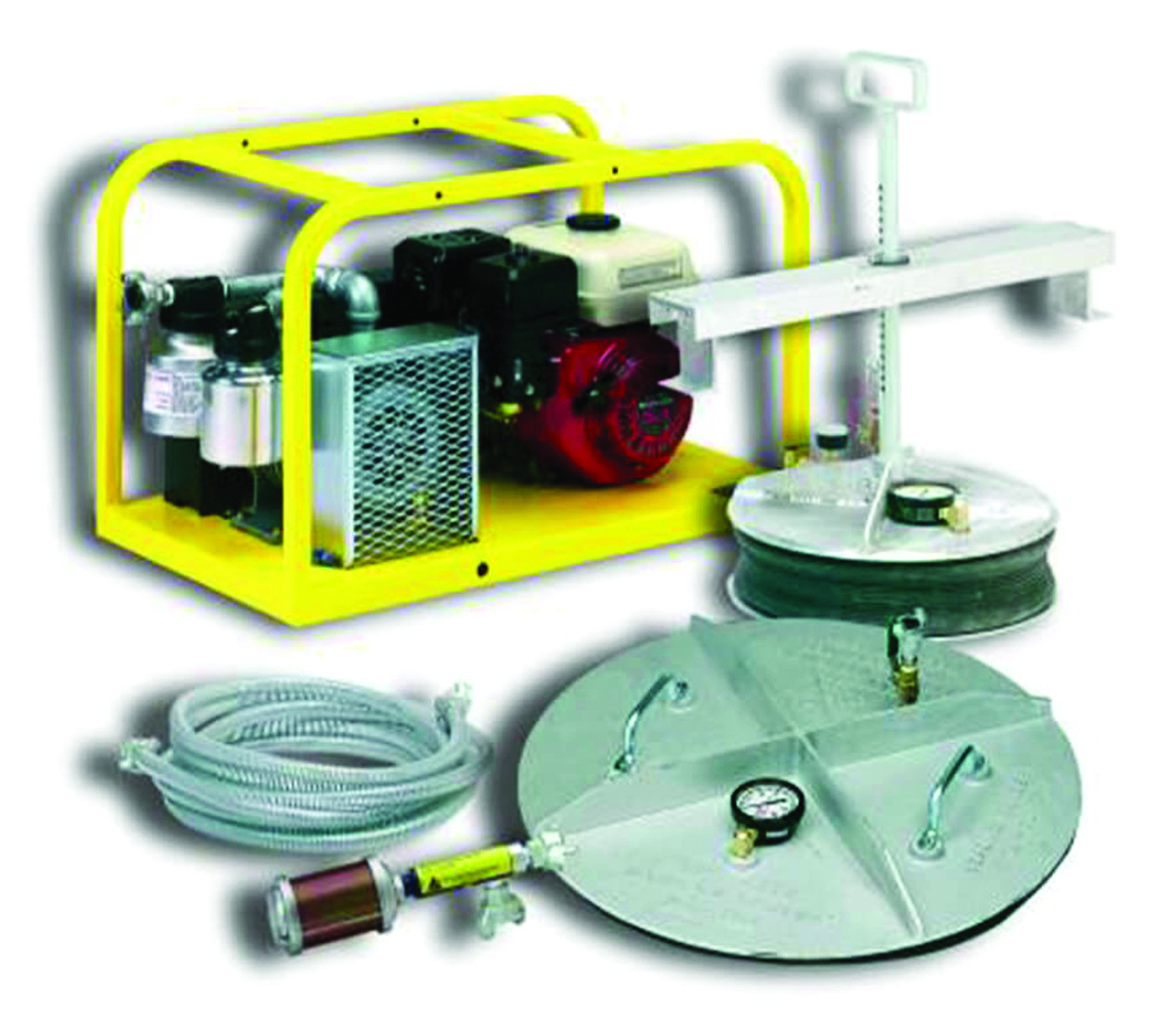

Cherne Air-Loc Vacuum Equipment

Cherne Air-Loc Vacuum Equipment, including engine vacuum pump and vacuum generators, are used to test the integrity of manholes and their resistance to water infiltration/exfiltration using a vacuum test medium. They are available with a Briggs & Stratton or Honda engine to suit various testing needs. 800-843-7584; www.cherneind.com

ITpipes RinnoVision RV-MAX 360 integration

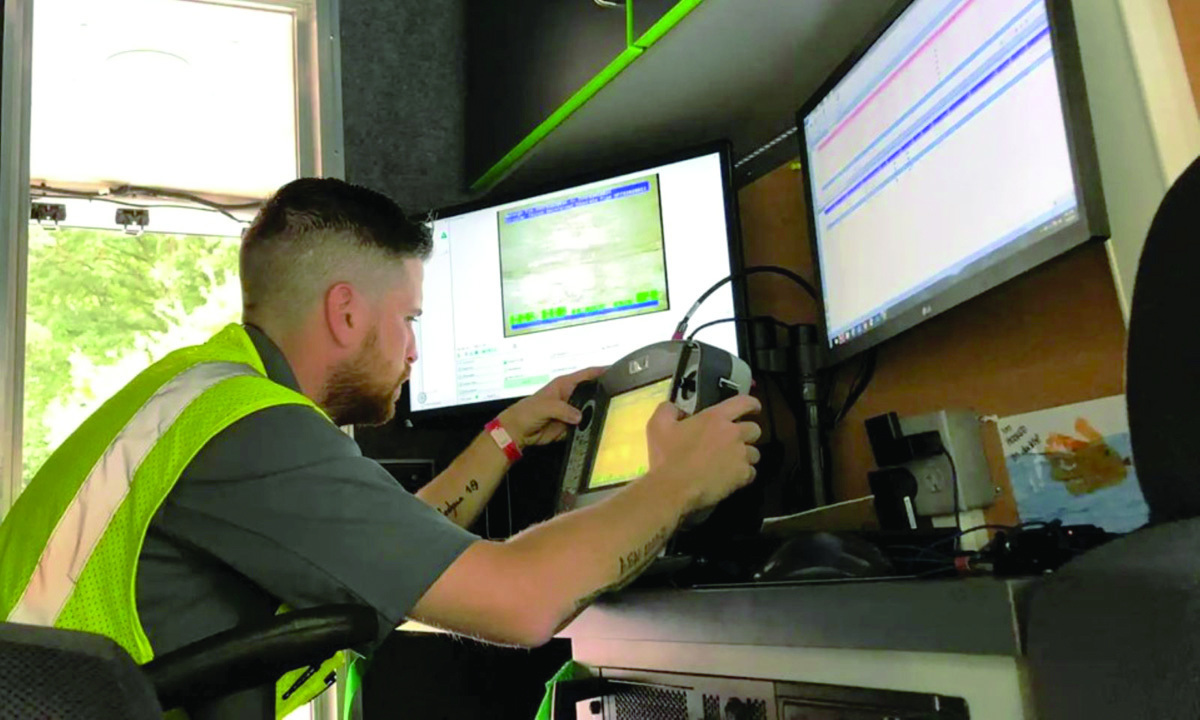

ITpipes integration with RinnoVision’s RV-MAX 360 allows inspectors to easily capture, manage and analyze inspection data using mobile and cloud-based solutions. It integrates seamlessly with GIS systems, ensuring accurate mapping of manhole locations. It automates the reporting process, allowing inspectors to quickly generate detailed reports that include snapshots, video and condition ratings. This technology not only saves time but also enhances decision-making, supporting proactive maintenance efforts and reducing the need for costly emergency repairs. It ensures that all stakeholders have access to actionable intelligence, helping prioritize repairs and plan long-term infrastructure improvements. 877-487-4737; www.itpipes.com

Manhole Cameras

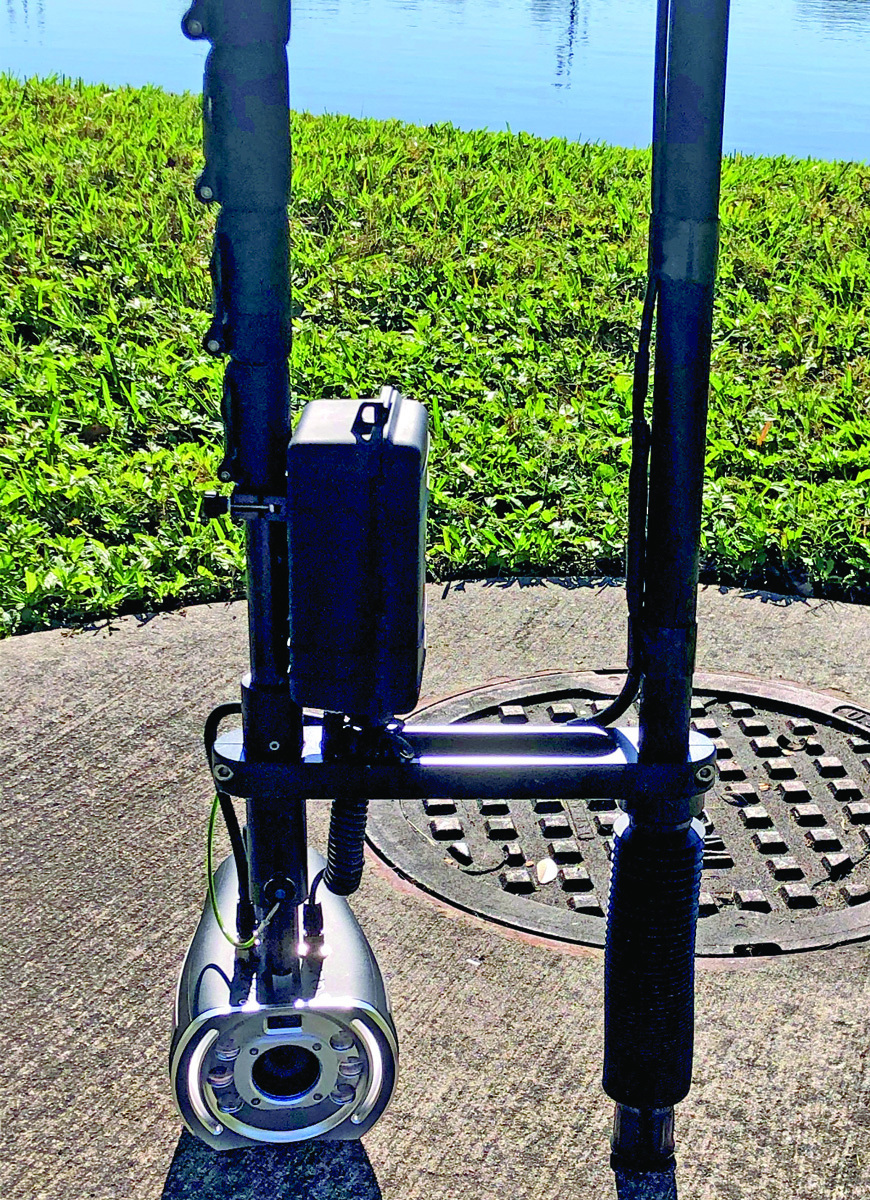

CUES QZ3 Advanced

The QZ3 Advanced HD wireless video inspection pole camera from CUES can be operated by one person using any tablet. It is designed to provide safe viewing in industrial or environmental areas with no man entry. Perform swift inspections and surveys of pipelines, wet wells, manholes, sewer treatment plants, steam generators, tanks, vessels and other areas that are difficult to reach. It can also be used to locate lateral services or to identify blockages at manholes, access ports or other entry points without entering the line or structure. Added features over the basic model include motorized height and tilt, in addition to laser distance measurements. It is mounted on a lightweight, telescopic carbon fiber pole that can extend up to 24 feet (an optional 34-foot pole is available). The 1080p camera features a 360-1 zoom with built-in image stabilization, automatic focus, distance-to-defect measurement and self-contained waterproof MAP lighting. 800-327-7791; www.cuesinc.com

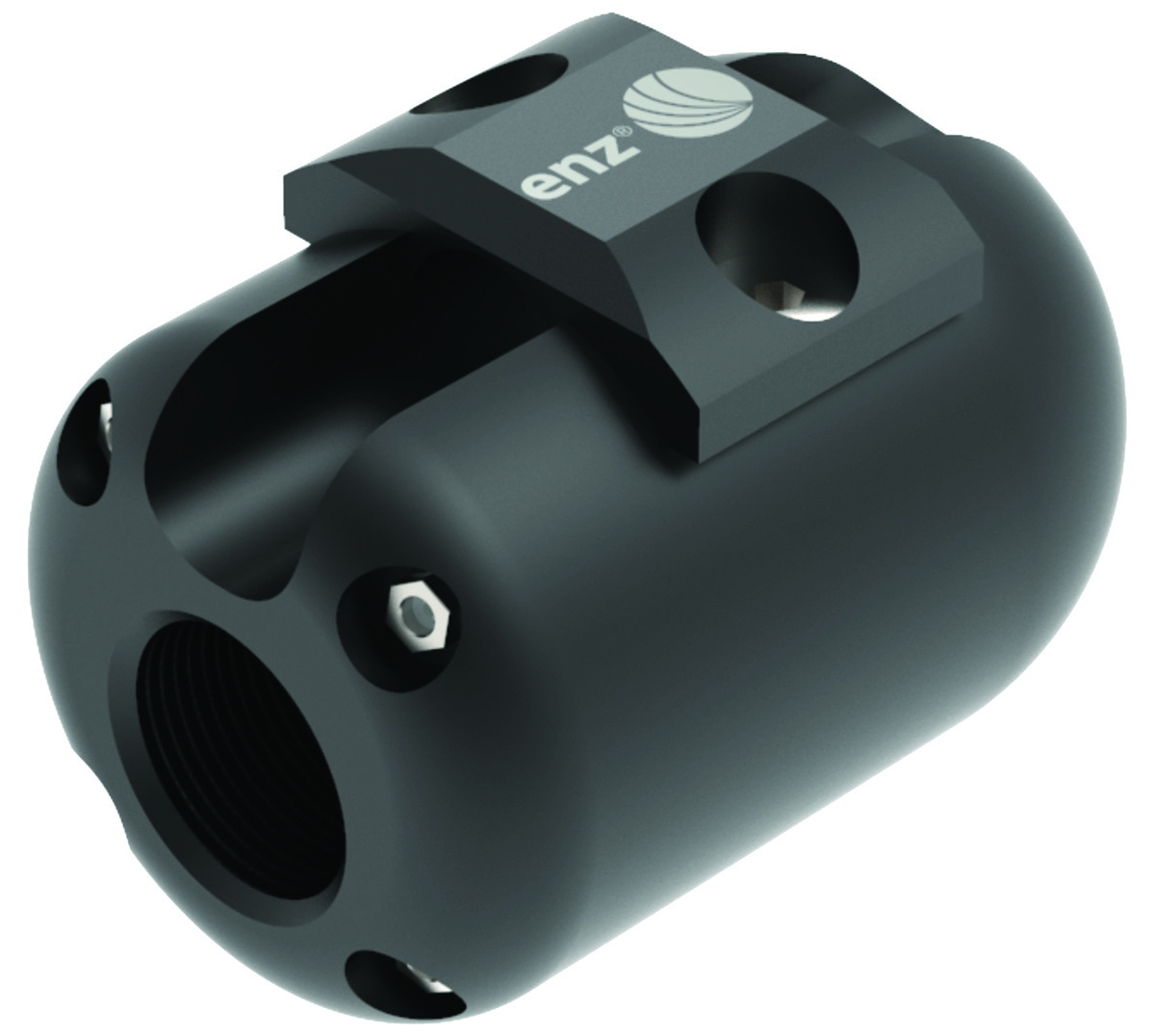

Enz USA Camera Nozzle

The Enz USA Camera Nozzle has a modular design that allows universal use with all nozzle types, such as the eBomb or the eBulldog, and thus guarantees streak-free all-around cleaning in every application. The HD-ready resolution and 12 high-power LEDs deliver high-resolution video footage for quality control, documentation and preliminary inspection. Data management is fully integrated into the system through the Wi-Fi interface and connection to the Enz Cloud. All manholes and channels are automatically mapped on Google Maps with the videos. The nozzle, which is simple, fast and robust, increases productivity without any negative impact on cleaning performance or quality. 877-369-8721; www.enz.com

Manhole Liner

Sprayroq SprayWall

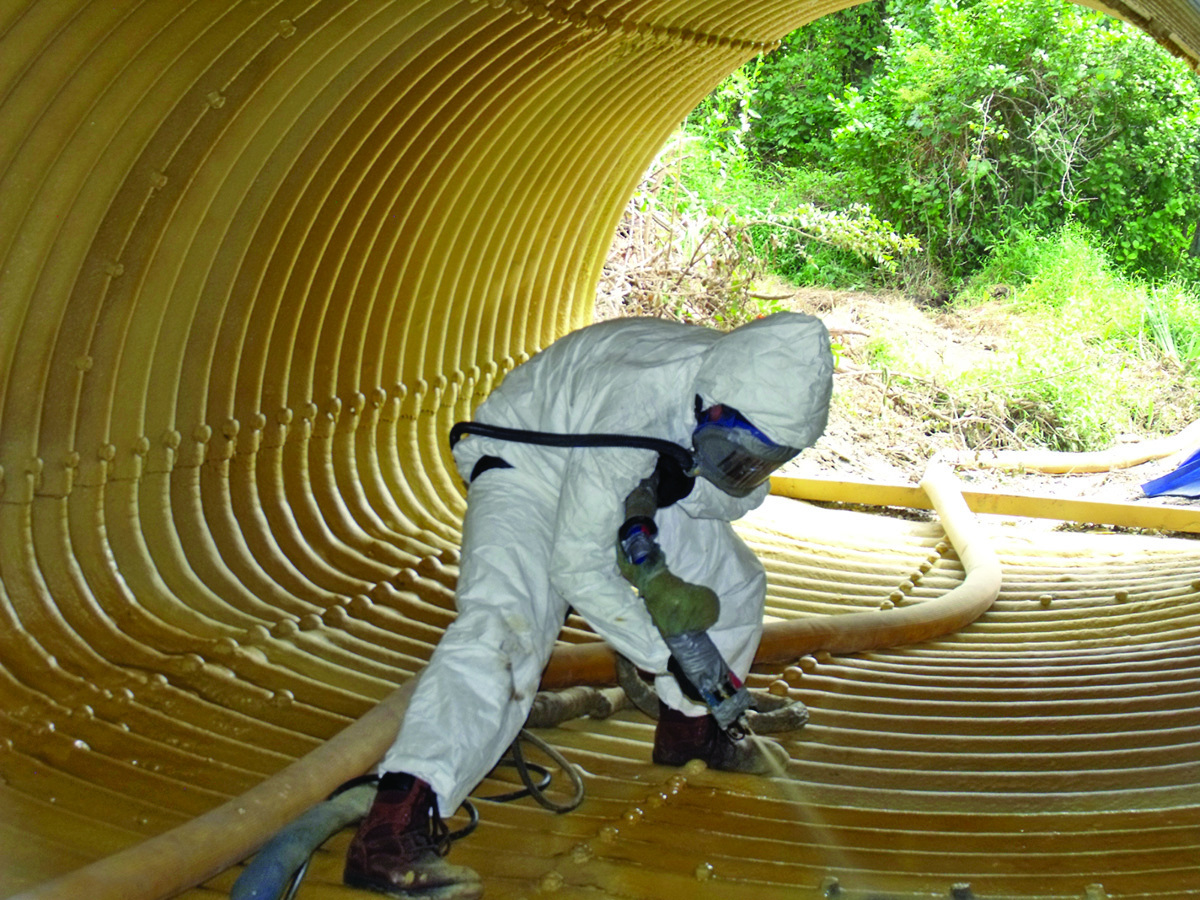

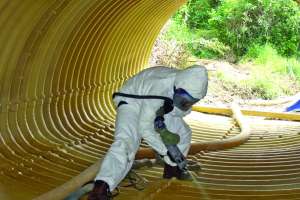

SprayWall from Sprayroq is a rigid polyurethane material that provides structural integrity and infiltration control to underground infrastructure assets. It is a 2-1-ratio product that is applied via a heated, plural component spray system. It begins to gel in about eight seconds and is tack-free after two minutes. Within 30 to 60 minutes, the initial cure is complete and the structure is capable of accepting flow. Benefits include its structural capacity, which provides for protection against multiple load components within an underground asset including water, soil and traffic loads. In addition, it allows an asset owner to return a structure to service quickly, creating a huge savings on bypass cost as well as decreasing the overall downtime for a given structure. It is also third-party tested and most recently has undergone significant successful evaluations through AASHTO. 205-957-0020; www.sprayroq.com

Manhole Parts and Components

CCI Piping Systems WrapidSeal Manhole Encapsulation System

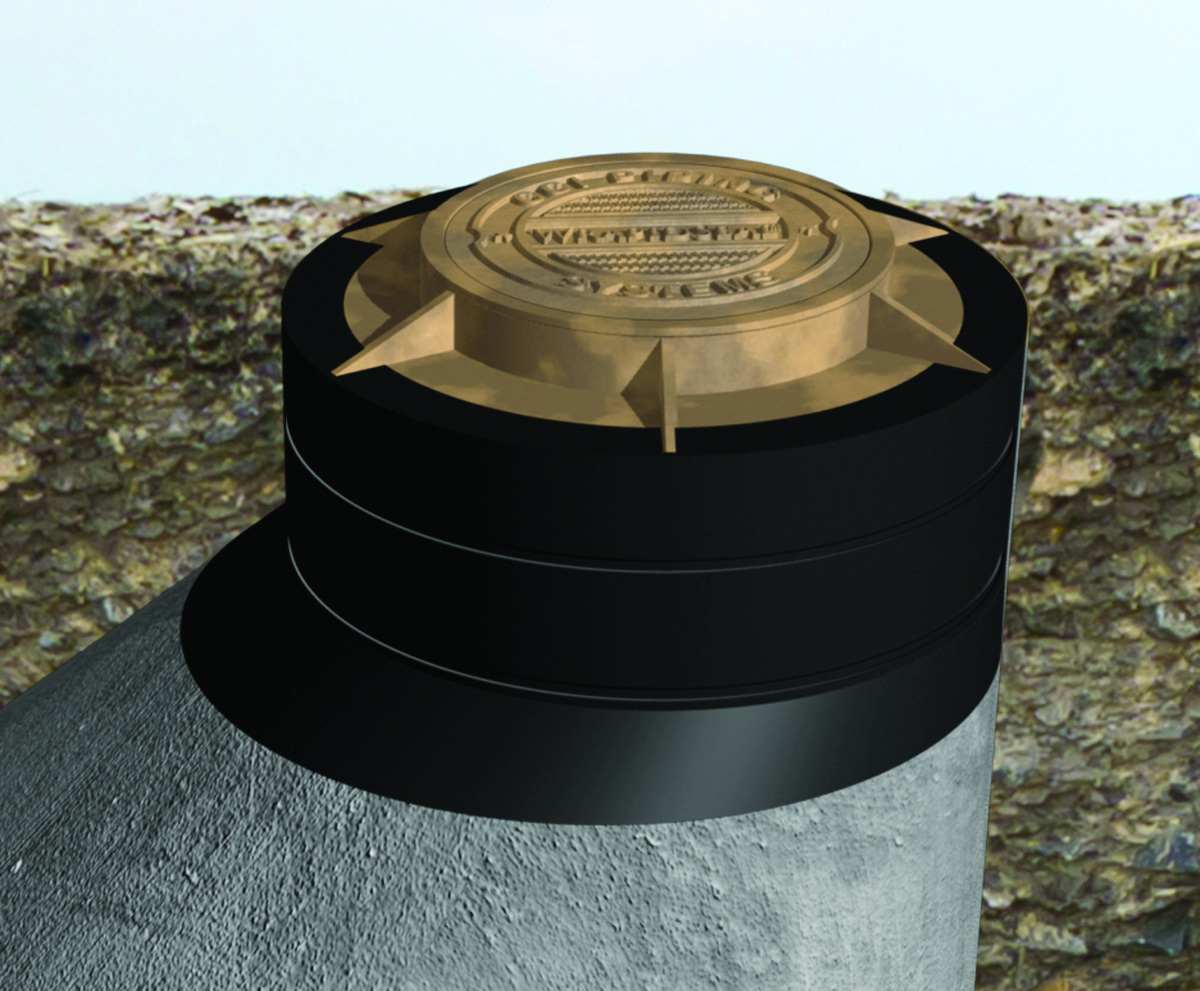

The WrapidSeal Manhole Encapsulation System from CCI Piping Systems consists of an engineered primer and a wraparound, heat-shrinkable sleeve designed to seal joints and prevent groundwater from entering a collections system. This material has a high-shrink membrane (70% stretch and 40% recovery) designed to shrink around any manhole profile. In addition, the high-tensile strength accommodates structural movement while the tough backing resists soil stress and provides suitable abrasion resistance. It can be used for new construction or for the rehabilitation of existing manholes to control infiltration through joints and prevent deterioration, thus eliminating costly maintenance repairs and the added expense of treating groundwater. 800-867-2772; www.wrapidseal.com

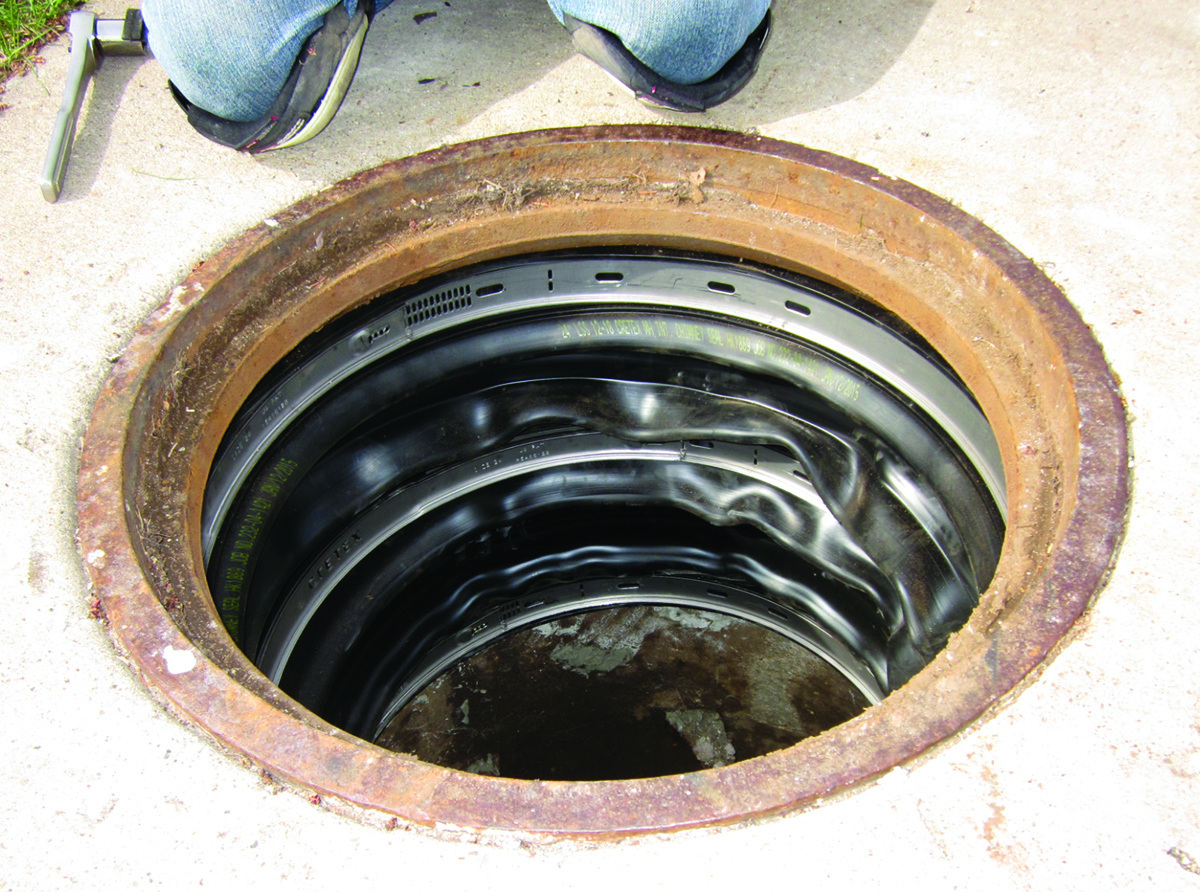

Cretex Specialty Products Internal Chimney Seal

Cretex Specialty Products Internal Chimney Seals are mechanical, so there is no need to worry about surface adhesion or stopping active leaks prior to installation. The seals eliminate and prevent manhole chimney inflow. During wet weather, clear water enters the manhole through deteriorated and broken chimney joints, which may burden the collections system. The chimney seal has a 50-year design life and is available in four widths, allowing complete chimney coverage up to 24 vertical inches with a single seal. 800-345-3764; www.cretexseals.com

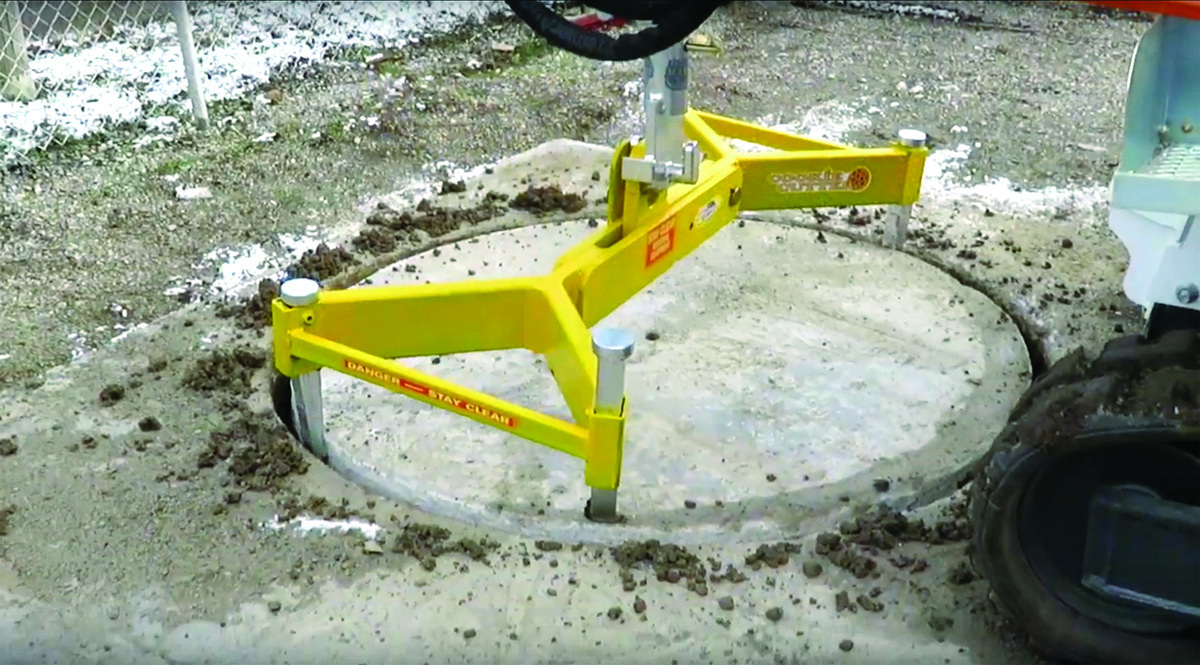

Mr. Manhole Cookie Cutter System

The Mr. Manhole Cookie Cutter System involves drilling a small hole above the utility, using the cutter to remove a 74-inch round asphalt or concrete piece of pavement. This keeps workers 56% below OSHA limits. The removed “cookie” is then lifted out, and a protective cage is placed for vacuum excavating. This method exposes the utility for repair while preserving the road base. The result is a smooth, clean repair aligning with the road’s original design. This approach revolutionizes road and utility repairs, making the process quicker and more efficient. 833-242-2221; www.mrmanhole.com

RELINER/Duran Modular Manhole Invert Channel

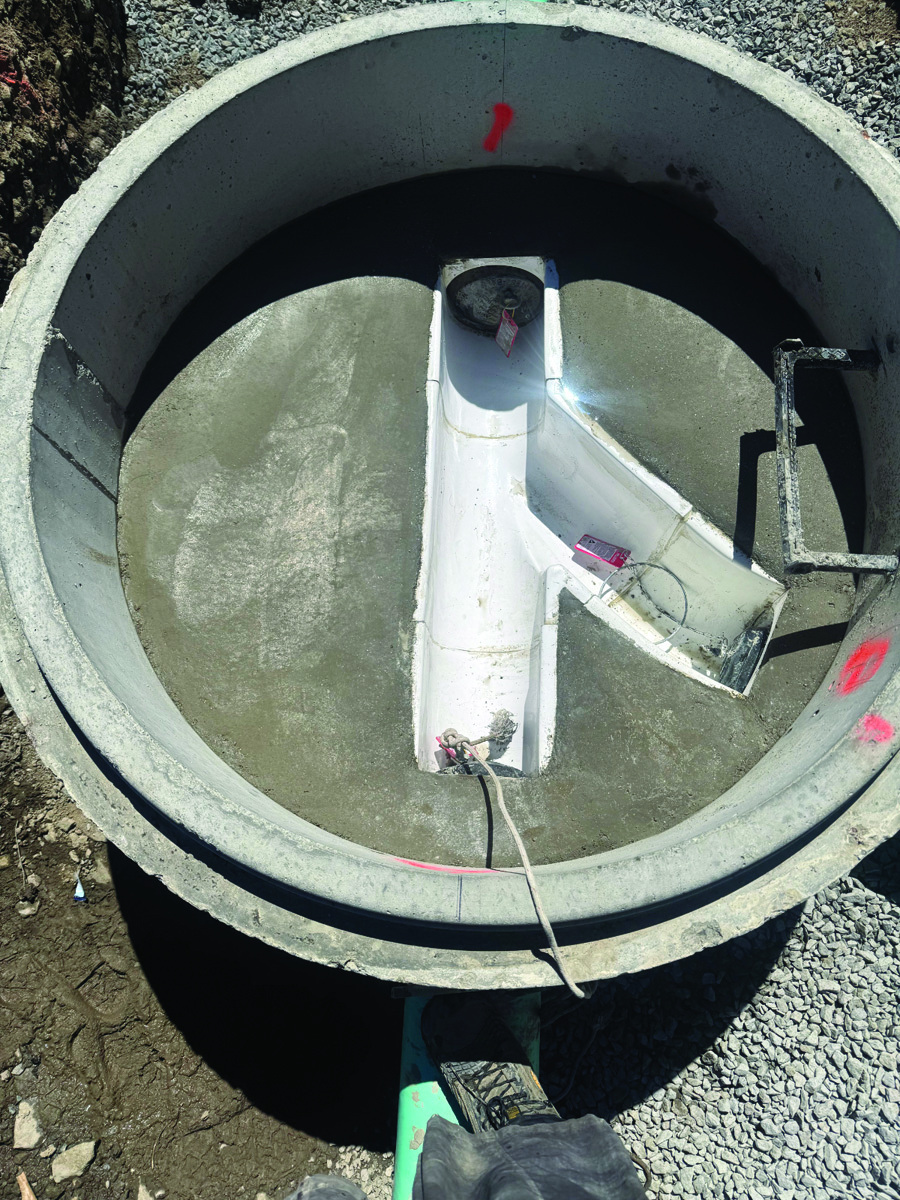

Improve manhole hydraulics with RELINER/Duran Modular Manhole Invert Channels. Molded fiberglass flumes with smooth sewer pipe interfaces are used to rehabilitate inverts without flow interruption and can be used for new construction. The field-installed modular components bolt together inside the manhole and serve as the form for a new concrete bench. The channels eliminate the inconsistencies associated with field-formed concrete channels. The full-depth lined channels are high flow and easy to clean and maintain. Standard 8- and 12-inch-depth channel sections fit through a 24-inch manhole frame and will accommodate 6- through 12-inch pipes. Larger sizes are available. 800-508-6001; www.reliner.com

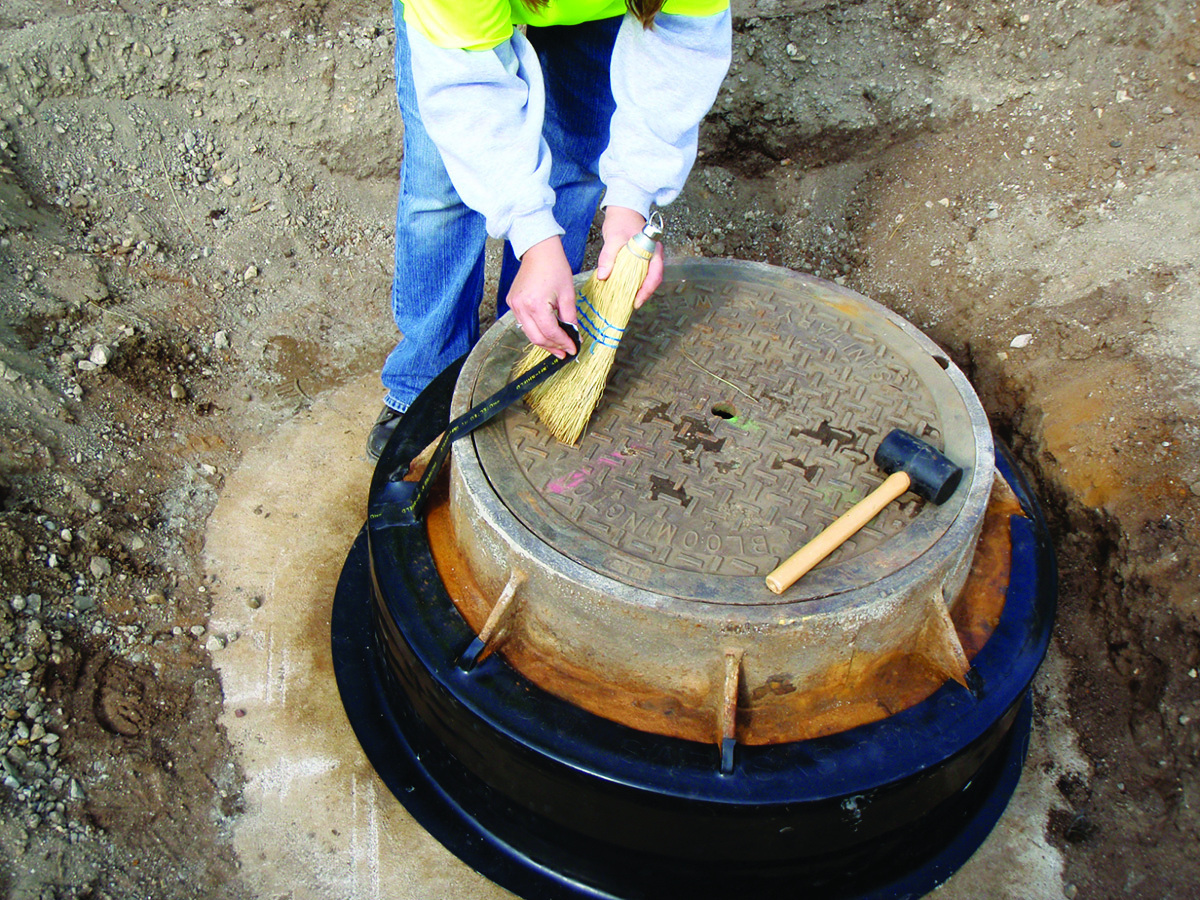

Sealing Systems INFI-SHIELD

The INFI-SHIELD external seal from Sealing Systems prevents erosion and infiltration in manholes or catch basins. The one-piece molded seal is made from EPDM rubber and has a reinforced preformed L-shaped corner. Having excellent adhesion properties, it is bonded with nonhardening butyl mastic and will pass a vacuum test. It installs easily in minutes without any special tools. Seal the extra water out of a system and gain effective capacity overnight. 800-478-2054; www.ssisealingsystems.com

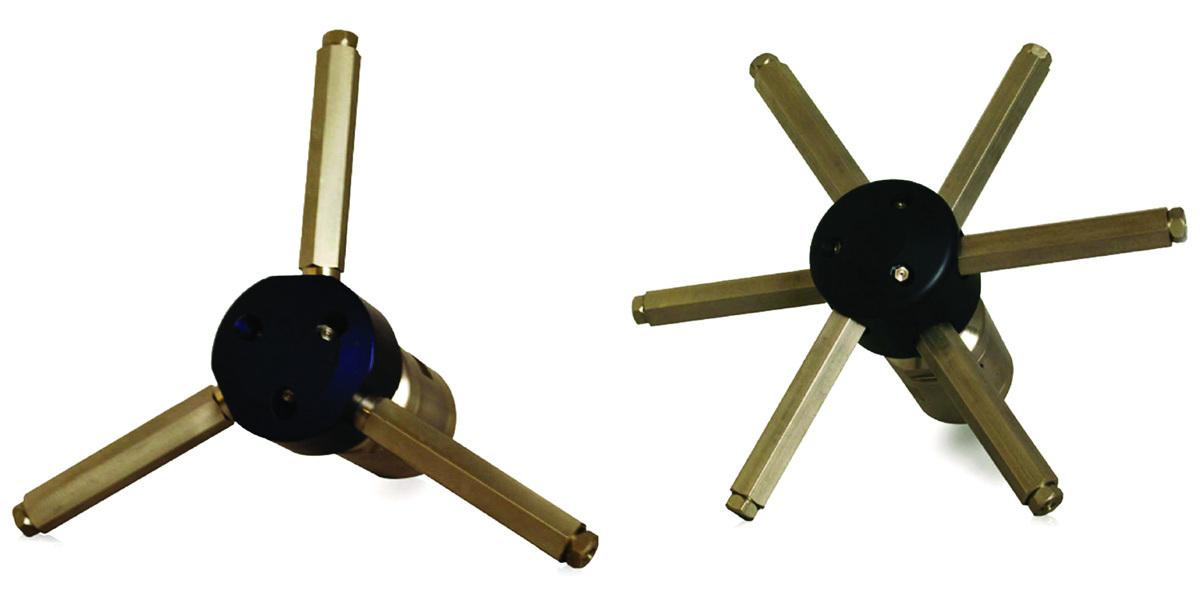

USB-USA Spin-Jet

The Spin-Jet from USB-USA is a self-centering, controlled rotating nozzle that is used for cleaning lift stations, barrels and manholes prior to rehabilitation. Available in two different versions, it has driving nozzles that rotate in a 360-degree horizontal plane only. This action eliminates the need to cover the manhole during operation, allowing for constant viewing of the cleaning process. Front jets thoroughly clean any grease, sludge or mud at the bottom. 844-285-5770; www.usb-usa.com

Safety Equipment

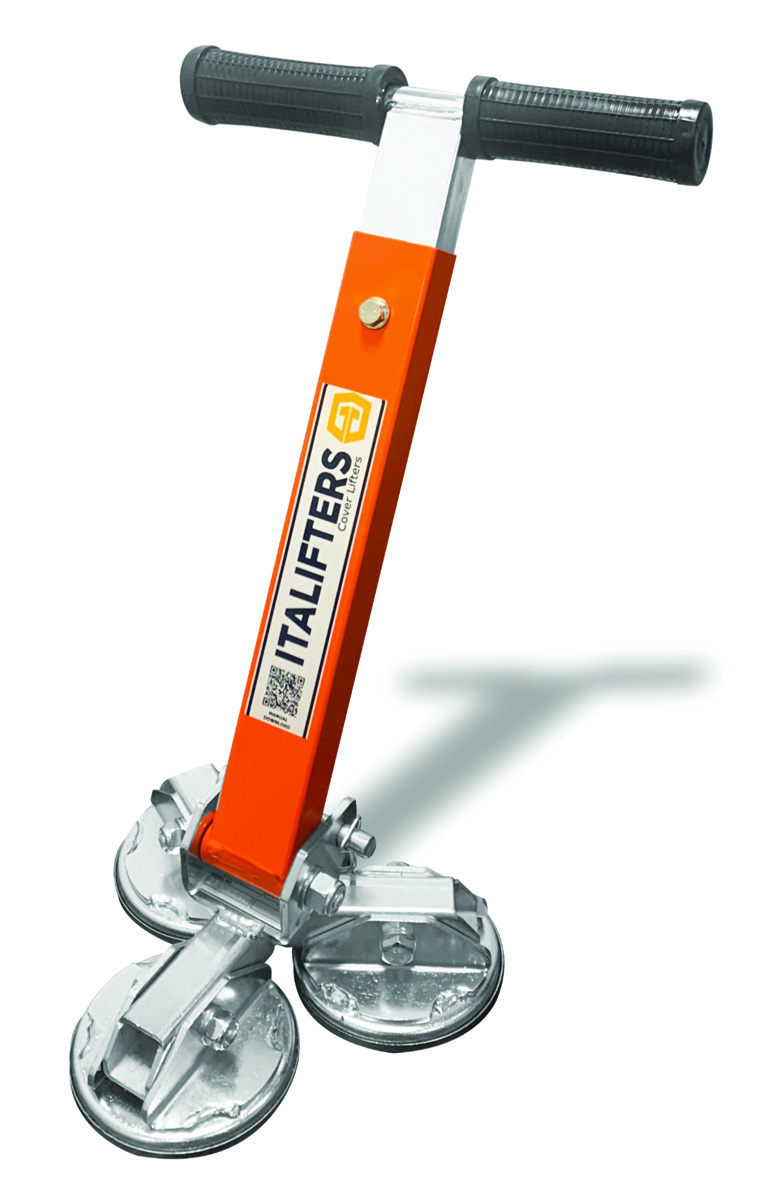

Italifters XT10

The XT10 from Italifters is a universal magnetic manhole cover lifter with triple movable magnetic plate. It is suitable for lifting, moving and repositioning most manhole covers, drains, cast iron grates and ferrous materials. It is specifically ideal for linear, deformed and damaged manholes caused by traffic load. Its triple magnetic plate has a total of 27 neodymium magnetic pads, which grant an optimization of the magnetic contact and a superior adhesive force. Its handle is telescopic, to allow ergonomics and minimal space for transport and stocking. Using the tool is simple, fast and intuitive. www.italifters.com

Sealant

The Strong Company Strong-Seal System

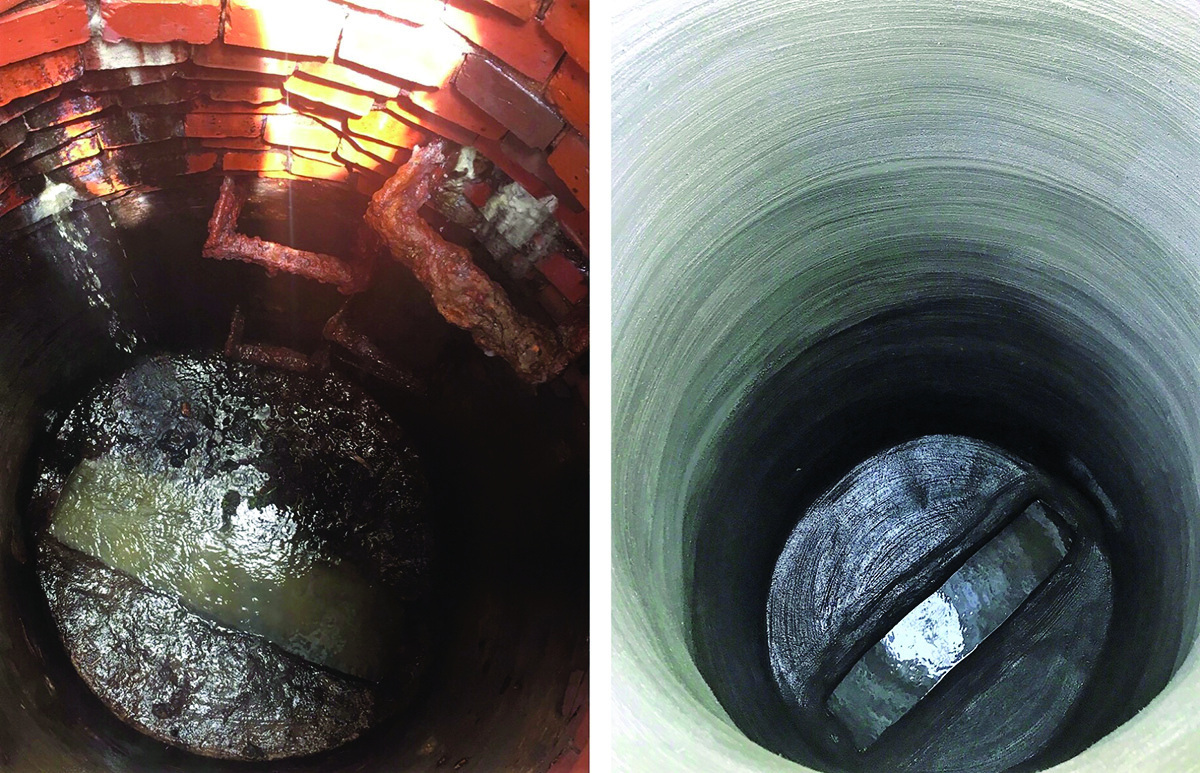

The Strong-Seal System from The Strong Company offers a variety of cost-effective engineered cementitious products designed to rehabilitate municipal concrete and masonry structures and effectively stop inflow, infiltration and exfiltration. When spray-applied to a minimum of 1/2-inch thickness, the cementitious mortars are an impervious monolithic liner with compressive and flexural strengths exceeding that of the original structure. Both MS-2A and MS-2C are fiber-reinforced spray-applied cementitious mortars. Made with Portland cement, MS-2A is the most cost-effective solution for stopping infiltration and restoring structural integrity. MS-2C provides high early strengths and added corrosion protection in mild sulfide environments. High Performance Mix is a pure-fused calcium aluminate mortar that stops infiltration, restores structural integrity, and protects against microbiologically induced corrosion in sanitary sewer systems with harsh sulfide conditions (pH of 1.0 or greater). 800-982-8009; www.strongseal.com
