Hoses

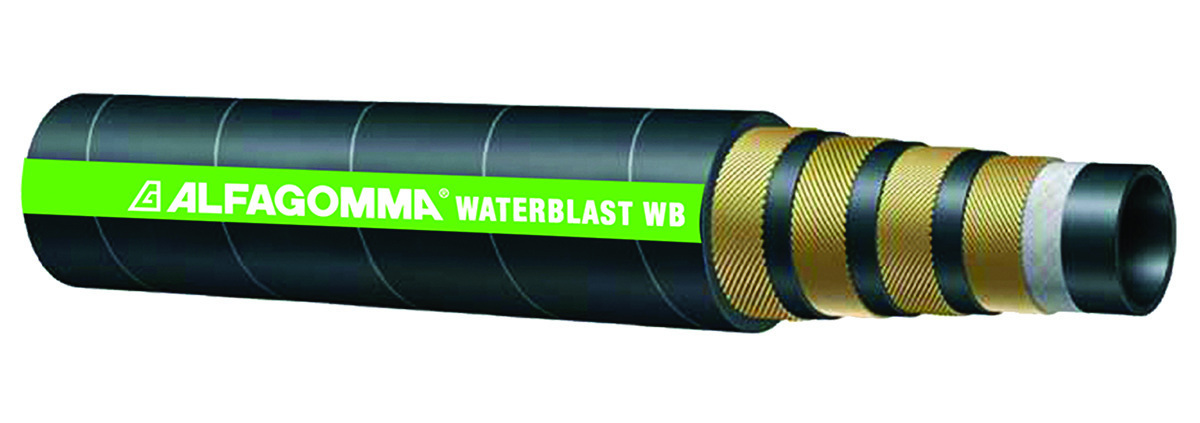

Kuriyama of America Alfagomma Waterblast Hydraulic Hose
Alfagomma Waterblast Hydraulic Hose from Kuriyama of America is made with an oil- and water-resistant synthetic rubber tube. The reinforcement is four high-tensile steel spirals and the cover is oil-, water- and ozone-resistant synthetic rubber. The hose is designed for very high-pressure waterjetting service. The WATERBLAST WB 10 Series hose provides 10,000 psi for I.D. sizes 06, 08, 12, and 16. The WATERBLAST WB 15 Series hose provides 16,000 psi for the dash 08 I.D. size and 14,500 psi for the dash 12 I.D. size. The WATERBLAST WB 20 hose provides 20,000 psi for the dash 08 I.D. size. 847-755-0360; www.kuriyama.com

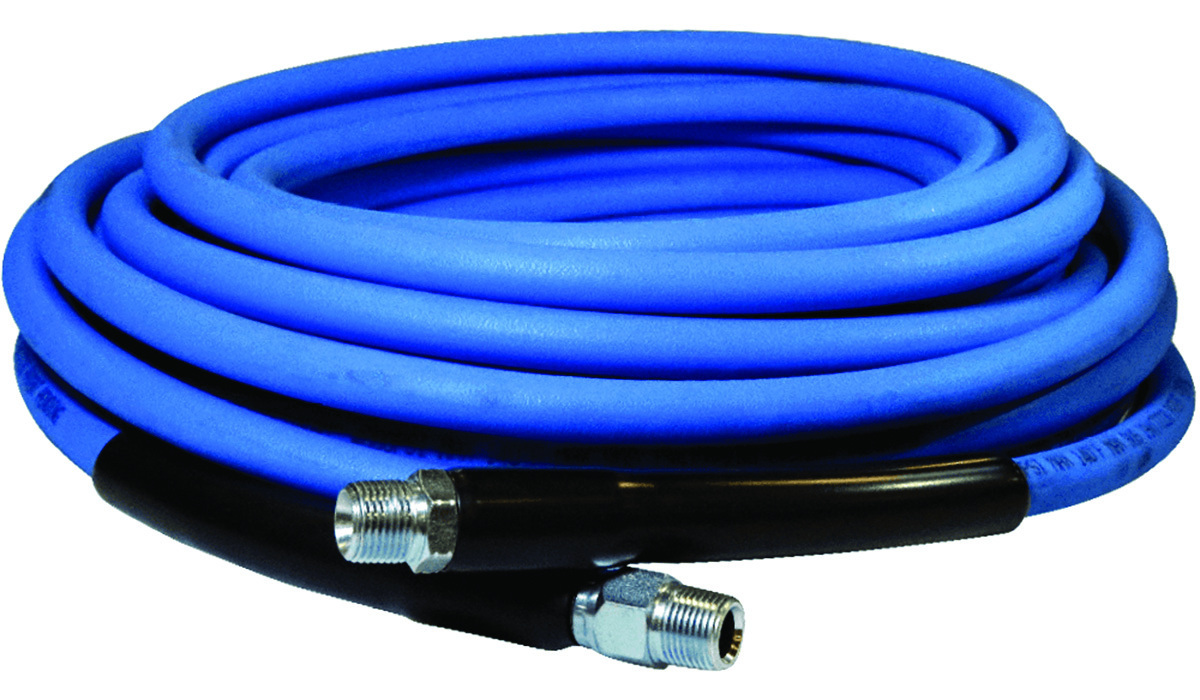

ProPulse Commercial Cleanstream
Commercial Cleanstream from ProPulse is a lightweight, flexible thermoplastic hose for use with high-performance cold-water pressure washers. Unlike traditional rubber hose which can be heavy, leave marks and be hard to handle, this hose is up to 20% lighter in weight and has an abrasion-resistant and crack-free cover. Additionally, the cover is UV- and ozone-resistant giving this hose an unlimited shelf life. Available in 5/16- or 3/8-inch, with a working pressure of 4,000 psi, the hose is available in matte blue, black and gray. 563-583-4758; www.powermovingforward.com
Hose Reels

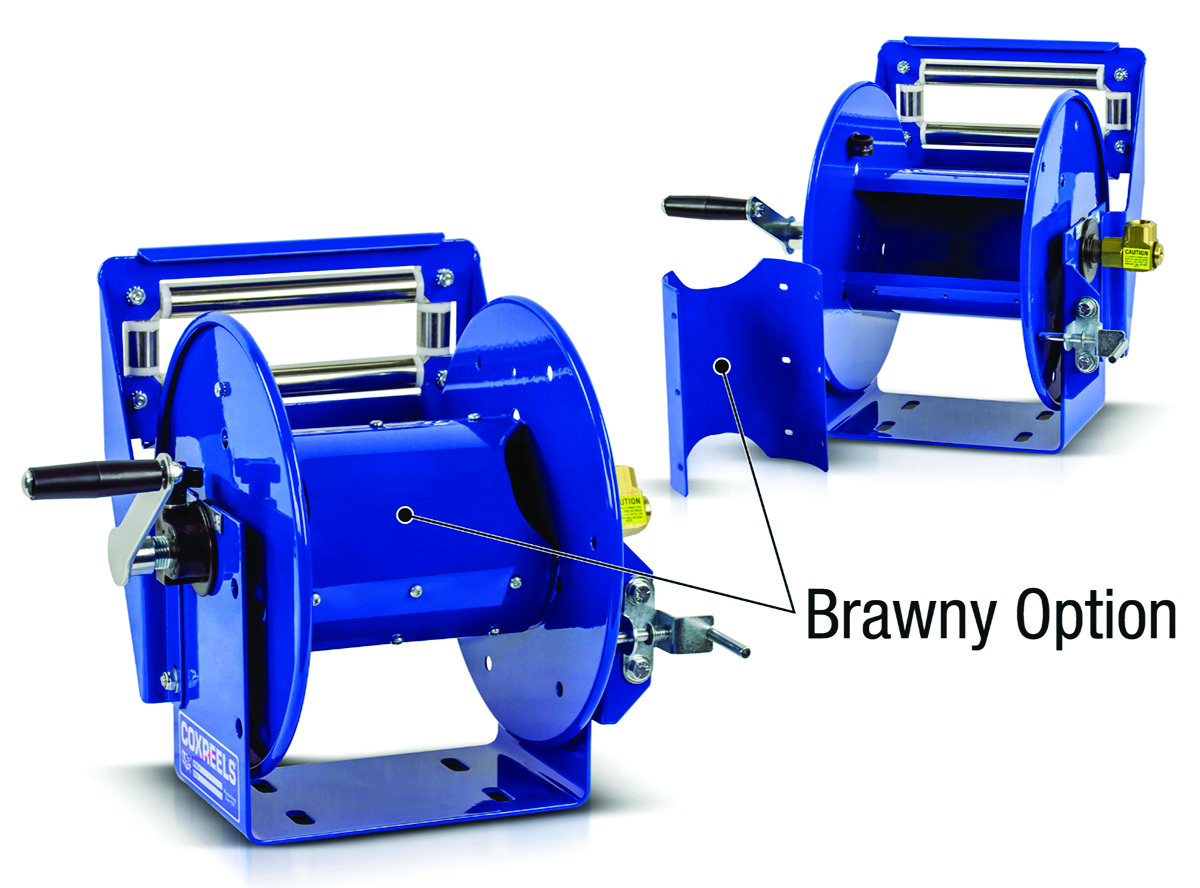

COXREELS 100 Series with Brawny option and roller brackets
COXREELS offers the Brawny option and a roller bracket assembly on 100 Series hose reels. The Brawny feature adds strength to the drum, minimizing potential damage under increased or pulsing pressure usage. The function of the roller bracket, as it is on other models such as the 1125 Series and the 1175 Series, is to assist in guiding the hose during both extension and retraction. The roller bracket assembly is available only in a four-way upper roller format, due to the compact size of the Challenger platform. These options are available for the 8-, 12.5-, and 18-inch drum widths. 800-269-7335; www.coxreels.com

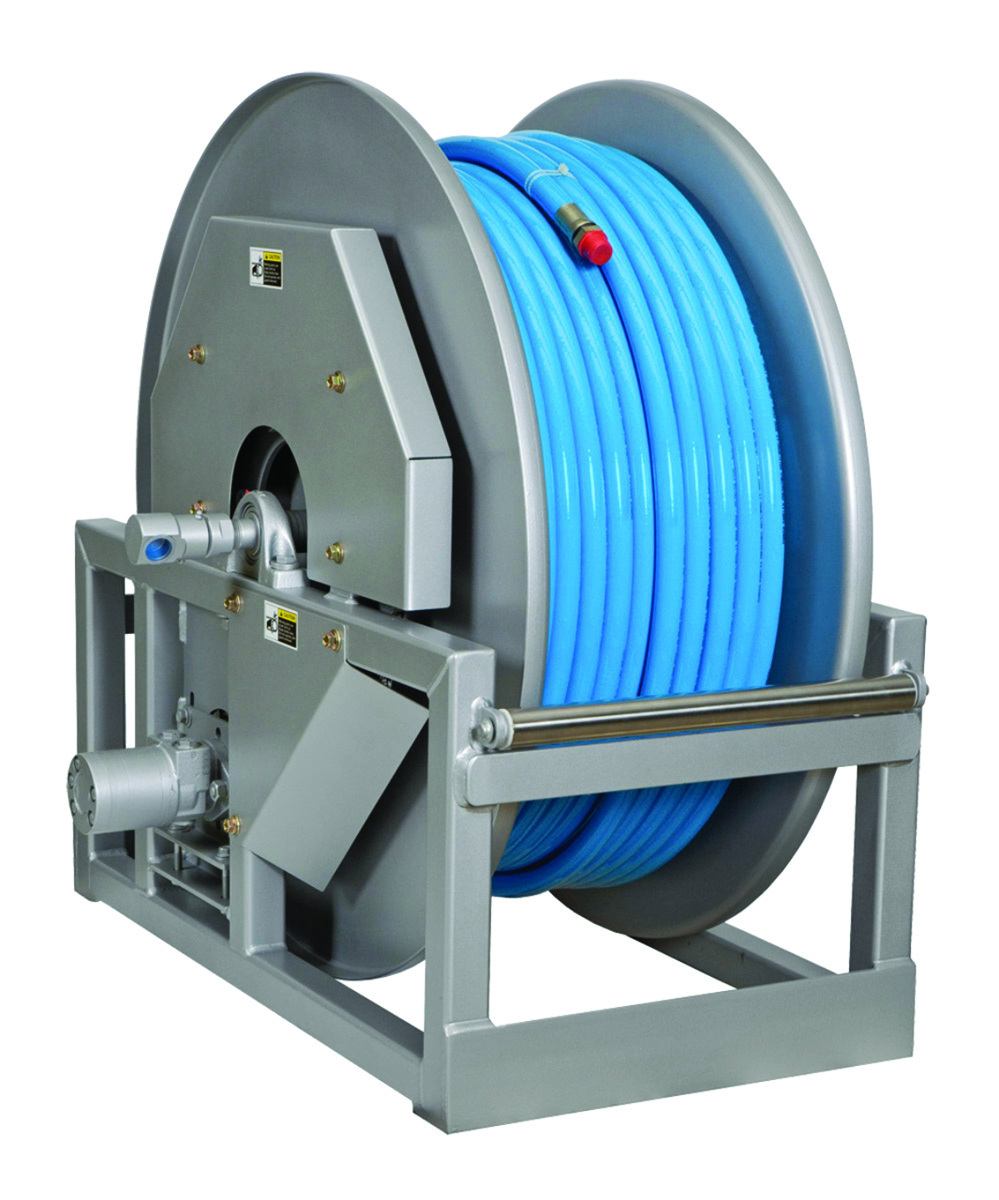

Hannay Reels 6200 Power Rewind Reel
The 6200 Power Rewind Reel from Hannay Reels is designed for rigorous waterjetting and blasting applications. With heavy-duty steel construction, strong spool, sturdy frame and hydraulic motor, it offers hose expansion control for I.D. hose widths between three-quarters and 1 inch. Up to 500 feet of hose is supported at 3,000 psi, making it suitable for large jobs. The “A” assembly roller on the front of the frame allows for proper storage and easy dispensing on truck or trailer mounts. Optional upgrades include 5,000 psi working pressure, roller assembly, direct drive hydraulic motor rewind and a hose package, allowing for a wide range of customization. 518-797-3791; www.hannay.com
Nozzles

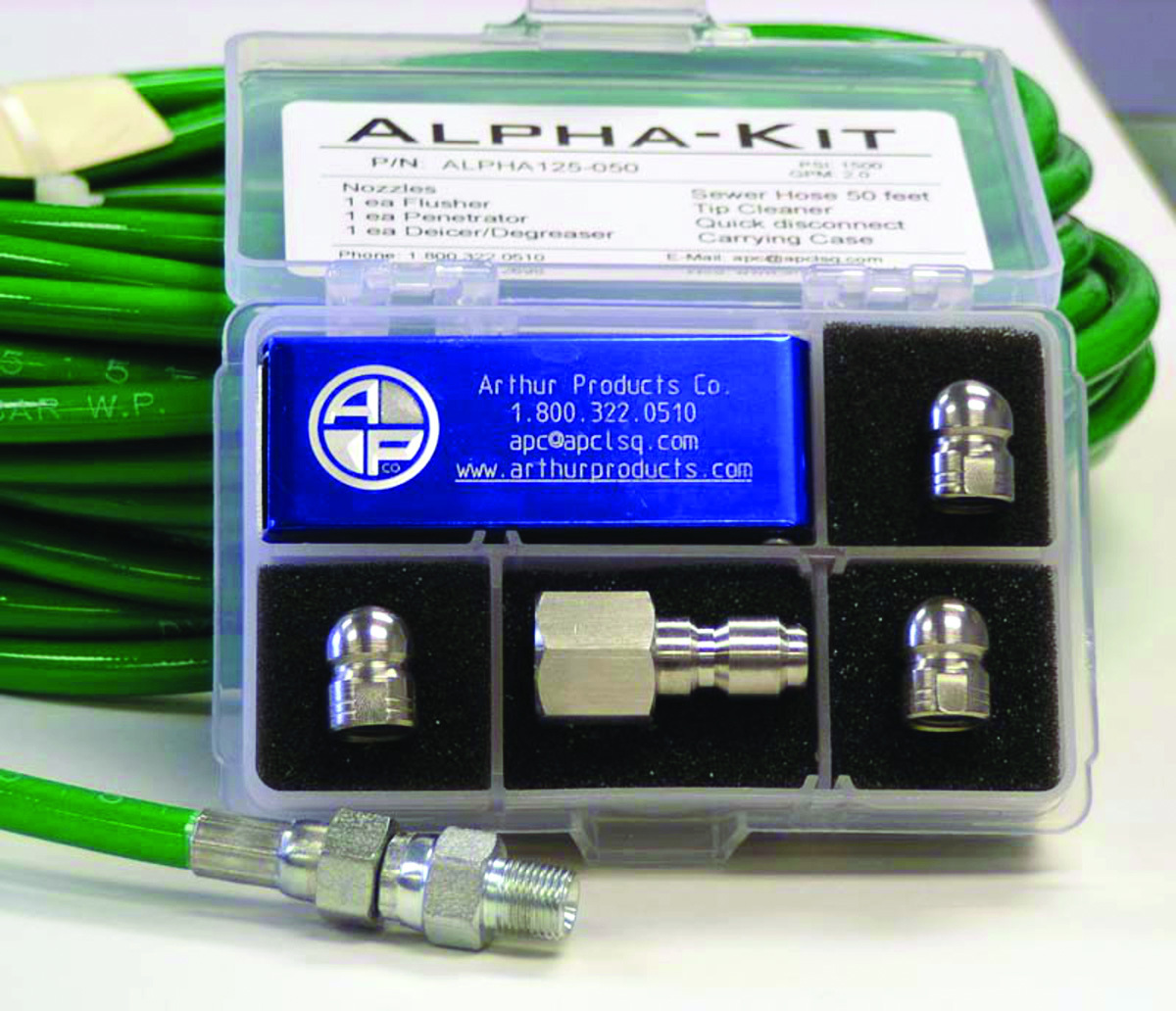

Arthur Products Alpha Kit
Arthur Products designed its Alpha Kit for low-flow, low-pressure systems. Available in 1/8-inch FNPT and 1/4-inch FNPT versions, the jets are drilled to the end user’s exact pressure and flow specifications. Designed for do-it-yourself property owners with low-pressure systems, the kits are highly versatile. Each kit includes a flusher nozzle, a penetrator nozzle, a deicer/degreaser nozzle, a sewer hose (25, 50 or 100 feet), a tip cleaner, a quick disconnect coupling and a carrying case. 800-322-0510; www.arthurproducts.com

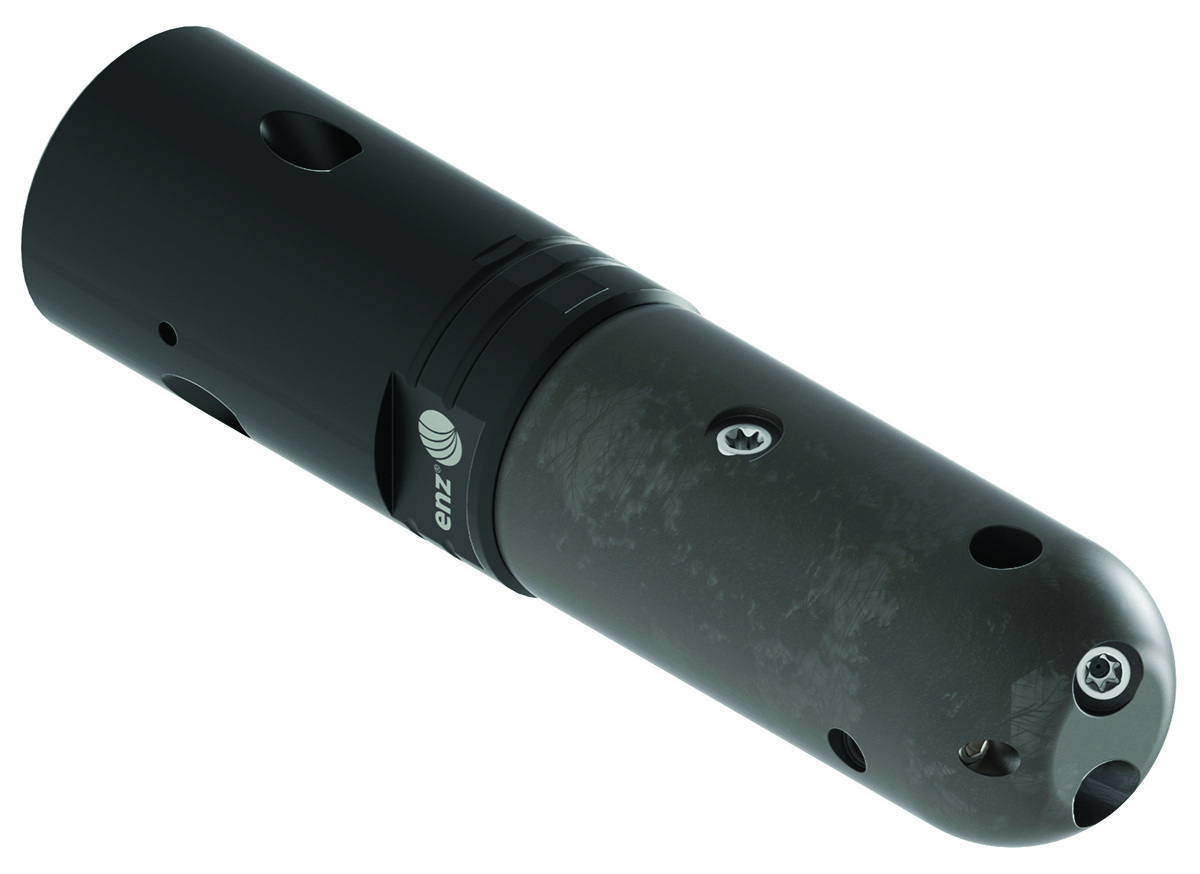

Enz USA UC Line
The Enz USA UC Line with CrossJet technology offers a complete line of high-pressure solutions for the toughest industrial cleaning projects. They feature strong cross jets for unplugging and radial jets for polishing. The cross jet causes a reaction force which, in many cases, makes it necessary to mount the nozzle on a lance. Optional thrust jets can be used with an automation system. This CrossJet technology offers cleaning performance with lower leakage and long durability. This line of nozzles has a special surface treatment for longer life and has become a tool for universal use. They are available up to 43,000 psi, in 9, 13, 18, 22 and 28 mm sizes. 877-369-8721; www.enz.com

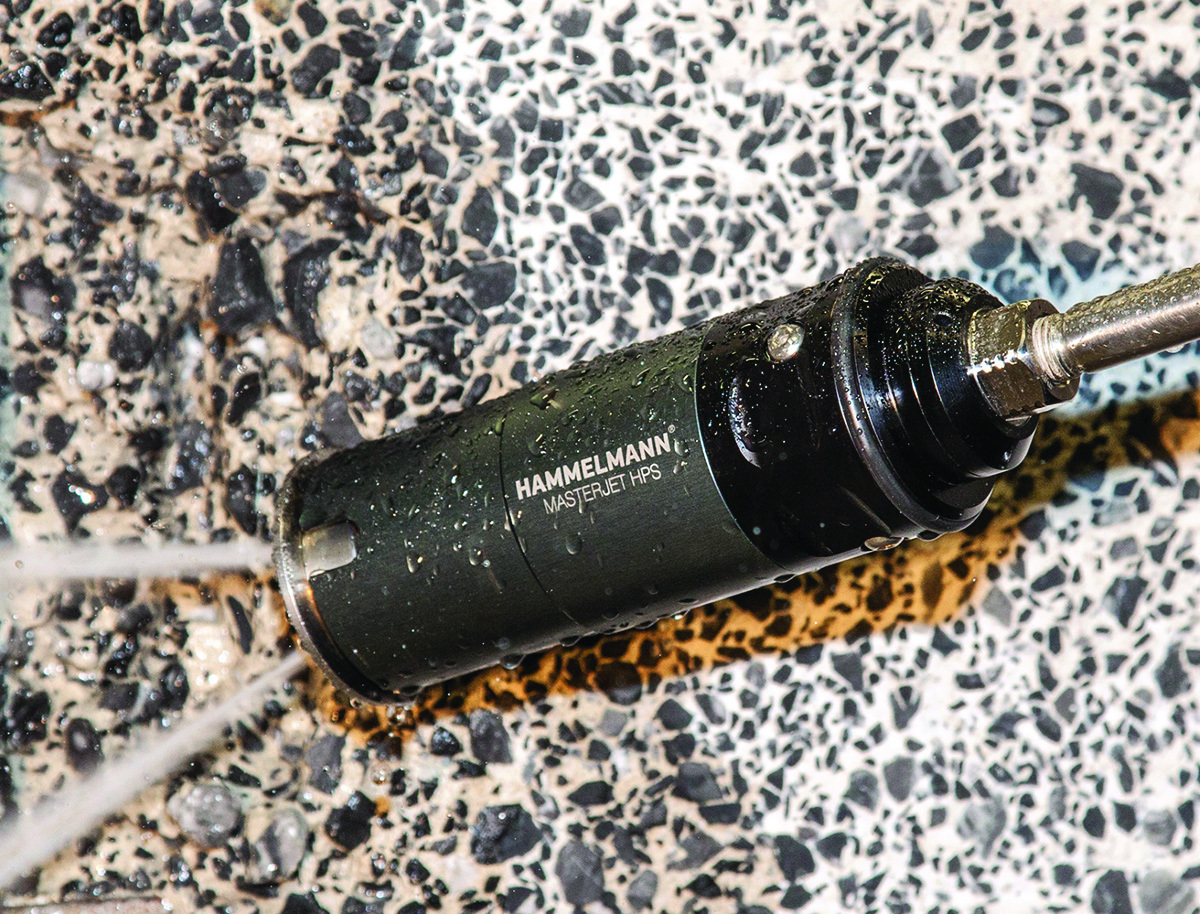

Hammelmann RD MASTERJET
The updated rotorjet generation of the RD MASTERJET with HPS sealing technology and adjustable speed rotation from Hammelmann is designed for use with shotguns, robotic lance systems or replacement of any similar rotating tool. It is lightweight at 2.2 pounds, with a compact ergonomic design (2.2 inches in diameter and 6.5 inches in length). It offers operating pressures up to 46,500 psi with high energy efficiency, as its optimum internal flow allows the pump’s total performance to be used. It has a versatile universal nozzle hub for working with two, four or six nozzle inserts. Nozzle inserts are countersunk in the nozzle carrier with a blast back shield. It offers variable speed controlled by an infinitely variable magnetic brake. 800-783-4935; www.hammelmann.com

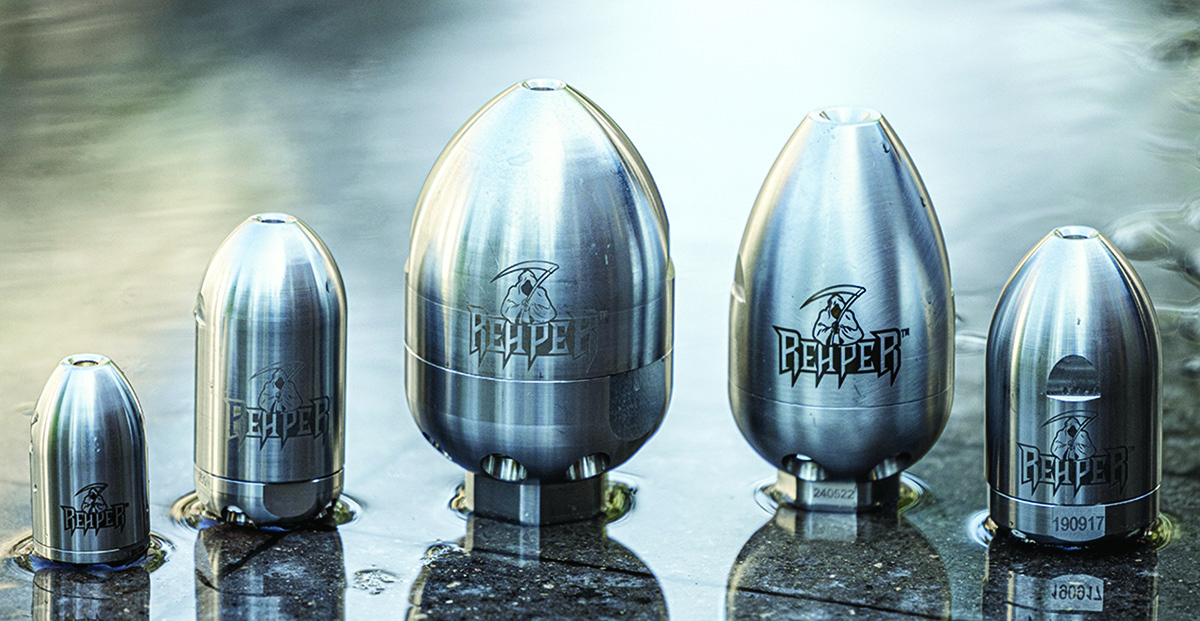

Hydra-Flex Reaper
Reaper sewer jetting nozzles from Hydra-Flex redefine cutting capabilities, as each size (1/4, 3/8, 1/2, and 1 inch) is tailored to match the pipe it’s built to tackle, with precise cone angles that reach the entire width of each pipe. The cutting force breaks through roots and clears grease, wax, fats, oil and wipes, while its back jets propel the nozzle easily through the pipe and add clearing power. The nozzles feature tungsten carbide and stainless steel for durability and an extended lifecycle. Easily repair the nozzle in less than 10 minutes to extend its life even further. 952-808-3640; www.hydraflexinc.com
SewerProShop Raven
The Raven hydrojetting nozzle from SewerProShop has been precision engineered by Intersewer and manufactured to the highest technical standards of ISO 9001:2008 certification in Germany. The weight counteracts the high-pressure kickback of the wand. It is constructed from high-grade stainless steel, is threaded and includes a replaceable ceramic nozzle insert with forward water jet angled at zero degrees or a fan jet. It is rated for 18 gpm at 4,000 psi up to 80 gpm at 2,500 psi. It includes a 1/2- to 1-inch sewer hose connection. It is operator-friendly with no maintenance required. 877-864-9394; www.sewerproshop.com

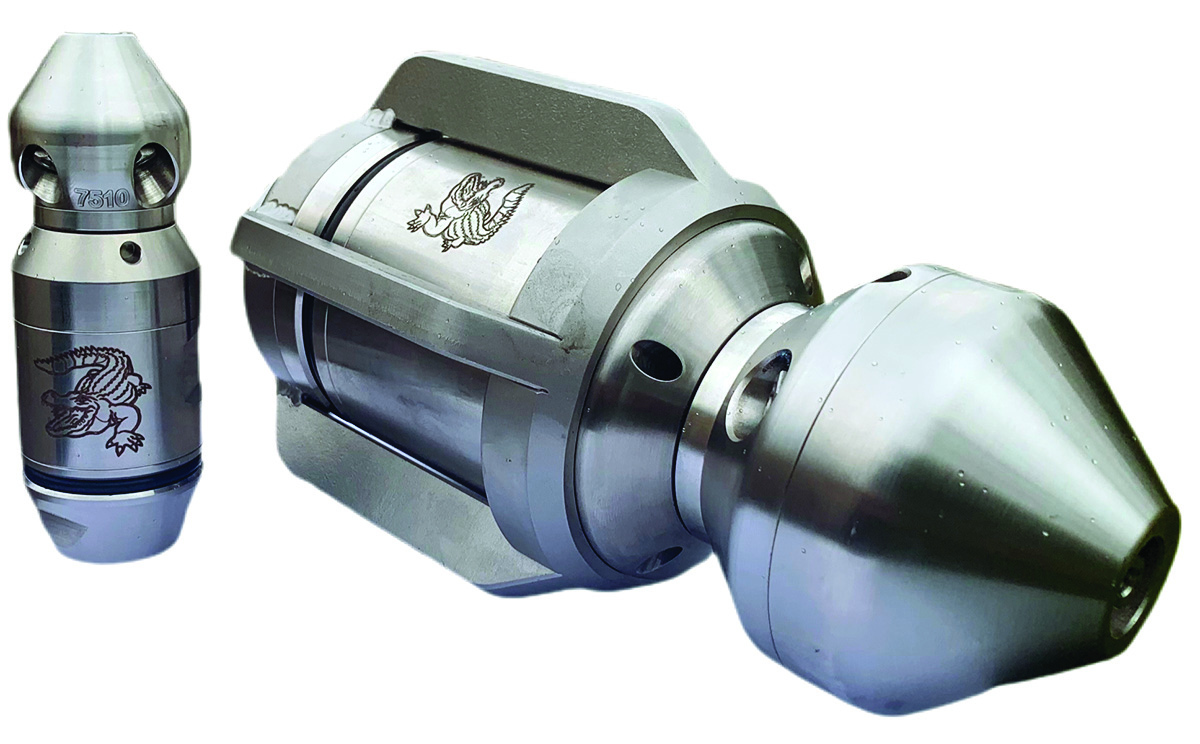

USB-USA Gator and Mini Gator
High-performance Gator and Mini Gator nozzles from USB-USA cut and remove roots, grease, blockages and scale in various pipes ranging from 2 to 20 inches. Encased in a compact stainless steel body, the reinforced internal design rotates the head. 3D fluid mechanics in the head smoothly direct all the incoming high-pressure water to the four rotating jets in the rear of the head and one in front. These rotating jets create a powerful 360-degree all-around complete cleaning of the pipe, flushing and removing debris in fewer passes. The offset front jet eliminates blockages easily and effectively. The Gator can be used on hose between 3/4 and 1 1/4 inches, while the Mini Gator nozzle can be used on 3/8- to 1/2-inch hose. Also available are case kits that include an additional skid to center the nozzle in larger pipe. 844-285-5770; www.usb-usa.com
Portable Jetters

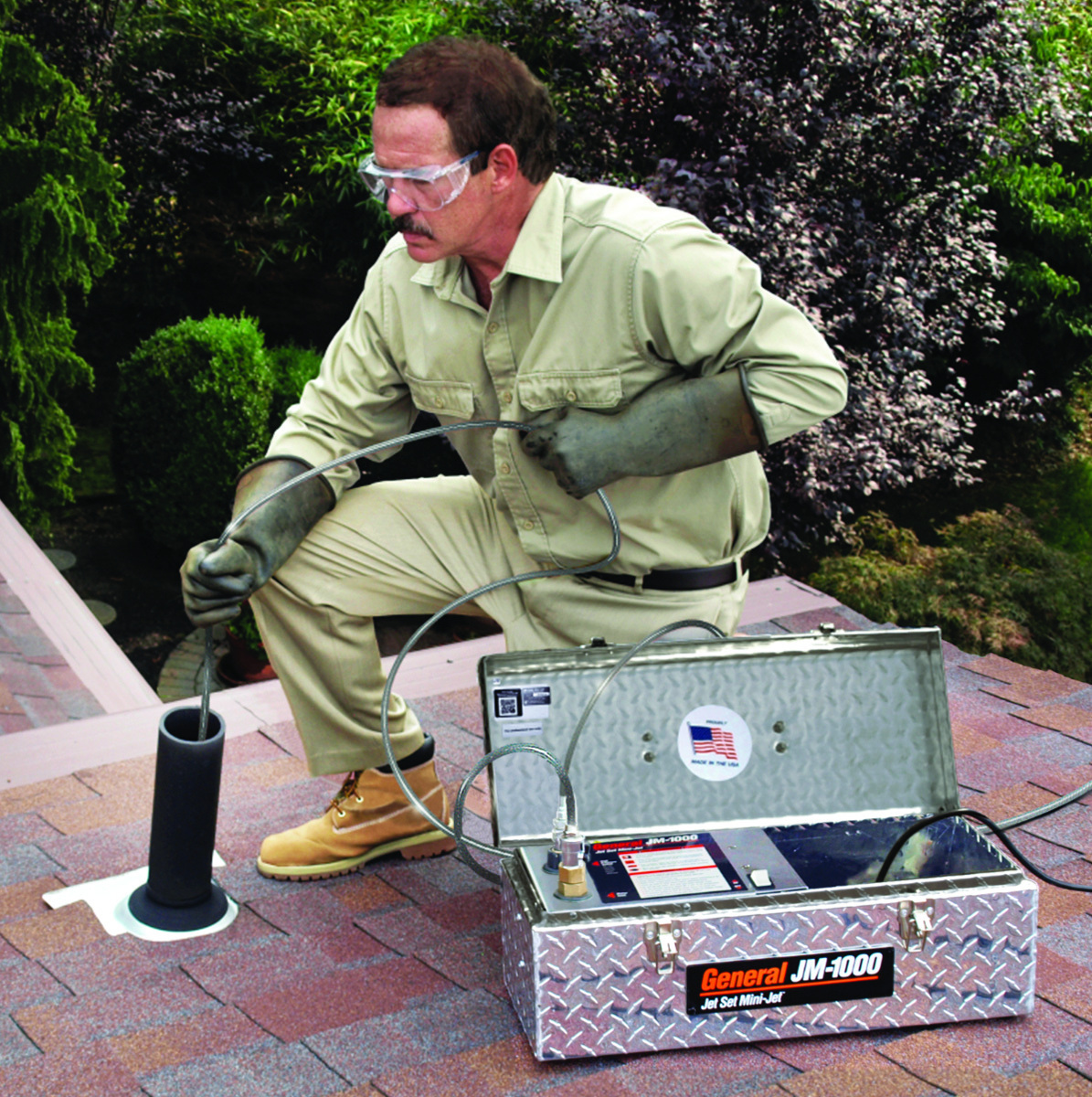

General Pipe Cleaners JM-1000 Mini-Jet
The combination of General Pipe Cleaners’ portable JM-1000 Mini-Jet and high-performance stainless steel braid jet hose offers drain cleaning power in a small package. The jetter is available with stainless steel braid hoses with Teflon core in a variety of lengths. The durable hose also works well with the JM-1450 electric jet. It can be used to clear grease, sand and ice from small lines, sinks and laundry drains with high-pressure, wall-to-wall water spray. It packs 1,500 psi of cleaning power in a compact package, yet weighs only 23 pounds. Its rugged diamond-plate metal case safely shields the pump and motor assembly from common job site abuse. The stainless steel braid hose design smoothly slides the jet nozzle down 1 1/2- to 3-inch drainlines and more easily navigates tight bends. The 3/16-inch Teflon core also reduces flow resistance, further improving small-line cleaning power. 800-245-6200; www.drainbrain.com

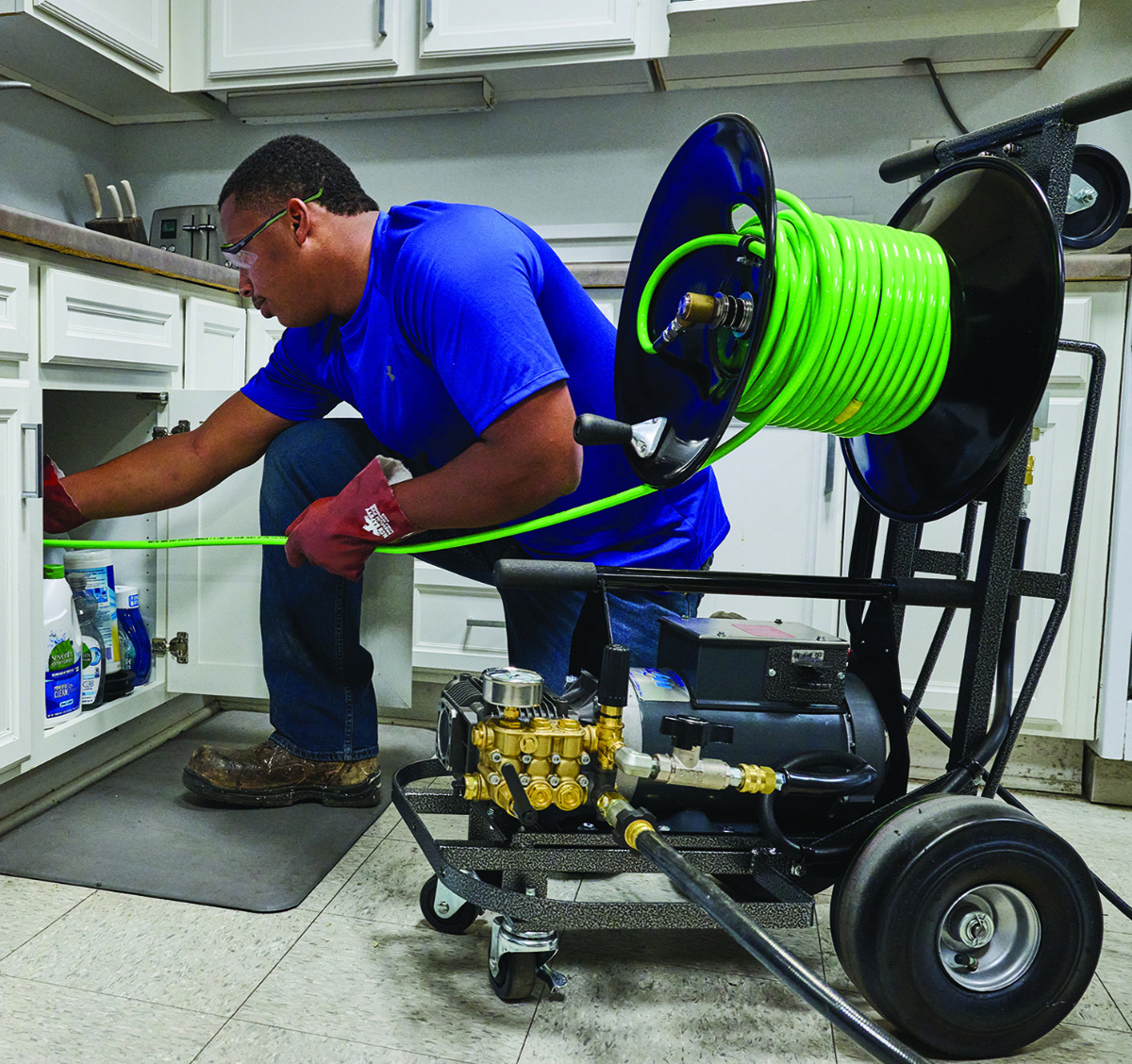

MyTana M20
MyTana’s M20 electric jetter is designed for clearing obstructions in 1 1/2- to 4-inch lines with up to 1,500 psi cleaning pressure. The lower flow rate of the 2.1 gpm pump makes it effective for melting away grease or ice-choked lines. A rugged, compact cart transports the 1/4-inch hose, pump and 2 hp motor. To get into tight spaces, like a small bathroom, the pump/motor unit can be removed and carried where needed. Quick disconnect fittings let the user swap in 1/8-inch trap hose quickly. It has a pressure regulator to operate on 15 amp circuits with 1,200 psi. Ergonomically designed to move about easily, the cart has stair glides and a loading wheel built in. 866-748-7576; www.mytana.com

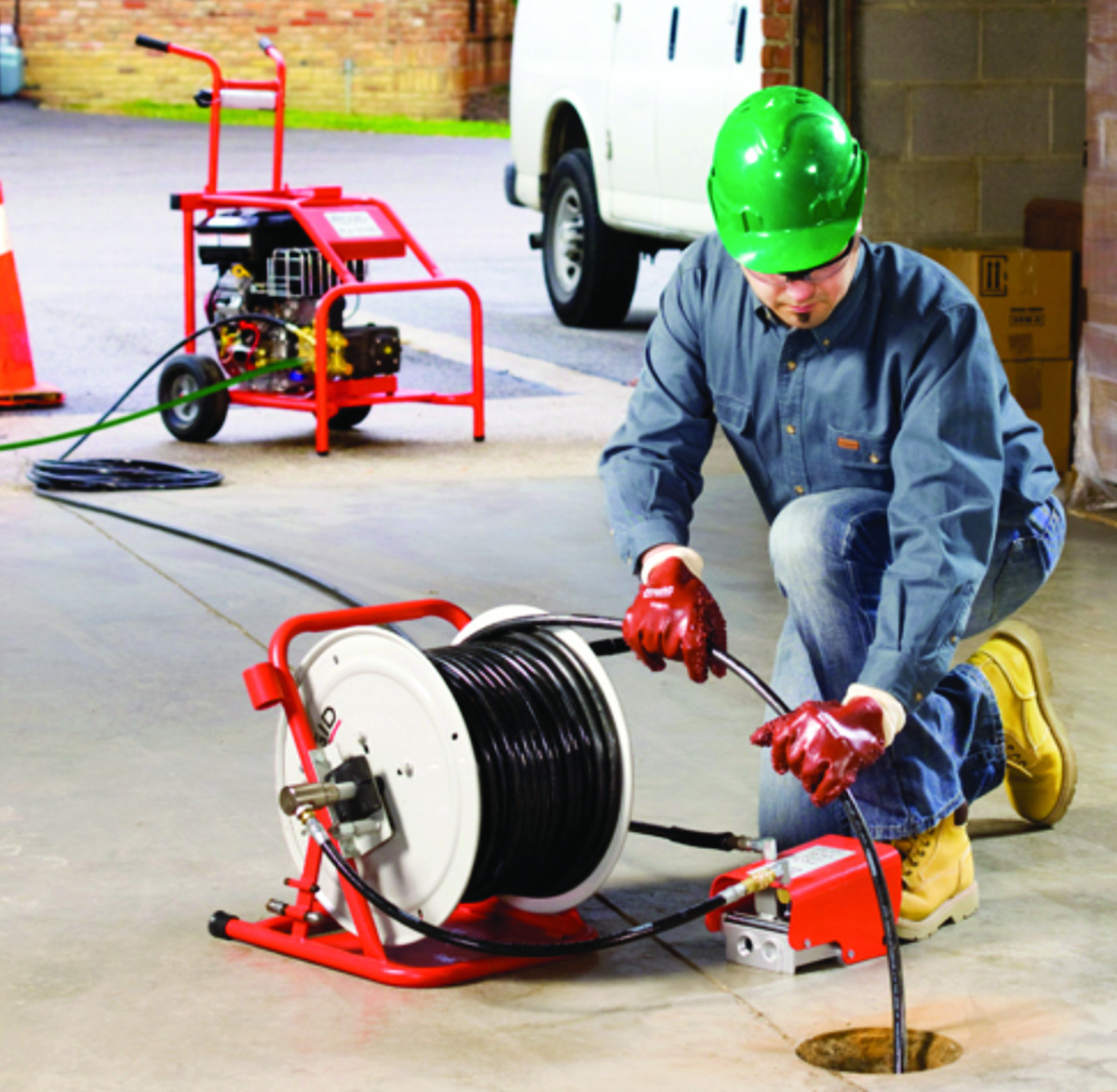

RIDGID KJ-3100
The RIDGID KJ-3100 portable water jetter offers 3,000 psi of working pressure and 5.5 gpm of flow for fast, effective cleaning of large lines. The jetter propels a flexible and lightweight hose through 2- to 10-inch lines, blasting through sludge, soap, grease, and sediment blockages. As the hose is pulled back, it power scrubs the line, flushing debris away and restoring drainlines to their full, free-flowing capacity — all without the use of harmful chemicals. Pulse action also allows for easy negotiation of difficult bends and traps. It features a removable hose reel and Triplex pump with corrosion-resistant, forged brass head and comes on a two-wheeled cart that easily fits through standard-size doors and negotiates tight turns with ease. 800-474-3443; www.ridgid.com
Safety Equipment

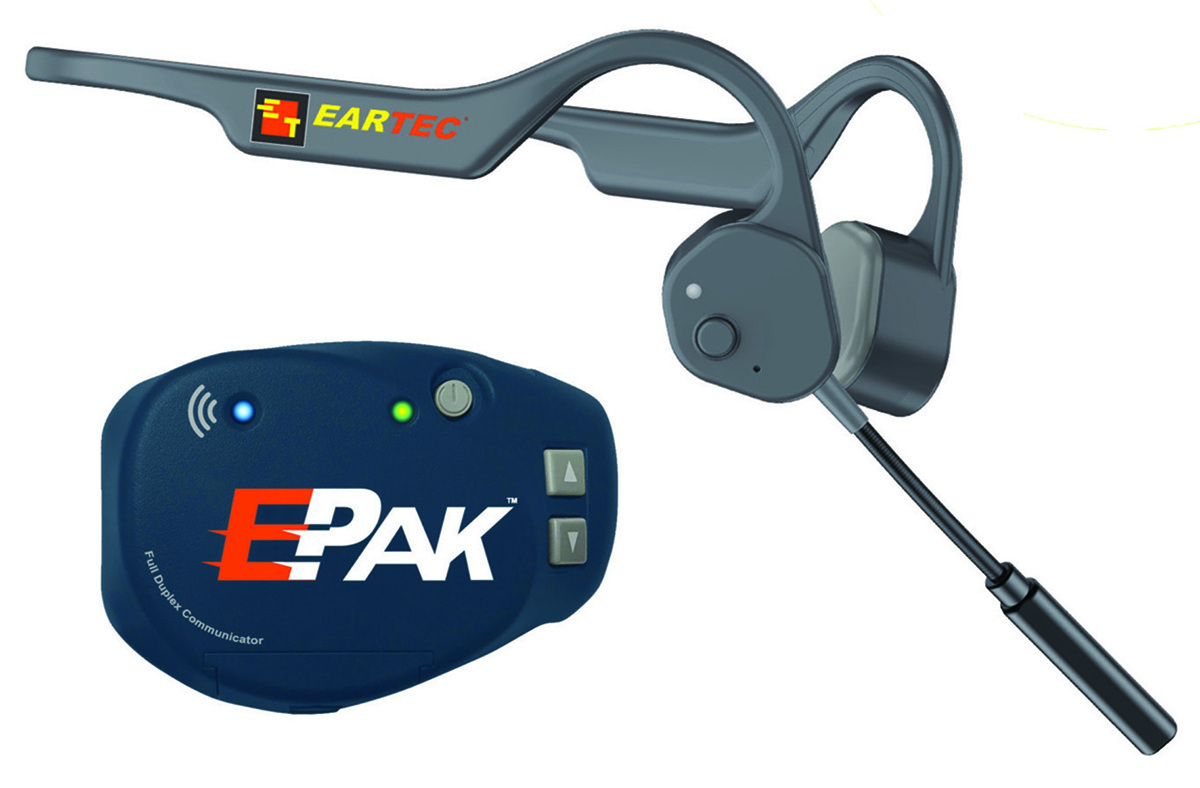

Eartec E-Pak w/ Lazer-Pro
E-Pak w/ Lazer-Pro wireless systems from Eartec provide hands-free communication to crews of up to 32 users. The alternative to traditional full earcup-style headsets offers Bluetooth connectivity with a slimline back band that can be worn comfortably for an entire work shift even with a hardhat. It delivers incoming signals by vibration through the user’s temple via bone conduction, leaving users’ ears free. It is IP67-rated, splashproof and connects to the compact E-Pak full duplex radio without a cable. This wireless intercom can help streamline on-site logistics, operations and crew coordination as well as enhance training and safety protocols. 800-399-5994; www.eartec.com

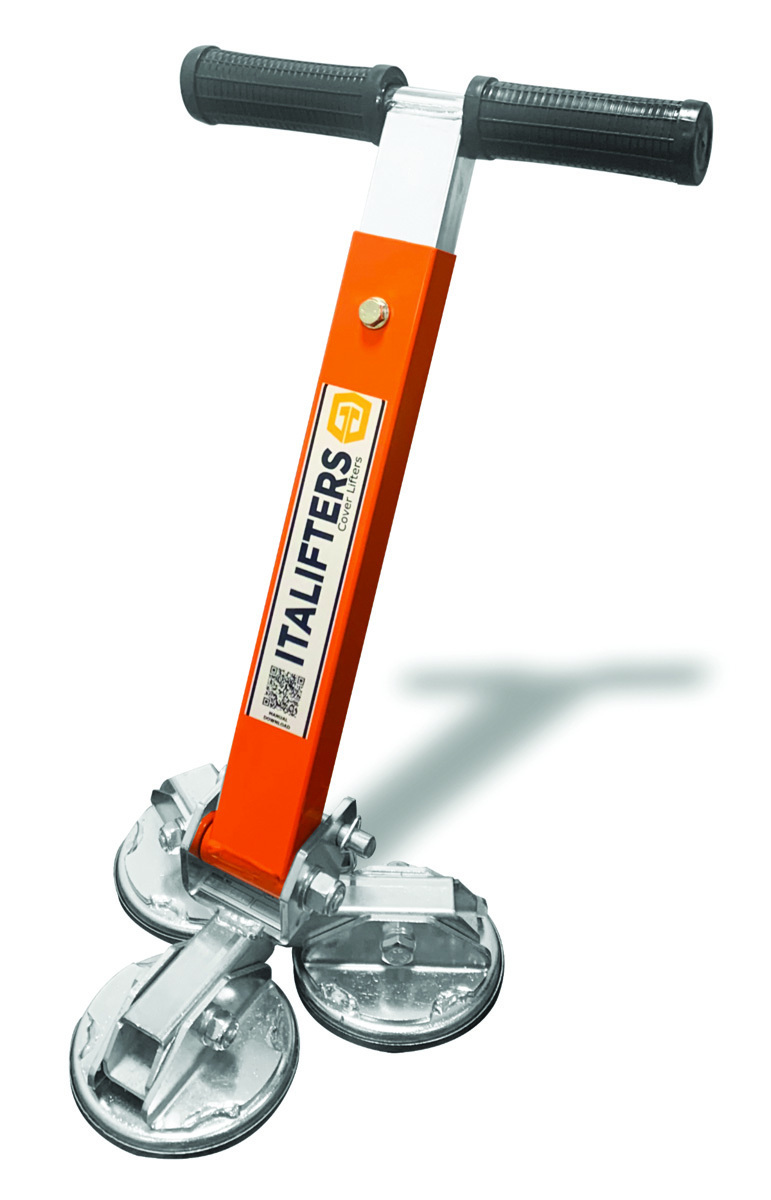

Italifters XT10
The XT10 from Italifters is a universal magnetic manhole cover lifter with triple movable magnetic plate. It is suitable for lifting, moving and repositioning most manhole covers, drains, cast iron grates and ferrous materials. It is specifically ideal for linear, deformed and damaged manholes caused by traffic load. Its triple magnetic plate has a total of 27 neodymium magnetic pads, which grant an optimization of the magnetic contact and a superior adhesive force. Its handle is telescopic, to allow ergonomics and minimal space for transport and stocking. Using the tool is simple, fast and intuitive. www.italifters.com
Truck/Trailer Jetters

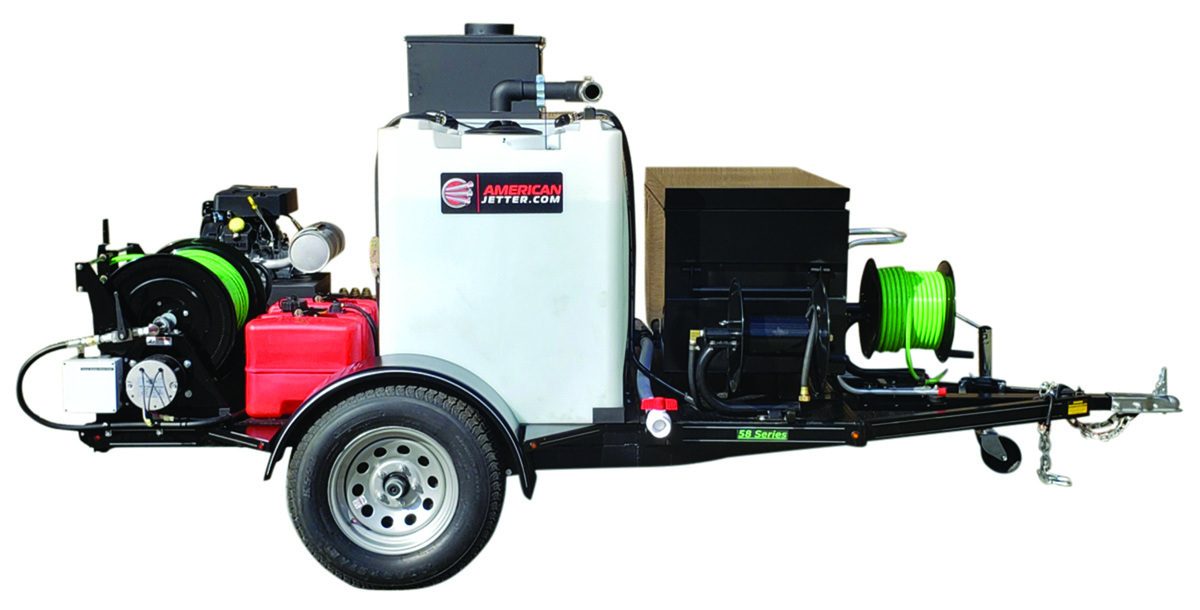

American Jetter 58 Series Inferno Burner Hot Jetter
The 58 Series Inferno Burner Hot Jetter from American Jetter offers up to 67% more efficient heat over traditional burners, according to the maker. This fuel-saving hot water system provides power for grease cutting and deicing, utilizing a 38 hp EFI Kohler gasoline engine with flows up to 20 gpm and pressure to 5,000 psi. The rear speed control reel provides precise cleaning speeds and easy access to the jet hose with the included hose guide. Low-water shut-off stops the engine if the 220-gallon tank runs low. The optional 1-mile open-range wireless remote option features water on/off, engine shutdown and hose reel control. The heavy-duty square tubing trailer has a 2-inch ball coupler and standard electric brakes. 866-944-3569; www.americanjetter.com

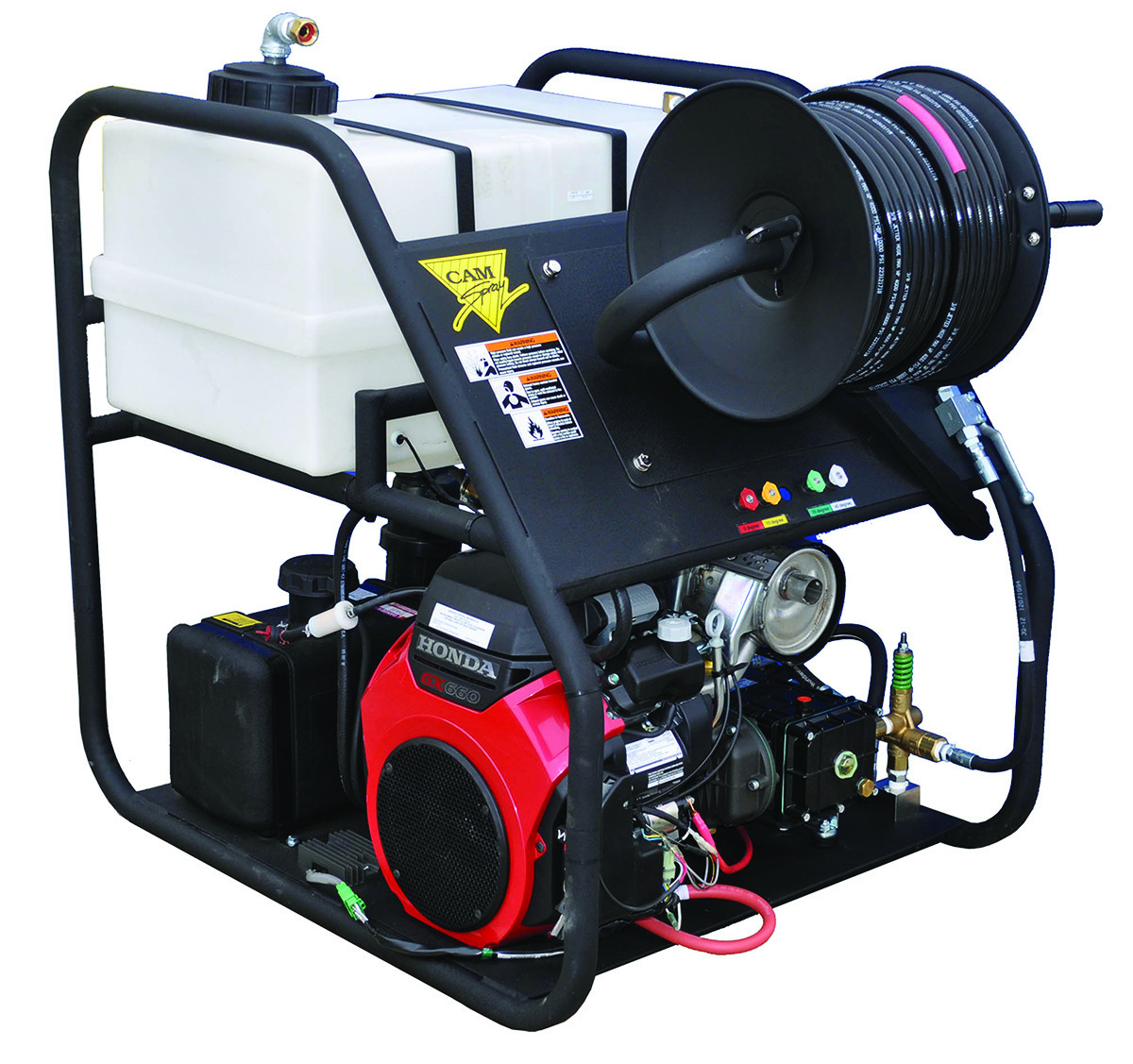

Cam Spray RCJ Series
RCJ Series skid-mounted jetters from Cam Spray are offered in flows and pressures of 8 gpm at 3,500 psi and 7 gpm at 4,000 psi. A three-plunger industrial pump with pulse is powered by a 688 cc Honda engine. Its 200 feet of jetter hose can be used to supply an optional 200DS4 portable reel cart with 200 feet of 3/8-inch jet hose. It comes with a 35-gallon buffer water tank with float control, powder-coated heavy tube frame, washdown gun and a four-nozzle set. It easily mounts in the side door of a cargo van, on a truck bed or inside a service truck. 800-648-5011; www.camspray.com

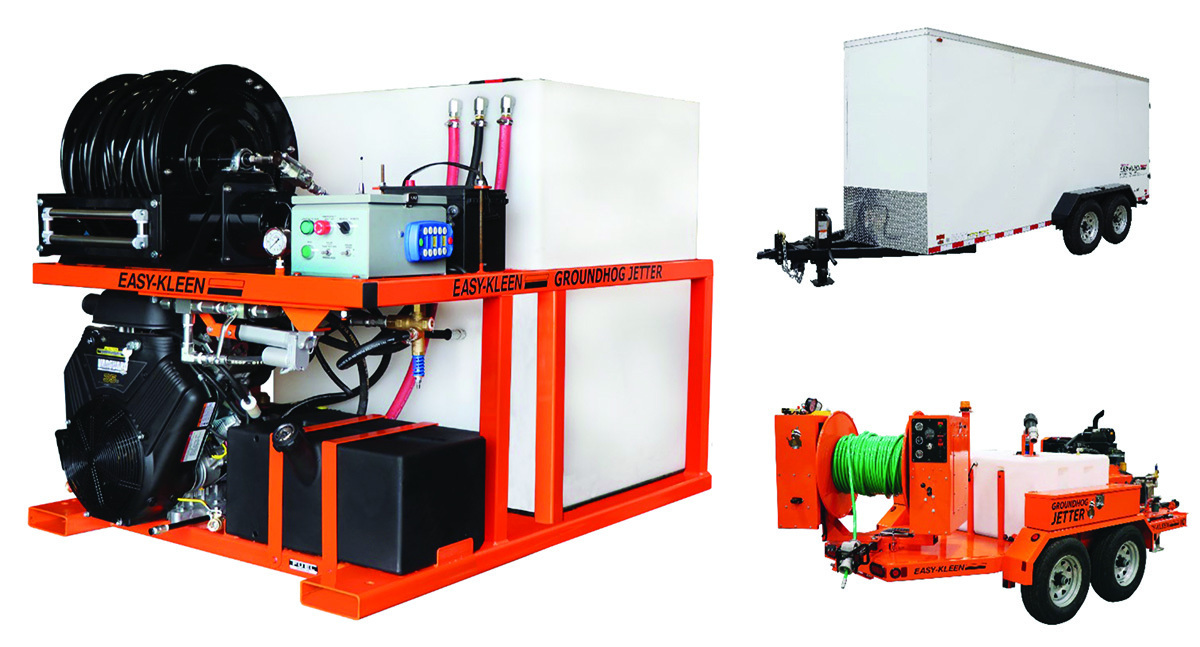

Easy-Kleen Vanpack Jetter
Easy-Kleen’s Vanpack Jetter is a drain and pipe cleaning solution that is fully customizable to meet the user’s needs. With increased water pressure, it tackles even the stubborn blockages with ease. The units are equipped with a 35 hp Vanguard gasoline engine and a gearbox-driven pump producing 12 gpm at 3,500 psi. Combined with 300 feet of 3/8-inch jetter hose and a 200-gallon water tank, they deliver effective results for challenging jobs. Optional upgrades include a wireless remote, heater pack, customizable hose reel racks and light packs. 800-315-5533; www.easykleen.com

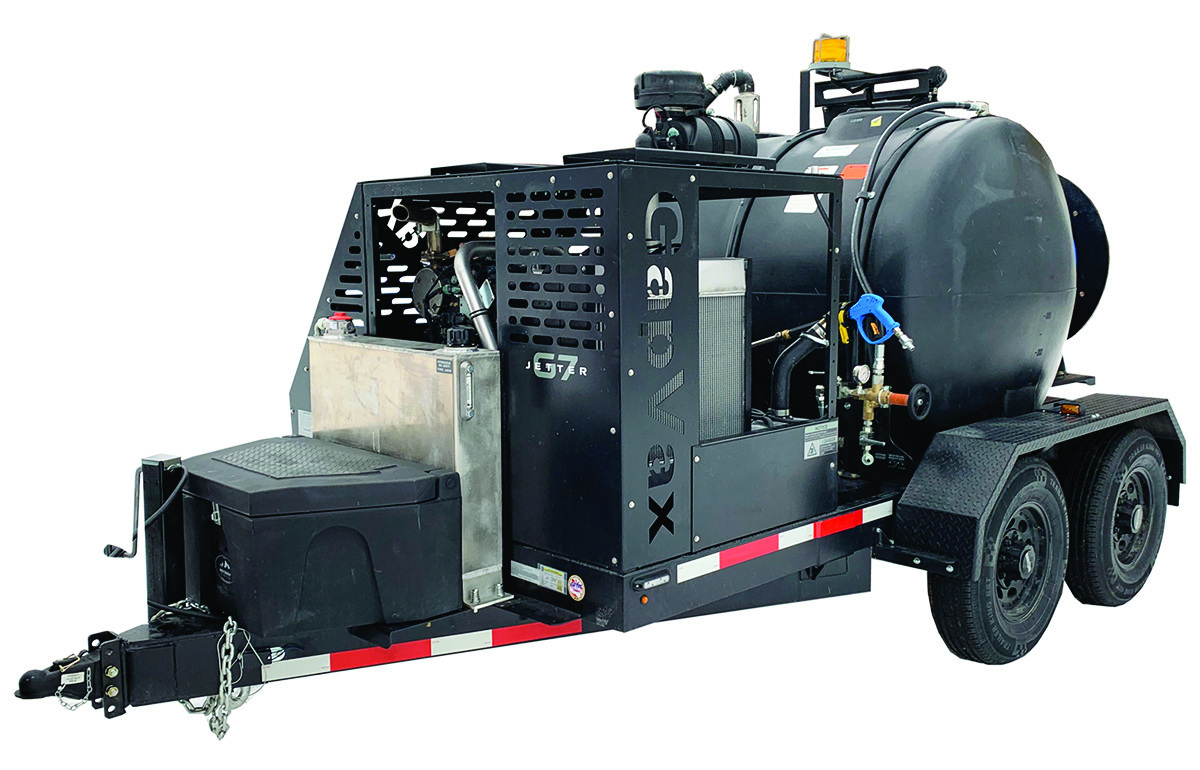

GapVax G7 Jetter
The G7 Jetter from GapVax is built on a heavy-duty, contractor-grade NATM-certified trailer. Several engine choices, including Cummins diesel, are certified and sized appropriately for the water pump combinations. The unit’s hose reel is hydraulically powered with a direct-drive gearbox and variable-speed control. The hose reel offers a 3-foot (curbside) articulation from center of bearing, 180-degree rotation and a capacity of 800 feet of 3/4-inch jetter hose. The polyethylene plastic water tank is available in 300, 500, 600 or 700 gallons. The water pump is center-fed for optimum performance. The controller is interlocked with safety features that will show low fuel levels and low water, and is capable of a complete engine shutdown in an emergency. 888-442-7829; www.gapvax.com

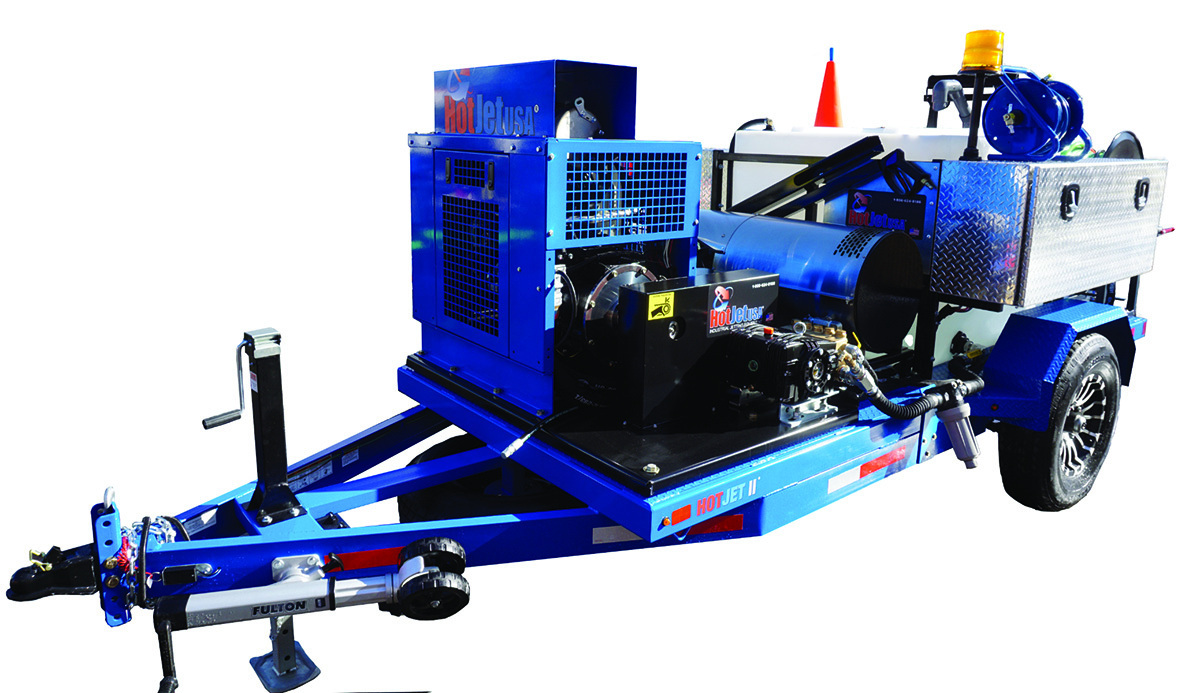

HotJet USA turbo diesel trailer jetter
HotJet USA is offering a turbo diesel-powered trailer jetter powered by Yanmar. It features 59 hp of power with true 20 gpm at 4,000 psi output in a compact, affordable package, offering 10% more power than regular 18 gpm units. Yanmar-powered units are Tier 4 compliant, are fuel-efficient and use an XL Radiator. The engines are water cooled for maximum efficiency and are easily maintained by a network of service centers nationwide. The jetters may be mounted on 5-by-12 to 5-by-16-foot decks with a choice of single or tandem axle. They are available in cold or hot/cold operation and will clean drainlines up to 24 inches. 800-624-8186; www.hotjetusa.com

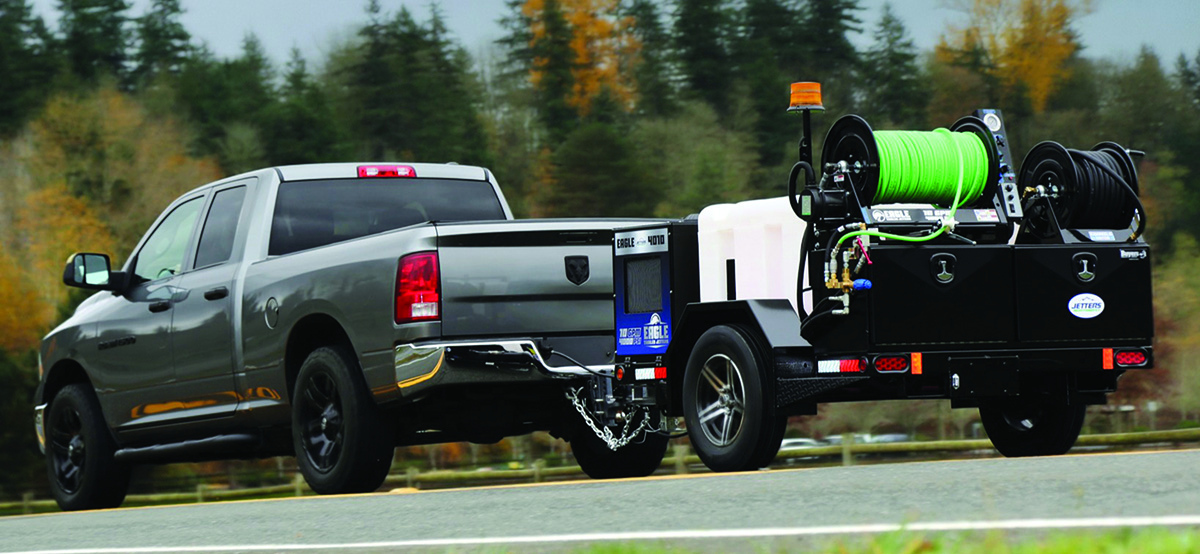

Jetters Northwest Eagle-200/4010-DWR
The Eagle-200/4010-DWR midsize trailer jetter from Jetters Northwest produces 10 gpm, 4,000 psi performance with full wireless remote control or jetting on/off, engine on/throttle/off, and reel-windup functionality. It is an upgraded version of the previous 4009 model and comes with an enclosed Kawasaki 31 hp fuel-injected/liquid-cooled engine on an industrial-duty trailer with brakes for safety and a beefy A-frame tongue, allowing it to be towed when full of water. Flat-top fenders allow for additional mounting surface and standard aluminum wheels give a sharp appearance. It features a super-duty triplex UDOR USA pump, 12-volt powered hose reel with adjustable windup speed, 200-gallon water tank, large 60-inch lockable tool storage bin, 400 feet of jetting hose on the main 12-volt power reel, 100 feet of 3/4-inch water-supply hose on a second reel, adjustable pulsation-control and four jetting nozzles. Specialty root/grease nozzles and other options are available. 877-901-1936; www.jettersnorthwest.com

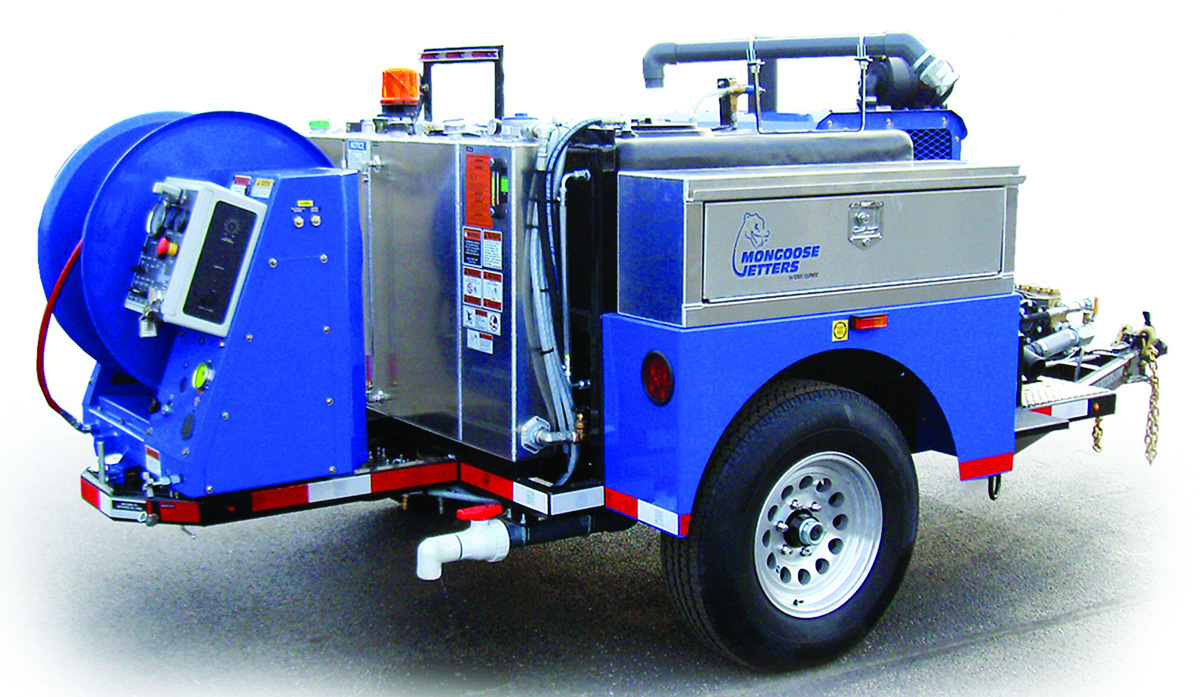

Mongoose Jetters by Sewer Equipment Model 184
The Mongoose Jetters by Sewer Equipment Model 184 comes with a run-dry pump offering 18 gpm at 4,000 psi, a tubular steel frame, corrosion-resistant prepainted subassemblies, state-of-the-art controls, strong hose reel and high-quality gas engine. It is suitable for drain cleaning and sewer jetting, remote access locations, mainlines up to 12 inches in diameter, and commercial and industrial lines. The trailer unit comes with a water tank capacity of 300 gallons and standard hose reel capacity of 600 feet of 1/2-inch hose. The trailer setup consists of a 6,000-pound-rated single-axle trailer, and the addition of a wireless remote control system makes this equipment a true one-person operation. It is also available as a van pack or truck-mounted unit. 815-835-5566; www.sewerequipment.com

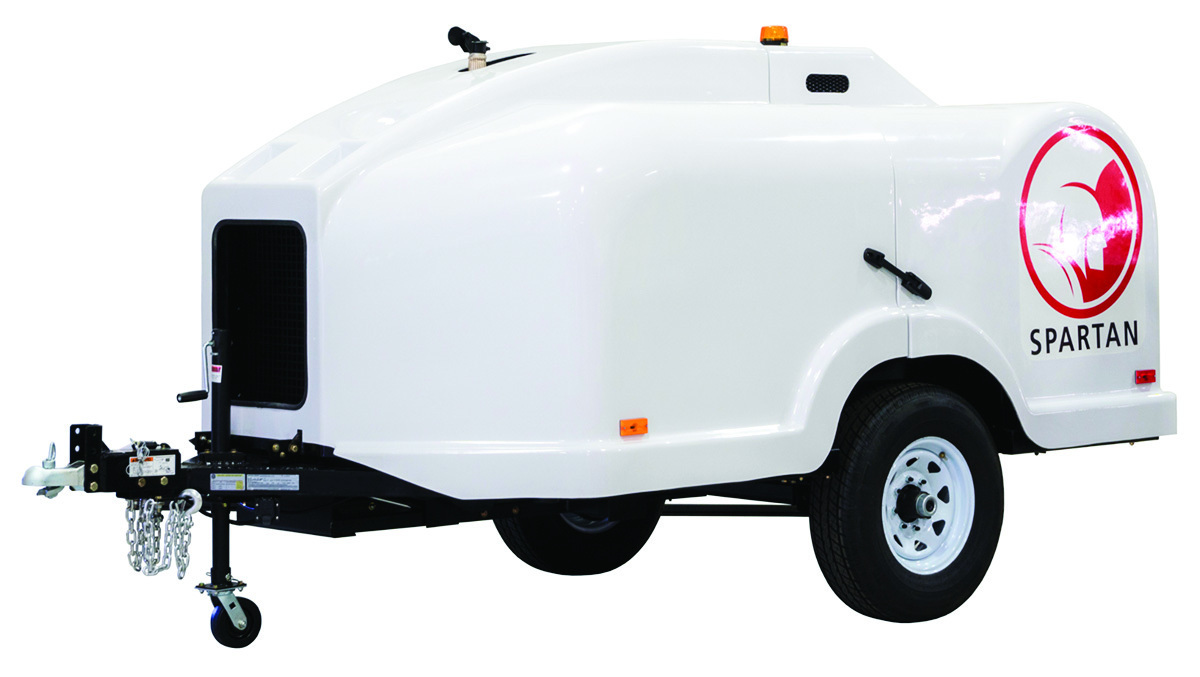

Spartan Tool Warrior
With fiberglass casing to protect and silence the entire machine, Spartan Tool’s Warrior trailer jetter provides 4,000 psi at 18 gpm to clear almost any line, according to the manufacturer. The 180-degree pivoting hose reel and optional four-function remote control allow technicians to handle the tightest spots. With pulsation and a full antifreeze system, it is designed to remove tough clogs in any weather. Its design includes room to customize it with a company logo and colors, and it provides a 300-gallon towing capacity. 800-435-3866; www.spartantool.com

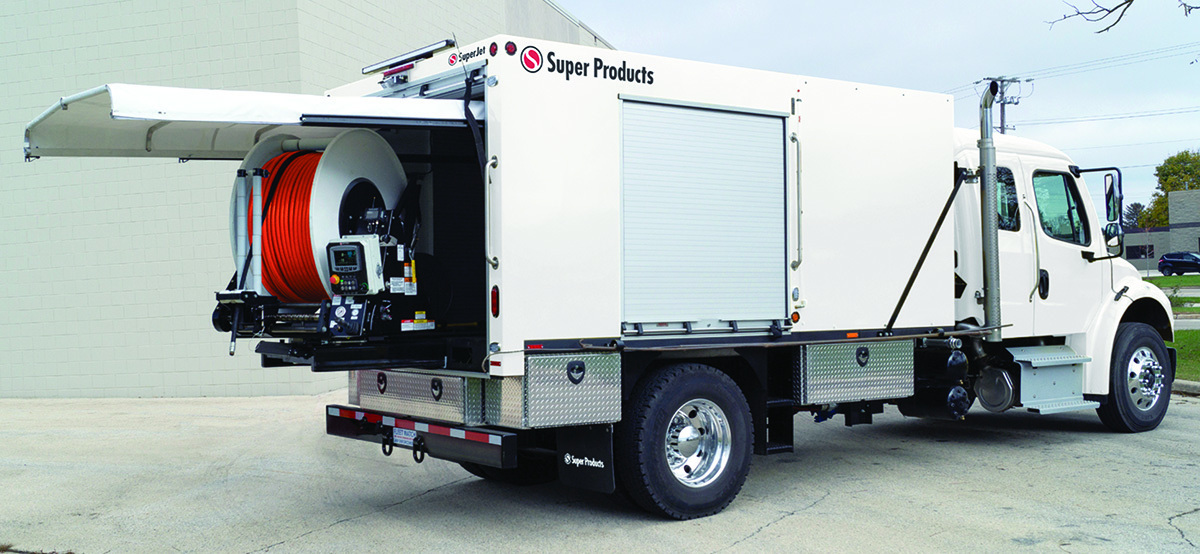

Super Products SuperJet
The SuperJet truck-mounted jetter from Super Products is used to blast debris to clear blockages and maintain sewer lines when vacuuming extraction is not required. It uses a strong and smooth single-piston water pump to create consistently high water pressure. Units come standard with rotationally molded polyethylene water tanks in a modular design to accommodate water capacities ranging from 1,080 to 3,240 gallons. They offer standard curbside and street-side fill. The hose reel has 1,000 feet of 1-inch-diameter sewer hose, 200-degree rotation and a digital monitor. This allows operators to work efficiently while positioned out of traffic and away from other hazards. The monitor displays a hose footage count, offers 20 saved settings for hose reel payout, and is designed with LED panel lights to enable readability in a variety of environments. 800-837-9711; www.superproducts.com

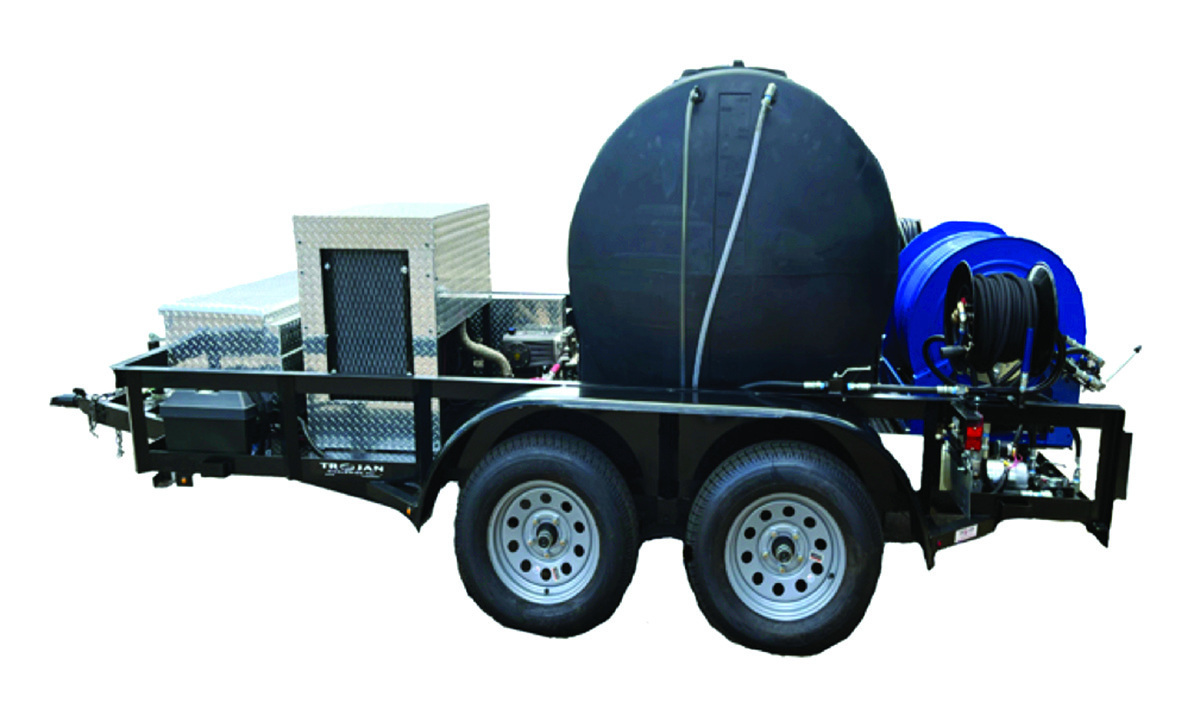

Trojan Worldwide TWW3000D Diesel Trailer Jet
The TWW3000D Diesel Trailer Jet from Trojan Worldwide comes mounted on a tandem-axle trailer with a steel diamond plate deck and braking system. The power unit consists of a diamond-plate enclosed 60 hp Perkins diesel engine with a PTO-style transmission and an AR water pump pushing 22 gpm at 3,000 psi. The rear of the unit includes a hydraulic hose reel with 500 feet of 3/4-inch hose and includes a speed control for the forward/reverse function. Water is supplied by a 525-gallon tank that is fed from a 100-foot fill hose or the included hydrant fill application. The open trailer layout makes accessing all of the components easier and less time-consuming. 800-392-4902; www.trojanworldwide.com

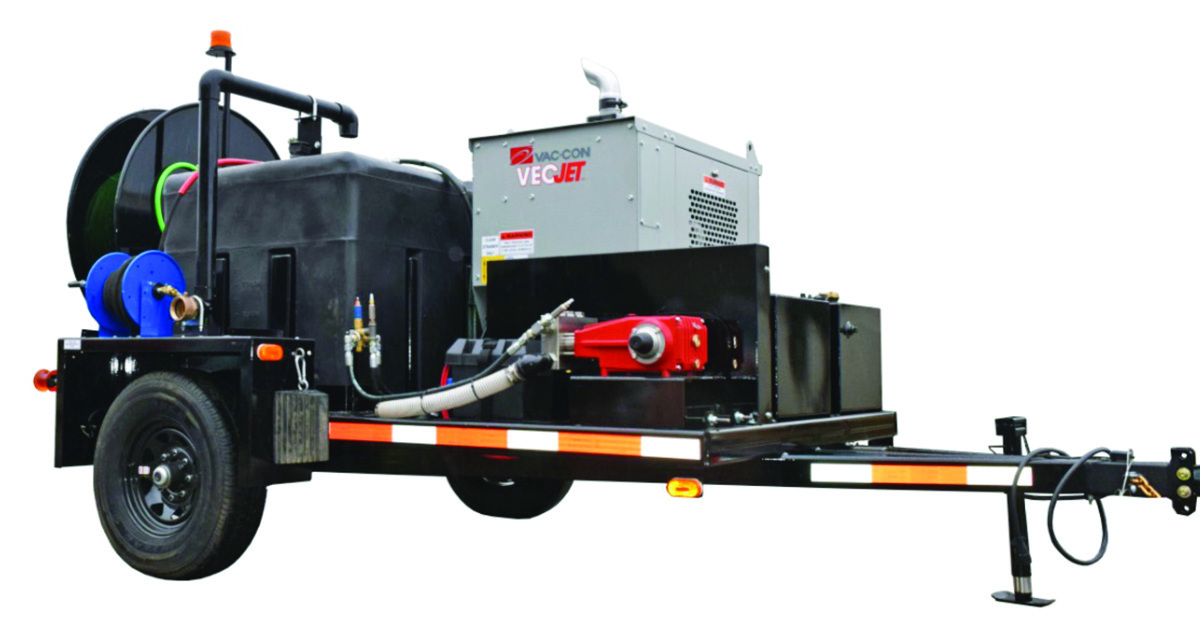

Vac-Con VJ Series
The VJ Series of jetters from Vac-Con is designed to provide operators with an economical, portable and powerful system in two configurations. The VJ375 offers a 375-gallon water capacity on a single-axle trailer. The VJ750 boasts 750-gallon water capacity on a tandem-axle trailer. Standard features include Tier 4 diesel engine, cold-weather recirculation and air purge system, hydraulically driven hose reel and a reel-mounted, weatherproof electronic control panel. Units are available in multiple water pump pressure and flow configurations. Optional features include gas engine, wireless remote and an antifreeze tank system for cold-weather use. 904-284-4200; www.vac-con.com

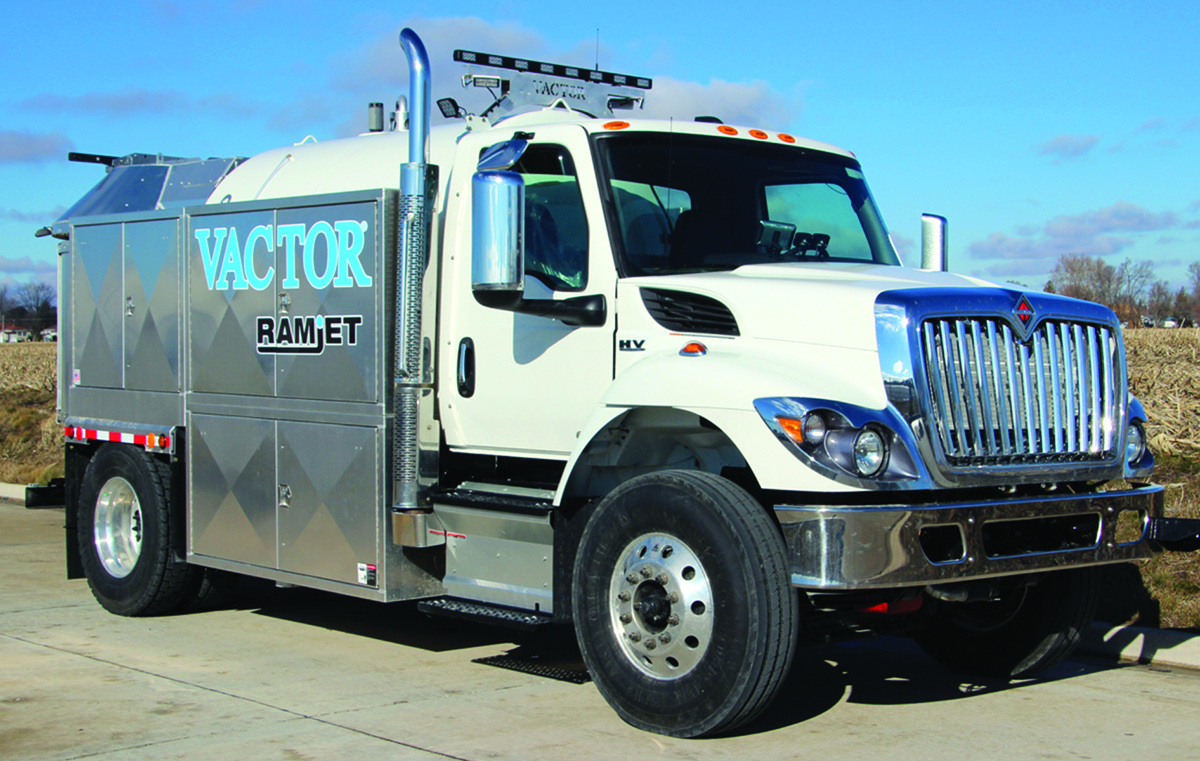

Vactor Ramjet
The Ramjet from Vactor provides greater precision, increased storage options and superior cold-weather protection, making jobs safer, easier and more efficient for the operator. IntuiTouch controls provide greater precision and enhanced productivity. Improved water plumbing adds even more storage options. It includes an IntuiTouch control system with one-touch activation, low-maintenance Jet Rodder water pump, Park-N-Clean technology for faster setup at the job site, a Modul-Flex design for maximum capacities and optimum weight distribution, a stainless steel water tank that offers greater strength and corrosion protection, and superior cold weather operation that includes separate storage for wet and dry items. 815-672-3171; www.vactor.com
Water Pumps

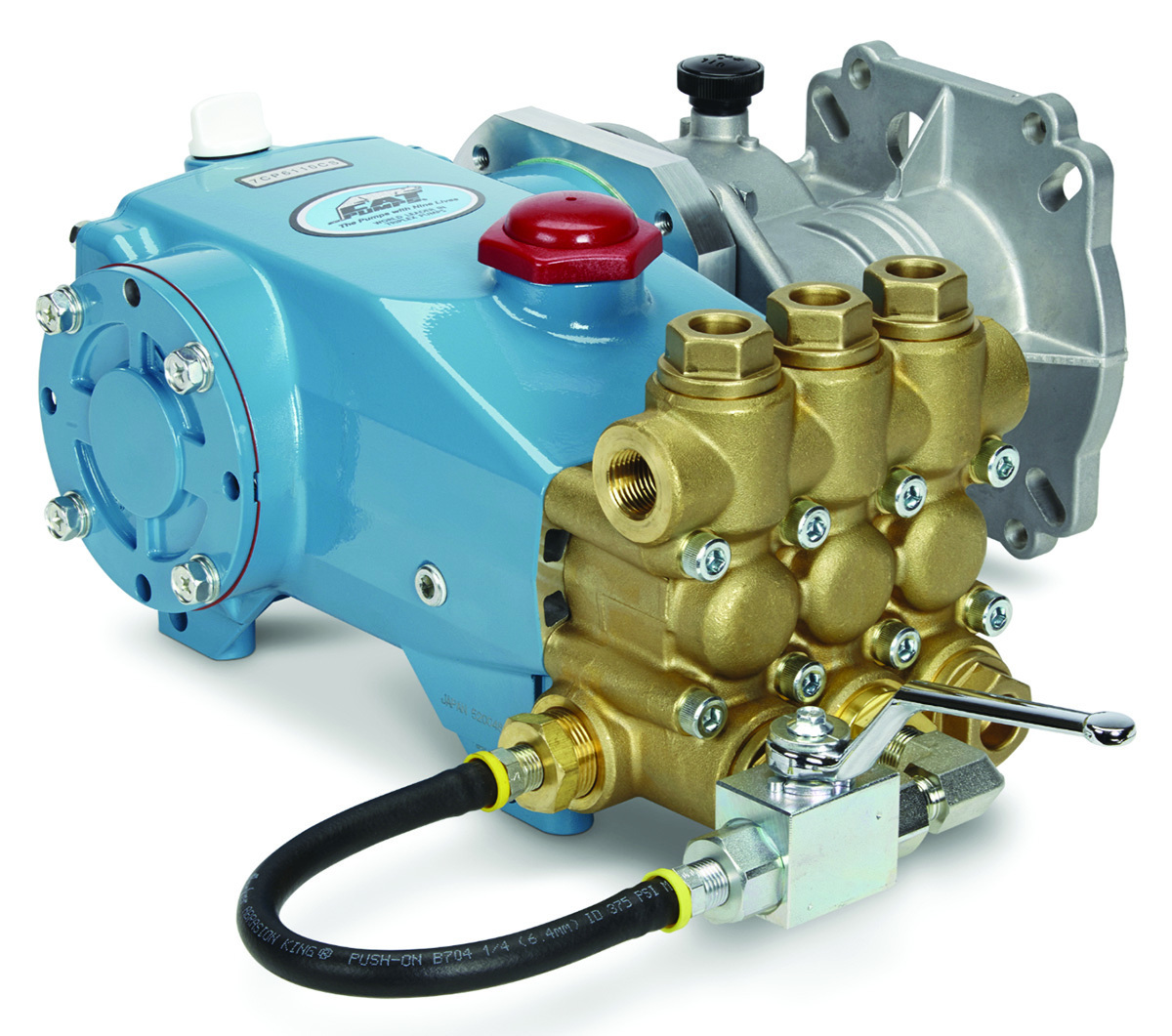

Cat Pumps Model 7CP6165CSG1
The Cat Pumps Model 7CP6165CSG1 offers a performance rating of 8 gpm at 3,500 psi. Its combination of high performance, compact footprint and proven longevity helps jetters cut through challenging jobs. It converts to a jetting pump by adding a pulsator assembly, which eliminates the danger of deadheading the pump, prolonging the life of the seals and reducing unplanned downtime. A convenient handle allows for a quick changeover from cleaning to jetting modes. It uses an industrial-duty gearbox that attaches directly to 1- or 1 1/8-inch 3,265 rpm gas engines. Its gearbox allows for a smaller footprint and features hardened steel helical gears for smooth, quiet operation. The sealed housing provides independent gear lubrication, resulting in thousands of trouble-free hours. 763-780-5440; www.catpumps.com

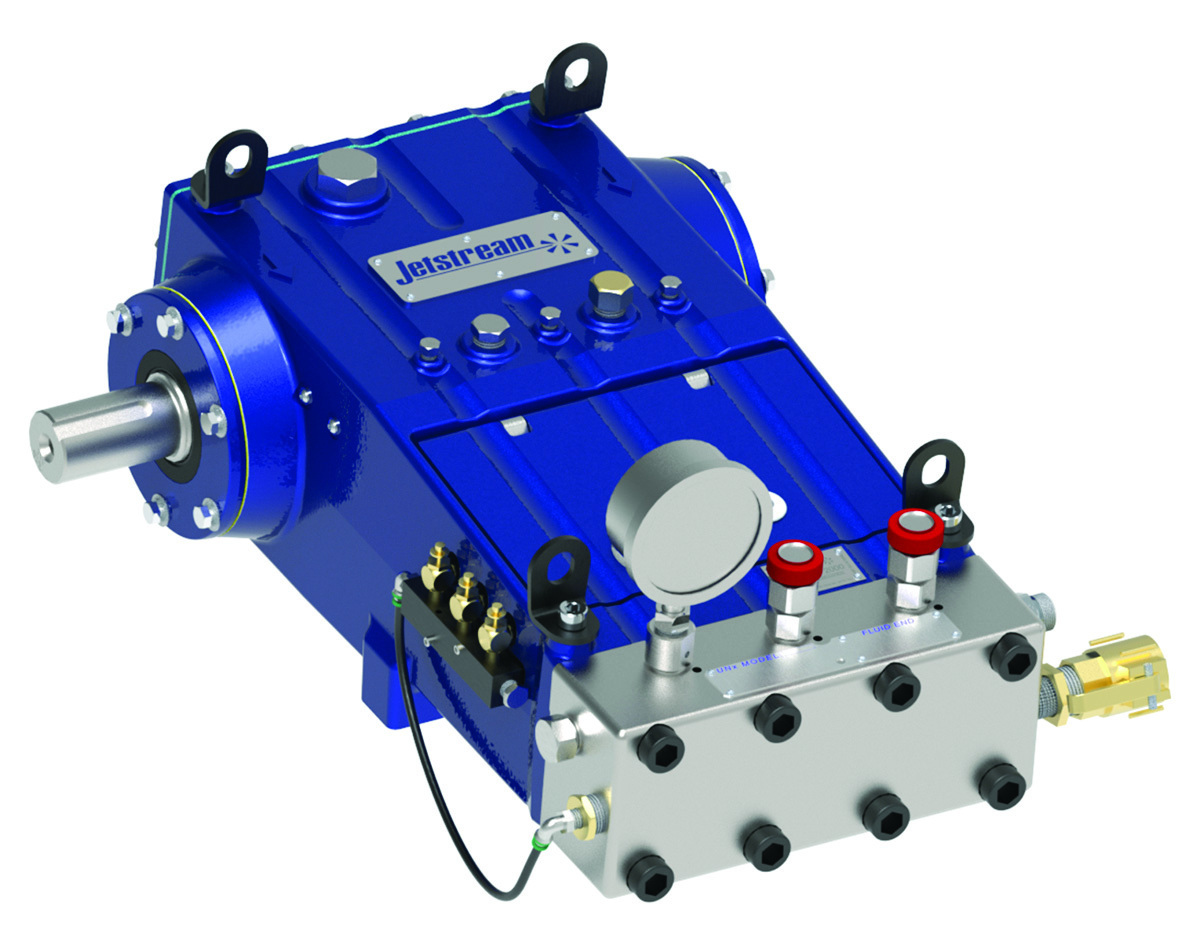

Jetstream 2000 Series UNx
The compact 2000 Series UNx bareshaft pump from Jetstream of Houston is designed with efficiency in mind for low-horsepower waterblasting operations. It includes three crankshaft-propelled plungers allowing for smooth operation and efficiency on the job site. Pressure outputs ranging from 6,000 to 15,000 psi and compatibility with 75 hp engines make it small, yet able to retain core features. Repairs are doable on the field thanks to a design approach that allows easy swap-outs of the pump’s packing, univalves and plungers. It can achieve a flow rate of up to 20 gpm at up to 6,000 psi. 800-231-8192; www.waterblast.com
