CIPP Equipment and Materials

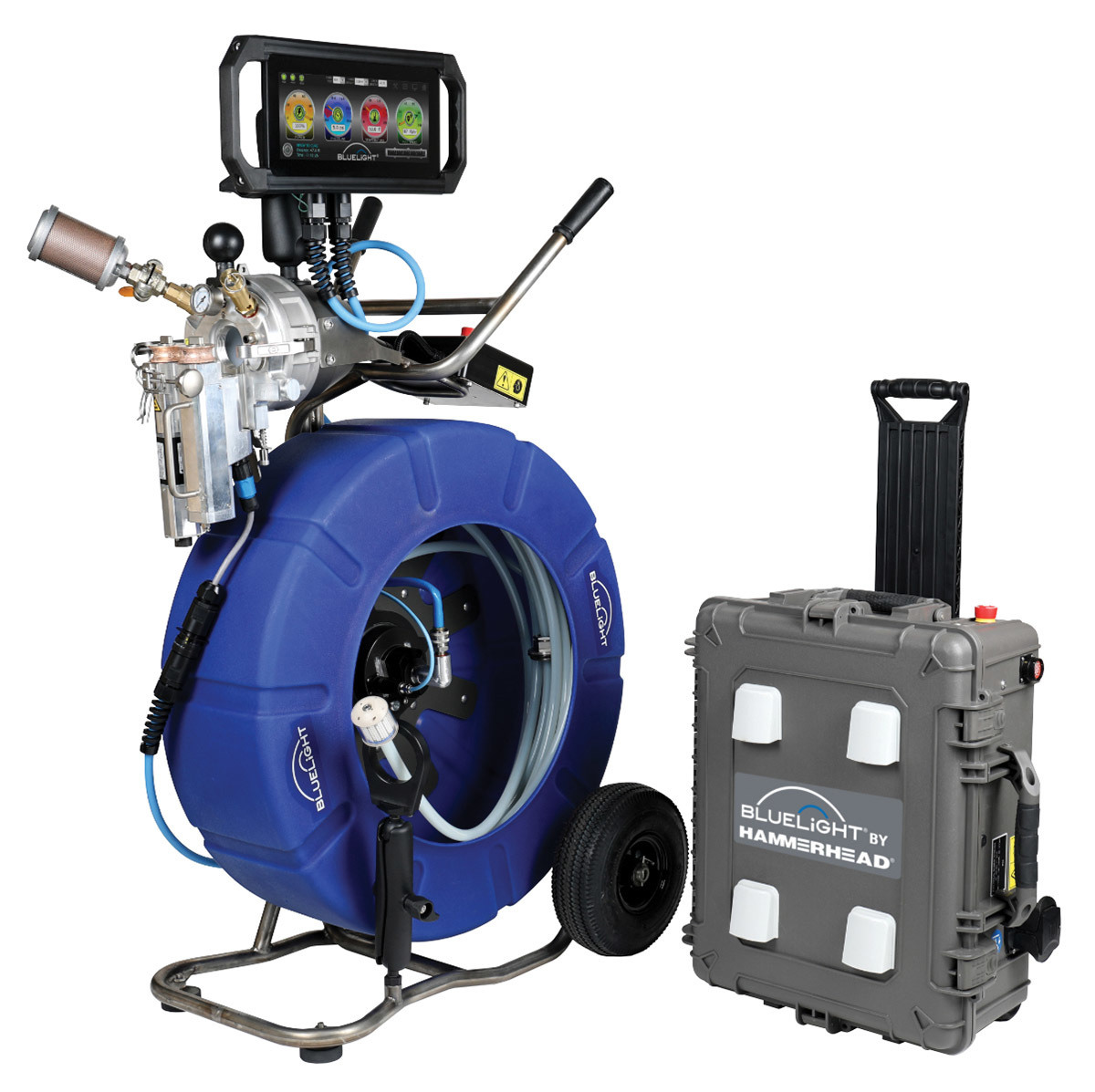

1 // HammerHead Trenchless Bluelight LED CIPP Lining System
The Bluelight LED CIPP Lining System from HammerHead Trenchless is an advanced light-curing system for the rehabilitation of laterals and small drain pipes. The technology empowers CIPP installers by alleviating the time pressures of other lining systems. The specially formulated resin only cures under light in the blue wavelength (444-457 nm) giving installers virtually unlimited working time between liner wet-out and curing. Once the liner is in place, the automated curing system pulls the LED light head through the liner, curing the resin almost instantly — as fast as 5.4 feet per minute. Instead of waiting hours for the liner to cure, a 50-foot sewer line could be fully cured in under 10 minutes. The system has a touch-screen interface and three light head options to cure liners 3 to 10 inches in diameter. 800-331-6653; www.hammerheadtrenchless.com

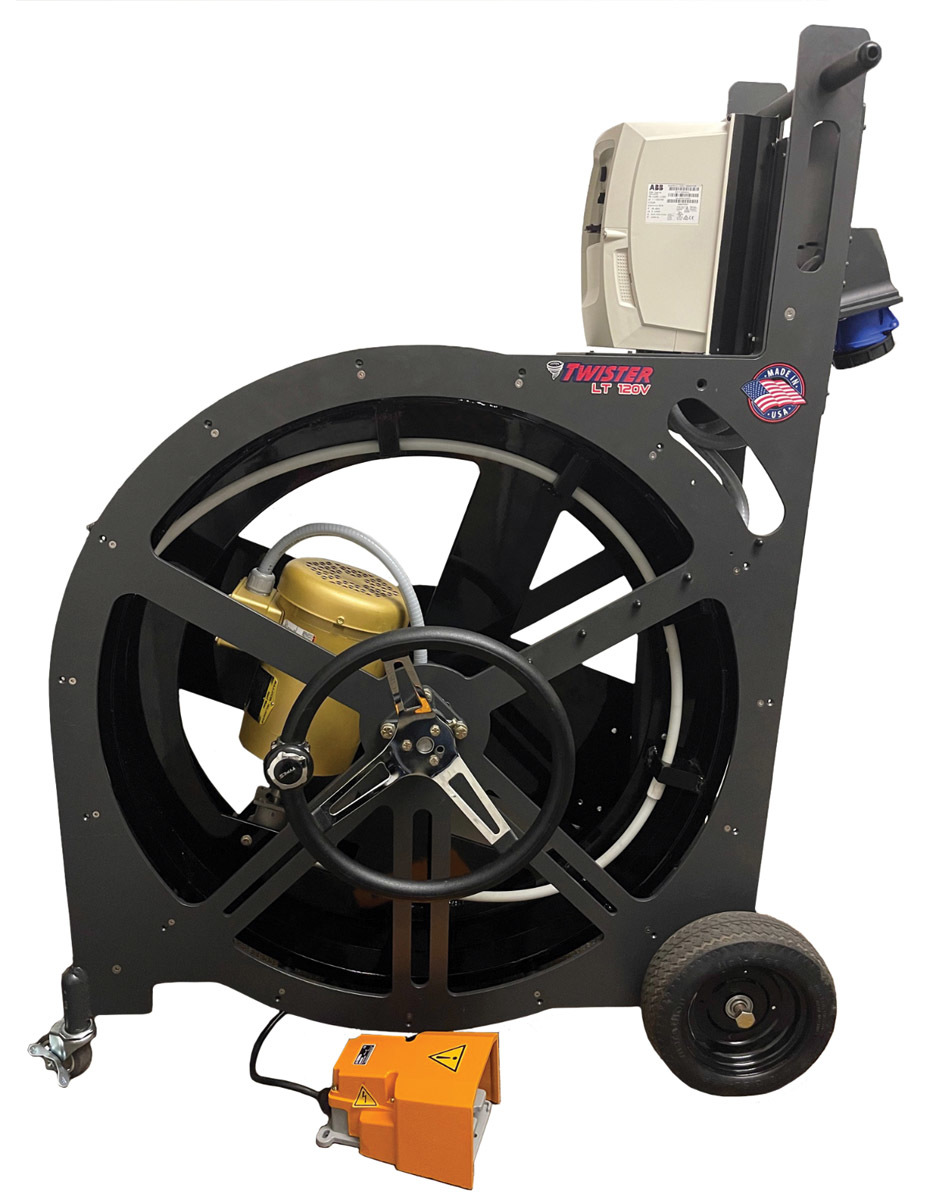

2 // Hurricane Reinstatement Solutions Twister
The Twister from Hurricane Reinstatement Solutions offers users an upright tool that will spin at a high rpm, allowing for faster cleaning whether for opening a blockage, root removal, descaling or doing reinstatements on CIPP liners. It comes in both 110- and 240-volt models. Both units feature an open-air drum concept and are only 17.5 inches wide, allowing for tight areas. They come with Baldor Motors available in 1.5, 2 and 3 hp models and ABB drives with an internal clutch for safety of the user and longevity of the cable. Both units offer a cable distribution array allowing the cable to be positioned in multiple angles and positions while reducing the traditional weights of other tools. 702-376-1483; www.hurricanereinstatementsolutions.com

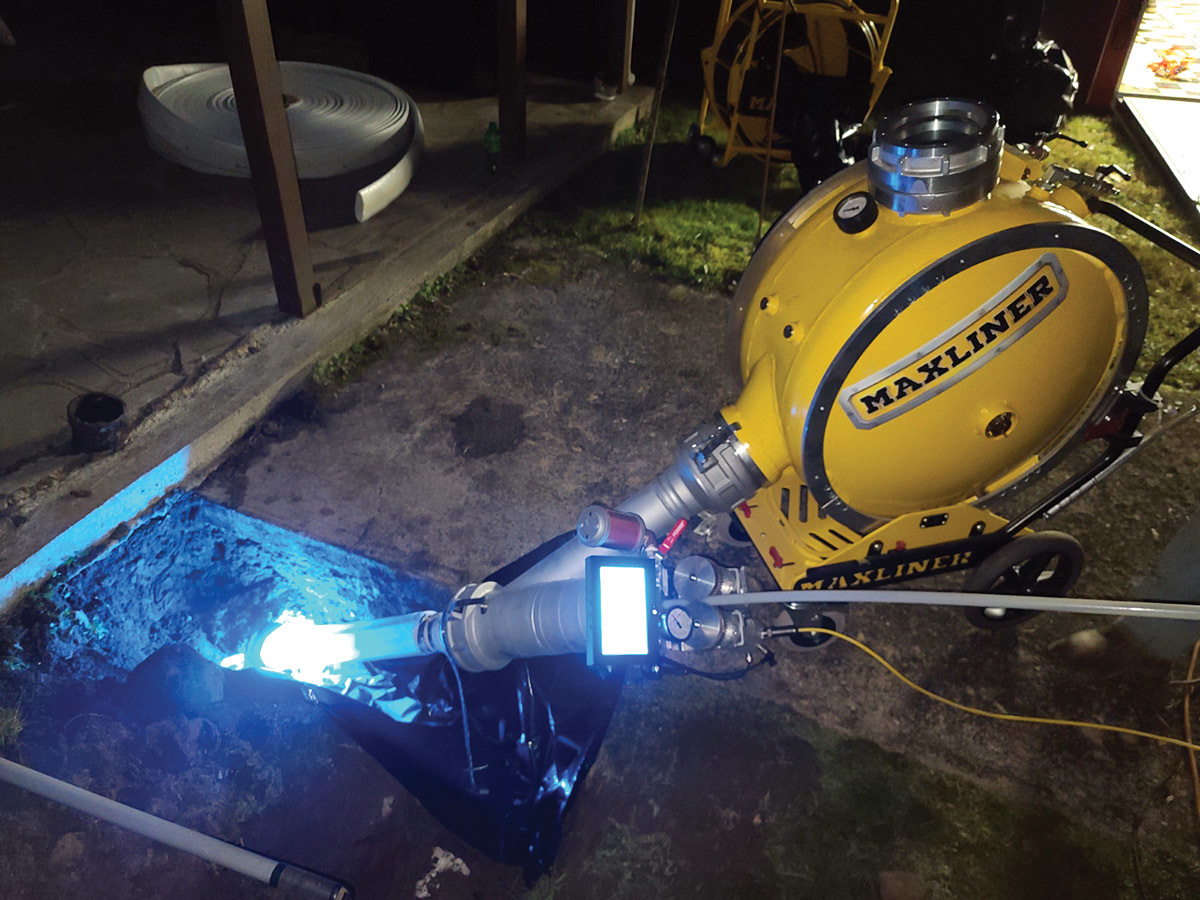

3 // MaxLiner MaxLight
MaxLiner’s LED-based UV curing system, MaxLight, optimizes CIPP operations by increasing work efficiency. Curing does not begin until resin is exposed to the finely calibrated UV light, allowing pre-impregnated liner assembly at the shop or on site, eliminating pot life concerns and allowing for several installations in a single day. The systems are formulated to cure with UV light and offer superior mechanical properties and chemical resistance. These resins are designed with excellent wet-out capability, ultra-low odor and are styrene-free. Systems are single-component resins designed to meet all specifications for a fully structural CIPP liner conforming to all applicable ASTM standards. 877-426-5948; www.maxlinerusa.com

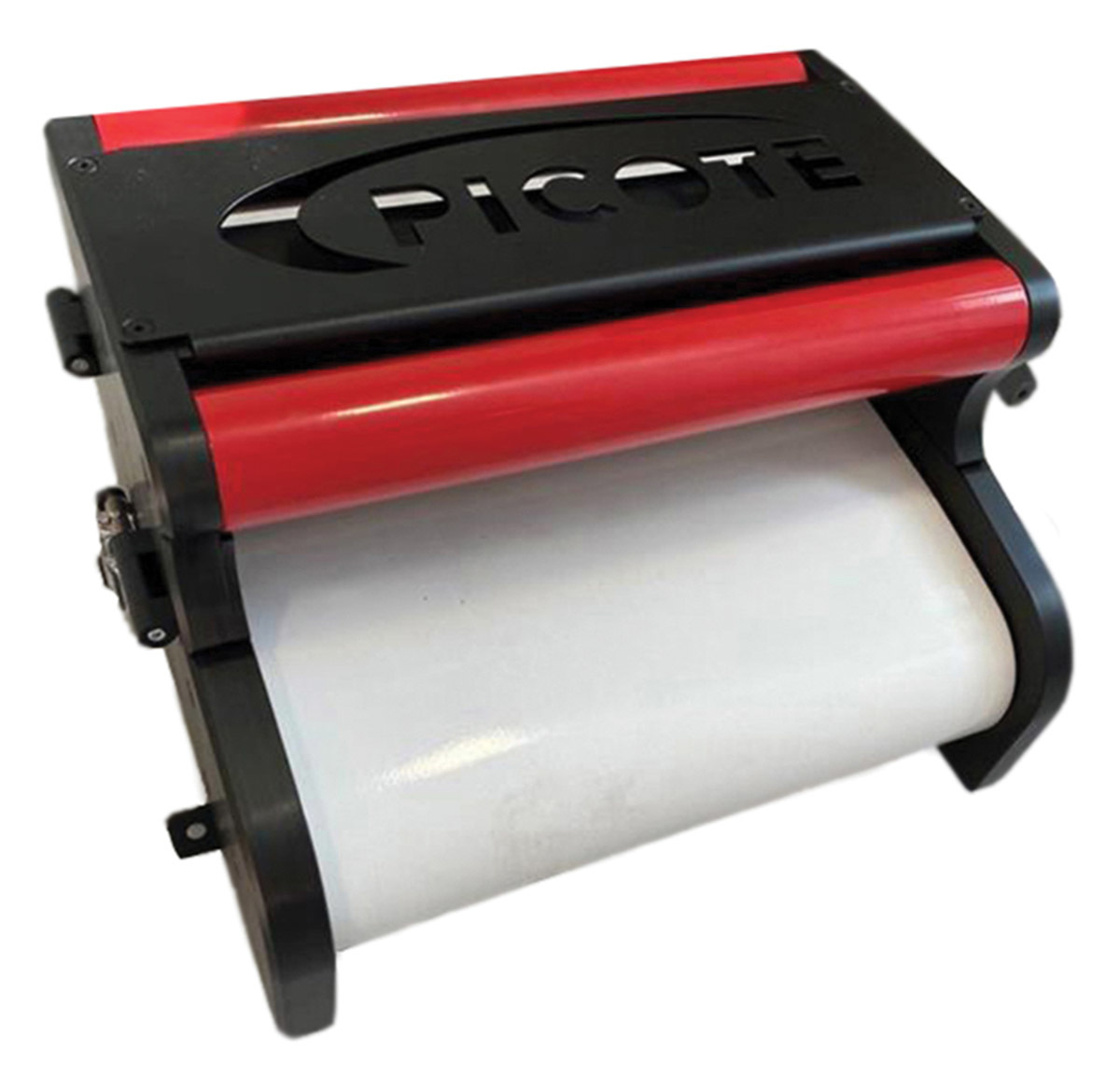

4 // Picote Solutions Midi Roller
The hybrid Midi Roller from Picote Solutions is battery operated (up to 10 hours working time) or chargeable while in use, and can be used to easily wet out CIPP liners from 2 to 8 inches on site. It comes with variable speed and bidirectional controls. The upper roller lifts up, making wet-out faster and easier. It can be used as a stand-alone roller, or add to the Picote Wet Out Station to build a complete 59-inch portable and powered wet-out unit. The unit is 14.2 by 19.1 by 10.4 inches, and provides variable speeds of 9 to 29.5 feet per minute, with gapping of 4 to 14 mm (in 0.5 mm increments). 708-267-6366; www.picotesolutions.com

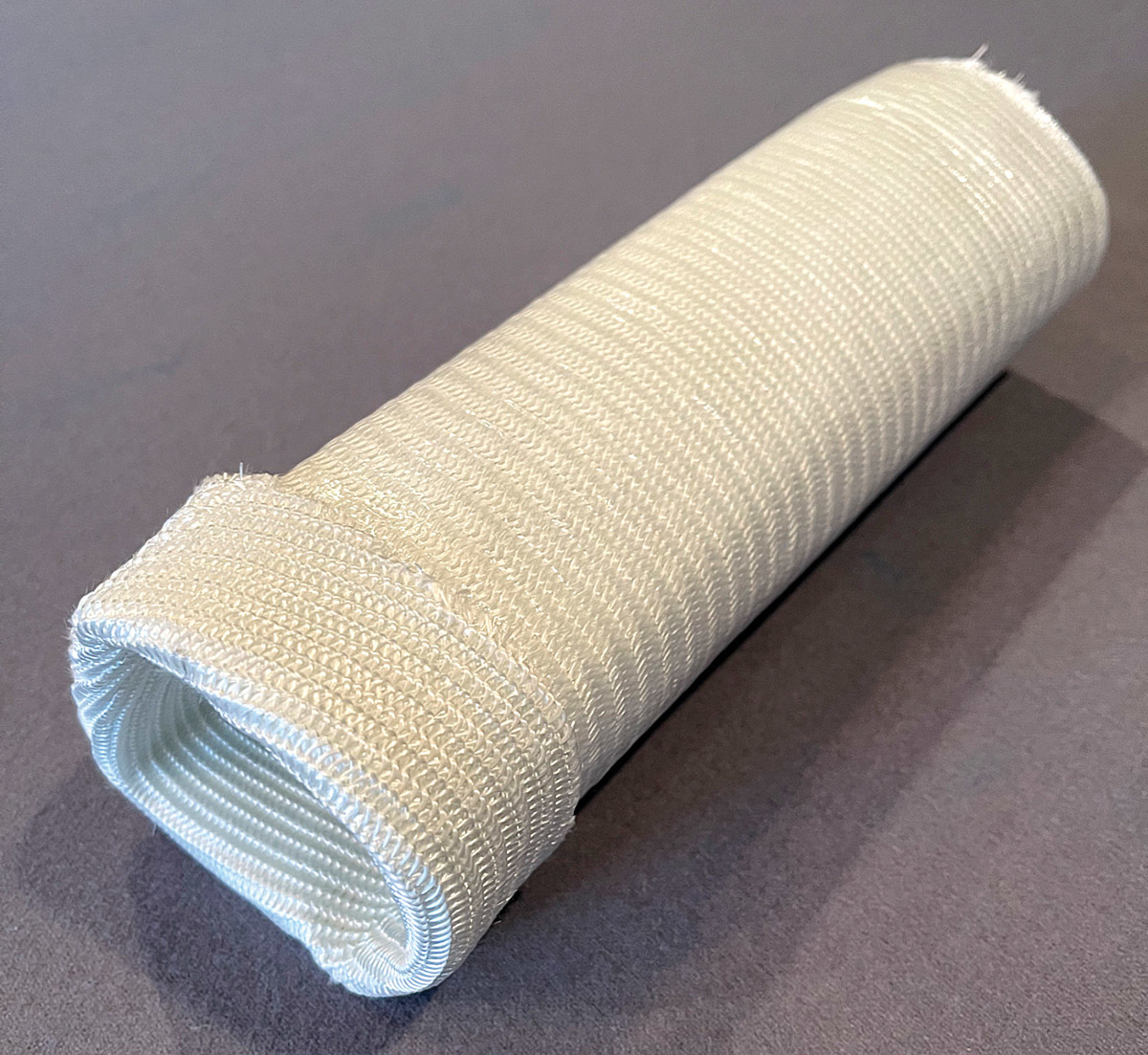

5 // Pipe Lining Supply Magma Flex
Magma Flex from Pipe Lining Supply is a fiberglass material suitable for use with heat or UV curing processes. It is up to four times stronger than standard lining material, and can be used for conventional lining of nominal diameters, transitions from one dimension to another and for point repair. 888-354-6464; www.pipeliningsupply.com

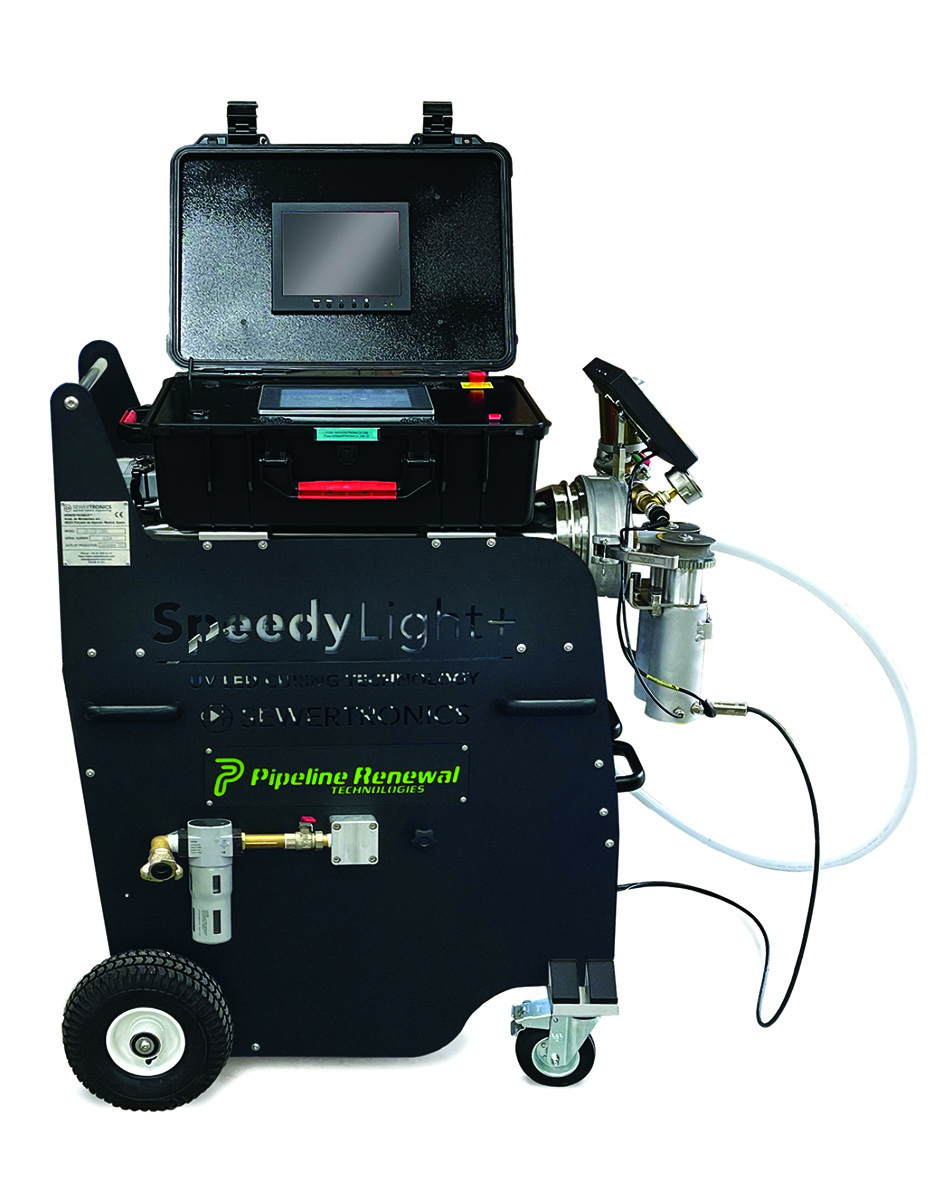

6 // Pipeline Renewal Technologies SpeedyLight+
SpeedyLight+ from Pipeline Renewal Technologies is an LED-based UV solution for CIPP that cures at speeds ranging from 0.66 to 3.3 feet per minute. Because it’s compatible with felt (as well as invertible glass fiber), it can cure 90-degree bends in lines as small as 4 inches, as well as other challenging geometries like transitions and verticals. Free of styrene and amines (and the associated odor), UV-based cure technologies raise fewer objections from the public and a crew. The single-part vinyl ester resin requires no mixing and eliminates shelf life and working time challenges. It uses LED lamps to cure, drawing half the power of traditional UV technology while providing a more powerful cure. The integrated camera lets operators monitor the curing process in real time for optimal quality control. The highly portable design allows for access from even the most remote sites, curing up to 328 feet of liner in pipe 4 to 12 inches. 866-936-8476; www.pipelinert.com

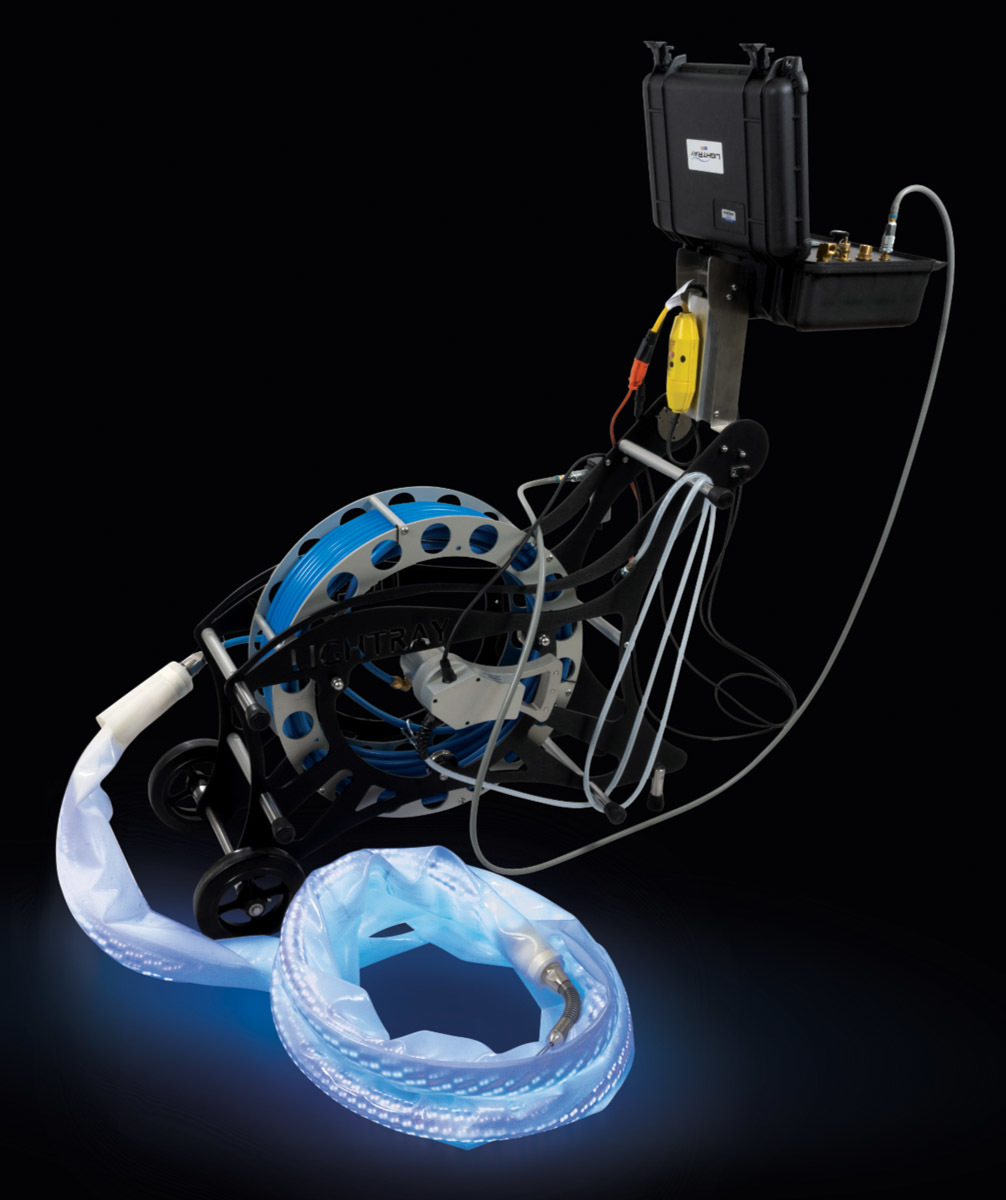

7 // Waterline Renewal Technologies LightRay LR3 LED UV System
The LightRay LR3 LED UV System from Waterline Renewal Technologies allows the operator complete control of the curing process. It can significantly reduce costs and risks compared to traditional thermo-setting or ambient-cured CIPP liners, creating new opportunities for plumbers and municipal contractors. It is both a pull-in-place and spot repair system that provides the flexibility to perform both operations by changing the double-strand cold LED repair packer. Non-VOC resin is pre-impregnated into the high-performance fiberglass liner and shipped ready to install for no-dig small-diameter pipe infrastructure repairs. Once the install site is prepped, casting times in less than 10 minutes can be achieved, eliminating the risk of premature or prolonged curing times due to temperature variations. It can be used to repair pipe diameters of 3, 4 or 6 inches, including transitions. The 100-foot hose couples with 5-, 10- or 20-foot packers to perform repairs. 866-336-2568; www.waterlinerenewal.com/brand/lightray

Hydroexcavation

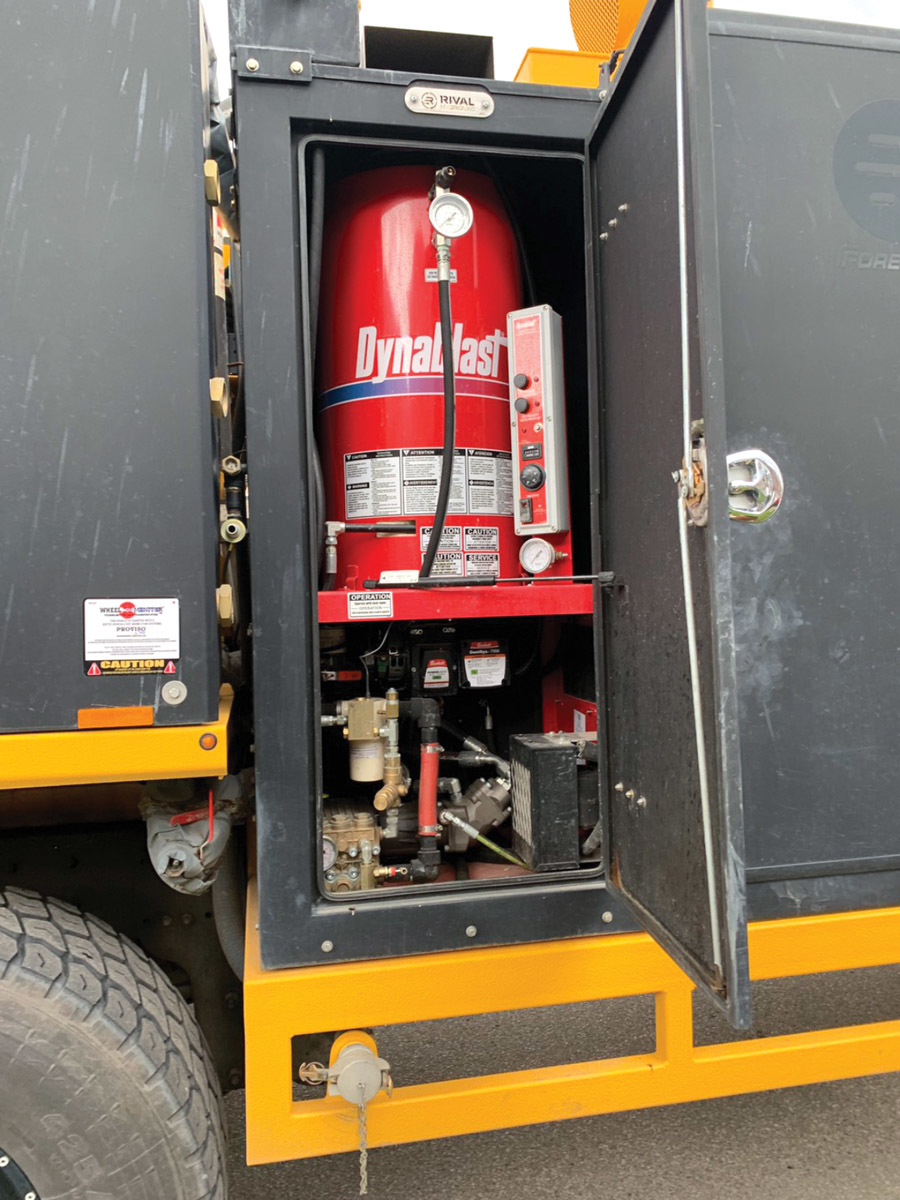

8 // Dynablast HV420
Custom Dynablast HV420 hydrovac water heaters produce 420,000 Btu with an output temperature of 175 degrees F at 5 gpm, making them suitable for colder climates and improved digging in clay-filled areas. All models come with ETL certification for safety, which also includes certification on the coil for higher efficiency and heat transfer, a stainless steel target plate for increased coil life and momentary override control. They include an Interpump Group T 2040 water pump package providing 10.5 gpm at 2,900 psi and 1,750 rpm, as well as a hydraulic package with Sunfab 34 cc motor. All components are custom-mounted in a 24-by-24-inch cabinet. 905-867-4642; www.dynablast.ca

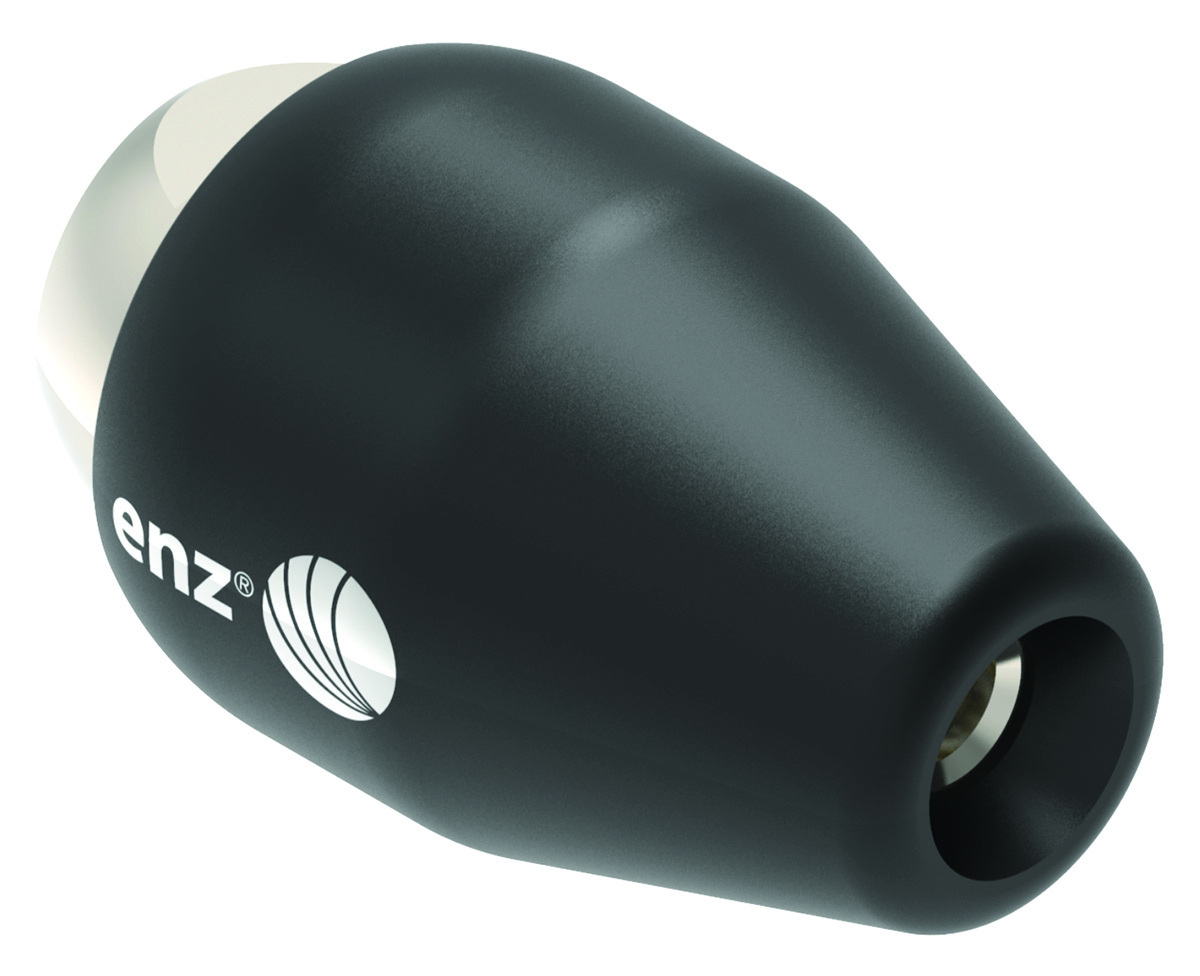

9 // Enz USA Hydro X
The Hydro X nozzle from Enz USA is available in 3/8-inch NPT or 1/2-inch connecting threads, and it can function at up to 5,000 psi with flow as low as 8 gpm. It combines a powerful, oscillating water jet with a high debris removal rate. A tungsten carbide front jet ensures a longer life than ceramic jets can offer. For quick and easy maintenance, a repair kit is available. Due to the nozzle’s simplicity, repairs can be made quickly and efficiently in the field with little downtime. For the operator’s safety, a plastic cover provides protection against harsh and sensitive environments. 888-369-8721; www.enz.com

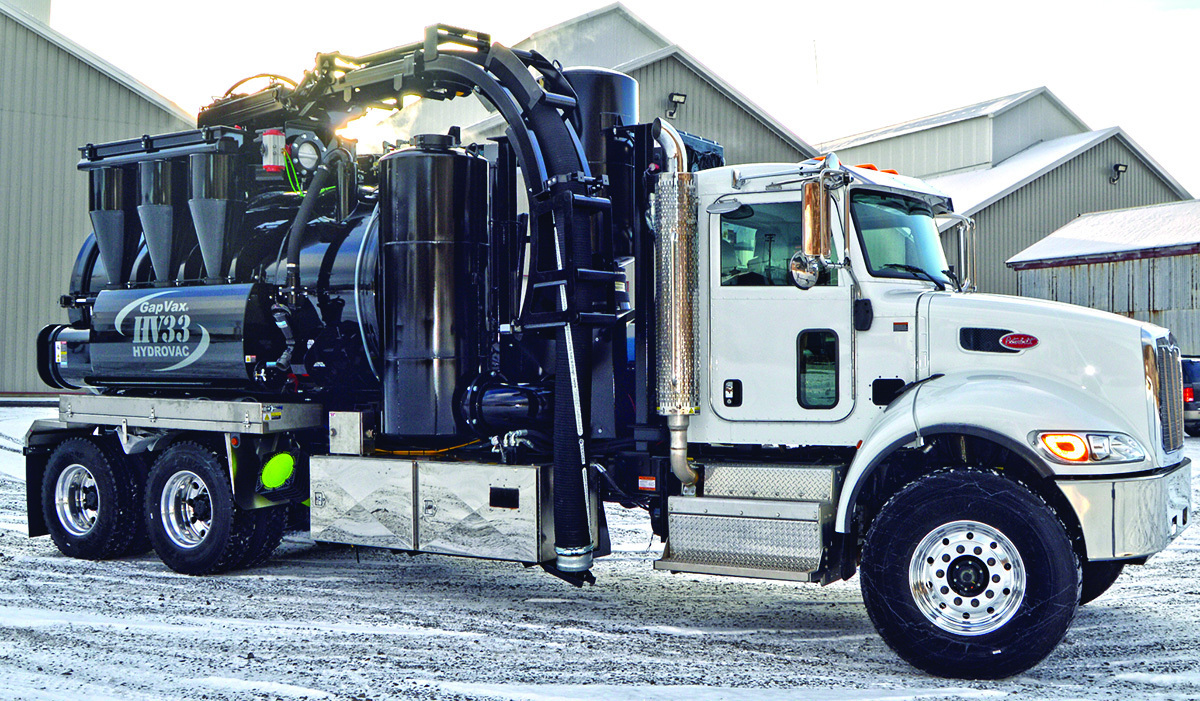

10 // GapVax HV33
Designed to safely transport water and debris in urban areas, the GapVax HV33 is shorter, smaller and more compact than its predecessor. It is 30 feet long overall on a medium-duty chassis and includes a 600-gallon water tank, 6-cubic-yard debris body, 6- or 8-inch top-mounted telescoping boom with a 14- to 17.5-foot reach, 4,000 cfm power and an inverted, full-opening tailgate. 888-442-7829; www.gapvax.com

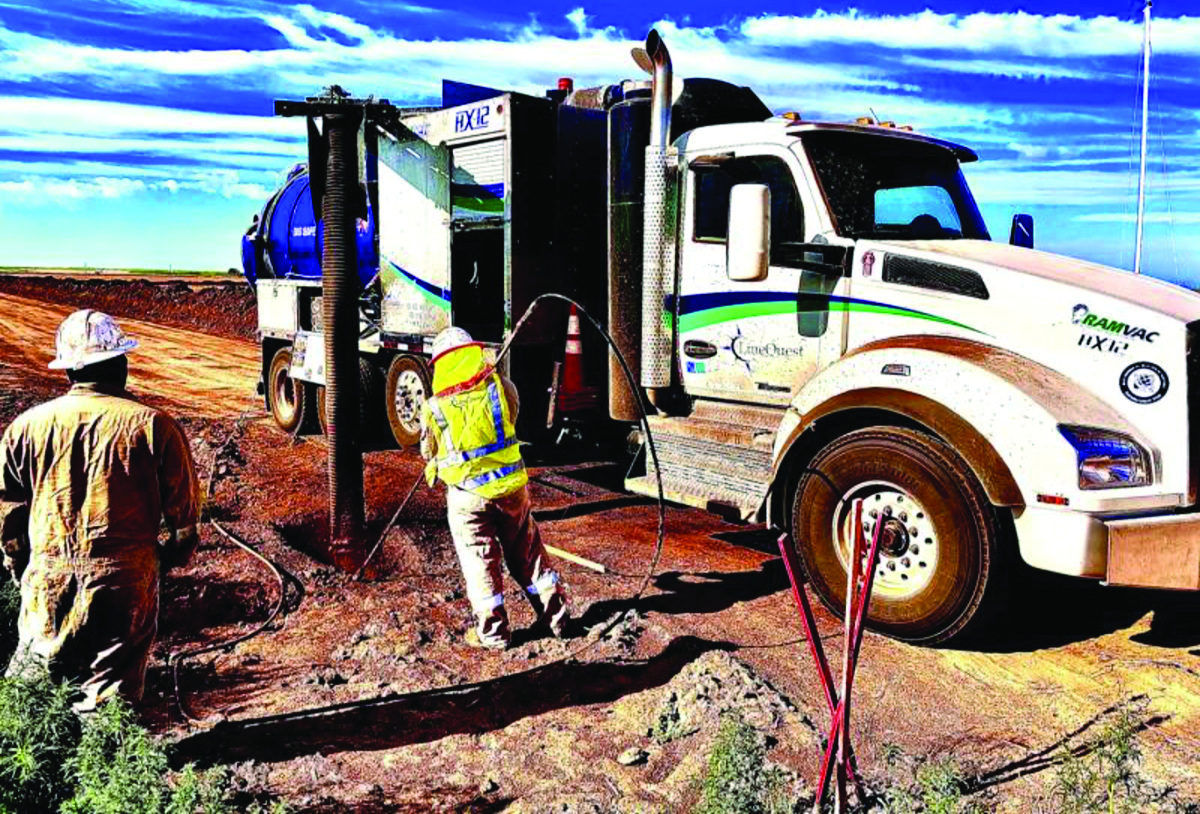

11 // RAMVAC by Sewer Equipment HX-12
The HX-12 hydroexcavator from RAMVAC by Sewer Equipment has a 12-yard debris tank and a heated, secured equipment locker that contains the entire water system, including water tanks, for cold-weather application and tool security. This machine touts a directional discharge system with the ability to off-load debris back into the excavation site when done, without the mess of dumping the tank. This system also allows operators to blow any obstructions out of the dig hose and get back to work. It includes a long-range wireless remote, NEMA 4 electrical system, an 800,000 Btu water heater and a three-stage cyclonic filtration system. The standard 4,400 cfm blower will match the performance of larger blower machines while delivering fuel economy with the ability to go up to 5,400 cfm. The series offers debris capacities from 3 to 15 cubic yards while maintaining a short overall footprint. 877-735-4640; www.ram-vac.com

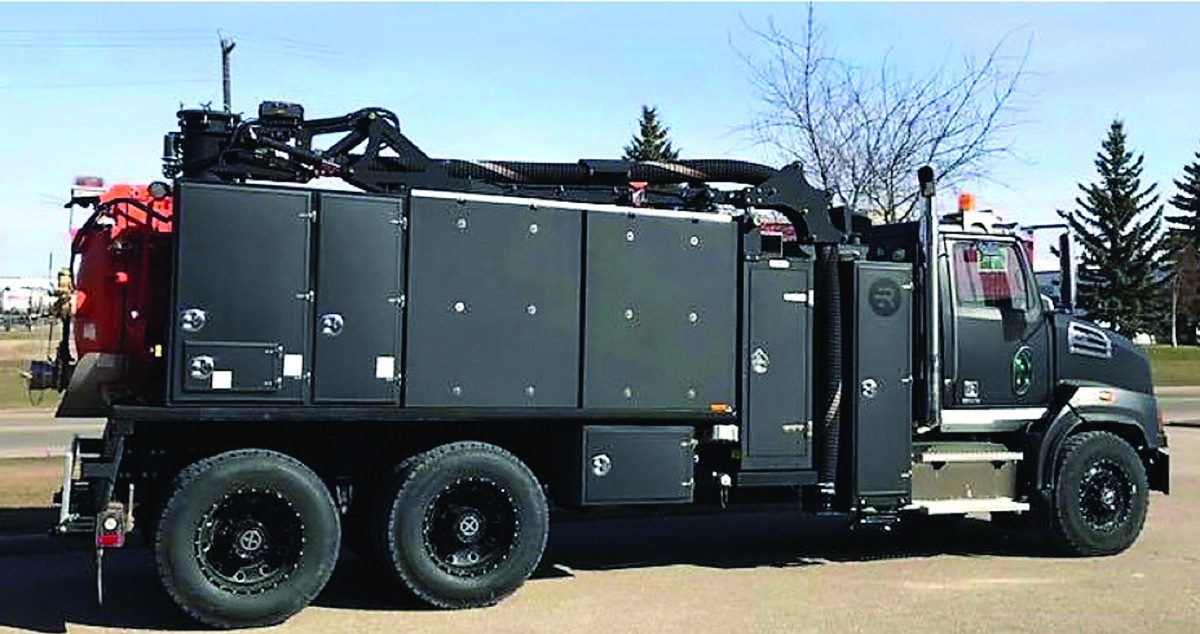

12 // Rival Hydrovac T7 Tandem
The T7 Tandem hydrovac from Rival Hydrovac was designed primarily to be loaded with debris and driven within legislated road limits with most types of debris on board. The unit comes standard with a scale that reads real-time weights both in the cab and on the wireless remote to confirm weights prior to travel. An air option is available on both the T7 and T10 models. These units also have the same hydro system as any other Rival unit. This hydraulically driven compressor runs in both a low- and high-pressure range allowing for 150 psi and 150 cfm for the operating of air tools or 200 psi and 200 cfm for the operating of an air knife. 403-550-7997; www.rivalhydrovac.com

13 // SewerProShop Raven
The Raven hydroexcavation nozzle from SewerProShop has been precision engineered by Intersewer and manufactured to the highest technical standards by ISO 9001:2008 certification in Germany. The weight has the purpose to counteract the high-pressure kickback of the wand. It is constructed from high-grade stainless steel, is threaded, and includes a replaceable ceramic nozzle insert with forward water jet angled at 0 degrees or a fan jet. It is rated for 18 gpm at 4,000 psi up to 80 gpm at 2,500 psi. It includes a 1/2- to 1-inch sewer hose connection. It is operator friendly, with no maintenance required. 877-864-9394; www.sewerproshop.com

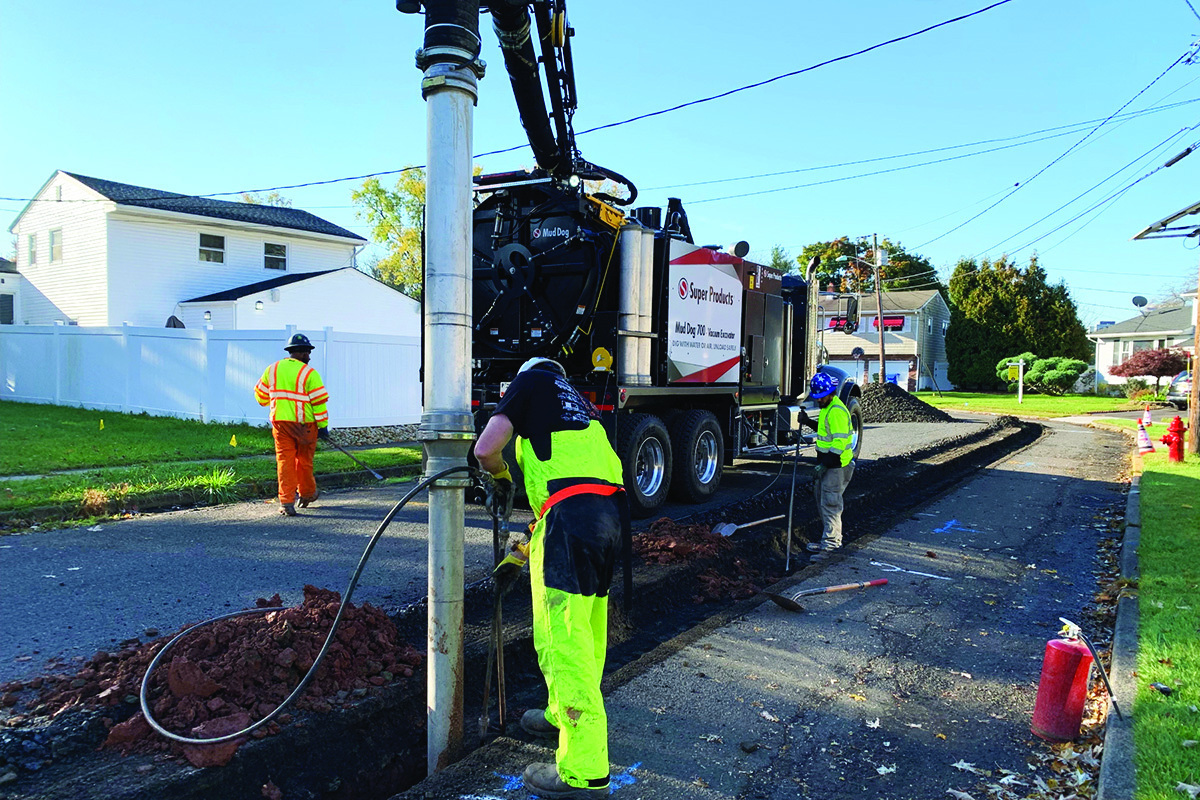

14 // Super Products Mud Dog 700
Mud Dog 700 vacuum excavators from Super Products are designed for operator convenience and consistent performance to meet the challenges of a wide variety of applications from compact, urban projects to large-scale excavation, potholing and trenching projects. Units come standard as hydroexcavators with an optional air excavation package. The product line comes in a variety of model configurations, with the 700 model designed to be a small, compact unit, ideal for urban environments, with 7-yard debris capacity and 600-gallon water tank capacity. This allows for a shorter turning radius and maximum legal payload. This unit comes standard with a dump unloading system with the capability to dump into a 48-inch container. Additionally, it is equipped with a rear mounted, 8-inch-diameter boom that reaches 18 feet, has 270-degree rotation and can move in a 10-degree downward pivot allowing for versatility within dig areas. 800-837-9711; www.superproducts.com

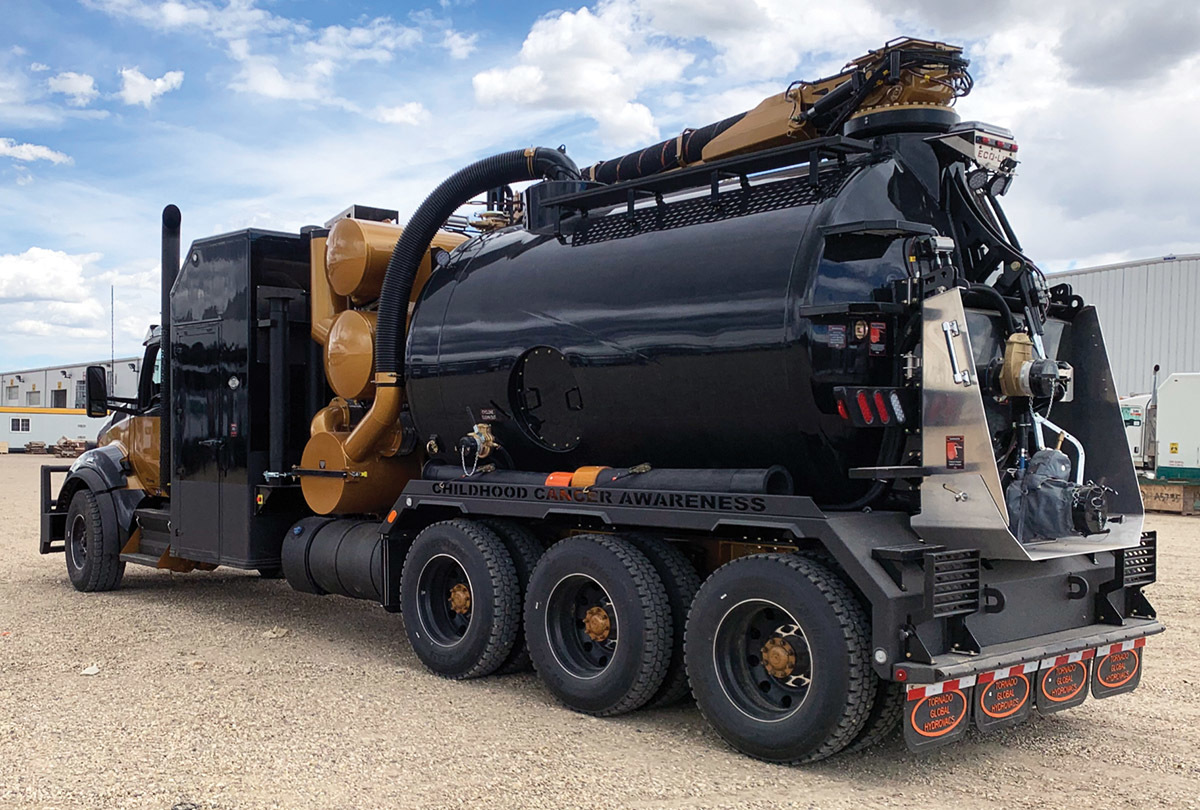

15 // Tornado Global Hydrovacs F4 ECO-LITE
The F4 ECO-LITE from Tornado Global Hydrovacs has a 12-cubic-yard mud tank and holds 1,550 gallons of freshwater. The unit is more than 7,000 pounds lighter than the company’s older models and offers more than double the payload. The boom has a 342-degree rotation and 26-foot reach. The smaller F3 ECO-LITE is a 10-cubic-yard, 1,250-gallon tandem-axle unit that more than doubles older payload capacities. It features an 8-inch boom and 3,800 cfm blower. 877-340-8141; www.tornadotrucks.com

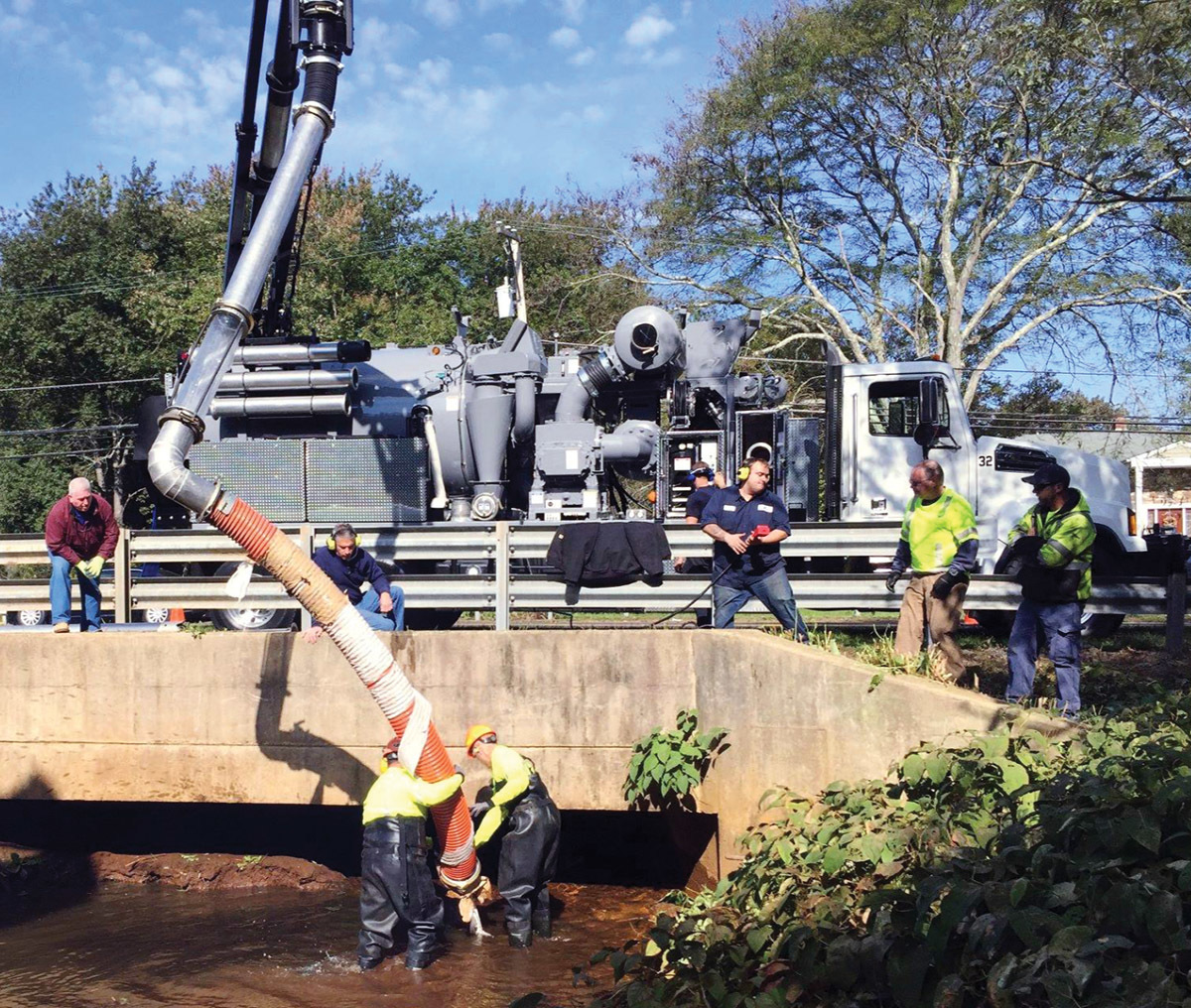

16 // Vac-Con X-Cavator CXT
The X-Cavator CXT hydrovac from Vac-Con is designed to take on hydroexcavation tasks in municipal and utility fields. It offers operators a precise and efficient method for daylighting, locating underground utilities and excavating. It includes simple, operator-friendly features and a range of content options to meet the requirements of any and every customer. This unit is designed to operate on both wet and dry excavation work sites. The standard unit is offered with a three-stage centrifugal compressor, dual cyclonic separators and hydrostatic drive. Popular options include an articulating, rear-mounted PowerFlex boom, air compressors up to 185 cfm equipped with air knife, a Quiet package silencer for the centrifugal compressor, and a full range of positive-displacement blowers. It is available in a 9-, 11- or 12-yard debris tank configuration with 1,100 to 1,300 gallons of water capacity. A range of positive-displacement blowers are also available. 904-284-4200; www.vac-con.com

Pipeline Rehabilitation/Lining

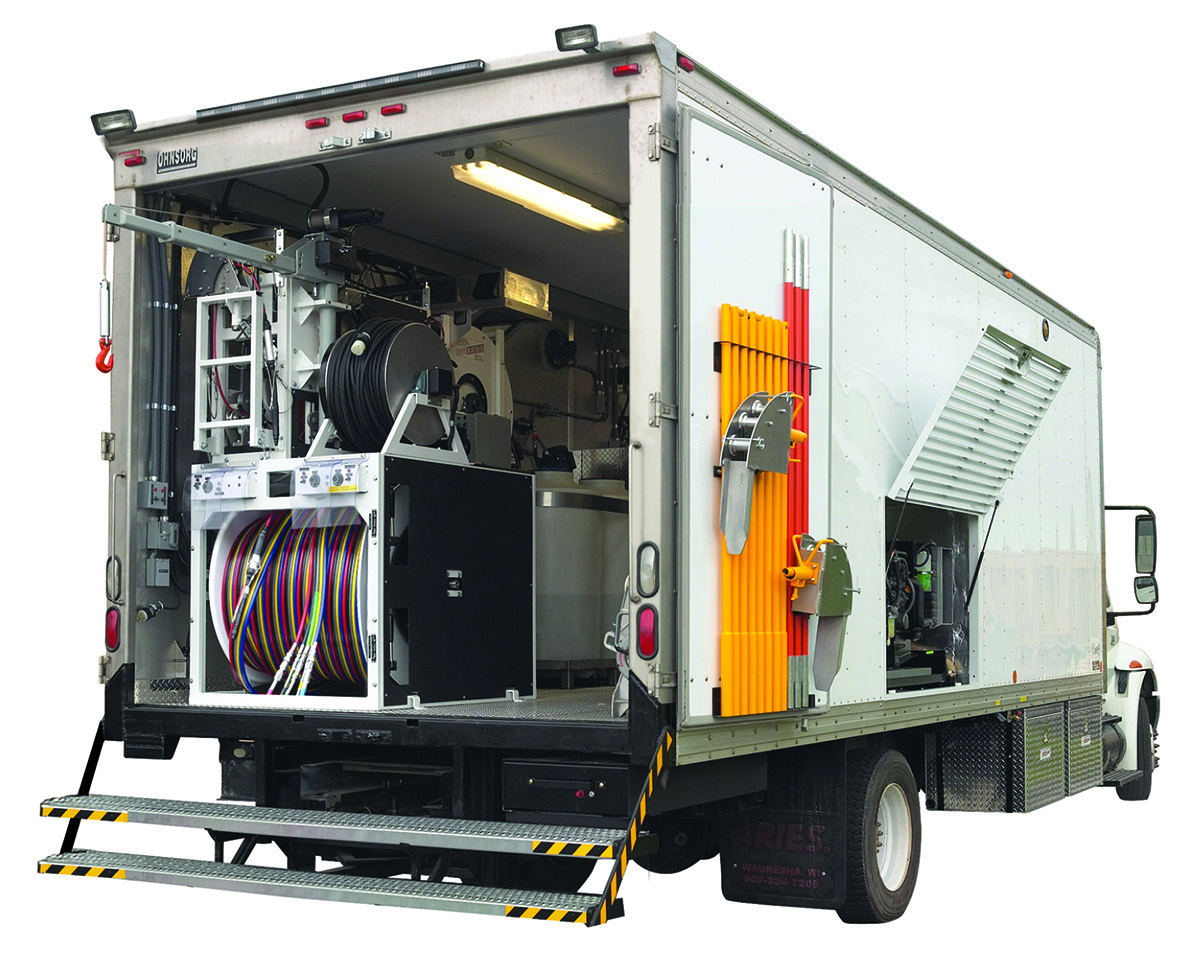

17 // Aries Industries Test and Seal Grouting System
The Test and Seal Grouting System from Aries Industries reduces setup time and provides efficient hands-on control to quickly seal leaking joints. Grout — pumped to a leaking joint — flows through the leak, sealing the surrounding soil to form an impenetrable barrier. Sixty-gallon tanks and continuous-duty mixers provide high volume to seal large voids. Reels for fast deployment and retrieval, as well as high-power winches, quickly move the packer from joint to joint for high productivity. The unit’s 800 feet of color-coded hose allows long runs. The truck comes with a bench, storage and room to work. The operator tests and seals the joints while working in the control room, where test data and the sealing process are easily viewed, recorded and logged. 800-234-7205; www.ariesindustries.com

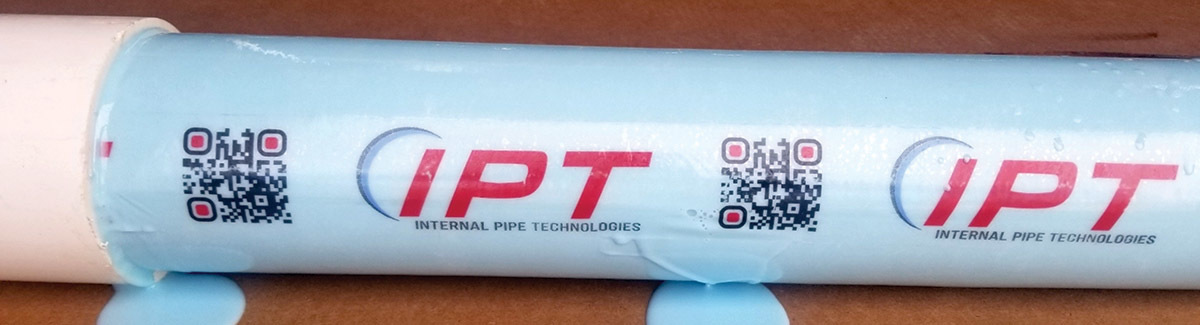

18 // IPT Internal Pipe Technologies Pull-in-Place Pipe Lining System
IPT Internal Pipe Technologies’ Pull-in-Place Pipe Lining System completely rebuilds the horizontal and vertical drainpipes as small as 1 1/2 inches in diameter from the inside with a new pipe made of epoxy resin and felt. Liners can be launched from existing access points to not only seals cracks and leaks but restore sections of pipe that have deteriorated. These pipe systems include vertical sanitary stacks, horizontal sewer mains, branches, roof drains and lateral lines. The company has bridged the gap between technology and technician by utilizing a technique with data streaming, which is available on site to any smart device using QR codes. 888-478-6649; www.internalpipetech.com

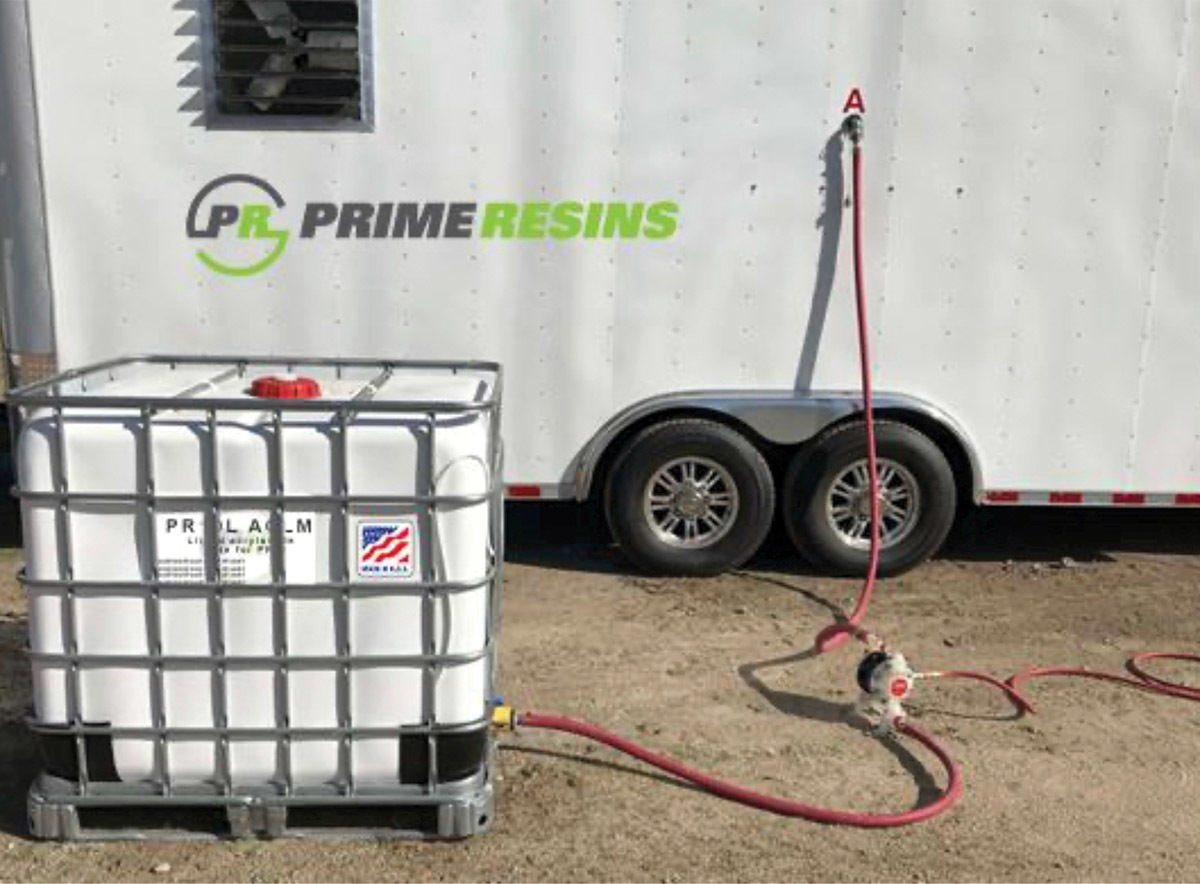

19 // Prime Resins PR10
PR10 acrylamide from Prime Resins is a low-viscosity permeation liquid chemical grout that is injected from within the manhole, wicking into the soil outside or used to curtain-grout the exterior. A high-pressure pump injects grout through the manhole wall into the surrounding soil or is injected directly into the surrounding soil, creating an impermeable barrier. The permeation grout doesn’t expand, but rather saturates the soil immediately outside of the manhole (with a desired gel time) that permanently stabilizes the soil and prevents further groundwater penetration. 800-321-7212; www.primeresins.com

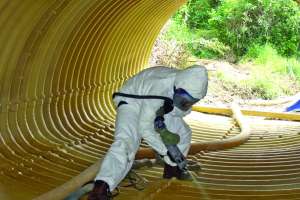

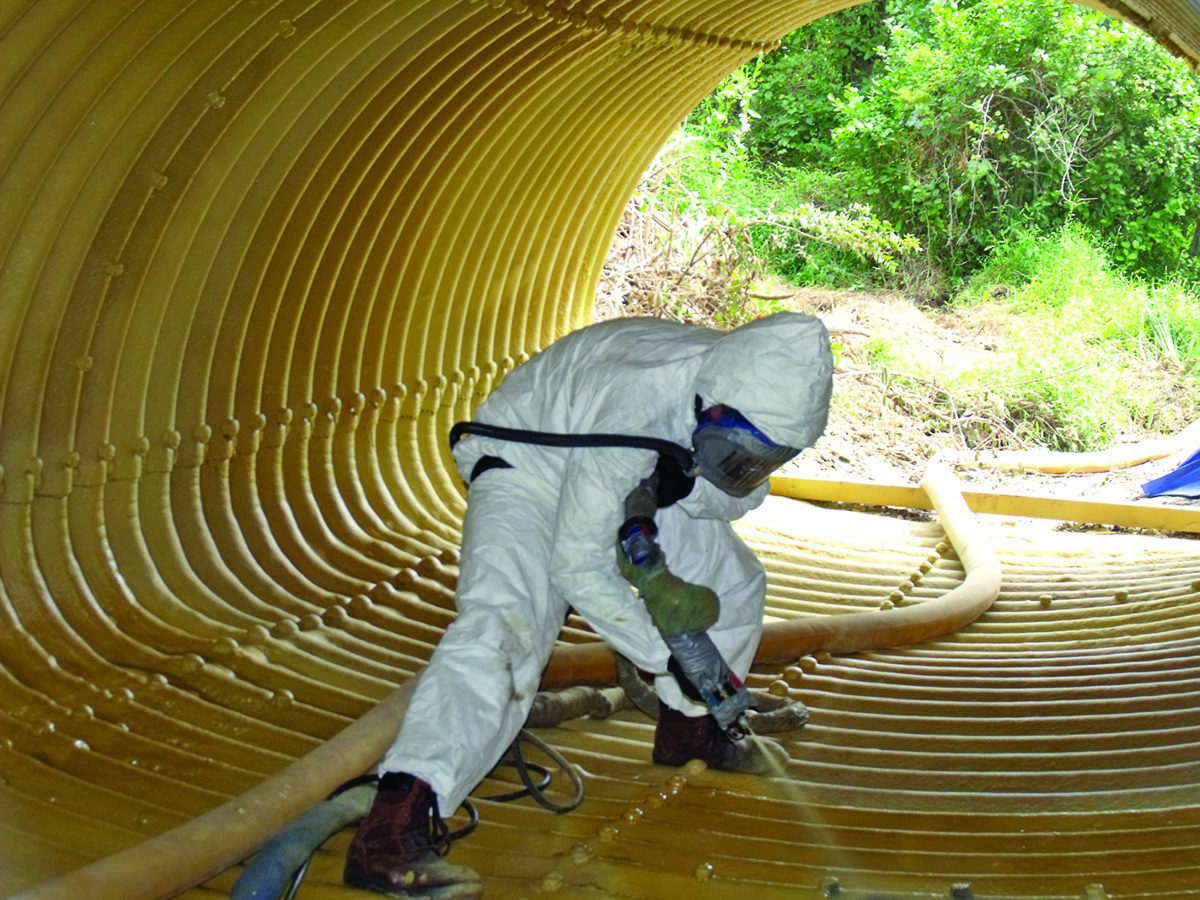

20 // Sprayroq SprayWall
SprayWall from Sprayroq is a rigid polyurethane material that provides structural integrity and infiltration control to underground infrastructure assets. It is a 2-1 ratio product that is applied via a heated, plural component spray system. It begins to gel in about eight seconds and is tack-free after two minutes. Within 30 to 60 minutes, the initial cure is complete and the structure is capable of accepting flow. The benefits include its structural capacity, which provides for protection against multiple load components within an underground asset including water, soil and traffic loads. In addition, it allows an asset owner to return a structure to service quickly, creating a huge savings on bypass cost, as well as decreasing the overall downtime for a given structure. It is also third-party tested and most recently has undergone significant successful evaluations through AASHTO. 205-957-0020; www.sprayroq.com

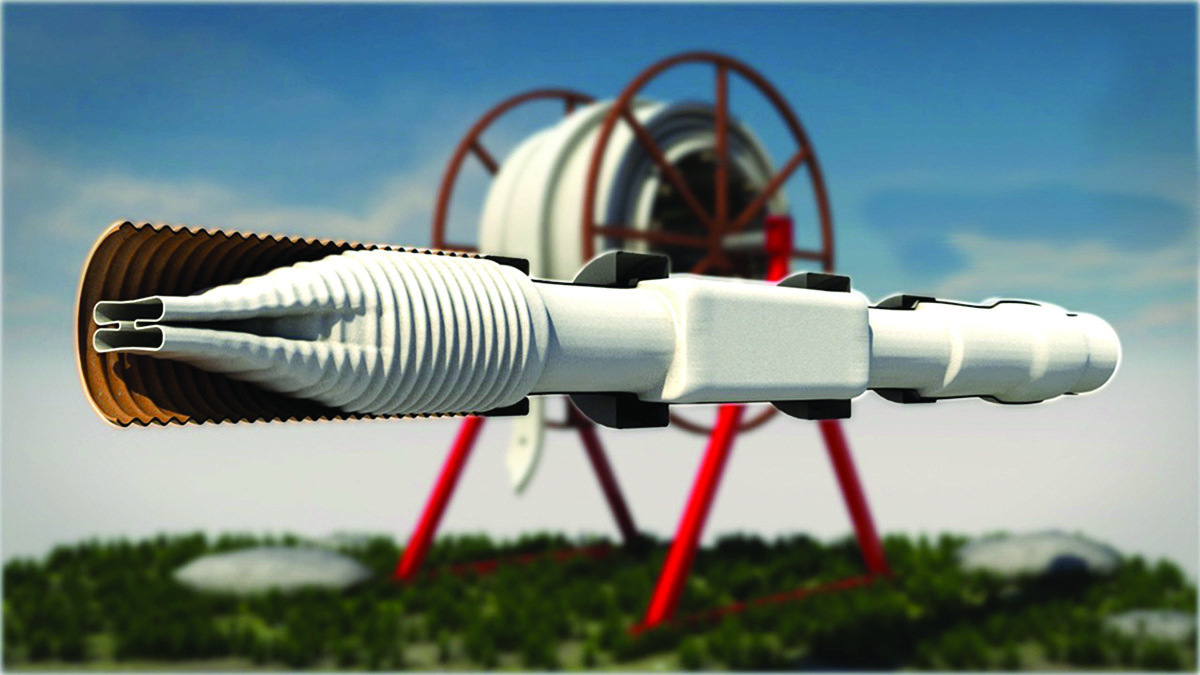

21 // Warrior Trenchless Solutions Thermoform
Thermoform from Warrior Trenchless Solutions is a PVC-alloy structural pipe lining system designed for the trenchless rehabilitation of failing sewer and culvert pipes. It is an environmentally friendly, styrene-free thermoplastic. There are no harmful emissions, and it does not rely on any chemical reaction during installation. Factory-controlled production with rigorous material testing ensures a consistent quality product that conforms to and exceeds the expected standards. The material is highly flexible, allowing it to expand and fit tightly to the host pipe, including changes in shape and dimensions. It is produced in sizes ranging from 4 to 36 inches in diameter, and the wall thickness can be varied according to the application. All installers must be accredited and audited to ensure the highest quality work possible. 716-601-7760; www.thermoformliner.com

Reinstatement Cutters

22 // Apex CIPP Solutions Dancutter Super Flex
The Dancutter Super Flex from Apex CIPP Solutions is a robotic reinstatement cutter that offers continuous 360-degree rotation for optimum use in every pipe material. It is a powerful answer for cutting, milling and grinding pipes and liners 3 to 6 inches in diameter, even with plumbing bends. It is easy for one person to set up and operate. A large full-color display provides a sharp, precise image of the cutter’s position. Rotation and functions such as raising, lowering and running back and forth are operated from the control unit. This flexible, advanced cutter is focused on reliability, simplicity and saving time, which allows the user to quickly move on to the next task. Extensions and accessories including centering tools, cutting heads for various materials and conditions, “grabber” attachment, and VR goggles integrate with the tool. Training is included with purchase. 855-997-0524; www.apexcipp.com

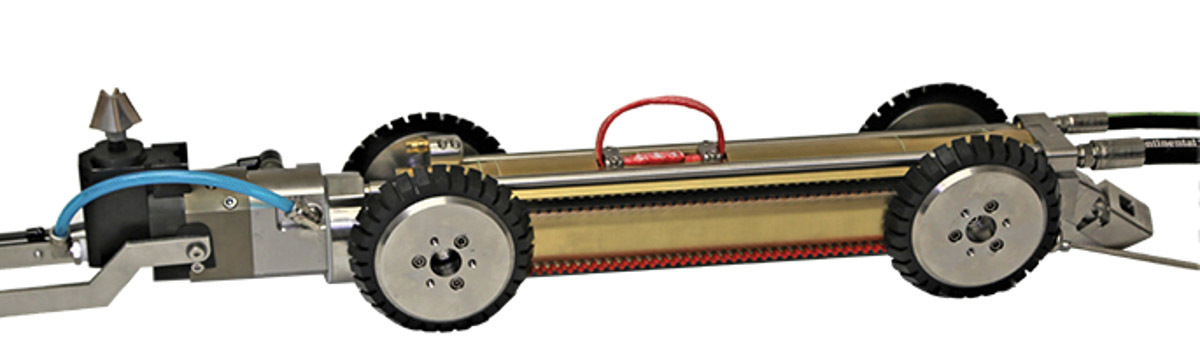

23 // CUES Currahee Cutters
CUES small and large Currahee Cutters are specifically designed to reinstate wastewater service laterals, remove protruding taps and brush finish existing cuts. The cutters function in a range of 5.25- through 36-inch pipe, are equally effective in CIPP or fold-and-form liners and can be installed on any CCTV manufacturer’s truck-mounted system. A 1.9 hp air motor for the small cutter line provides more power, increased productivity and a smoother cut when operating in 6- to 12-inch relined pipe. Kits are available to retrofit existing cutters for use with Kangaroo air motors, and service kits can be purchased for regular maintenance intervals on existing motors. 800-327-7791; www.cuesinc.com

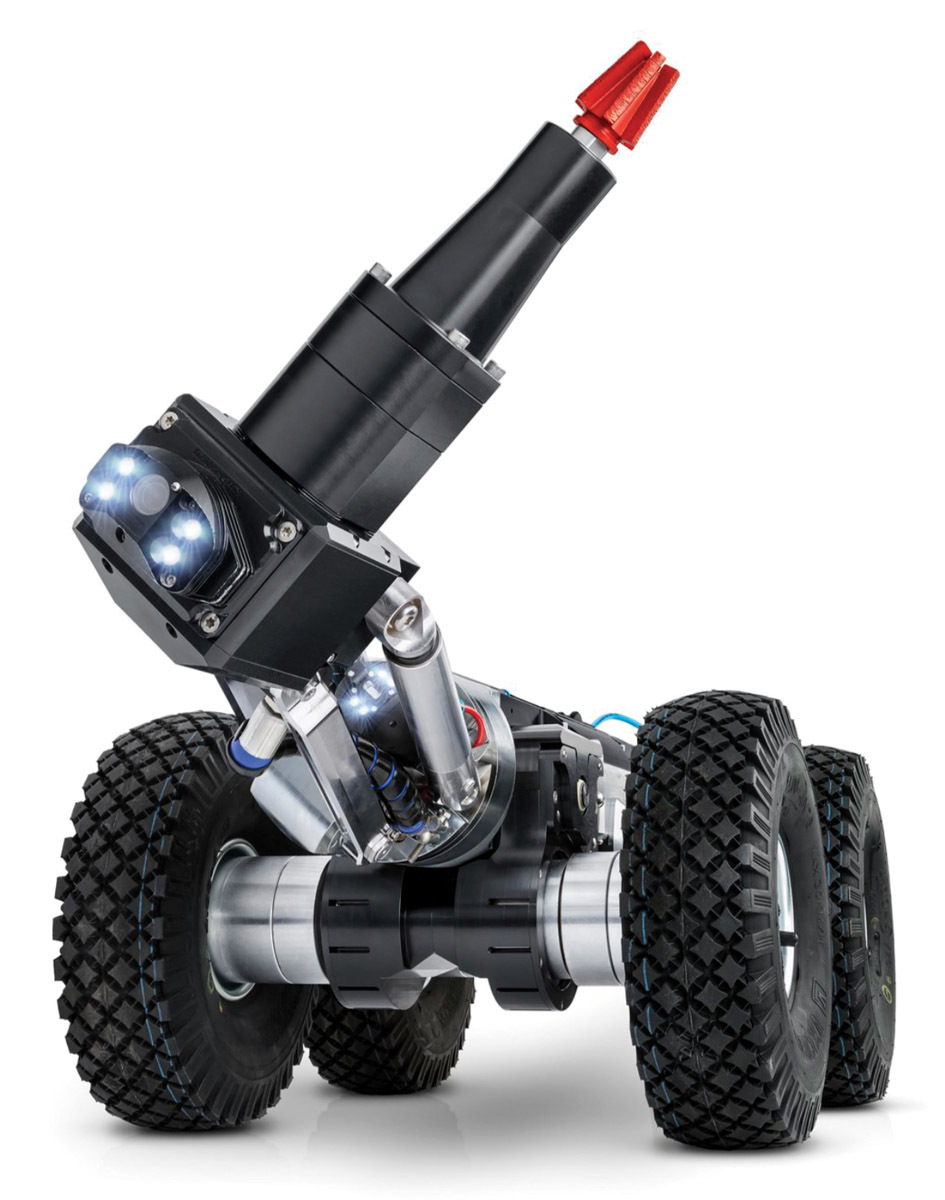

24 // RapidView IBAK North America MicroGator 2.0
The RapidView IBAK North America MicroGator 2.0 reinstatement cutter is equipped with a powerful, yet efficient electric motor. It has a maximum revolution speed of 10,000 rpm while running at 3.5 kW. Its BG 1 motor allows users to install a front-viewing camera that allows a better view to increase forward awareness. The IBAK CutterCam, found directly behind the cutting motor, provides an incredible view of the work area and keeps the lens clean with air-curtain technology. Having these two views paired with fourth-axis articulation provides operators with ultimate control. With cable lengths extending up to 500 feet, interchangeable cutting/grinding bits and the ability to access lines from 8 feet all the way up to 32, it is designed to withstand the toughest jobs. 800-656-4225; www.rapidview.com
