When utility contractors talk about their biggest horizontal directional drilling pain points, disposing of drilling mud is usually near the top of the list.

Drilling mud can be a messy business. It can’t simply be left piled on a public easement or private property once the underground utilities have been installed. Utility contractors are responsible for cleaning up the mud and hauling it away for proper disposal.

To combat this often cumbersome process, advanced technology allows contractors to recycle HDD fluid. By removing large cuttings, rocks, sand and fine particles, the cleaned fluids can be reused throughout the drilling process.

Micro recycling system benefits

In the past, because recycling equipment was typically manufactured for large operations with 100,000 pounds of pullback or higher, smaller utility projects were limited in their recycling efforts. But today, micro recycling systems are making drilling fluid recycling possible on smaller projects. These systems are compact enough to work in urban areas and meet the needs of standard-size directional drills, and can be quickly and easily transported from job site to job site.

Time and resources that were once spent on hauling and disposing drilling mud are now reduced through these compact units.

Contractor savings

The cost of additives and disposal fees for 1,000 gallons of drilling fluid can be $600 or more — and this does not include water and transportation costs. Also, because drilling fluid is being recycled during the pumping process, lower fluid volumes mean fewer additives and less water consumption. For example, an operation with a 30,000 pound pullback drill unit may pump 20,000 gallons of fluid throughout the project. Yet, when a micro recycling system is used, the actual fluid loss may be only 1,500 gallons of drilling fluids throughout the entire operation.

Using fewer additives, water and transportation resources can save contractors hundreds to thousands of dollars throughout the drilling process.

The future for HDD job sites

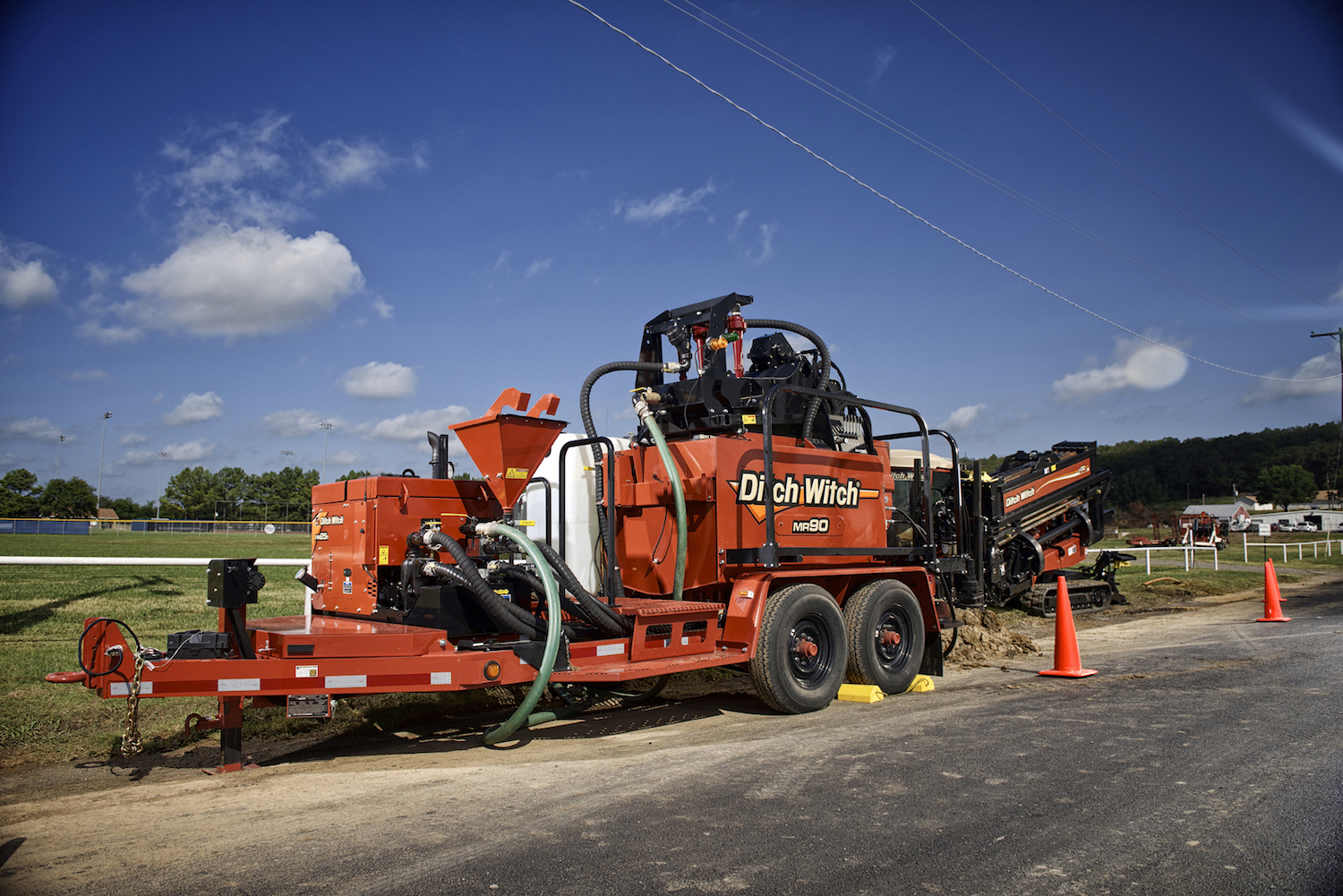

Some units today, such as the Ditch Witch MR90, mix fluids, recycle mud and can be transported full of fluid. These combined components mean utility contractors are handling less tedious disposal steps and ultimately increasing job site productivity.

And although HDD fluid recycling still requires a skilled operator for maximum efficiency, the benefits of increased hole velocity include increased production, improved tooling life and reduced risk of inadvertent returns. For utility contractors, this means fewer trips to haul water supplies and dispose of fluids.

Overall, the recycler’s investment is recovered by the savings achieved, making it an increasingly appealing option for HDD industry professionals.

For more information, please visit www.ditchwitch.com/trenchless/fluid-management/mr90.
