Product News - January 2013

Product News - January 2013
Coxreels brawny reel upgrade

Interested in Relining/Rehab?

Get Relining/Rehab articles, news and videos right in your inbox! Sign up now.

Relining/Rehab + Get Alerts

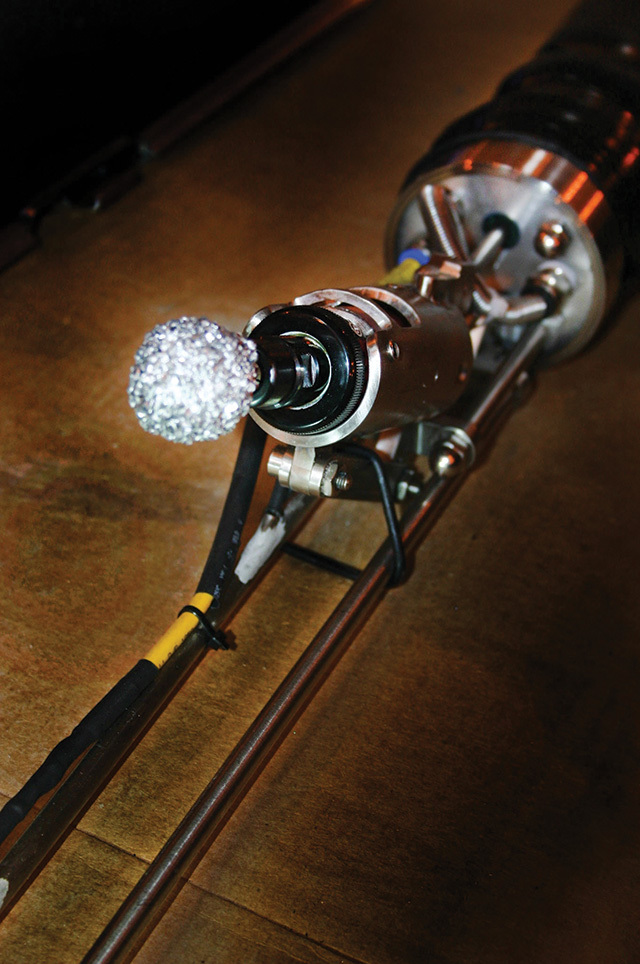

Nu Flow lateral cutter

The Mi-T-Cutter from Nu Flow Technologies is designed to cut open lateral reinstatements from the inside, as opposed to the branch line. It also can be used for opening trapped drains and cutting out hard debris. The unit requires 7-10 cfm of air and operates using a standard 110-volt outlet. The cutter is 32 inches long and is designed for use in 4- to 6-inch pipe. Features include 19-inch viewing screen, 100-foot cable (200- and 300-foot available), three unique cutting heads, separate air line to keep the lens free of debris, and 250-foot video cable for remote viewing. 800/834-9597; www.nuflowtech.com.

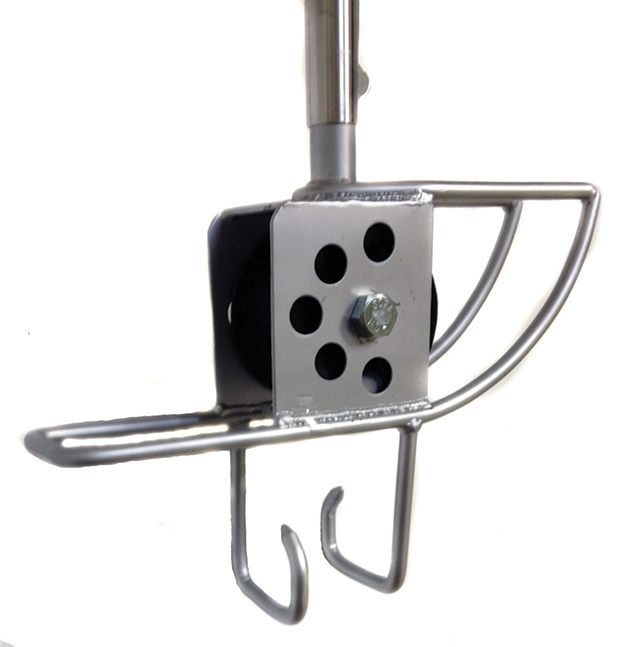

Southland Tool hose grabber, guide roller

The HGR-1 combination hose grabber and guide roller from Southland Tool Mfg. is designed to grab and lower a hose and nozzle into a sewer and guide it into the line, especially drop manholes where the sewer line is above the bottom of the manhole floor. Made of steel with Delrin hose roller, the tool's bottom hooks are heat-treated for extra strength. Weighing 9 pounds, the device connects to a fiberglass (available) or steel pole. 714/632-8198; www.southlandtool.com.

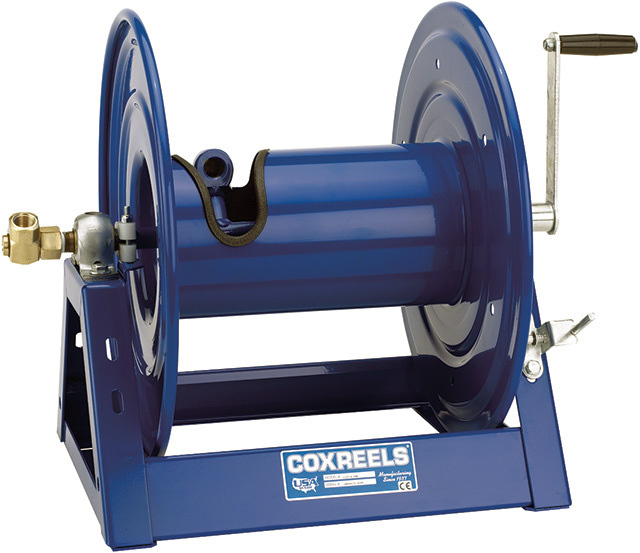

Coxreels Brawny reel upgrade

The Brawny reel upgrade from Coxreels is available for any hand crank and motorized 1125 Series hose reel. The upgrade features an option that strengthens the discs and drum, preventing potential damage under increased pressure. Reels are made from 10-gauge steel plates welded into each disc to keep them from bowing. The center drum is thickened and upgraded from standard 16-gauge to 14-gauge steel to prevent deformation and eventual crushing of the drum, which can be caused by hose pressure. 800/269-7335; www.coxreels.com.

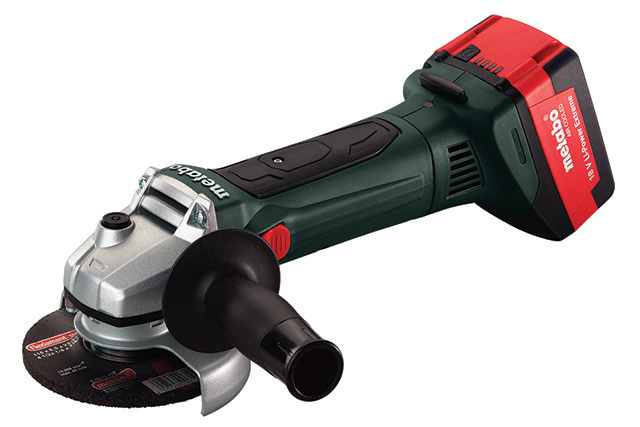

Metabo cordless angle grinder

The W18 LTX professional grade cordless angle grinder from Metabo Corp. is powered by lithium-ion batteries (two Extreme 4.0 Ah or 3.0 Ah) with rotating battery pack. Features include slim motor housing and ergonomic side handle, motor protection with no-volt release switch that protects against unintentional starts when inserting the battery, burst-proof adjustable guard, and electronic shutoff to protect against kickback. Other features include thermal overload protection, electronic soft start for added motor life and air-cooled charging technology for longer battery life. 800/638-2264; www.metabousa.com.

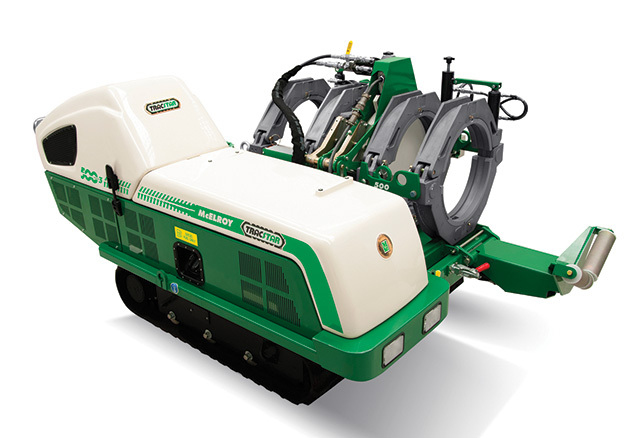

McElroy TracStar Series 3 fusion machine

The TracStar 500 Series 3 fusion machine from McElroy Manufacturing features an indexer-mounted heater and facer, economy engine throttle setting and hydraulic clamping. The machine is capable of fusing thermoplastic pipes from 6-inch IPS to 20-inch outer diameter. The carriage can be removed and lowered into a ditch for fusing in tight locations. An onboard generator powers the heater, while the engine-driven hydraulic pump system provides power for the facer and dual-speed track system. Dual hydraulic pipe lifts help load and unload pipe into the carriage. 918/836-8611; www.mcelroy.com/fusion.

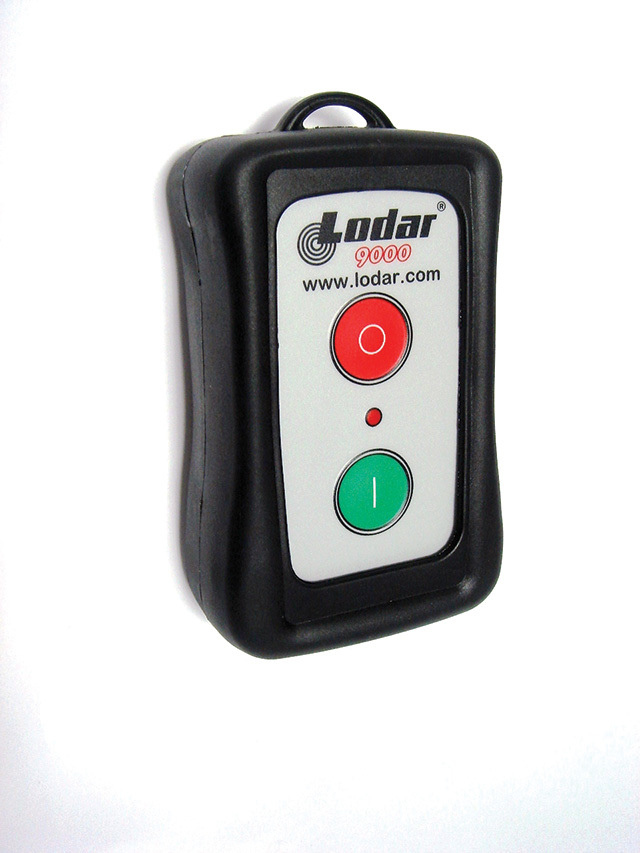

Lodar radio remote control

Radio remote control systems from Lodar enable simple AV or DC on/off switching up to 1,000 feet. The one-function control works with either relay or FET receivers. 877/257-1581; www.lodar.com.

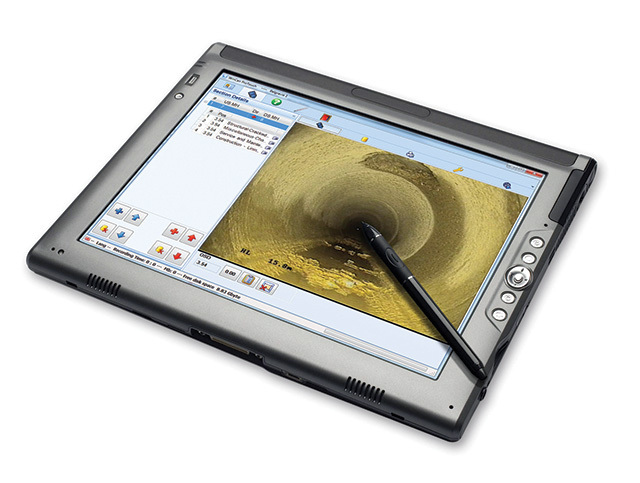

Pipeline Analytics pipe inspection software

WinCan ProTouch pipe inspection software from Pipeline Analytics is designed for touch-screen data entry on a tablet PC using video from a crawler, push camera or zoom survey camera. The program is fully compatible with WinCan v8 and enables users to document manhole, mainline and lateral inspections. It generates basic manhole-to-manhole reports that include schematics and captured images. It also can export inspections to freely distributed viewable software so clients can review video alongside section detail. 877/626-8386; www.pipelineanalytics.com.
